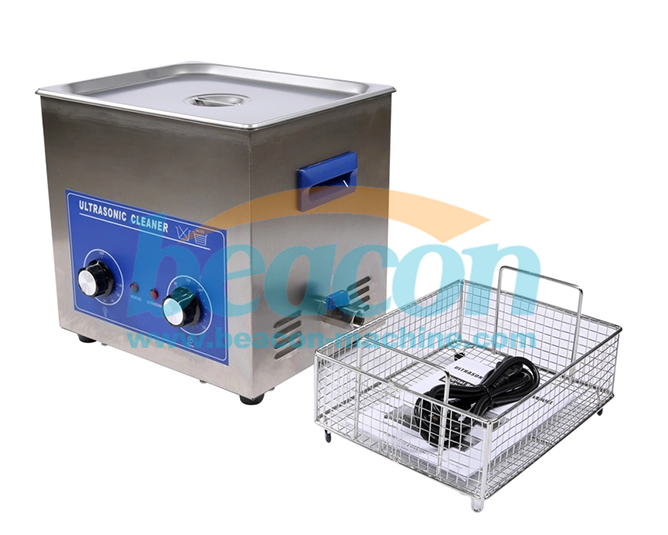

Ultrasonic diesel fuel injector cleaning machine

ultrasonic diesel fuel injector cleaning machine

0086-18253885135

info@beacon-machine.com


Make an inquiry

FEATURE:

1, Time set: 0~30 mins mechanical timer
2, Temperature  set: 20~80℃mechanical heater
3, Material: good quality stainless steel
4, Feture: purge tank moulded by punch, without any gap
5, Drainage system: styles with 6L above was installed drainage ball valve.
6, Heat dissipation: styles with 10L above was installed heat dissipation fan.
7, Power control: 40~100% power control
8, Certification: CE,EMC,ROHS,FCC

Model AR-20A
Power 120W
Capacity 3.2L

Tank size

240*135*100mm

Packaging

340*250*330mm
Weight 3.5Kg

All the models of ULTRASONIC TANK CLEANER

Model Name Power(W) Capacity(L) Tank size(mm) Packaging(mm) Weight(Kg)
AR-08  70  1.3  150*135*65  250*250*310  2.0
AR-08A  60  1.3  150*135*65  250*250*310  2.0
AR-10  70  2.0  150*135*100  250*250*310  2.5
AR-10A  70  2.0  150*135*100  250*250*310  2.5
AR-20  120  3.2  240*135*100  340*250*330  3.5
AR-20A  120   3.2  240*135*100  340*250*330  3.5
AR-20AL  120  3.2  240*135*100  340*250*330  4.0
AR-30  180  6.5  300*150*150  410*260*400  5.0
AR-30A  180  6.5  300*150*150  410*260*400  5.0
AR-30AL  180  6.5  300*150*150  410*260*400  5.5
AR-40   240  10  300*240*150  410*350*390  8.0
AR-40A   240  10  300*240*150  410*350*390  8.5
AR-40AL   240  10  300*240*150  410*350*390  8.5
AR-60   360  15  330*300*150  480*430*440  10
AR-60A   360  15  330*300*150  480*430*440  10
AR-60AL   360  15  330*300*150  480*430*440  10.5
AR-80   480  22  500*300*150  640*400*400  13
AR-80A   480  22  500*300*150  640*400*400  13
AR-80AL   480  22  500*300*150  640*400*400  13.5
AR-100   600  30  500*300*200  640*400*450  16
AR-100A   600  30  500*300*200  640*400*450  16
AR-100AL   600  30  500*300*200  640*400*450  18.5
AR-120AL   720  35  500*300*250  640*400*600  26
AR-180AL   1080  55  550*350*300  700*450*650  36
AR-240AL   1440  80  600*400*350  750*500*700  48
