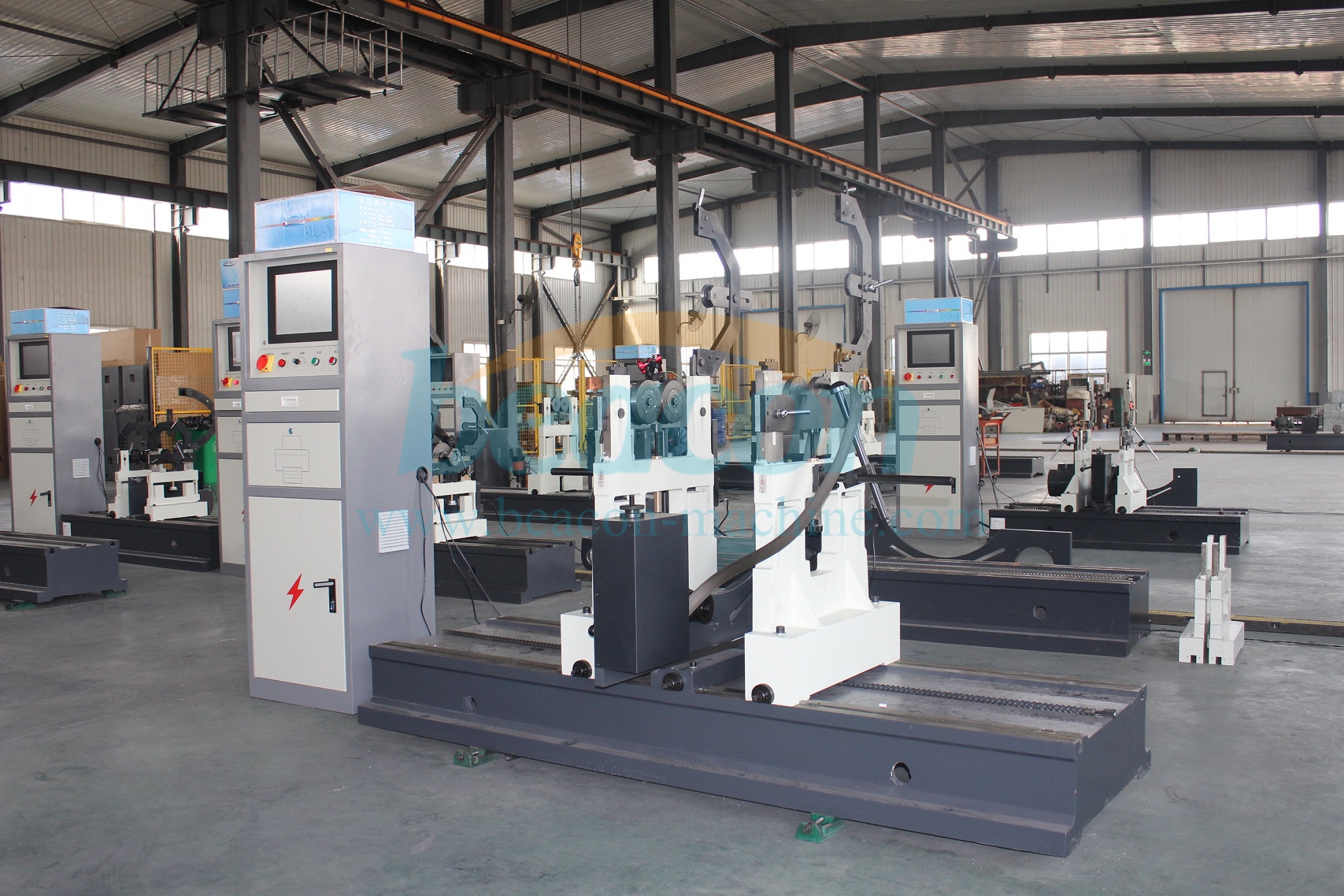

1.Specially designed brackets transmit mechanical force with low vibration damping
2.Durable and reliable sensor possesses good linearity
3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4.Belt-driving offers higher precision and easier operation
5.Advanced electrical measuring system and friendly man-machine interface
6.Modular design offers a wide range of application
7.YYQ series are applicable for balancing rotating parts of motor, fan impeller, pump impeller, turbocharger, crankshaft, centrifuge, roller, spindle etc
|
Model |
YYQ-100 |
YYQ-200 |
YYQ-300 |
YYQ-500 |
YYQ-1000 |
|
Mass of workpiece:kg |
1-100 |
2-200 |
5-300 |
10-500 |
10-1000 |
|
Max.diameter of workpiece:mm |
Φ900 |
Φ1000 |
Φ1200 |
Φ1600 |
Φ1600 |
|
Distance between two supporting mm |
800-1100 |
100-1100 |
150-1500 |
150-1500 |
150-2600 |
|
Shaft diameter range: mm |
Φ10-90 |
Φ10-90 |
Φ20-90 |
Φ20-130 |
Φ20-130 |
|
|
|
Φ90-180Optional |
Φ90-180Optional |
Φ120-240Optional |
Φ120-240Optional |
|
Diameter range at the lap belt drag:mm |
Φ30-300 |
Φ30-300 |
Φ30-450 |
Φ40-500 |
Φ40-650 |
|
Balancing speed: r/min |
300-2500 |
300-2500 |
300-2500 |
300-2500 |
180-2500 |
|
Min. achievable residual unbalance: gmm/kg |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
|
unbalance reduction ratio: % |
≥90 |
≥90 |
≥90 |
≥90 |
≥90 |
|
Driver power: KW |
1.5 |
1.5 |
4.0 |
4.0 |
5.5 |
|
speed adjustment mode: |
Frequency |
Frequency |
Frequency |
Frequency |
Frequency |
