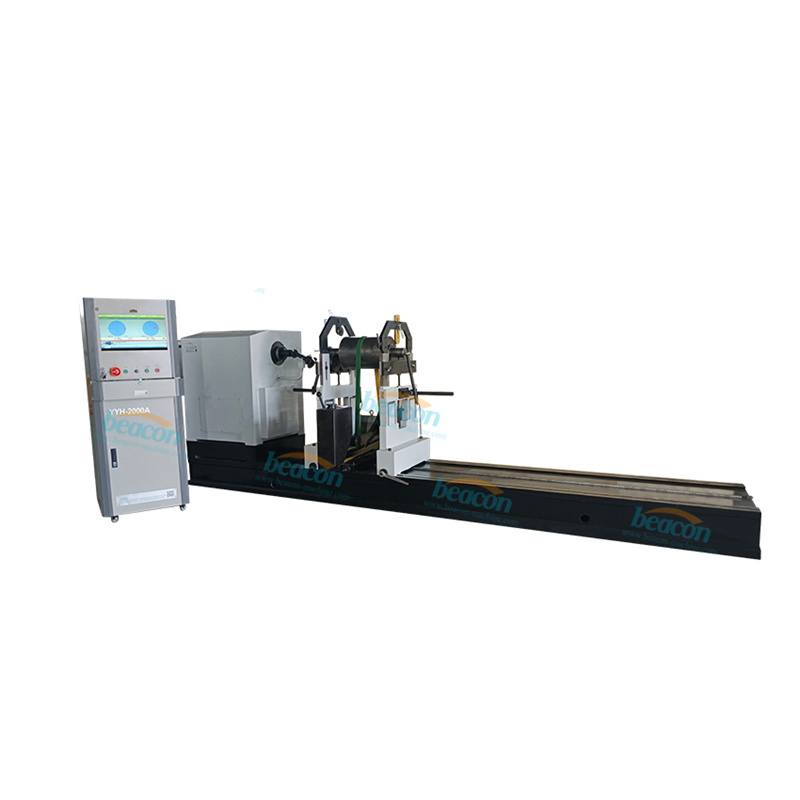

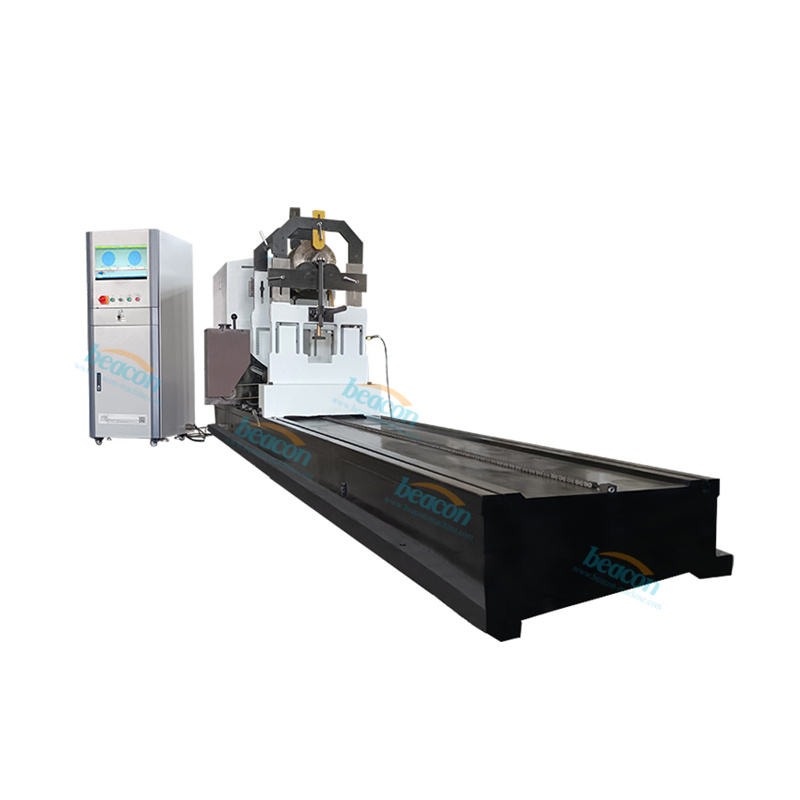

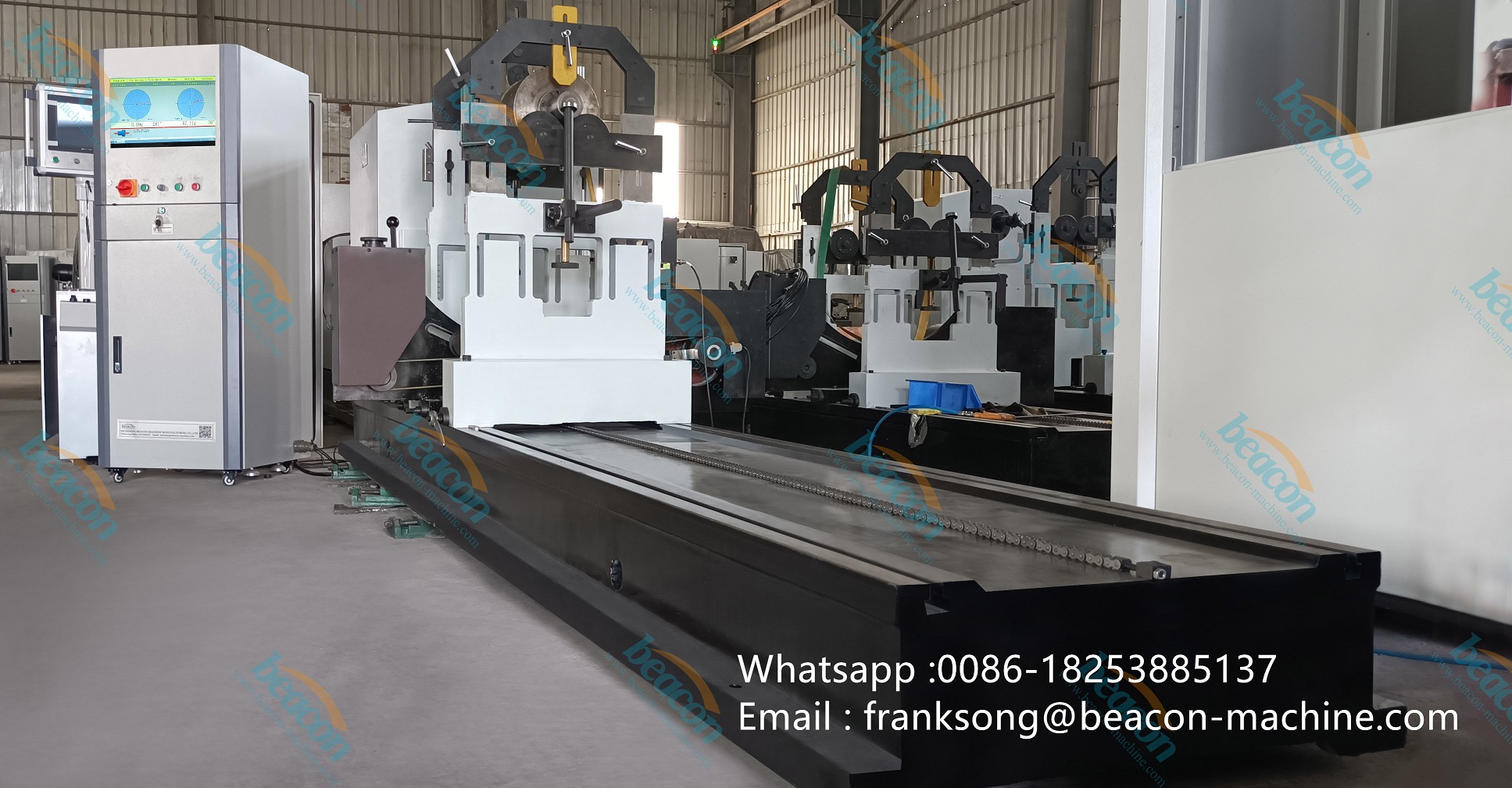

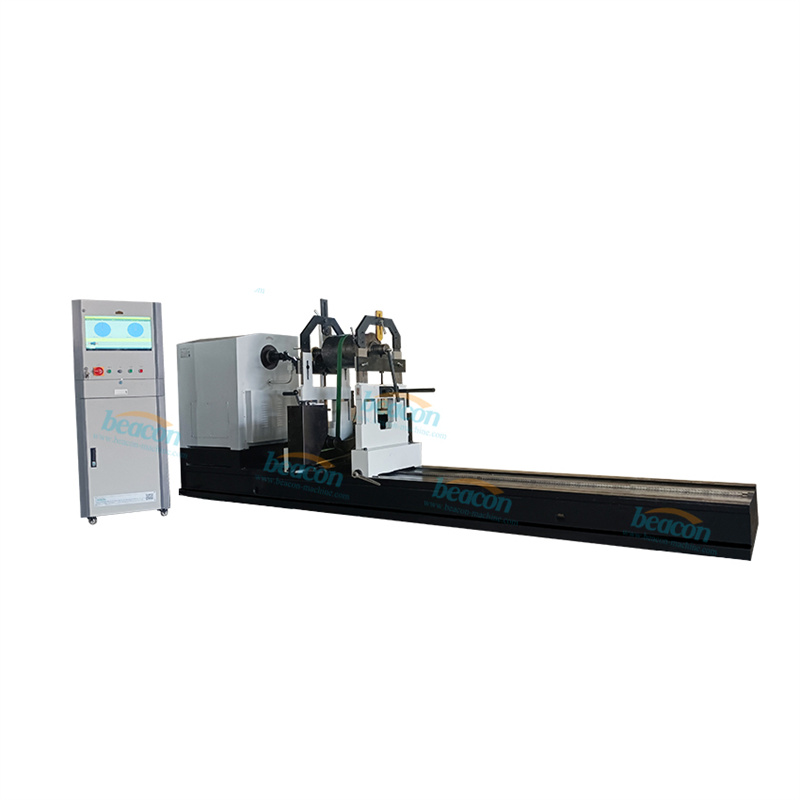

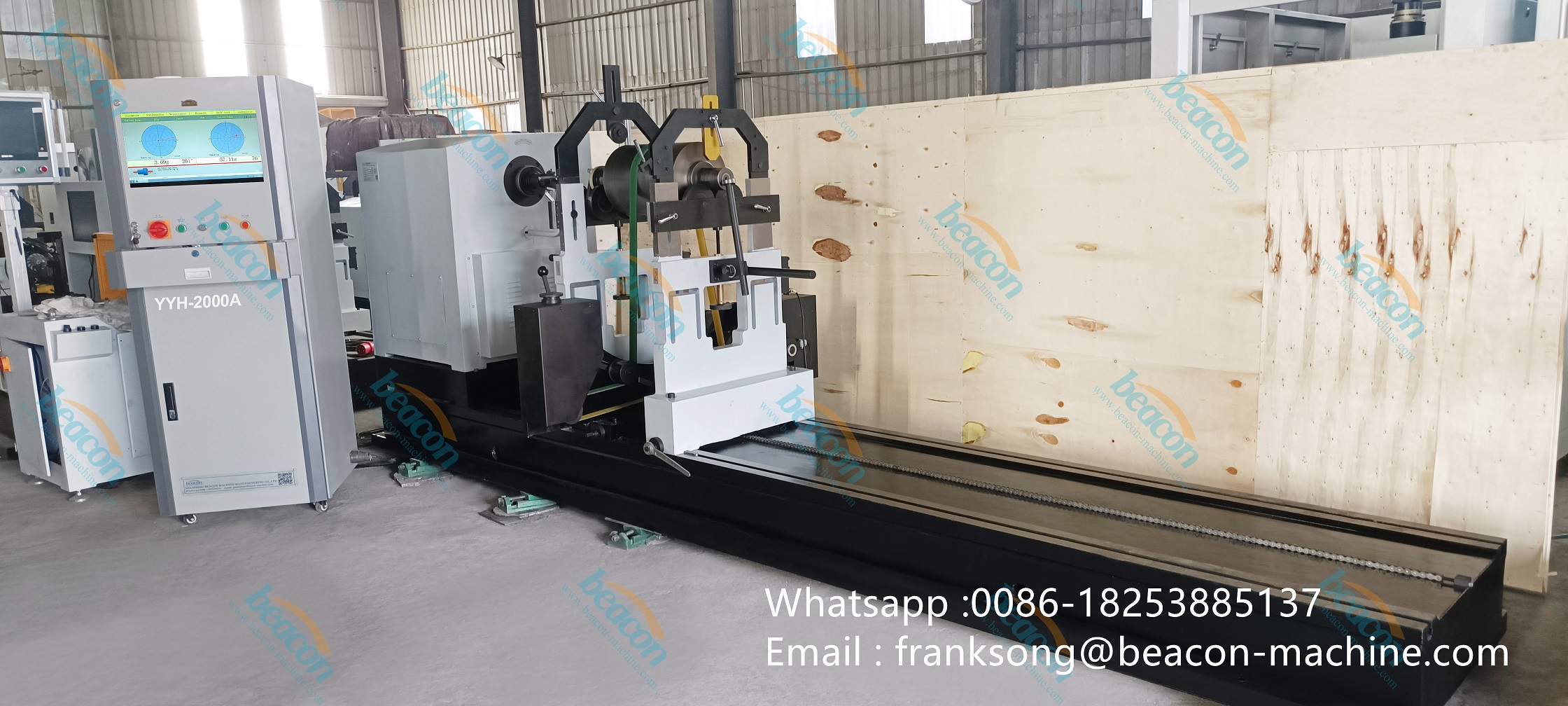

YYW-300 hard bearing dynamic balancing machine
0086-18253885135
industrial control computer 19-inch LCD color screen display
-Widows in the English system double choose
-equipped with GB-2000 Universal microcomputer balance measuring system
-automatic programmable amplifier module
- any artifacts scaling function, arbitrary angle compensation jig and workpiece information storage
-qualified quantity display, measurement period adjustment
-signal automatic zoom and manual zoom adjustment, signal self-test, automatic diagnosis
-vector graphics, waveforms and unbalance, also shows
-residual imbalance kg, g, mg and unbalanced torque g. Cm, g .mm choose to display
- Optional features
1, the automatic tracking function equilibrium angle
2, the automatic parking function
3, the vector angle decomposition function
Features: This series is a hard-bearing horizontal balancing machines, with roller bearing, universal coupling drive, ordinary type of two-speed motor drive, "A" type of variable frequency motor plus inverter speed, industrial control computer Data processing, color screen real-time display unbalance value, phase angle and real-time speed, overall casting bed are used, good stability. Widely used in electric motors, blowers, diesel engines, agricultural machinery, textile machinery and other industries, can be conducted in single, double and multiple correct balance measurement surface, suitable for shafts, disc type and gravity overhanging rotor. With high efficiency, precision, intuitive display, reliable quality, easy maintenance features, software and standards with ordinary piece rotor two calibration function, to overcome the other hard bearing balancing machine measuring system difficult for users to calibrate the equipment on their own shortcomings, and there are coupling compensation and other measuring methods and functions available, enabling parameter input, preview, test, results are stored, printed, operate in all Chinese menu structure, man-machine dialogue, automatically prompts.
Model
YYW-200
YYW-300
YYW-500
YYW-1000
YYW-1600
Working piece quantity range:
kg
5-200
10-300
20-500
20-1000
30-1600
Working piece diameter:
mm
Φ1000
Φ1200
Φ1600
Φ1600
Φ1800
Distance between two supporting
mm
60-1500
60-2100
70-2100
70-2100
100-2700
Shaft diameter range:
mm
Φ10-90
Φ20-90
Φ20-130
Φ20-130
Φ20-130
Φ90-180
(Optional)
Φ90-180
(Optional)
Φ120-240
(Optional)
Φ120-240
(Optional)
Φ120-240
(Optional)
Balancing speed:
r/min
300-1500
300-1500
300-1500
300-1500
300-1500
Min. achievable residual unbalance:
gmm/kg
≤1
≤1
≤1
≤1
≤1
unbalance reduction ratio:
%
≥90
≥90
≥90
≥90
≥90
Driver power:
KW
2.2
5.5
5.5
7.5
11
speed adjustment mode:
Frequency
Frequency
Frequency
Frequency
Frequency
