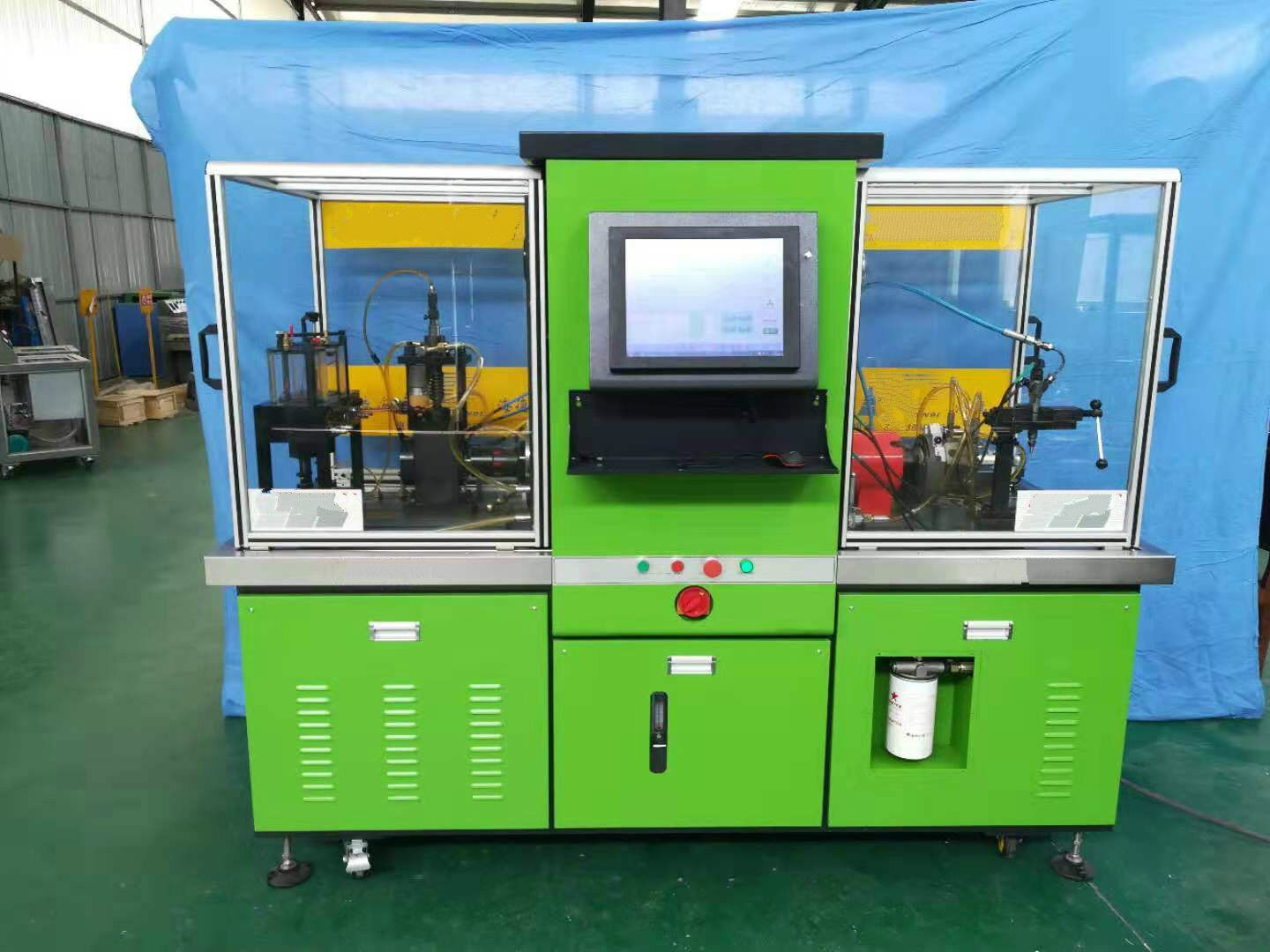

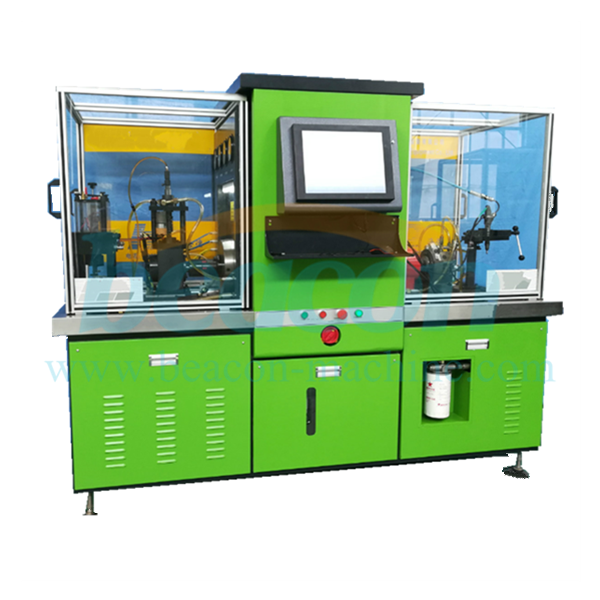

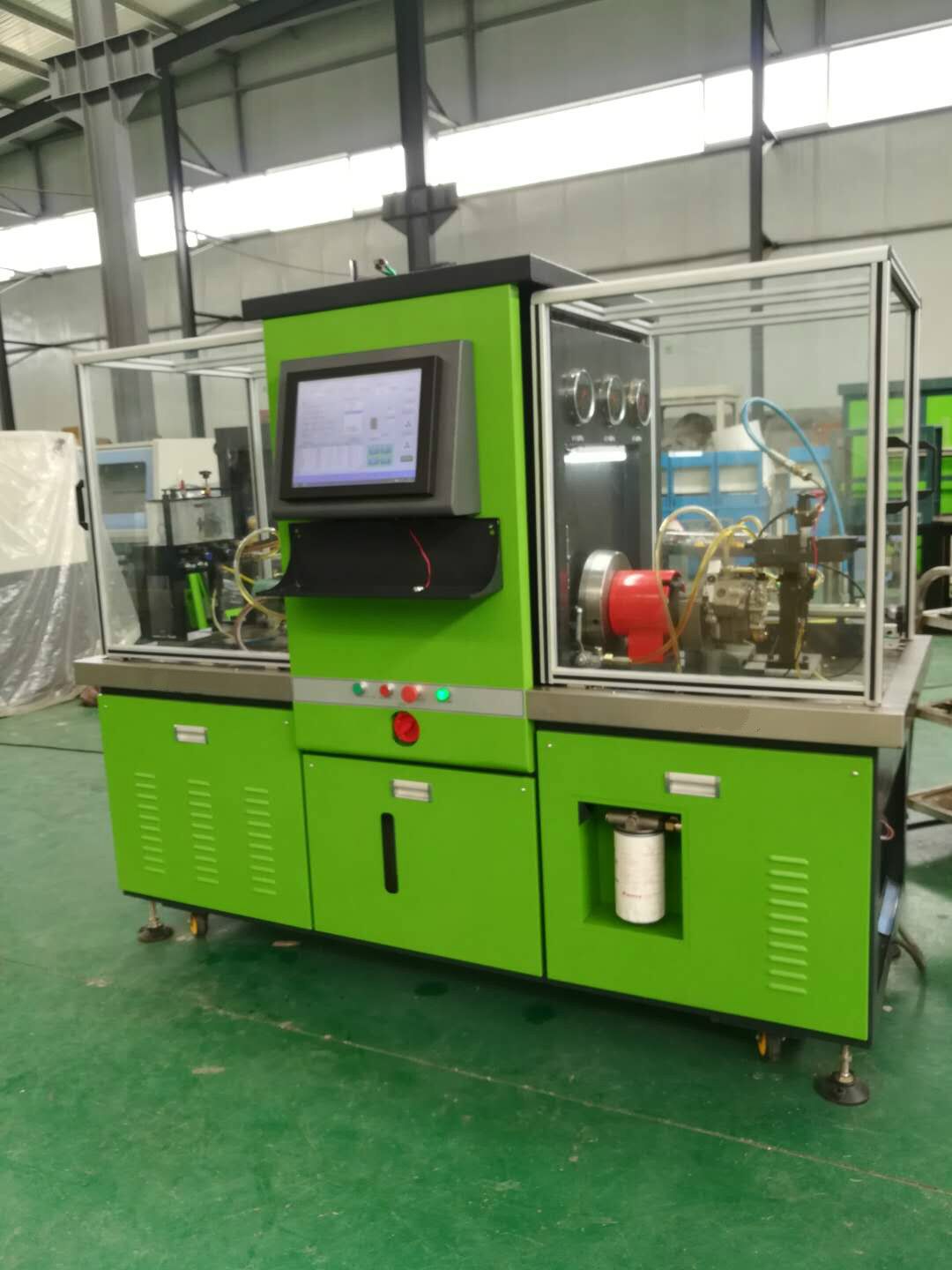

Beacon CR916S Multifunction Diagnostics Equipment Common Rail Diesel Fuel Injection Pump Test Bench With Coding Function

CR916S Common Rail Test Bench Application

Mainly test for common rail pump and injector.Also it is continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of re-productivity of the measured value.

professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.

Specialized test bench for Common Rail testing:

1.Common Rail System:

2.Solenoid valve CRI Bosch / Delphi / Denso

3.Solenoid valve CRIN Bosch

4.Piezo CRI Bosch / Siemens / Denso

5.With test data and test plan.

6.It also can test common rail injectors

CR916S Common Rail Test Bench Technical Parameters

1.Motor power: 7.5KW, 11KW, 15KW, 18.5KW

2.Electronic power: 3 PHASE 380V or 3 PHASE 220V

3.Motor speed: 0-4000RPM

4.Pressure adjustment: 0-2000bar

5.Flow testing range: 0-600ml/1000times

6.Flow measurement accuracy:0.1ml

7.Temperature range: 40±2

8.Cooling system: fan or forced cooling

CR916S Common Rail Injector , HEUI , EUI/EUP CAMBOX Test Bench Function

1.Common rail injector testing of BOSCH DENSO DELPHI SIEMENS and PIEZO, the common rail injector testing can also testing by glass tube .

2.HEUI Injector testing of CAT C7/C9/C-9, CAT3126.

3.EUI/EUP CAMBOX testing of Detroit ,CUMMINS, VOLVO, CATERPILLAR, DELPHI , SCANIA, AUDI ect.
