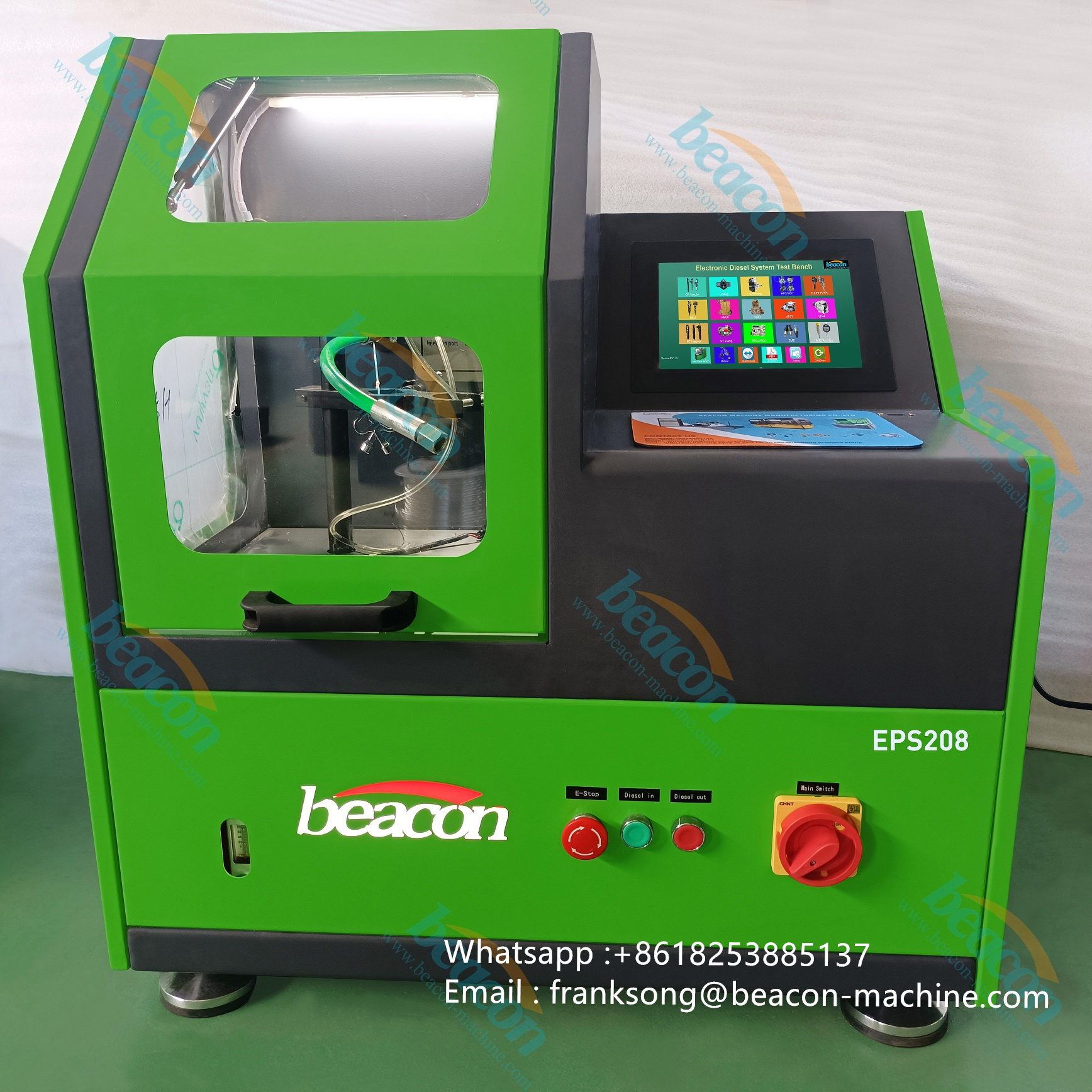

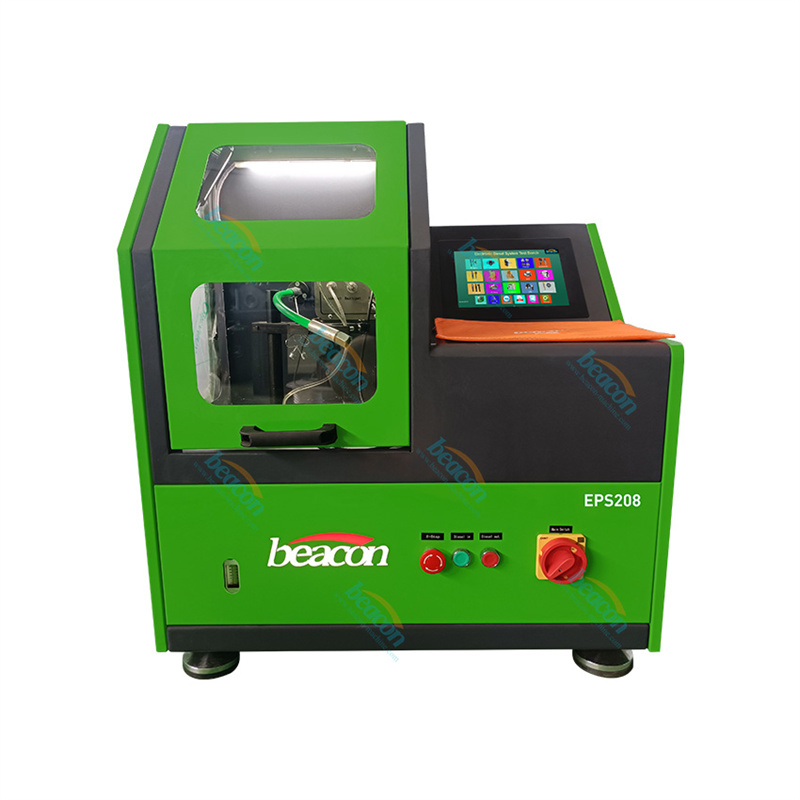

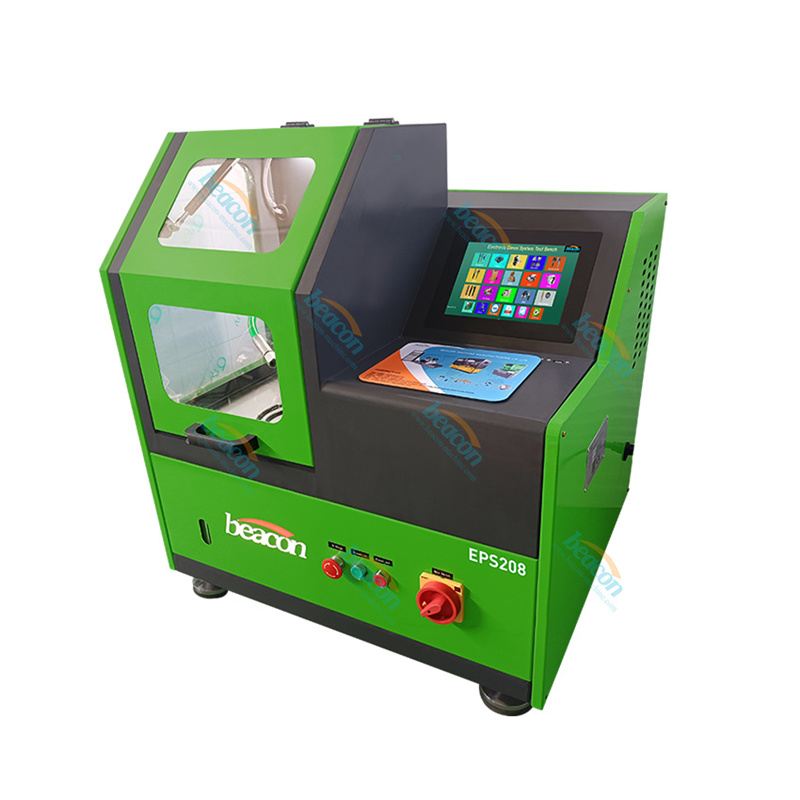

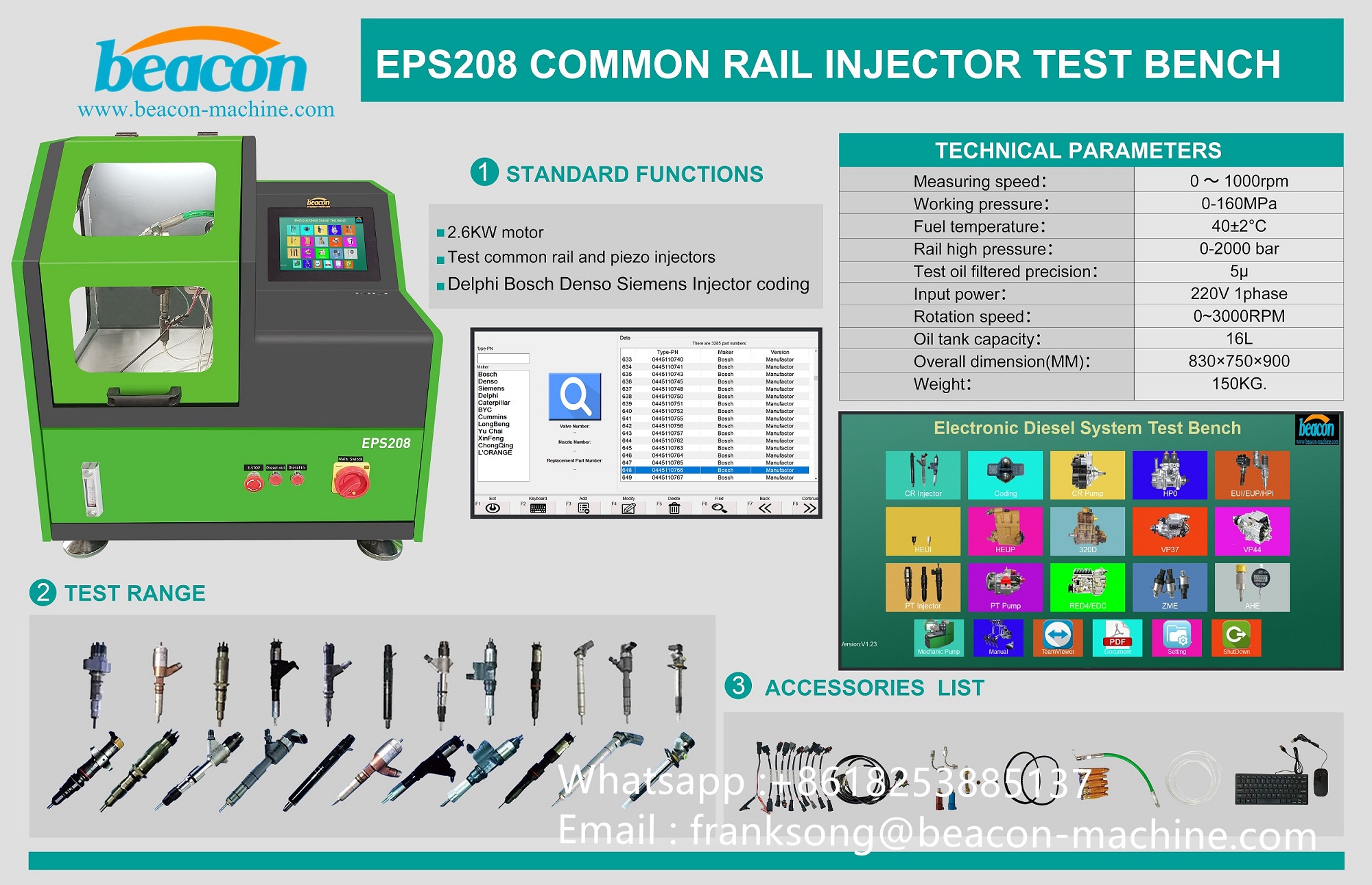

EPS208 Type high pressure common rail test bench

1.Product introduction

2.Main functions

3.Main Features

4.Major Dispositions

5.Use of test bench

6.Main parameters of the test bench

7.Composition and working principle

1.Product introduction

EPS208 Type high pressure common rail test bench is a common rail test product using all-in-one control system, real-time control and measurement. At the same time, it provides the control signal of Bosch, Denso, Delphi and Siemens to drive the high-voltage common rail injector for work. The system is equipped with standard drive signal parameters, and users can also adjust the parameters according to their actual situation and save them. Such as pressure, time, speed and other parameters, all LCD screen display, reliable work, high control accuracy. It is the ideal equipment for diesel automobile, internal locomotive maintenance, production and testing.

2.Main functions
The control system of diesel electric jet integrated machine adopts automatic control, which can easily carry out the maintenance test of common rail solenoid valve or piezoelectric fuel injector. It can test thousands of various types of electric fuel injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, etc., with complete experimental data.

3.Main Features

(1)Integrated automatic operation, including test bench speed, oil rail pressure, flow measurement, report analysis, etc., one-key operation, you can get the measurement results.
(2)Can test Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, north oil, heavy oil and other manufacturers of solenoid valve type or piezoelectric crystal oil injectors
(3)The test standard data is consistent with the original factory data, and the test accuracy reaches the original factory standard;
(4)The database is fully open for operation, and the part number can be added.
(5)Automatic network upgrade, and keep the test data and functions up to date;
(6)Test oil injection response time; (optional)
(7)The fuel injector compensation code can be generated;
(8)The fuel injector resistance injector can be tested
(9) Dynamic travel to test (optional)

4.Major Dispositions

1, industrial computer real-time control, windows system
2, sensor measurement, LCD screen display
3.The original BOSCH high-pressure common rail oil pump is used to generate 0~200MPa rail pressure
4, real-time measurement of pressure, speed, temperature, oil volume, etc
5, with over voltage, under voltage, short circuit and other protection functions
6.The pulse width and frequency can be adjustable, and the injection times can be set freely
7, can test the solenoid valve type fuel injector and piezoelectric type fuel injector
8, thousands of fuel injector data, can be query, input, storage
9.Accurate measurement, easy operation, low noise and energy saving
10, organic glass protective door, safe, easy to observe

5.Use of test bench:
(1)Test the sealing performance of the common rail fuel injector
(2)Test the full load performance of the common rail injector
(3)Test the medium-load performance of the common rail injector
(4)Test the idle performance of the common rail injector
(5)Test the pre-injection performance of the common rail fuel injector

6.Main parameters of the test bench:
(1)Pressure range: 0 ~ 200 Mpa
(2)Speed range: 0-1500 rpm
(3)Tank volume: 10L;
(4)Accuracy of test oil filter: 3 μ;
(5)Heating power: 1KW
(6)Heat dissipation power: 1KW
(7)Temperature control: 40 ± 2℃
(8)Power supply: AC220V, 50 HZ,
(9)Output power: 2KW
(10)Overall size (mm): 830 * 750 * 900
(11)Net weight: 150 Kg
(12)Flow sensor Flow range: 0.008-4 L/min ± 0.3%

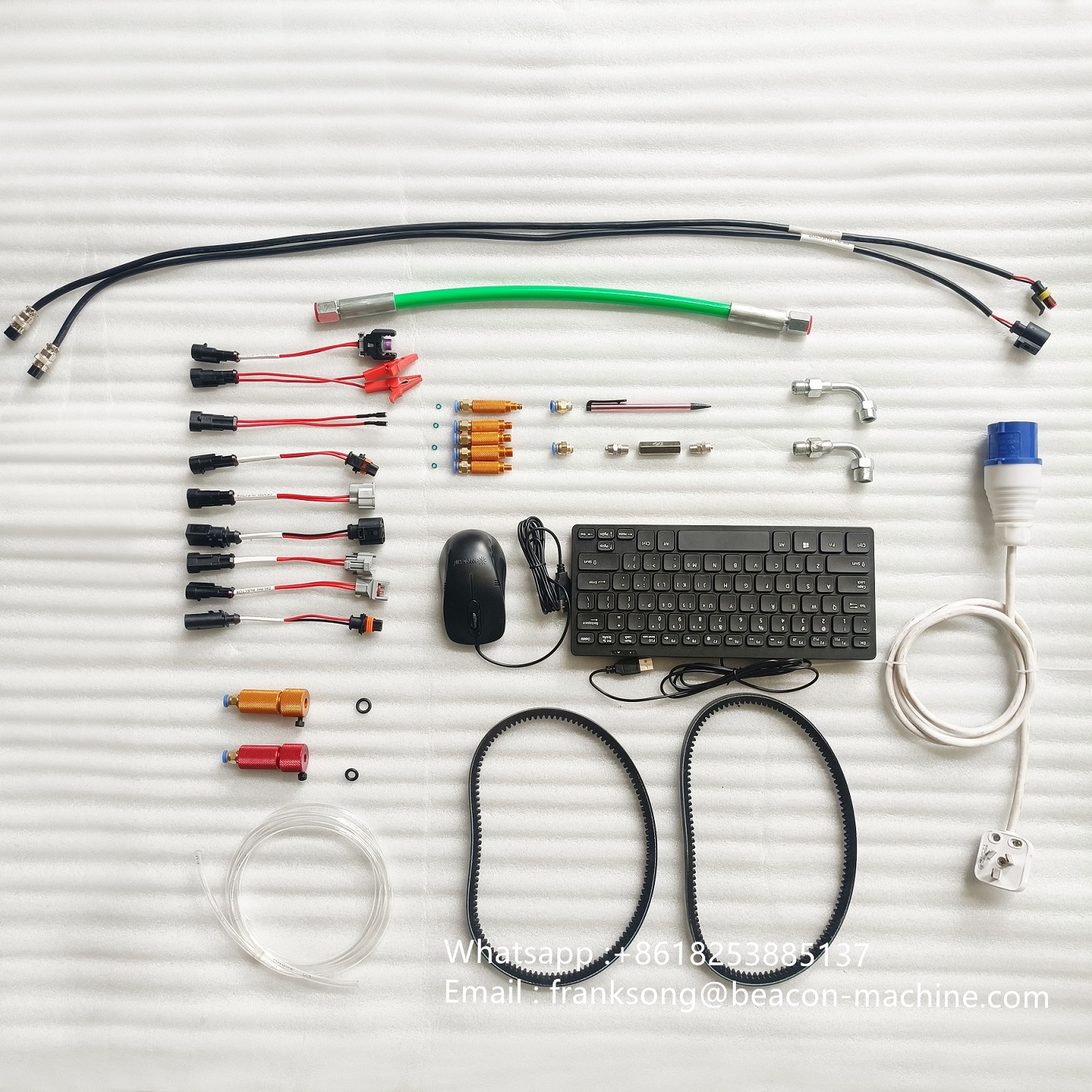

7.Composition and working principle :
(1)The product chassis is welded by the steel frame structure, the overall structure is compact, strong earthquake resistance.
(2)The shell adopts high pressure electrostatic injection plastic, which has the characteristics of anti-scratch and wear resistance, bright and beautiful.
(3)The test table is equipped with a power supply control switch and a control button.
(4)The operation part of the test bench, all the computer operation.

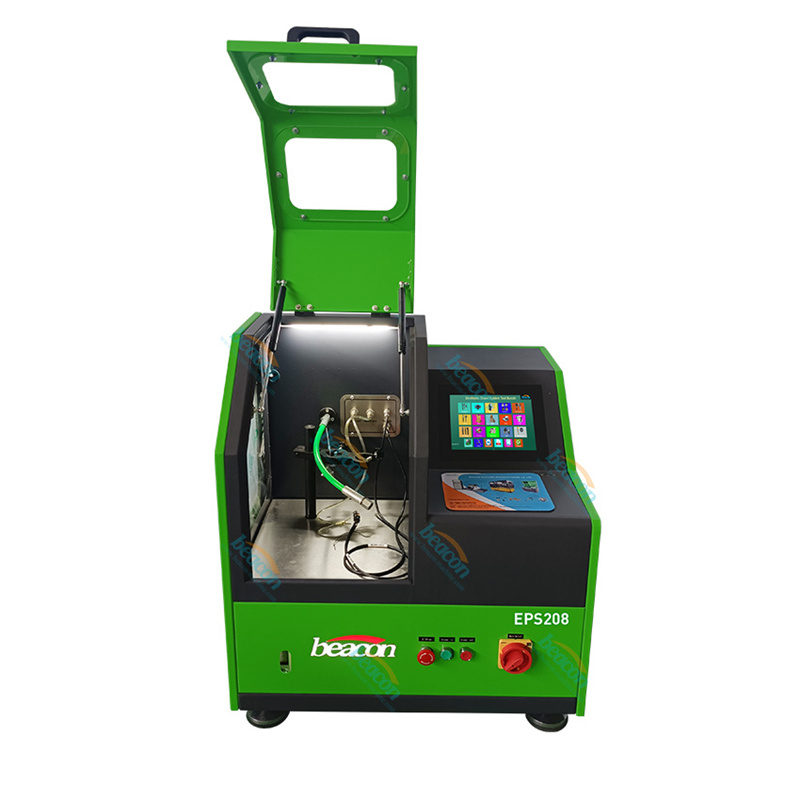

(5) Cover-type protective door, safe and convenient.

High-pressure common rail test bench imitates diesel engine ECU (Engine Control Unit),

and provides common rail system control signals (CP1/ CP2/ CP3/ HP3/ HP4/ DELPHI),

such as Bosch, Denso, Delphi, and Siemens, to drive high-pressure common rail.
The oil pump and the high-pressure common rail injector are working,

and the driving signal parameters can be set by the user according to their actual conditions, and can be grouped and saved,

which is convenient for maintenance personnel to judge and repair the working state of the high-pressure common rail system.

The power of the EPS208 high-pressure common rail test bench is 2.6KW.

Function introduction
(1) Test the sealing performance of the common rail injector
(2) Test the full load performance of the common rail injector
(3) Test the mid-load performance of common rail injectors
(4) Test the idling performance of the common rail injector
(5) Test the pre-injection performance of the common rail injector
