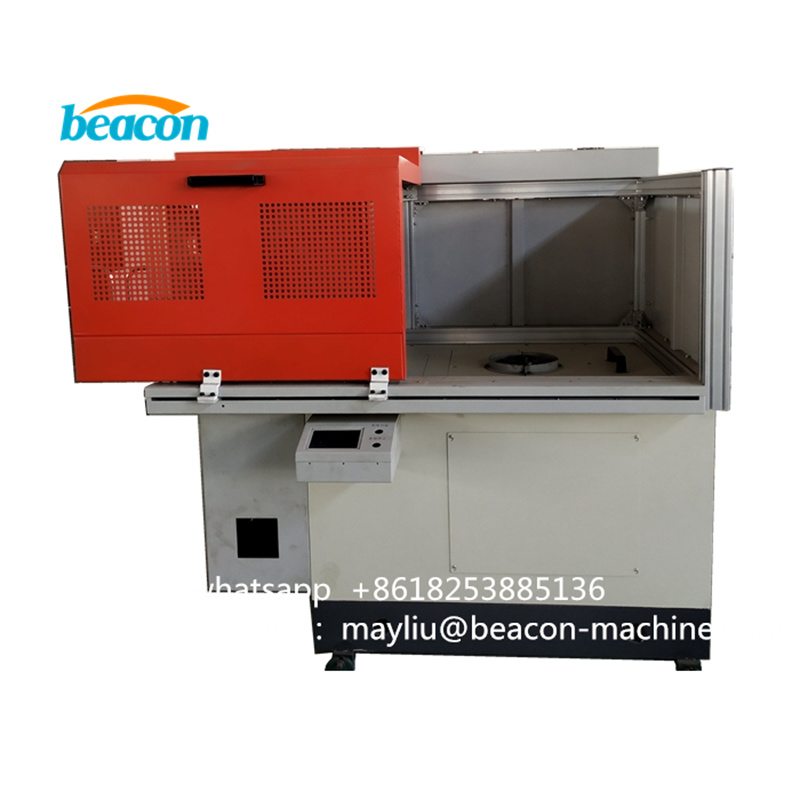

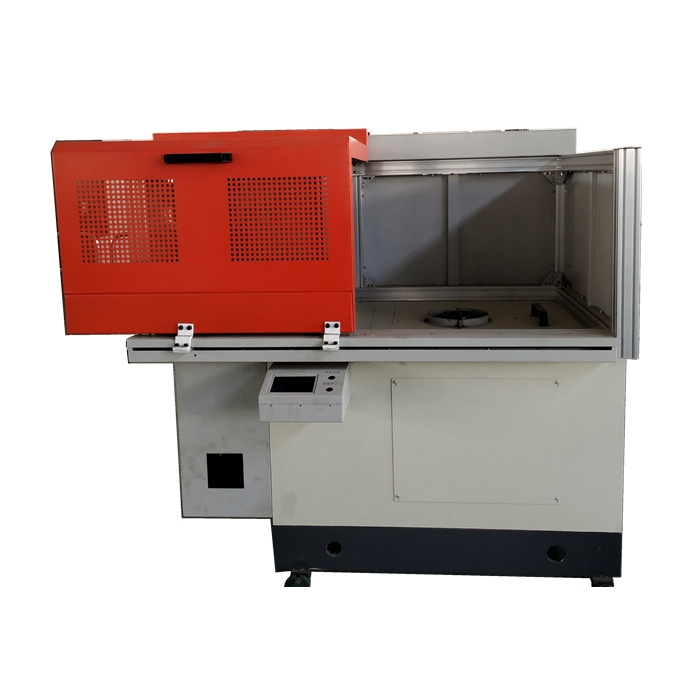

Double-sided heavy rotors vertical dynamic balancing machine YLSD-200S rotor balancer

Double-sided heavy rotors vertical dynamic balancing machine YLSD-200S rotor balancer


Make an inquiry

一. Function and overview

The upper computer uses a 15-inch touch screen all-in-one computer, running under the windows XP operating system, the software mainly completes the dynamic balance measurement, and records storage statistics and printing. The measurement data can be downloaded via U disk at any time.



The system adopts the single-station structure of the structural base, with optional selection of balance measurement and de-weighting. The whole machine adapts to dusty environment, integrated structure, mechanical part safety protection, the overall structure of the equipment is centralized, and it is convenient to use.



1) A set of 15-inch Advantech touch screen all-in-one machine, a set of balance measurement system, and the electronic control part are located on the side of the operating station.



2) The impeller is under isolation protection during the rotation test. The upper and lower doors are protected by pneumatically movable doors. The upper and lower doors are full perspective windows to observe the rotation of the impeller. The perspective windows have the ability to protect the impeller from breaking. The upper plane of the operating position is about 800mm from the ground. .



3) The interface sets the unbalance qualified value, any unbalance exceeding the limit will be judged as unqualified, and the interface displays the corrected grams at the correction radius.



4) Automatically record and store the measurement results for each measurement. The storage records include the following information: work order number, date, time, fixture compensation status, rotor file number, static unbalance and angle, even unbalance, static unbalance critical value, whether Qualified, operating personnel, etc.



5) The device has an angle tracking function. After the measurement is completed, there is no need to manually find the corresponding angle of the mechanical dial with the naked eye.



6) The equipment can be equipped with automatic positioning function. After the measurement is completed, the workpiece is automatically positioned at the calibration stop at the calibration position.



1. Measurement workflow:

Place the workpiece manually—lock the workpiece—close the protective door—start the motor—measured—stop the motor, and the display shows the unbalance and angle value (automatically record and store)—open the protective door—manual correction—recheck— Manually remove the workpiece.



2. Software interface:

The main display content of the measurement interface:

1) The angular position and magnitude of static unbalance The display unit is g or g.cm, g.mm.

2) Selection of calibration method

3) Imbalance actual correction radius and correction weight

4) Dynamic display of the above imbalance information

5) Automatic display of qualified and unqualified

6) Measurement status prompt



3. Technical indicators:

1) The operating height of the working surface is about 800mm

2) The mass range of the balance workpiece: 8-200kg

3) Maximum diameter of balance correction workpiece: Φ800mm (inside the protective cover)

4) Main motor power: 4.5 KW

5) Measuring time: ≤12S/piece

6) Measuring balance speed: 200-800 rpm stepless speed regulation

7) Measure the minimum unbalance of the workpiece: ≤4gmm/kg

8) The measurement shows the minimum unbalanced amount: ≤0.1g

9) Measuring unbalanced angle error: <±2°;

10) Eccentricity compensation: any angle or 180° fixture compensation is available.





二、Machine configuration:

1. 1 set of balancing machine

Component function: Realize quick start, constant speed control and precise and fast position control of the spindle system.

◆ High precision balanced spindle, NSK imported precision bearings;

◆ High-linearity hard-supported mechanical vibration system adopts frame type integrated structure;

◆ The high-strength cast support base is rigid enough to ensure the repeatability of the measurement;

◆ Balanced spindle drive is equipped with high inertia AC servo system;

◆ Vibration measuring element: piezoelectric sensor;



2. Rotary table mechanism

◆ Taiwan Delta Motor;

◆ One set of main shaft slewing mechanism;



3. 1 set of workpiece clamping mechanism

Component function: tooling clamping mechanism for balance detection

◆ The built-in clamping mechanism of the spindle;

◆ Configure a set of high-precision tooling;



4. 1 set of balance measurement system

  Component function: fast balance detection, data communication, various data storage analysis and reports

  ◆ Measuring system of dynamic balancing machine independently ;

  ◆ 15-inch Advantech industrial touch screen all-in-one machine

  ◆ Improved anti-interference ability and easier operation;

◆ Integrated structure of measurement system and host;

◆ Multifunctional control system can realize automatic positioning function

◆ Post-maintenance-free system, maintenance service is more convenient,

◆ According to the network protocol, the real-time measurement result
