Your current location:Home >Products >YYW Series / Balancing equipment YYW-K30s balancing machine for Cardan shaft driveshaft
  • Balancing equipment YYW-K30s balancing machine for Cardan shaft driveshaft

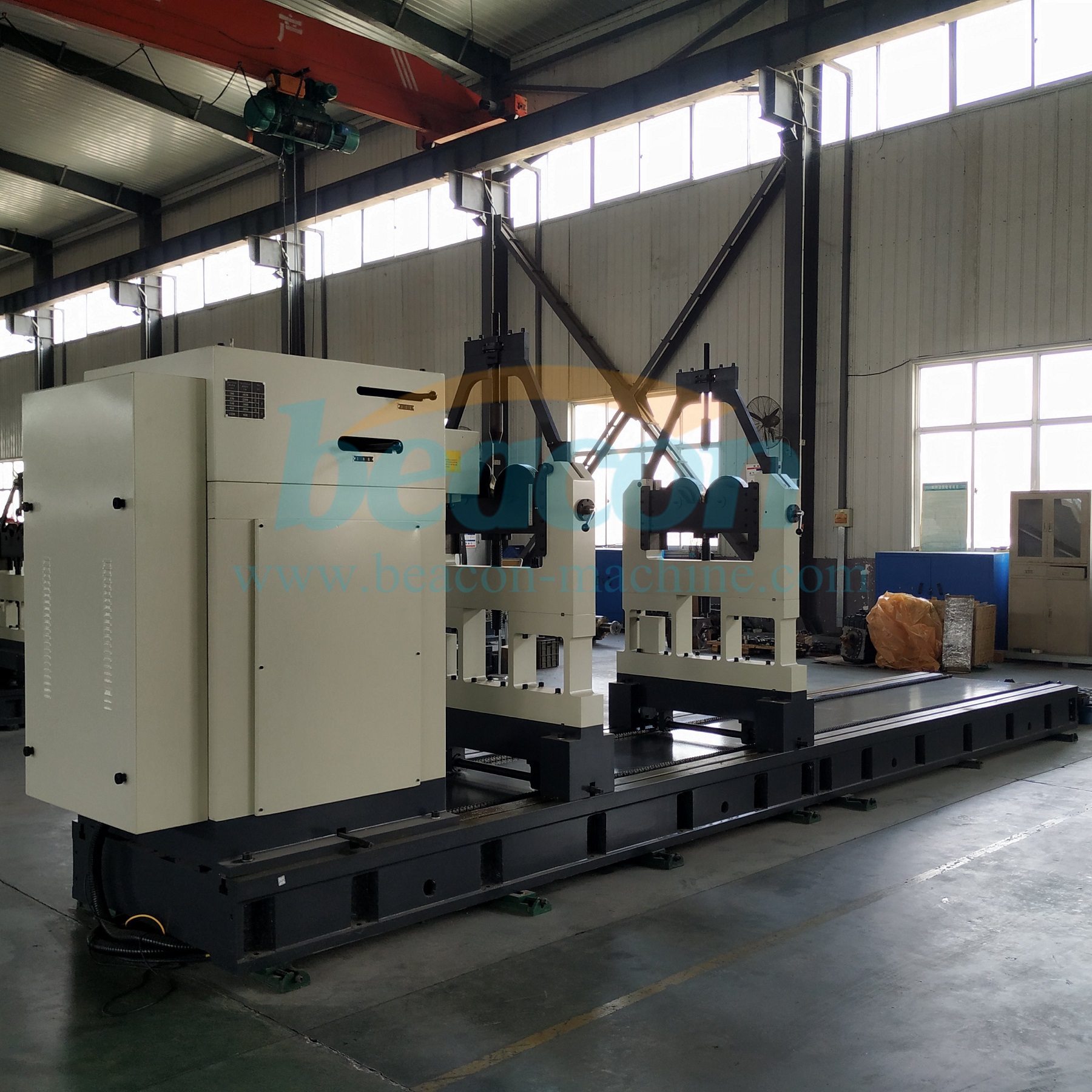

Balancing equipment YYW-K30s balancing machine for Cardan shaft driveshaft

Balancing equipment YYW-K30s balancing machine for Cardan shaft driveshaft

0086-18253885135

info@beacon-machine.com


Make an inquiry

high quality and brand new,offer lifetime technical support.

YYW-K30S dynamic balancing machine technical index:
1)weight of work-piece universal joint driven(kg):            500-30000
2)Max diameter of work-piece universal joint driven(mm):    φ2800
3)Length of lathe bed :(mm)                                       4300*2
   Width of lathe bed:(mm)                                         1200
4)Journal diameter scope of work-piece(mm):   φ50-260, φ240-500(2 sets rotor)
5)Min achievable residual unbalance amount(gmm/kg):      ≤1
6)Unbalance reduction ratio(%):                           ≥90
7) Rotating speed(r/min):         180/330/540/850/1350 Step less speed regulation
8) Motor power(kw):                                     75
9) Drive mode:                     universal spindle coupling+five speed gearbox
10) Work environment:                   temperature: -5---45℃; humidity: 0-85%
