Beacon Machine CR707 Diesel Service Machine Common Rail Injector Pump Test Bench With HEUI EUI EUP Function

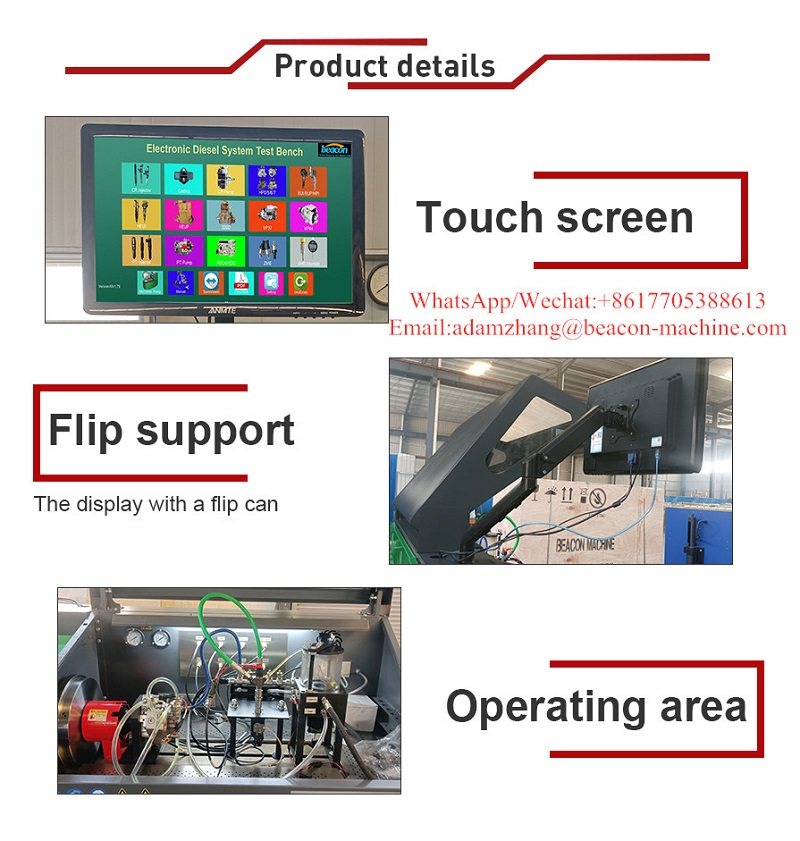

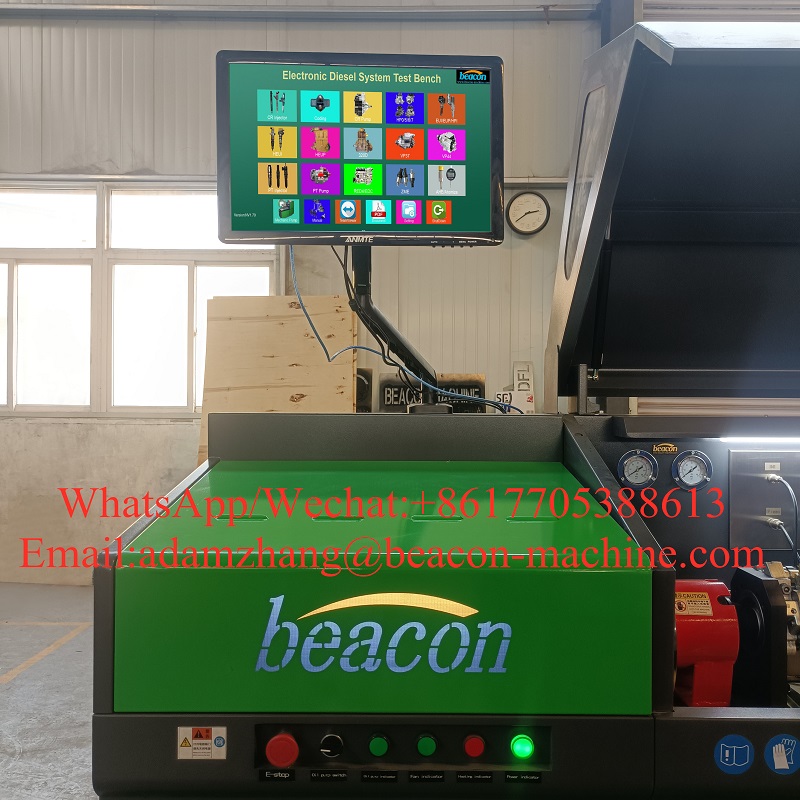

The Beacon CR707 is a comprehensive test bench designed to meet the evolving demands of modern diesel fuel system repair. It serves as a multifunctional workstation capable of testing common rail pumps, piezo injectors, and traditional systems. The machine features a flexible touch screen interface that can be adjusted in multiple directions for operator comfort.

Main Functions:

		1.Integrated automatic operation, including test bench speed,rail pressure,flow measurement,temperature control, etc.measurement report analysis, one-button operation.


		2.Can test Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, heavy oil and other manufacturers solenoid valve or piezoelectric crystal injector and high pressure common rail pump.


		3.Can test Bosch, Cummins and other EUP/EUI oil pumps. (optional)


		4.Can test HEUI medium pressure common rail injector. (optional)


		5.Can test HEUI medium pressure common rail pump.(optional)


		6.Can test double solenoid valve nozzle injecto.r(optional)


		7.Can test Cat 320D high-pressure pump.(optional)


		8.Automatic generation of QR code.


		9.Can test injector response time. (optional)

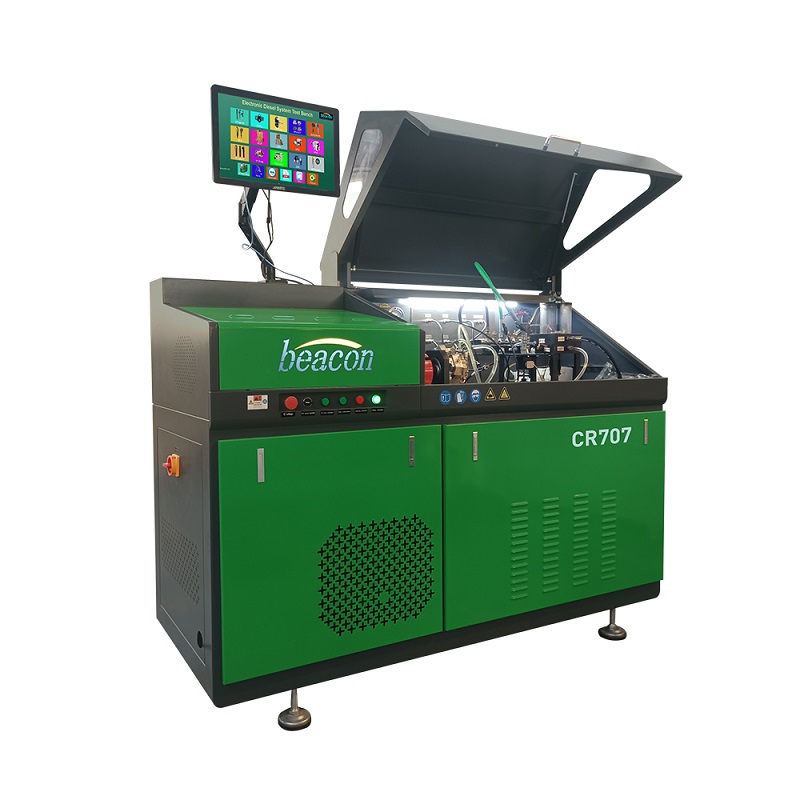

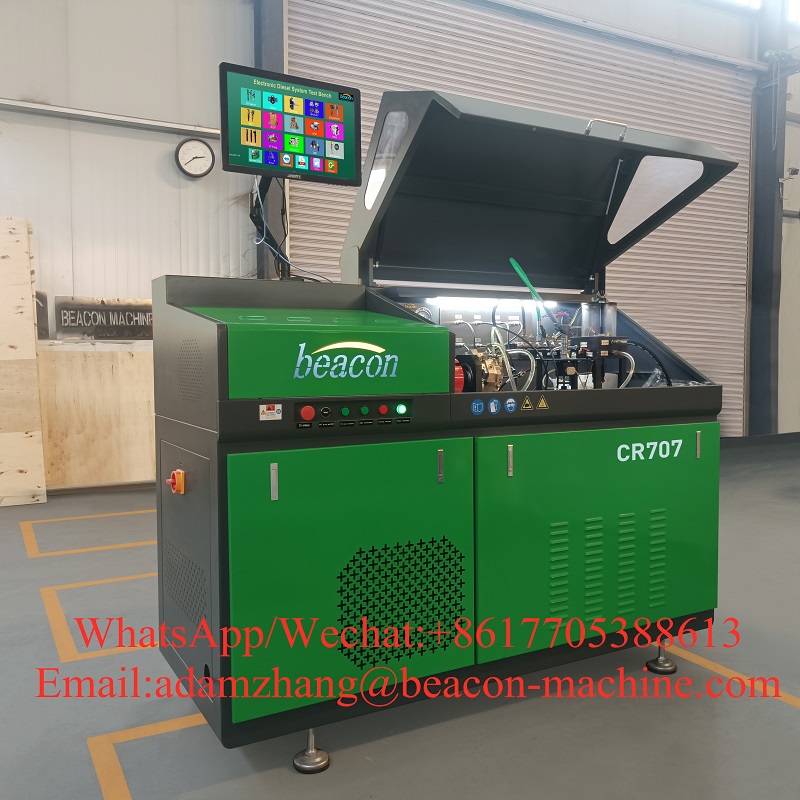

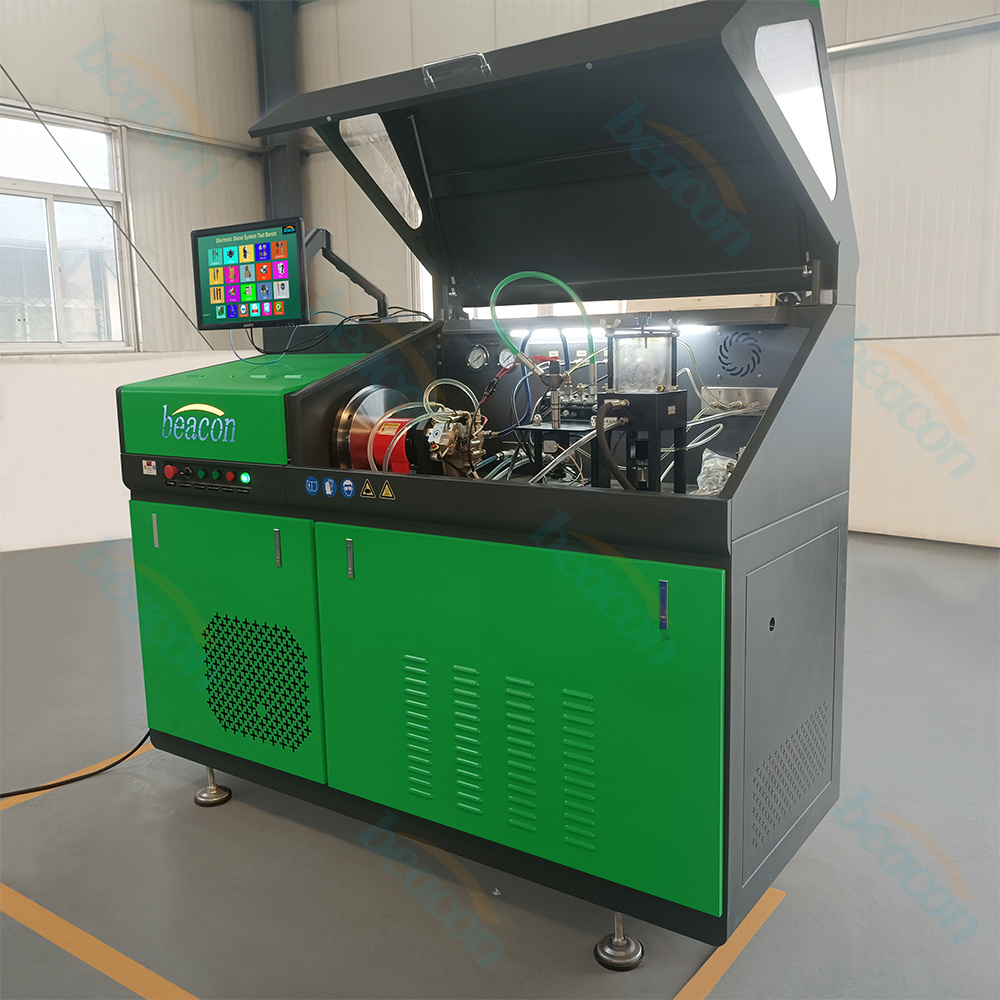

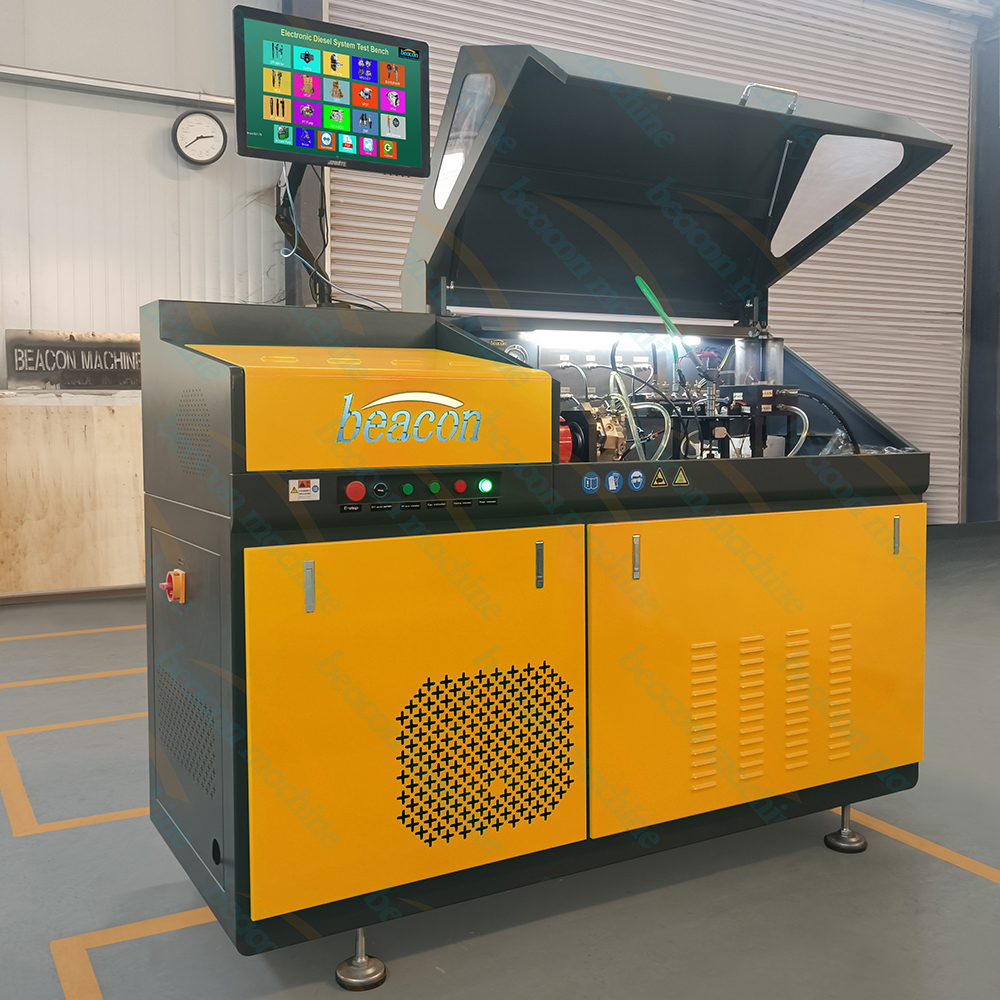

Beacon CR707 Common Rail Test Bench front view

Other features:

1. CR707 common rail electrical diesel fuel injection pump test bench,instrument,equipment This system support lots of injector brand, such as BOSCH, DENSO, DELPHI, SIMENS and so on

2. Check the sealing of CRI (common rail injector)

3. Test oil quantity of CRI during pre-infection period

4. Test oil quantity of CRI under full load

5. Test oil quantity of CRI under idle speed

6. Test oil quantity of CRI under correction working condition

7. Test oil-returning quantity of CRI

8. Check the uniformity of CRI

9. Can test all kinds of CRI pumps

10. Provide open database, you can upgrade, modify the data.

11. Testing finish , report formed, you can save or print it.

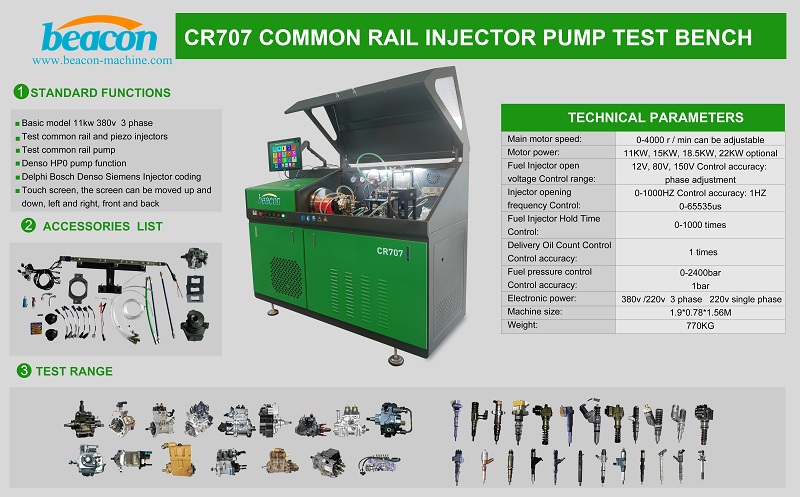

Diesel injector and pump test range display

Parameter	Specification
Model	CR707 Common Rail Test Bench
Main Motor Speed	0-4000 r/min (Adjustable)
Motor Power Options	11KW, 15KW, 18.5KW, 22KW (Optional)
Fuel Pressure Control	0-2400 bar (Accuracy: 1 bar)
Injector Control Voltage	12V, 80V, 150V (Phase Adjustment)
Injector Frequency	0-1000HZ (Accuracy: 1HZ)
Pulse Width	0-65535us
Delivery Oil Count	0-1000 times
Power Supply	380V/220V 3-phase, 220V single phase
Dimensions	1.9 * 0.78 * 1.56 M
Weight	770KG (Contains cam box)
