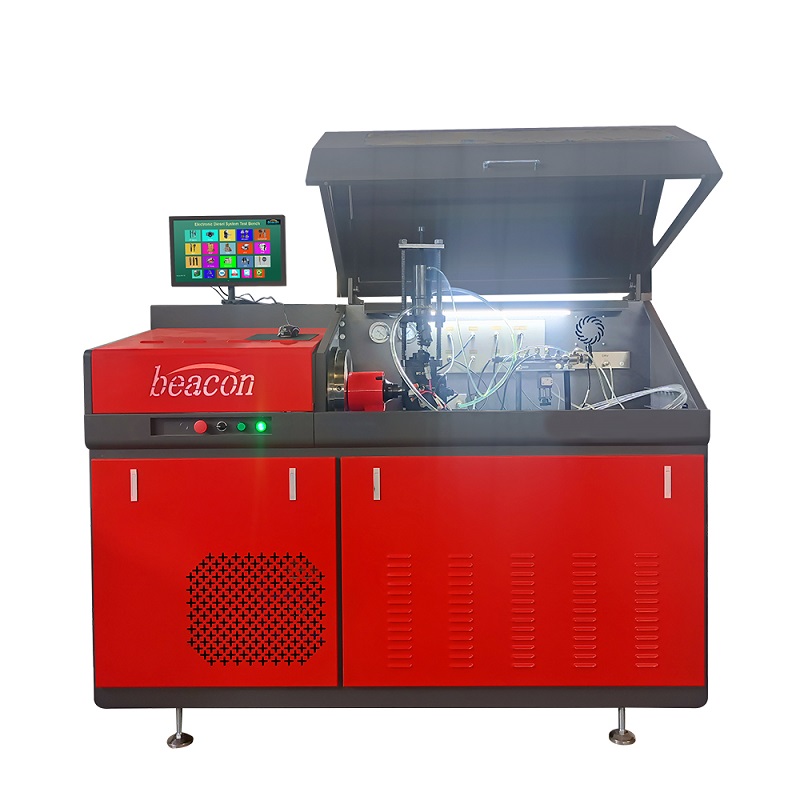

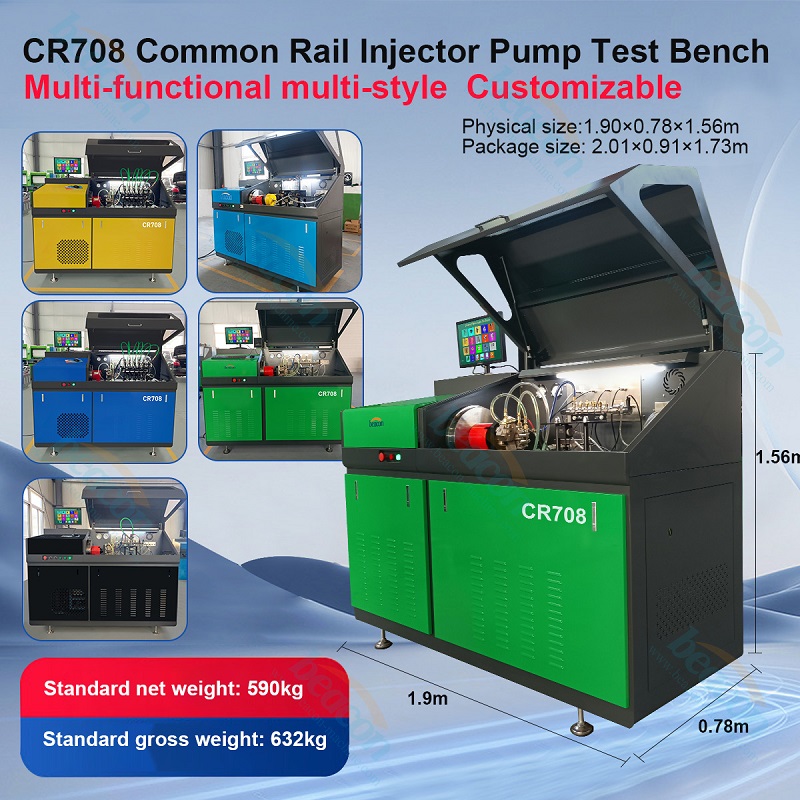

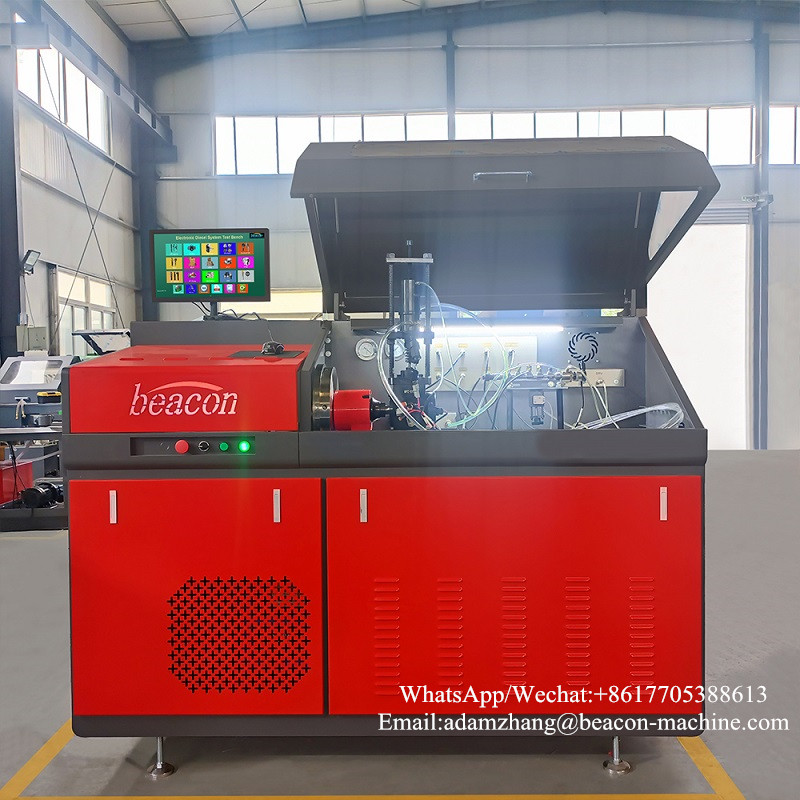

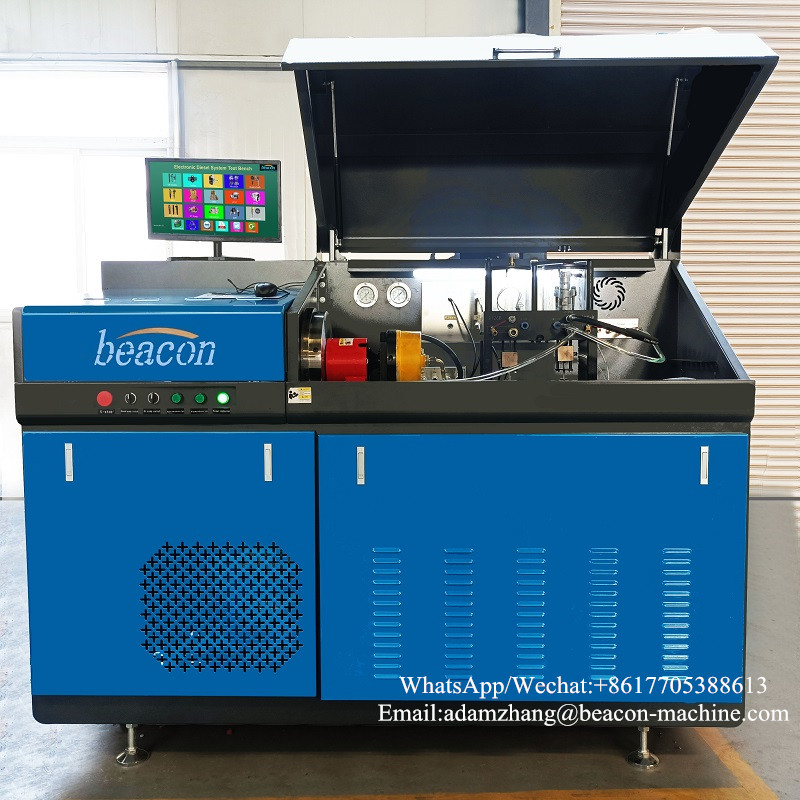

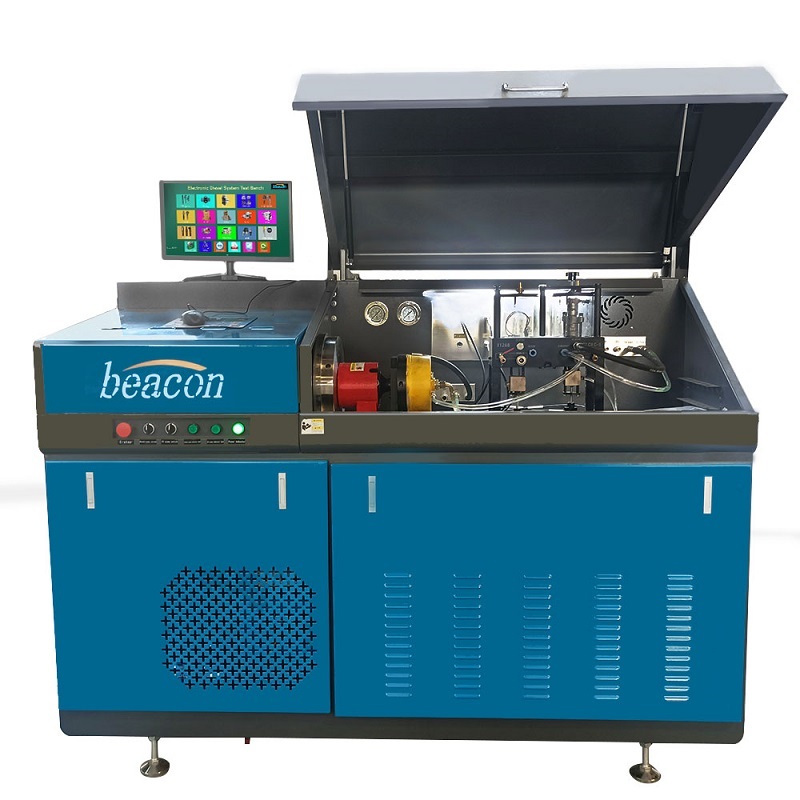

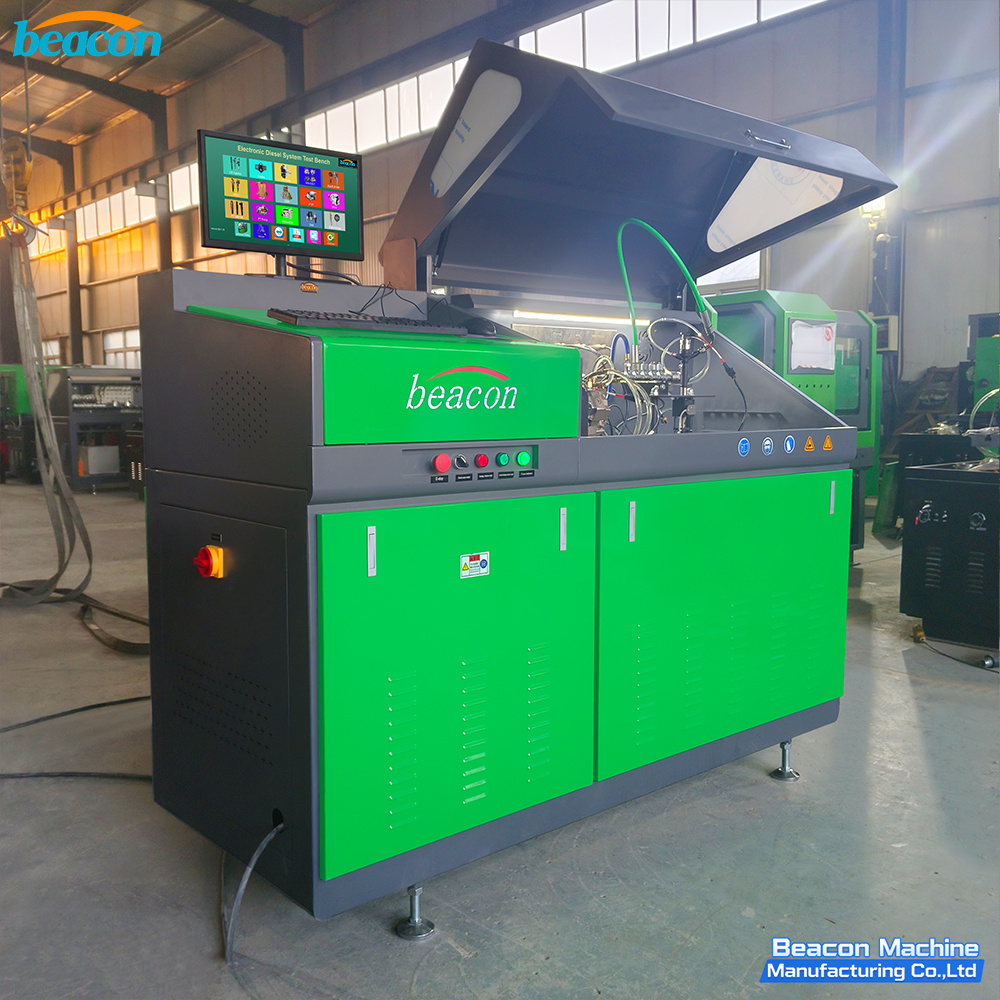

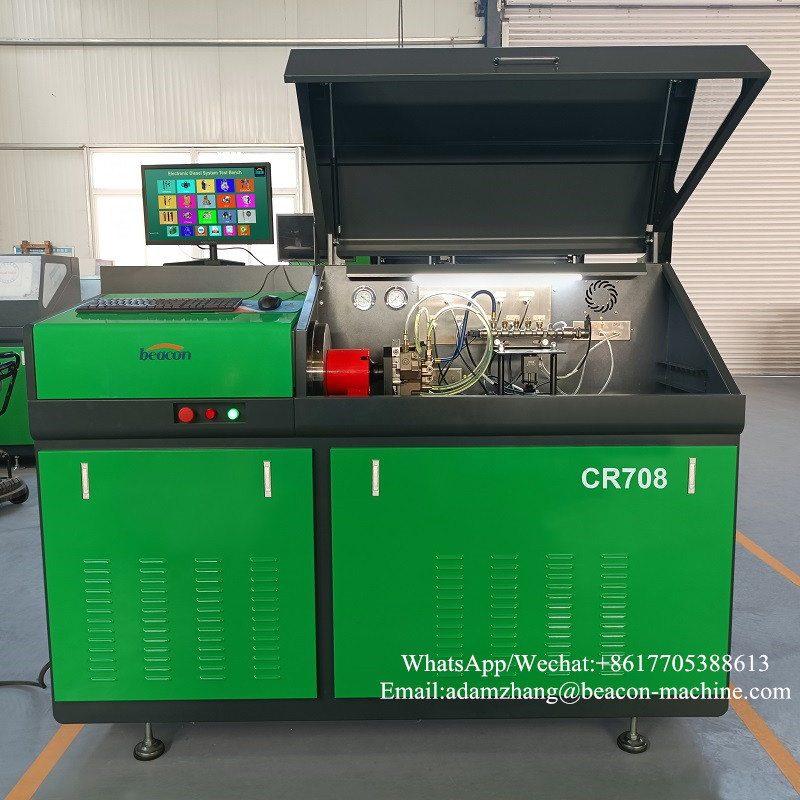

Common rail test bench CR708 common rail diesel injection pump test bench CR708L EUI EUP HEUI testing machine

CR708 test bench can test all kinds of common rail injectors and piezo injector and denso hpo pumps and common rail pumps


Make an inquiry

Brief Introduction Of Common Rail Injector Test Bench:
BEACON COMMON RAIL INJECTOR PUMP TEST BENCH CR708L is mainly test for common rail pump and Injector. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured Value.



Function:
1.Test all common rail Bosch/Denso/Delphi/Caterpillar /Siemens/Cummins Injectors 2.Test all piezo injectors 3.Test all common rail Bosch/Denso/Delphi/Siemens pumps,such as CP1 CP2 CP3 DENSO HP0 HP3 HP4 pumps 4.It support injector coding,including Bosch IQA/IMA/ISA,Denso 16/22/24/26/30QR,Delphi I2C/I3C,Siemens IIC,Cummins XPI


Main Features:

(1) Integrated automatic operation, including test bench speed, fuel rail pressure, flow measurement, report analysis, etc., one-key operation, you can get the measurement results. (2) It can test solenoid valve type or piezoelectric crystal type injectors, common rail high pressure pumps from manufacturers such as Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, Beiyou, and heavy oil. (Note: some functions Optional) (3) It can test Bosch, Caterpillar, Cummins, Delphi, Nanyue Hengyang, Wittur and other unit pumps and pump nozzles, including Delphi E3 dual solenoid valve pump nozzles (optional); (4) It can test HEUI medium pressure common rail injectors and actuation pumps (optional); (5) Caterpillar 320D high pressure pump can be tested (optional); (6) VP37, VP44, RED4, Denso V3/V4/V5 oil pumps can be tested (optional); (7) HPI injector and PT pump (optional) can be tested; (8) The test standard data is consistent with the original factory data, and the test accuracy reaches the original factory standard; (9) The database is fully open, and the part number can be increased. (10) The network is automatically upgraded, and the test data and functions are always up-to-date; (11) The response time of fuel injection can be tested; (10) Injector compensation codes can be generated; (11) Injector resistance and inductance can be tested


Optional Functions

1.Test Caterpillar/Ford HEUI with 3126b c7 c9 c-9 fixture(double oil road,one is diesel and one is engine) 2.Test Bosch/Delphi/Caterpillar/Cummins EUI/EUP(with 23 adaptors) 3.Test Caterpillar 320D pump 4.Test Caterpillar actuation pump(HEUP) 5.Test Injector response time (BIP function),Test 6 injectors at the same time (It will add system + additional 5 flow sensors + 5 high pressure oil pipes + 10 solenoid valves + 10 filter elements + 5 filters + 1 six injector fixtures) 6.Delphi E3 double pulse control system 7.ZME test and unit of measure function 8.AHE injector dynamic stroke (with Bosch 110, 120 stroke measuring tool + dial indicator) 9.Test CP4 pump 10.Test FORD 6.0 Injector Caterpillar 3408 11.Online remote assistance and system upgrade are available
