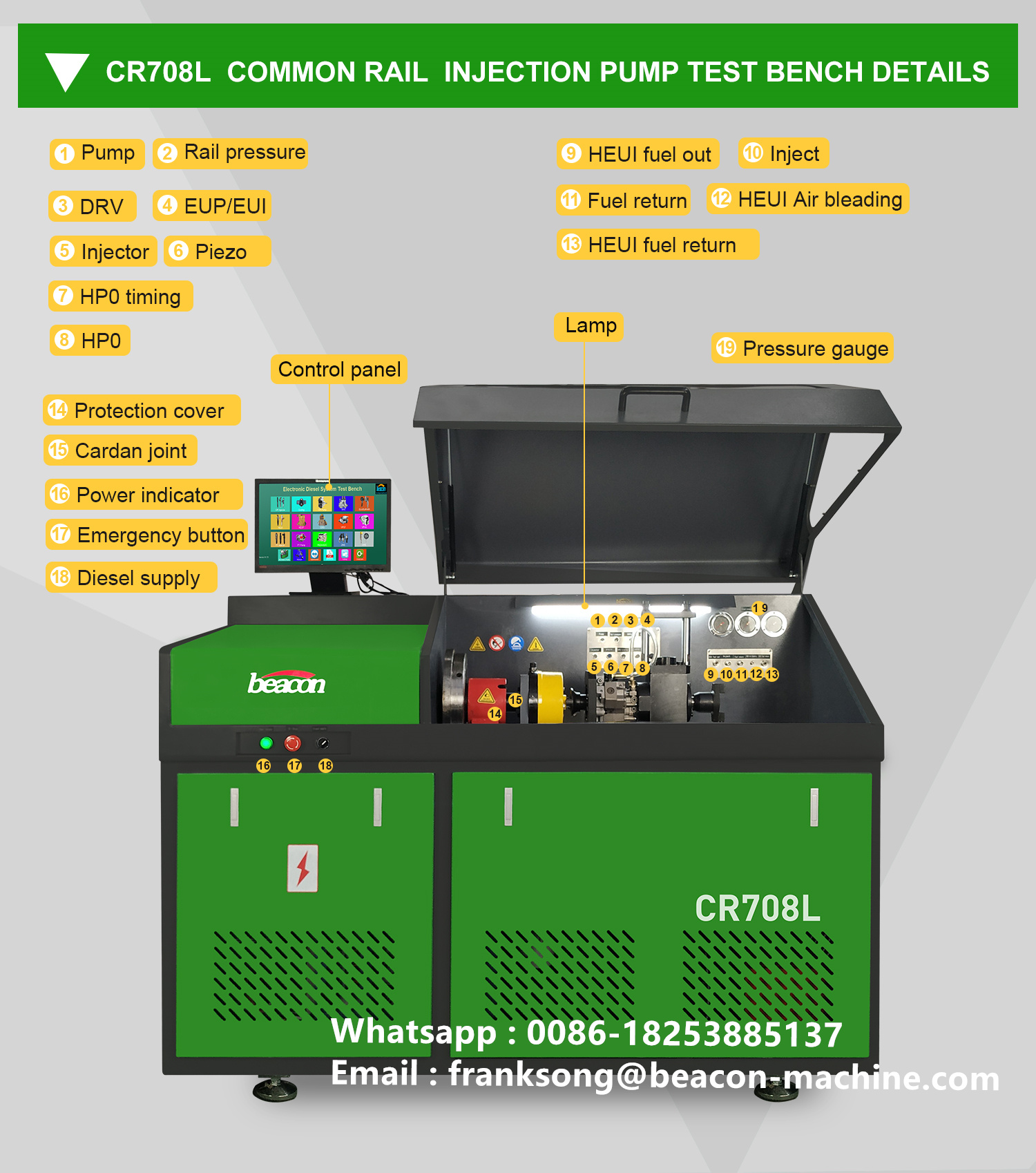

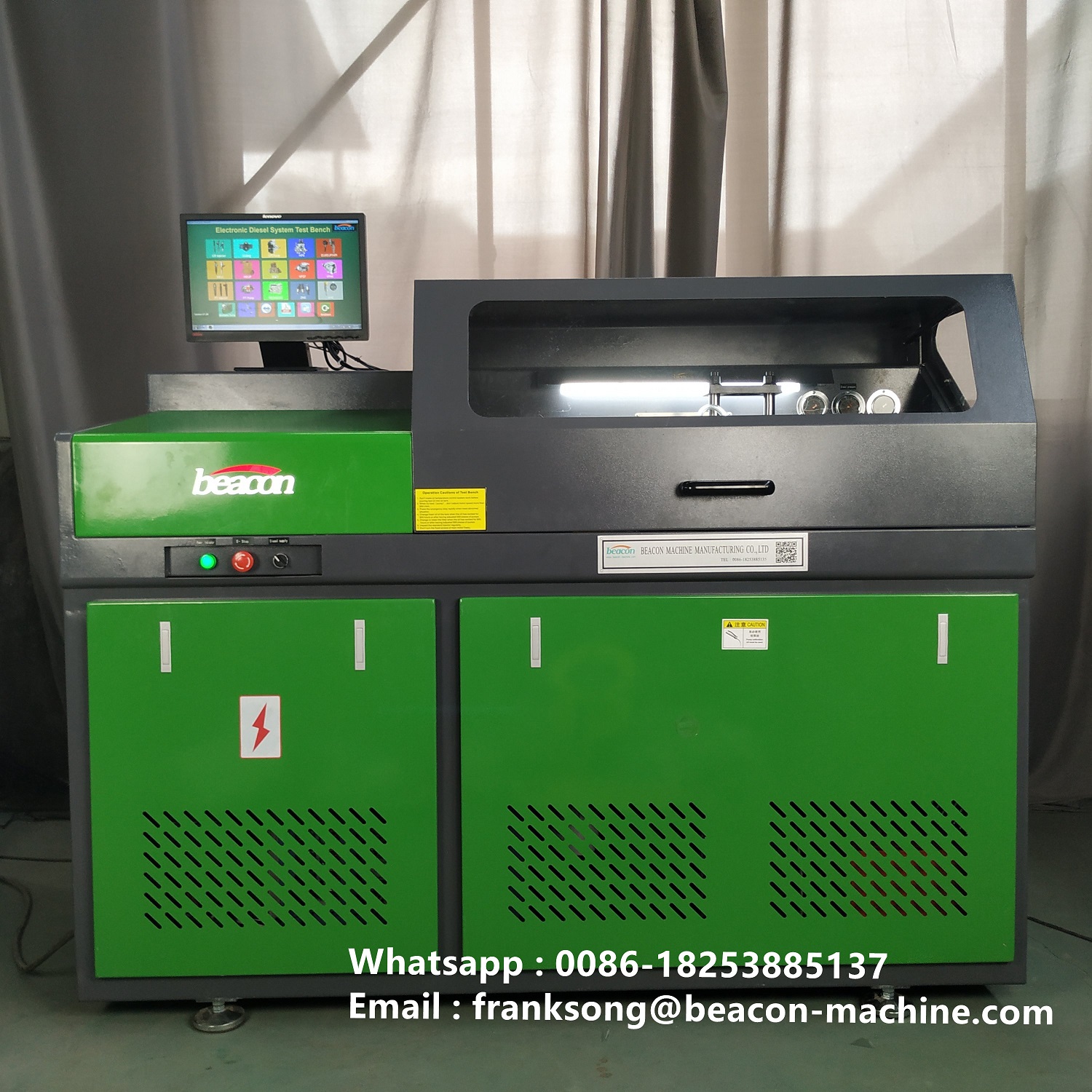

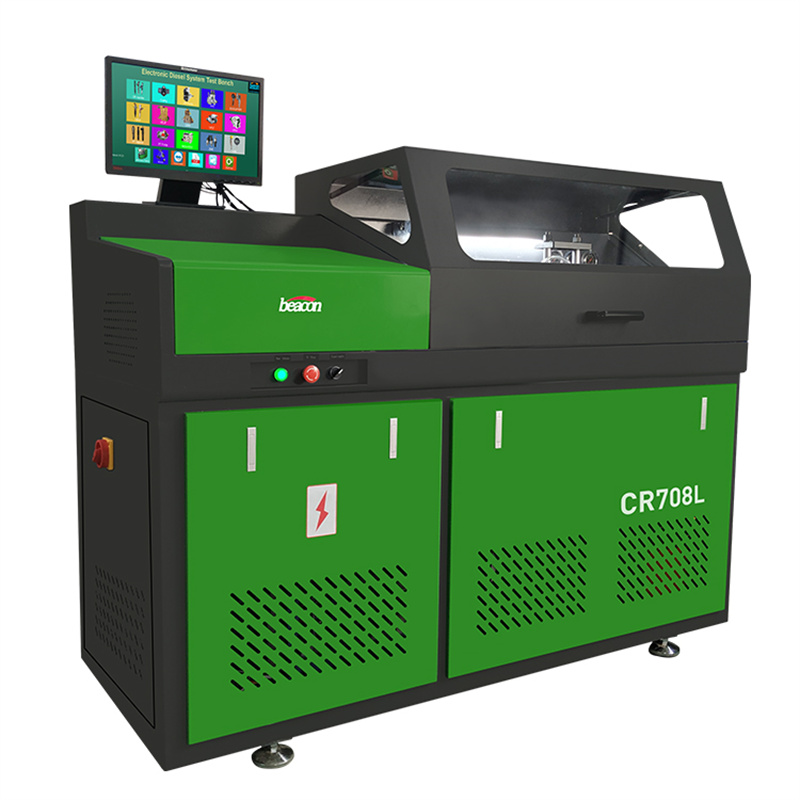

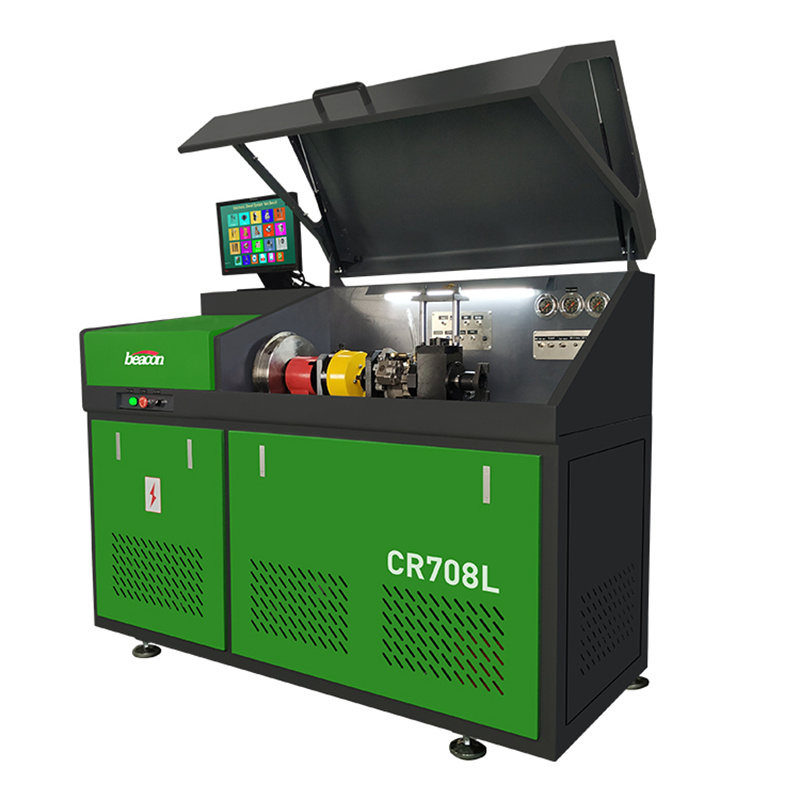

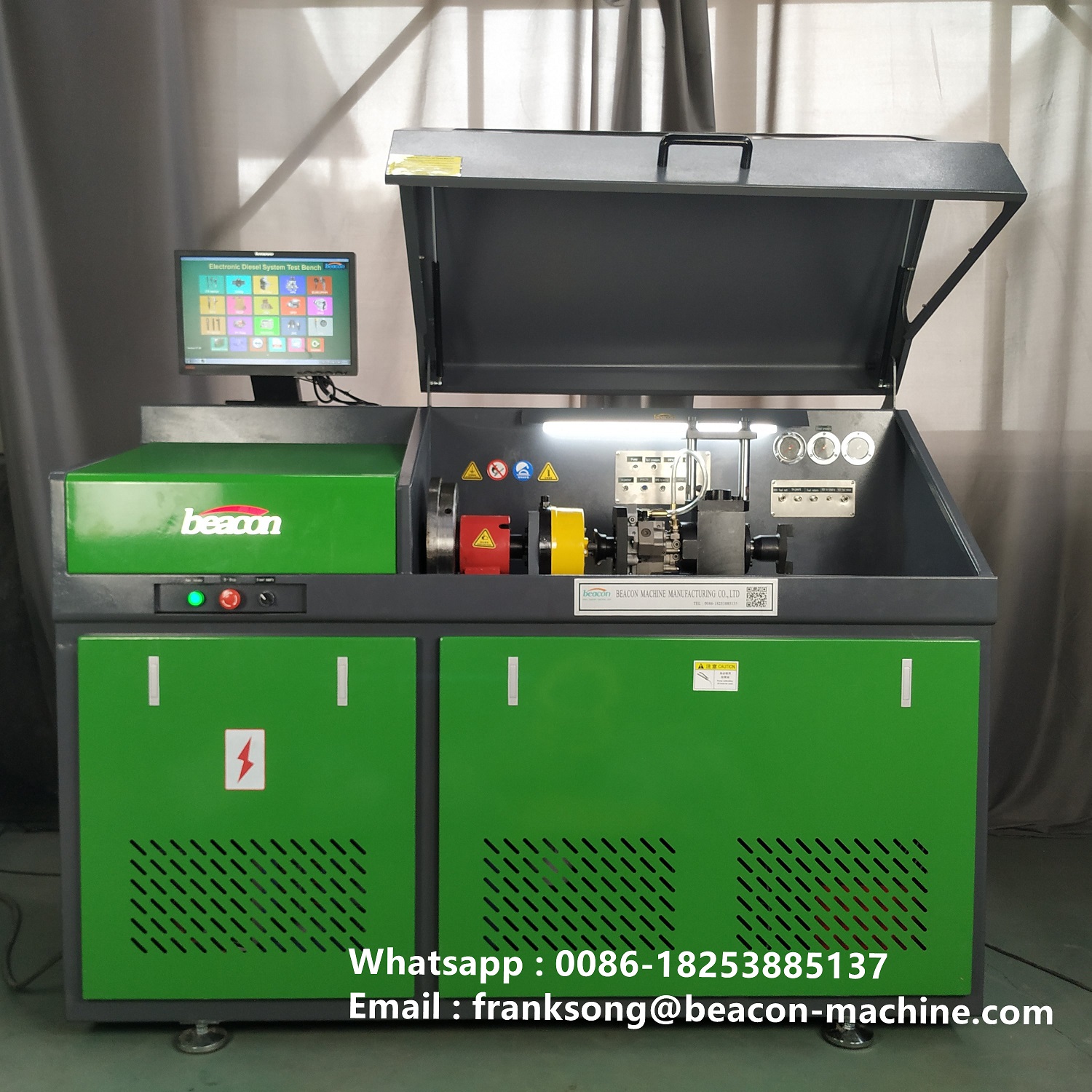

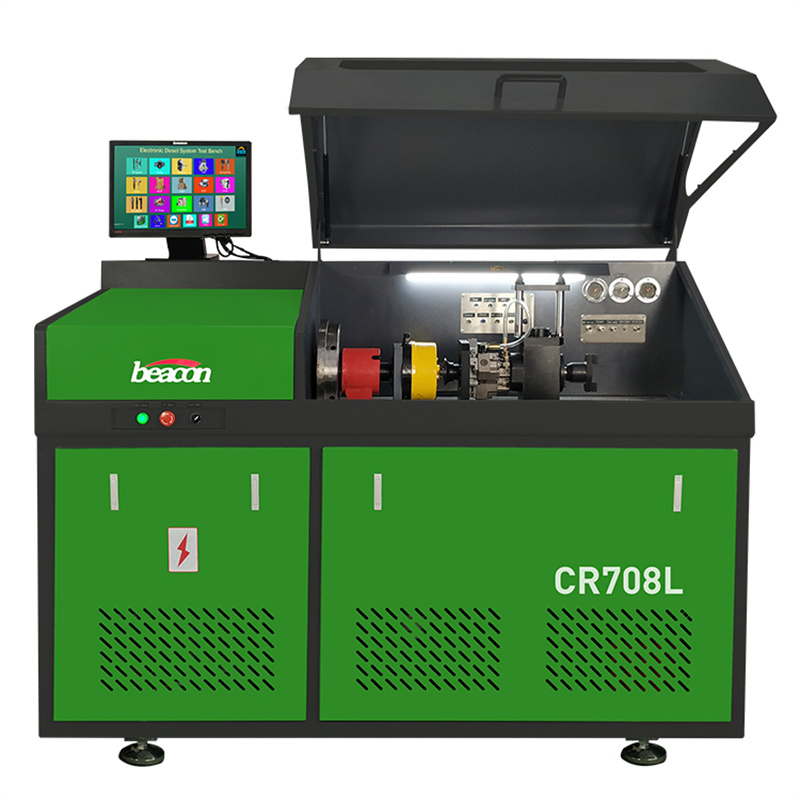

BC-CR708 EUI EUP HEUI common rail injector pump test bench

For all common rail injector and common rail pump test,also can test EUI EUP injector and HEUI CAT injector.

0086-15069893170

amyzhang@beacon-machine.com


Make an inquiry

BC-CR708 COMMON RAIL INJECTOR AND PUMP TEST BENCH is mainly test for common rail pump and Injector. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured Value.
System Application:

The system is suitable for detection of BOSCH, DENSO, DELPHI and SIEMENS common rail pump and injectors. Such as CP1, CP2.CP3, HP3 series injector pump and the type of Electromagnetic injectors, It also can test 6 common rail injectors in one time.

Technical parameters:

1, Main motor speed

0-4000 r / min can be adjustable.

2, Motor power

7.5KW, 11KW, 15KW, 18.5KW optional.

3, Fuel Injector open voltage Control range

12V, 80V, 150V Control accuracy: phase adjustment

4, Injector opening frequency Control

0-1000HZ Control accuracy: 1HZ

5, Fuel Injector Hold Time Control

0-65535us

6 Delivery Oil CountControl

 Control accuracy

0-1000 times

1 times

7, Fuel pressure control Control

 Control accuracy

0-2000bar

1bar

8, Electronic power

3 PHASE 380V or 3 PHASE 220V
