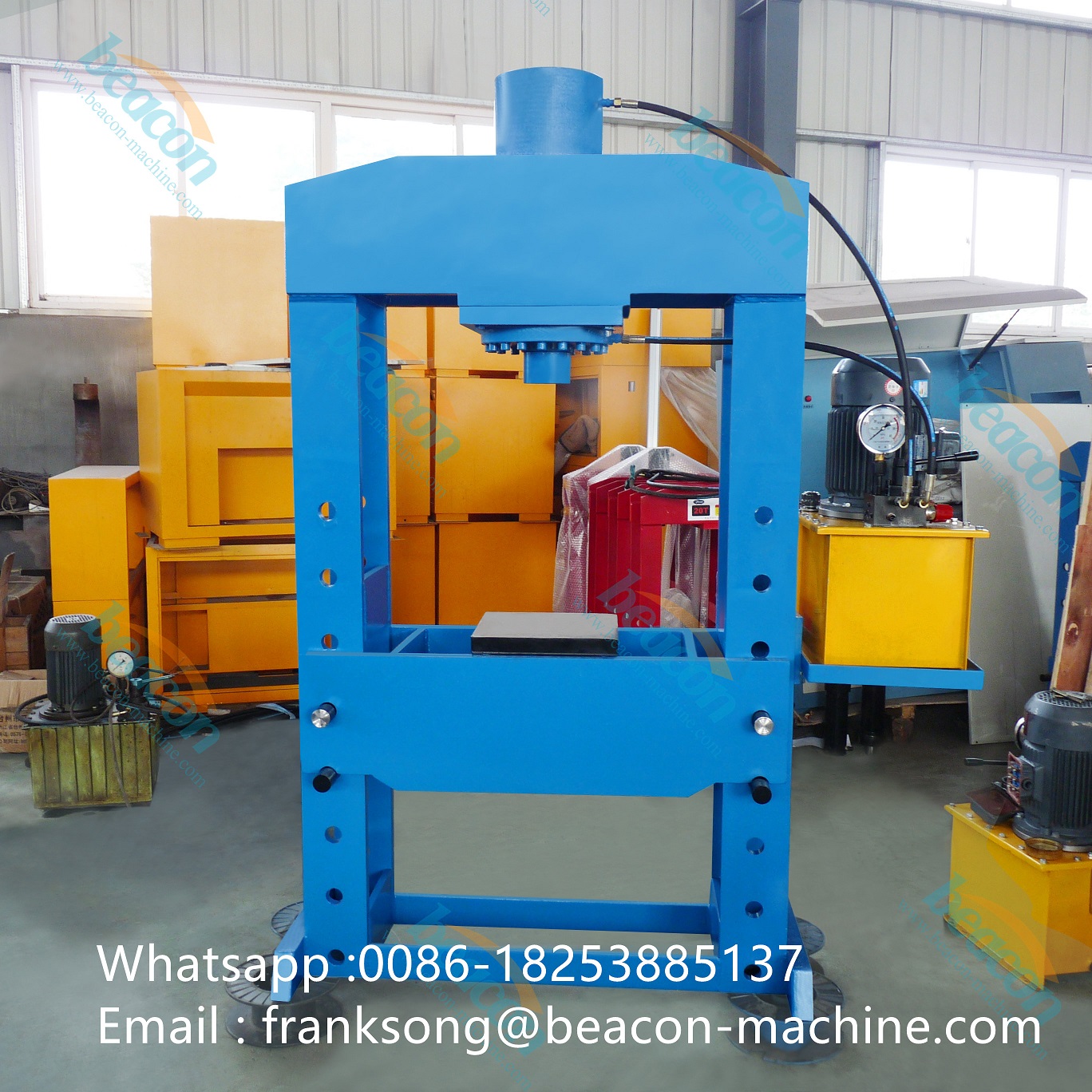

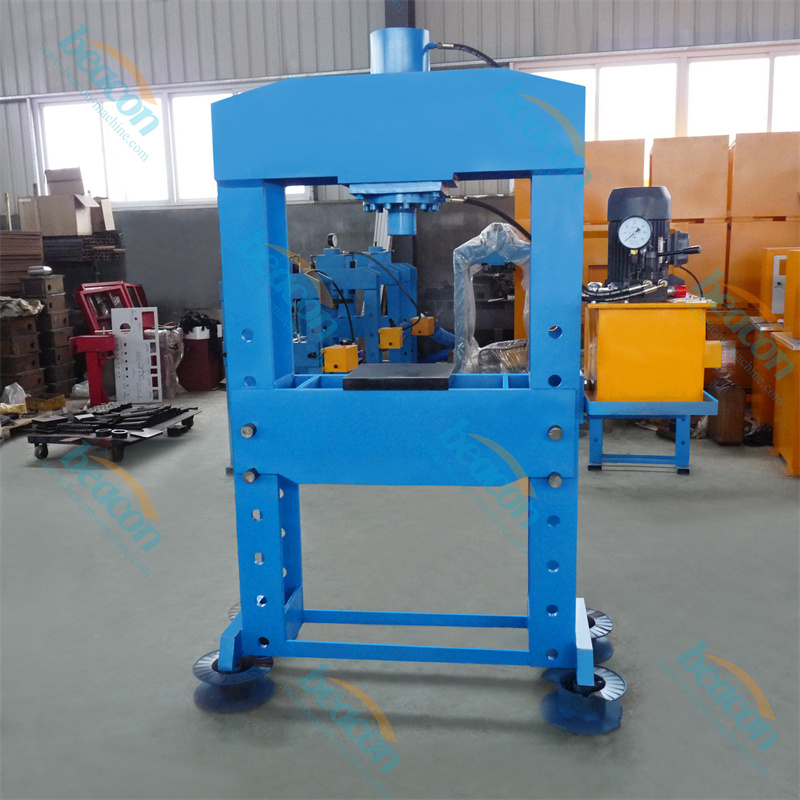

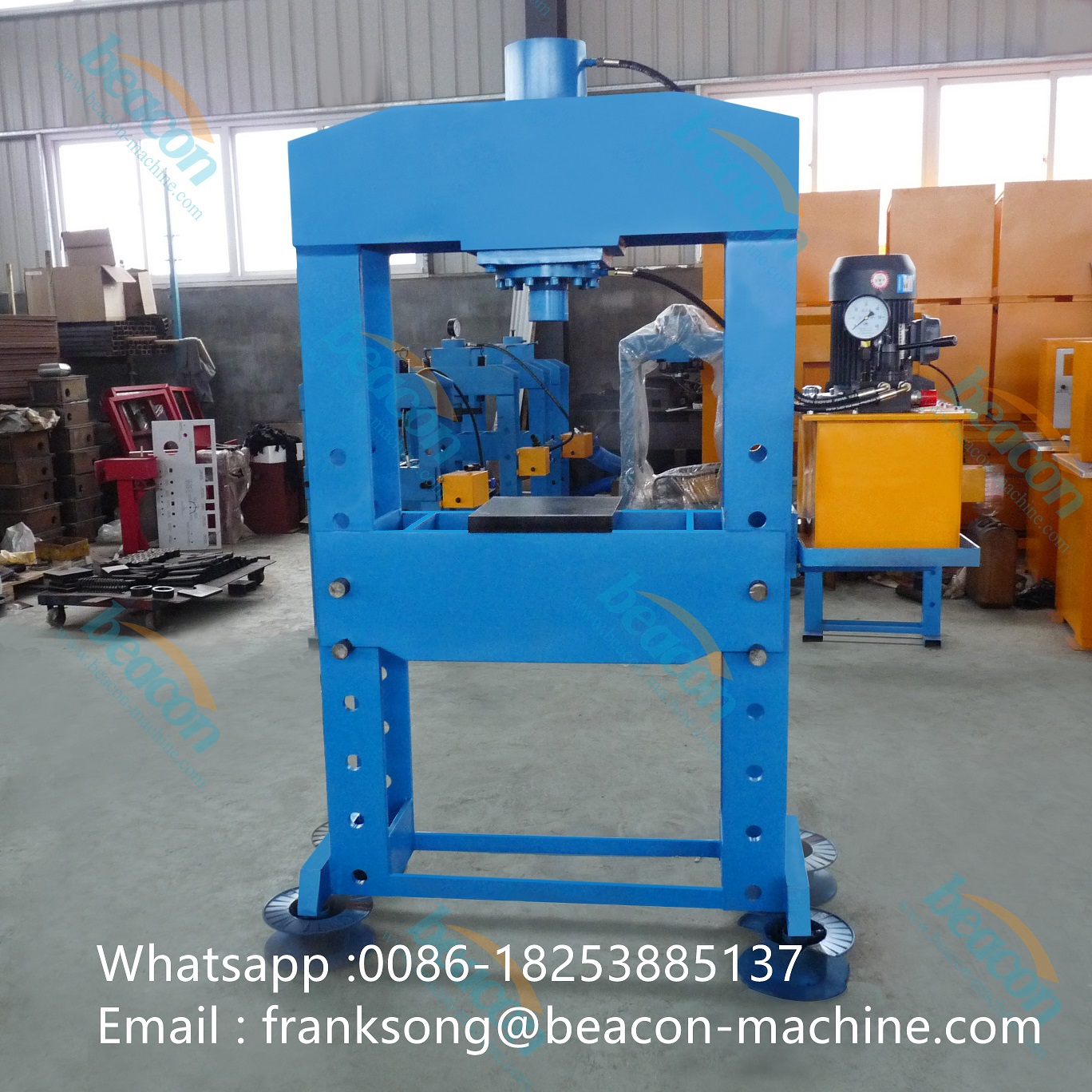

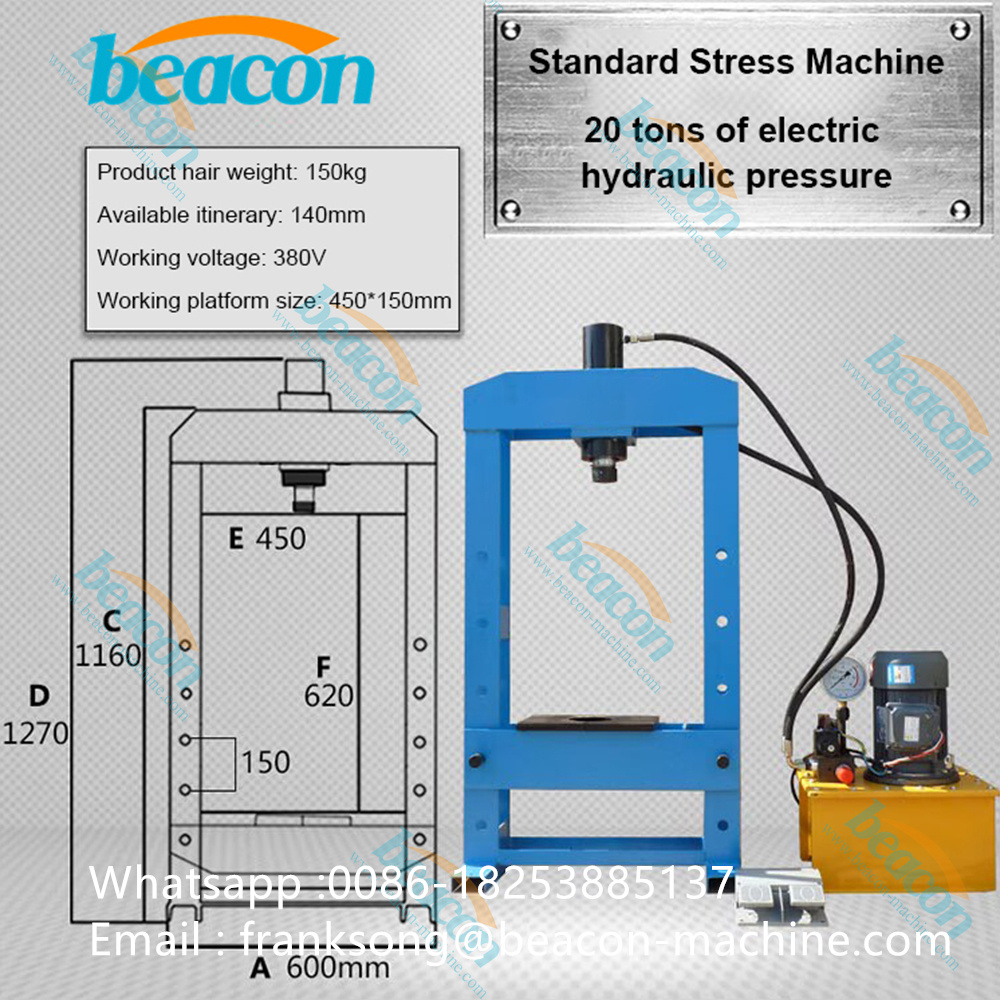

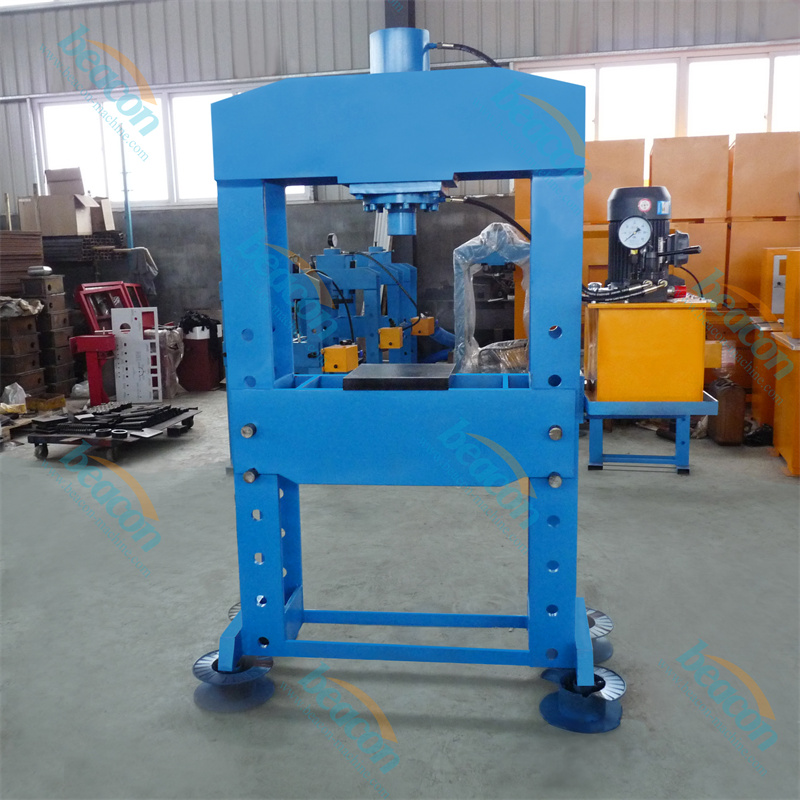

Electric Hydraulic Machine is our new setting product which absorbs the advantages of the similar brands both in and abroad after several rounds improvement. With steel-rigid frame of Gate , adjustable work-platform, solid structure and convenient operation, it is widely used in mechanism and automobile’s assembling and dismantling of assembly and setting.

This is a kind of compound oil pump. The piston works in high speed in low pressure, and the maximum rated pressure can reach to Mpa in high pressure.

EXTENSION FUNCTION AND XPLAINATION
There are some extension based on user’s requirement, but you must give us special instructions when booking the order :
1.Transverse movement way of oil jar can be operated in the definite area.
2.  It can be bear several pressure points on the same accessory .Move the hand wheel  on the top of the machine can make the oil jar do the transverse movement.
3.  Ways of ascending and desending work platform :
(1) Basic configure for General one ,use the forklift or other outside force to elevate and make work platform up and down .
(2)Mode of main oil jar, use the  linking pole along with the machine to connect the oil jar ,and then start the oil pump. Use the pull of the main oil jar to move the platform up and down.
(3)Rock by manual ,rock the handle side of work platform using transmission of gear and steel wire .
(4)Mode of subsidiary oil jar ,by using the motion of it fixed in both side of pillar to drive the work platform
Above 4 function ,just 2.3.4belong to the extension function ,and the 1st one is very common with simple structure and cheap price ,so you can choose anyone of them according to need.
4．Operation way of pressure machine :he general on is manually revolving switch valve ,you can turn the operation handlebar right or left to realize the ascending and descending of the pillar to realize the function:
(1)key witch,, press the key in the right of pillar to realize the function
(2)remote control switch ,finish the operation in distance.
(3)treadle switch .
