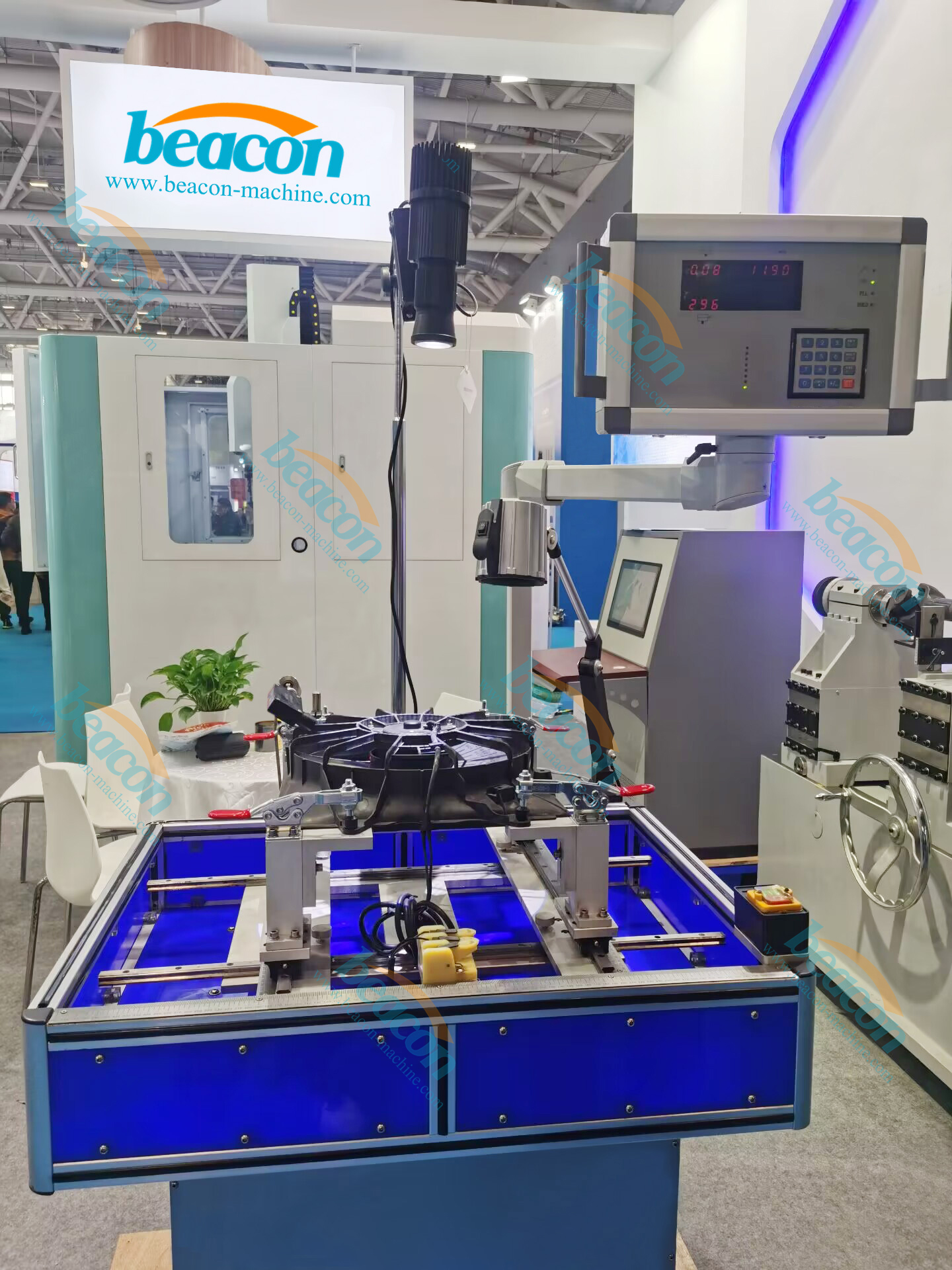

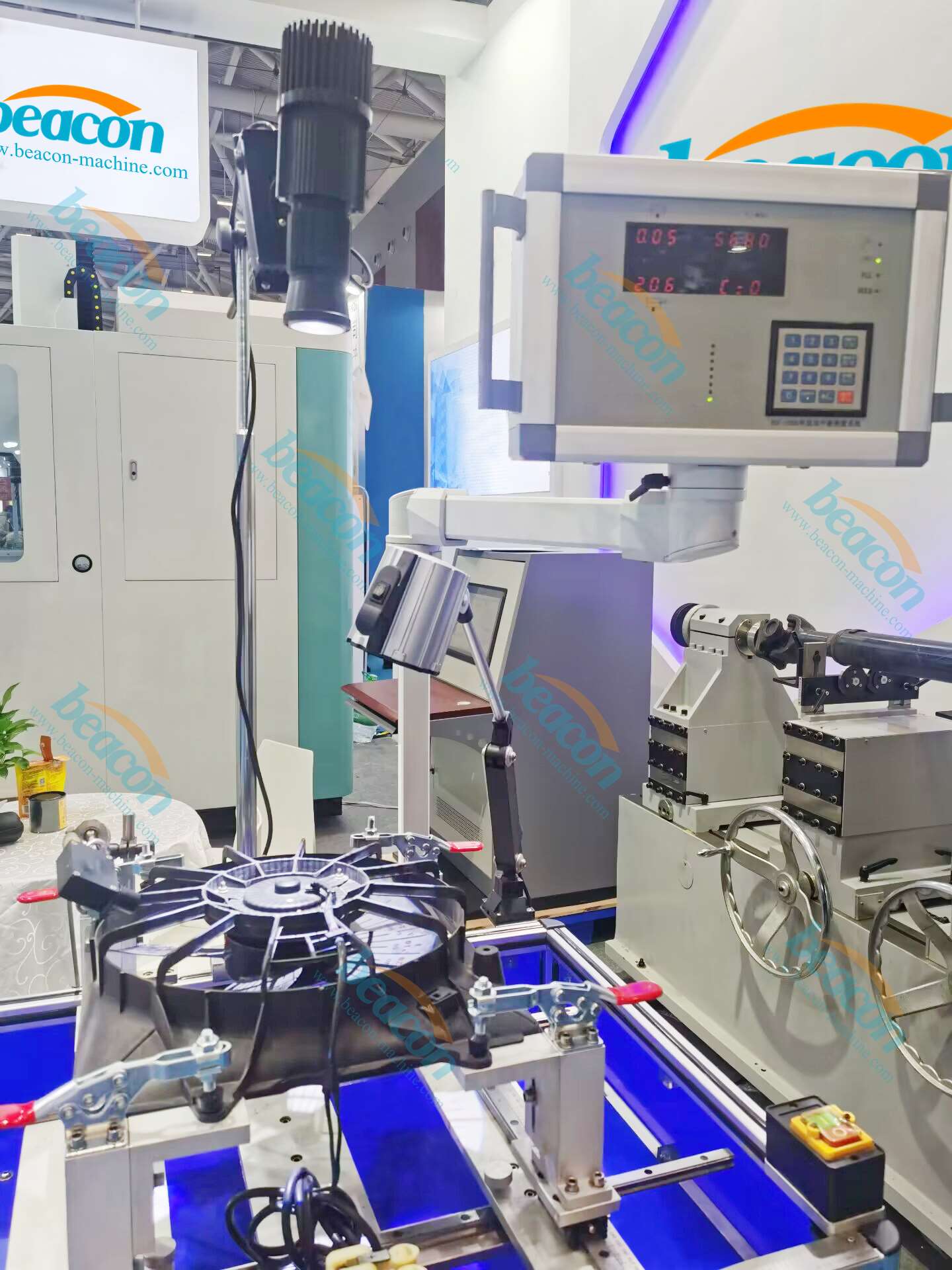

YF-5 industrial dynamic balance vertical single plane rotor balancing machine for flywheel

YF-5 turbo industrial dynamic balance vertical single plane rotor balancing machine for flywheel

0086-18253885135

info@beacon-machine.com


Make an inquiry

Use steel plate welding machine seat, Machining after annealing. Integrated design of machinery, measurement system and strong power control switch, Occupying a small area(Special requirements can be separated and installed). Suitable for single -sided balance measurement,Such as car accessories, etc., high -precision workpieces with special requirements.



1.Product structure:

(1)Single -sided vertical braking function

(2)Using the most universal figures and simulated integrated electrical appliances

(3)The amount, speed, and phase are displayed in numbers


2.Application range:

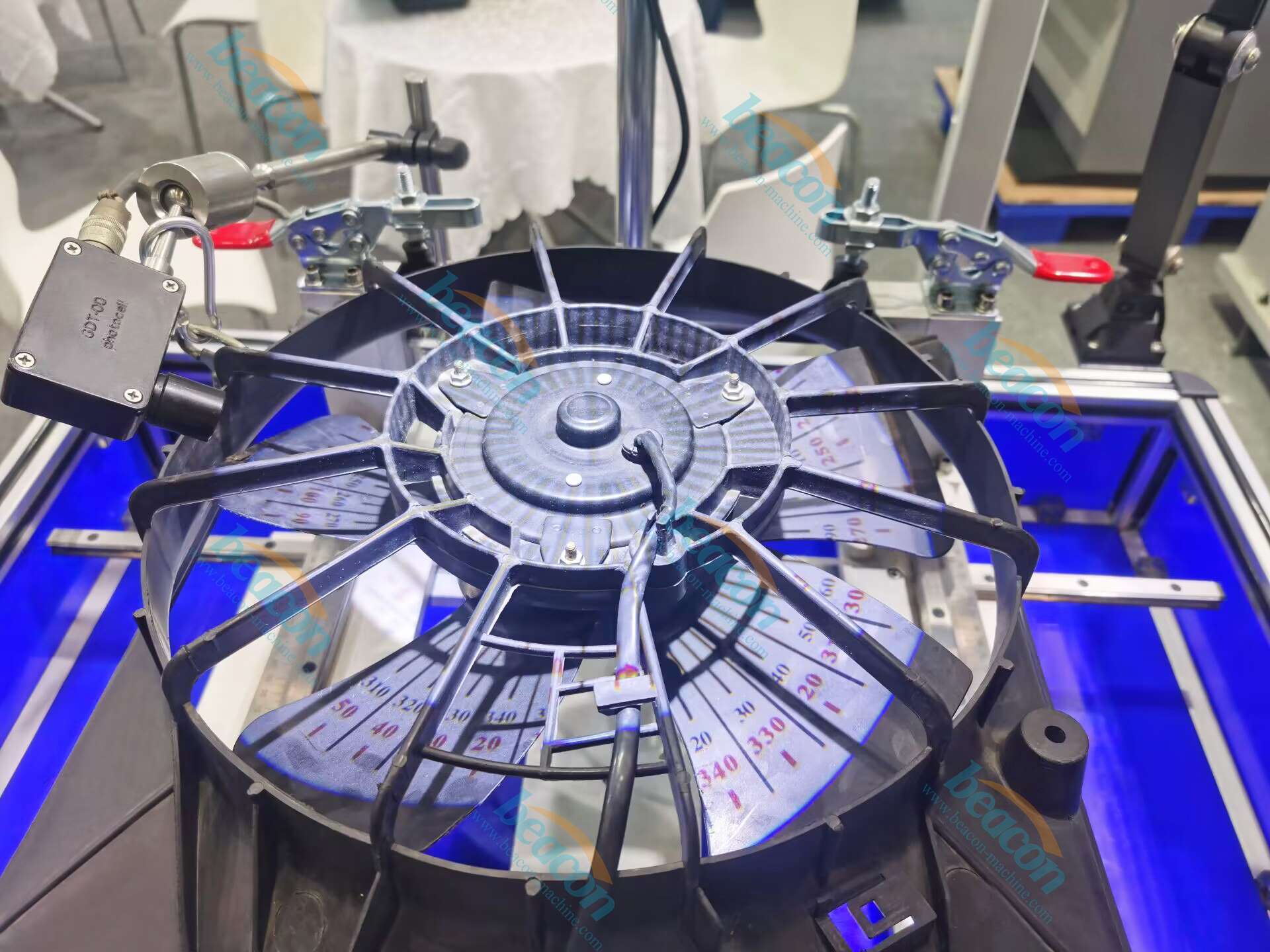

for fans.extraction fans,brakes.juice blenders range hoods ,blowers


YF-5 single-sided vertical balance machine

Type

YF-5

Mass of work(KG)

5

Max.dia of works(MM)

500

Balancing speed(R/MIN)

300-3500

Motor power(KW)

0.37

Min.achieveable unbalance

≤5

Unbalance reduction ratio(%)

≥90%

Machine tool length(MM)

1100

Net machine net weight(KG)

120

Size LxWxH(MM)

1100x800x850
