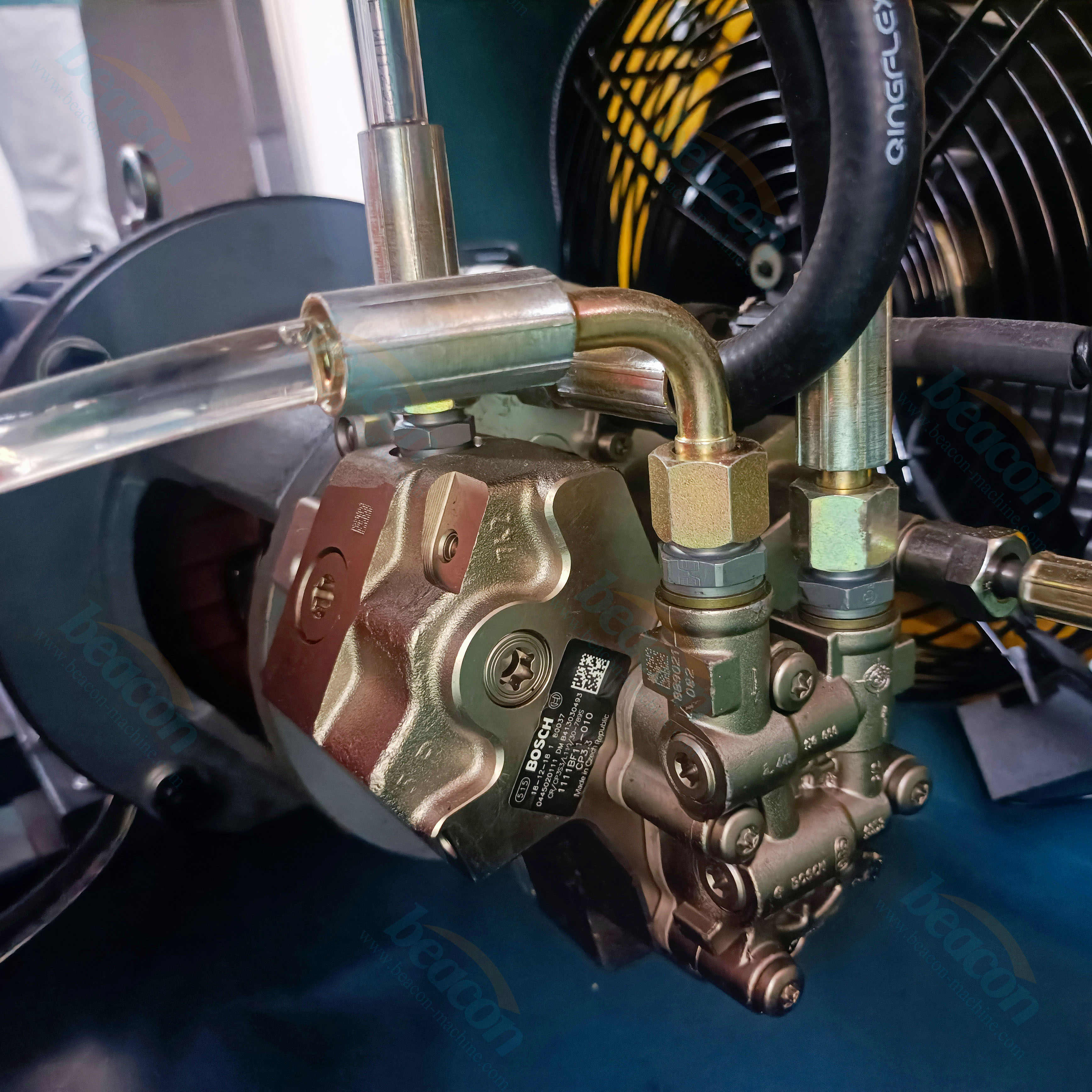

The function of CR318T common rail injector test bench is to imitate the working condition of diesel engine ECU (Engine Control Unit), while providing Bosch, Denso, Delphi, piezoelectric ceramic and other common rail system control signals to drive the high-pressure common rail oil pump and high-pressure common rail injector to work; drive signal parameters can be set according to their actual situation, and save, easy to repair The drive signal parameters can be set by the user according to their actual situation and saved, so that it is easy for maintenance personnel to judge and repair the working state of the common rail system.

4KW 380V ,with flow sensor

Test Common rail+Piezo injector+BIP function

Optional functions：

1.Delphi Denso Bosch Siemens injector coding

2.AHE injector dynamic stroke (with Bosch 110, 120 stroke measuring tool + micrometer)

3.Test 4 injectors at the same time(needn't add flow sensor extra)

4.Test 2 injectors at the same time(needn't add flow sensor extra)

5.Test 4 injectors at the same time(add flow sensor extra)

6.Test 2 injectors at the same time(add flow sensor extra)

7.BOSCH 4-pin injector test

8.Rail pressure sensor testing

9.DRV/HPV test
