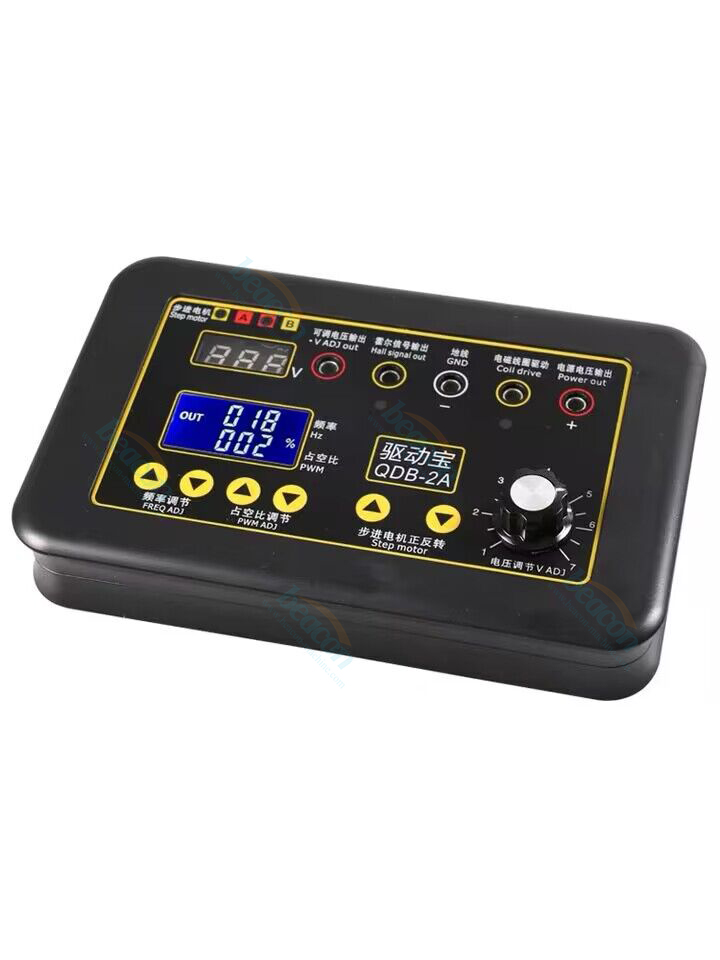

Beacon QDB-2A Portable Car Auto Actuator Detector Drive Tester Actuator Fault Detector Automobile Ignition Coil Test

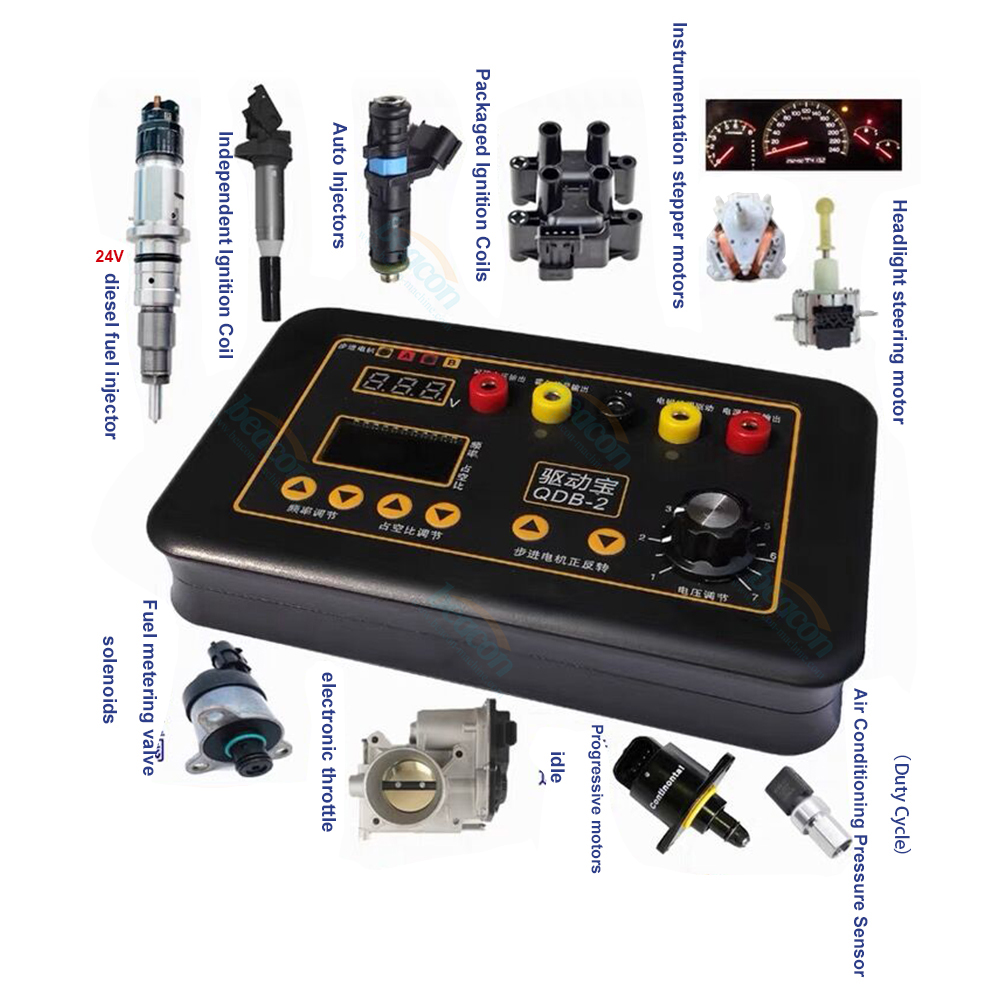

Main functions:

1. Test ignition coil: 12V gasoline car ignition coil, 12-24V natural gas car ignition coil

2. Test injectors: 12V gasoline
injectors, 12-24V diesel injectors

3. Test various solenoid valves for duty cycle control, such as fuel metering valves, EGR
valves

4. Test various duty cycle controlled motors, such as: electronic throttle motor, urea pump motor

5. Test idling stepper
motors, instrument stepper motors, headlight range stepper motors, etc.

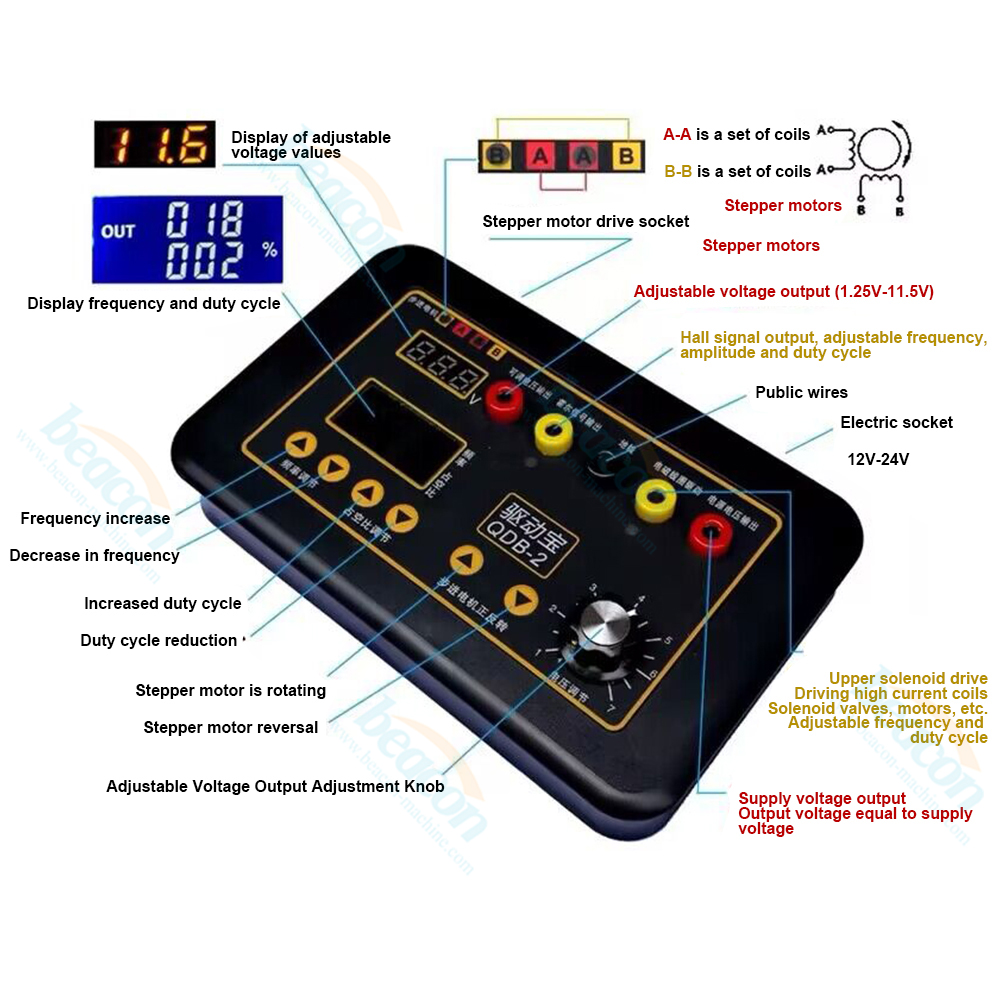

6. Hall signal with adjustable output frequency, amplitude
and duty cycle. Electronic module for driving duty cycle control can also simulate duty cycle type sensors. For example: air
conditioner pressure sensor (duty cycle type), air flow sensor (duty cycle type)

7. The power supply voltage is 12-24V, with reverse connection protection and overcurrent protection.(automatically cut off when

the current is too large)

8. Electromagnetic coil drive current range: 0-3.5A

9. Output frequency range: 1 -100KHZ

10. Duty cycle adjustment: 1-100%

11. Hall signal amplitude 1.3-11.5V

12. Adjustable voltage output 1.3-11.5V
