Roller Support Universal And Joint Drive Balancing Machine Balancing Equipment

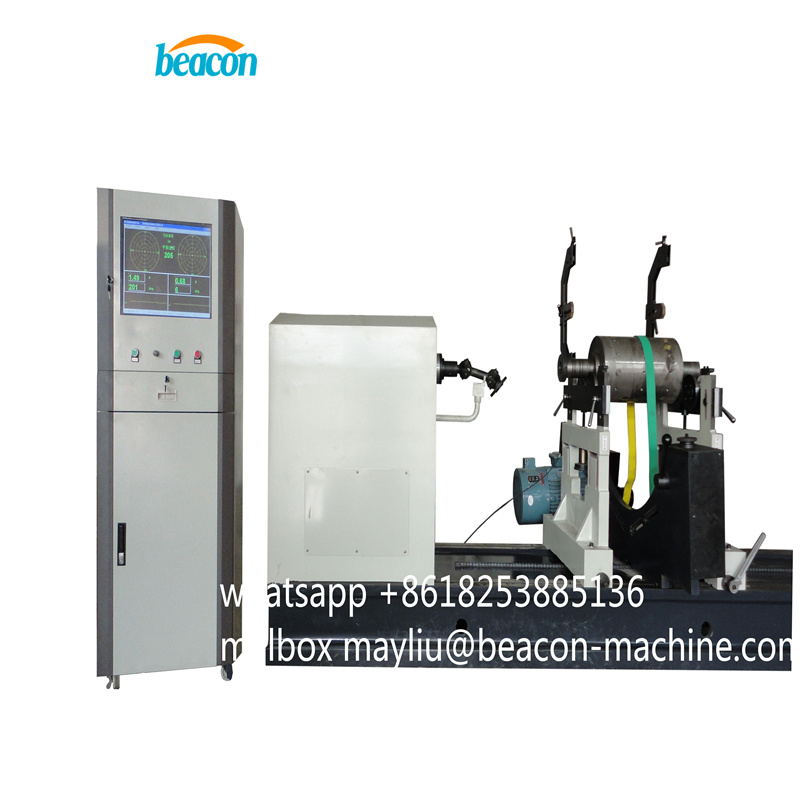

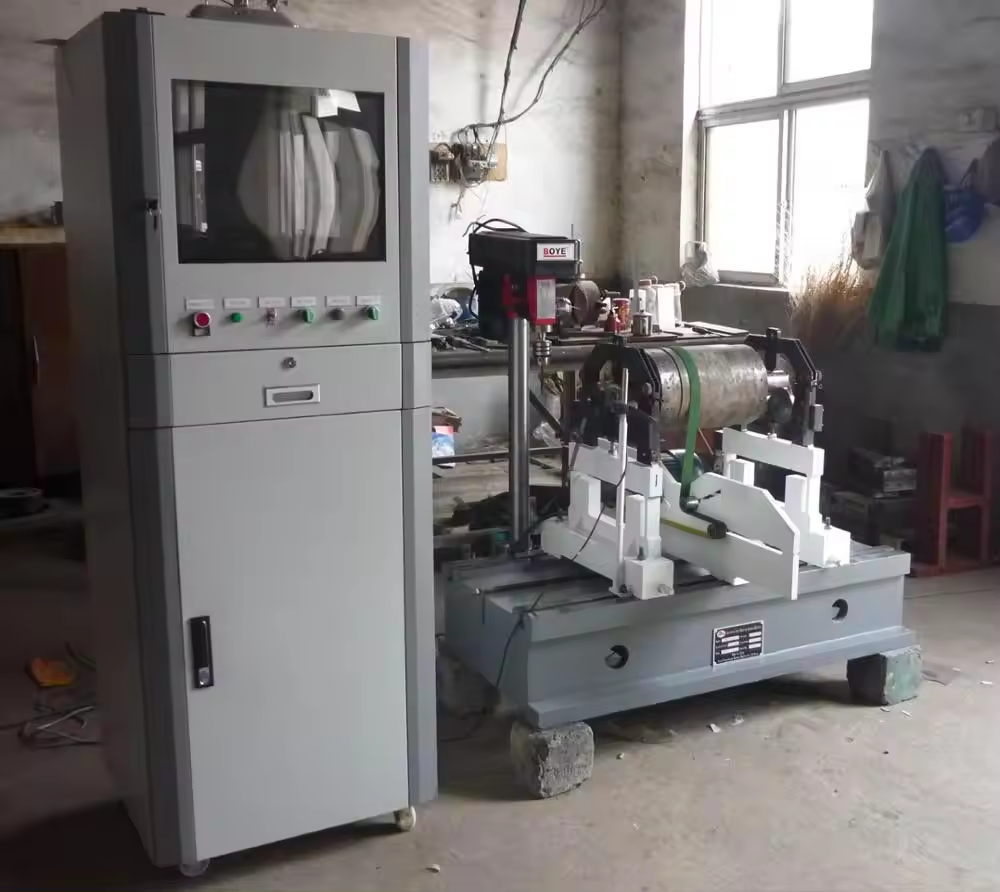

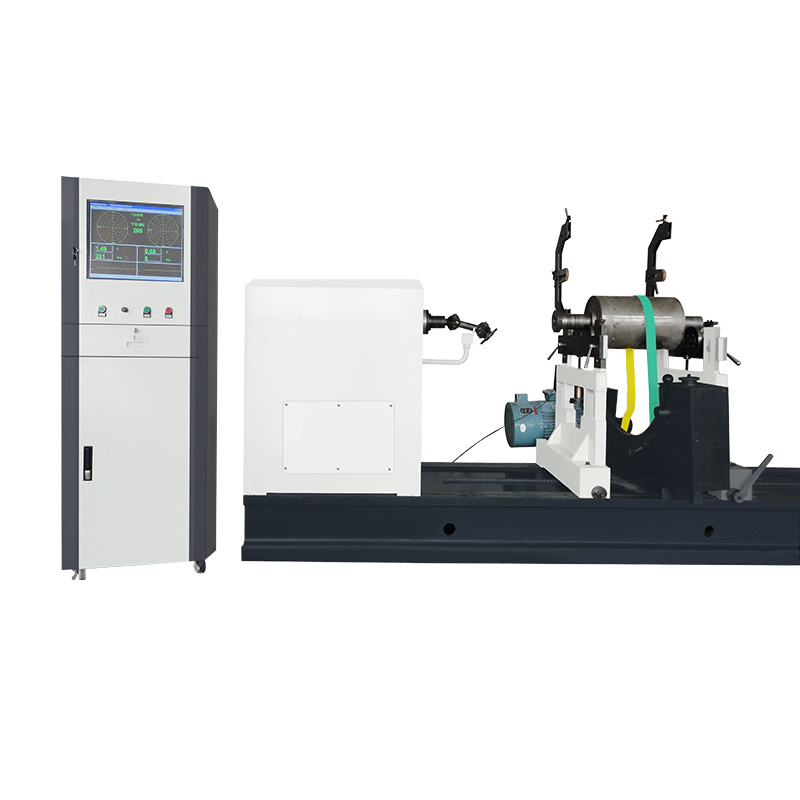

YYH-160A universal hard-supported dynamic balancing machine is produced in strict accordance with GB/T 4 2 0 1- 2006. It adopts roller support, universal joint drive, screen display structure, industrial control computer for data processing, and 19-inch LCD screen displays: Unbalance amount, phase angle and real-time rotation speed are widely used in papermaking machinery, textile machinery, agricultural machinery, electric motors, blowers and other industries; it can be balanced on one side, two sides and multiple correction surfaces, suitable for large shafts and discs , and the center of gravity extends out of the rotor.

0086-18253885135

info@beacon-machine.com


Make an inquiry

YYH-160A universal hard-supported dynamic balancing machine is produced in strict accordance with GB/T 4 2 0 1- 2006. It adopts roller support, universal joint drive, screen display structure, industrial control computer for data processing, and 19-inch LCD screen displays: Unbalance amount, phase angle and real-time rotation speed are widely used in papermaking machinery, textile machinery, agricultural machinery, electric motors, blowers and other industries; it can be balanced on one side, two sides and multiple correction surfaces, suitable for large shafts and discs , and the center of gravity extends out of the rotor.

Measurement System
Man-machine interface, more powerful functions and easier to operate.
The system automatically determines eligibility or not to rotor, and timely tips, automatically detect strength of the signal, automatic prompt fault.
Data input, storage, printing, realize one-click work.
One-time permanent calibration.
The permanent calibration brings high accuracy.

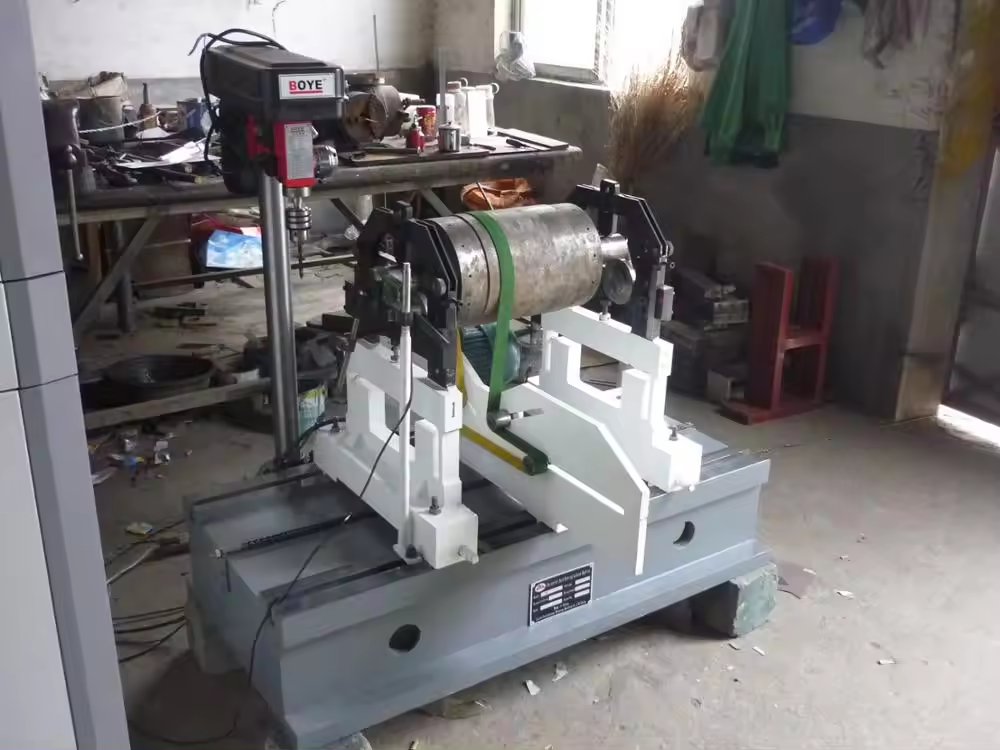

Special Designed Brackets
Less vibration damping, the transfer of mechanical force is more smooth
The swing frame casted with QT450, high integral rigidity, the mating surface with grinding process;
Roller material GCr15, after high frequency quenching, the hardness achieved above HRC55, surface
grinding to a radian, realization of contact with the workpiece width line, the final grinding and
demagnetization;
Roller bearing using NF special custom P5 class C1 group precision small oil gap clearance, to ensure
that the roller wear resistance, greatly improves the precision and service life of the use of the roller.
