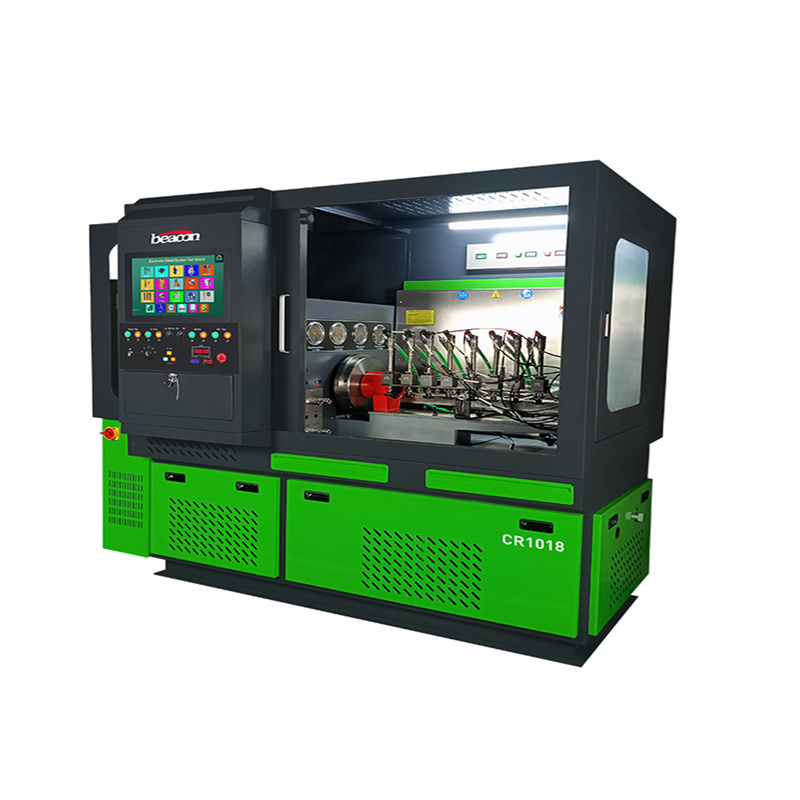

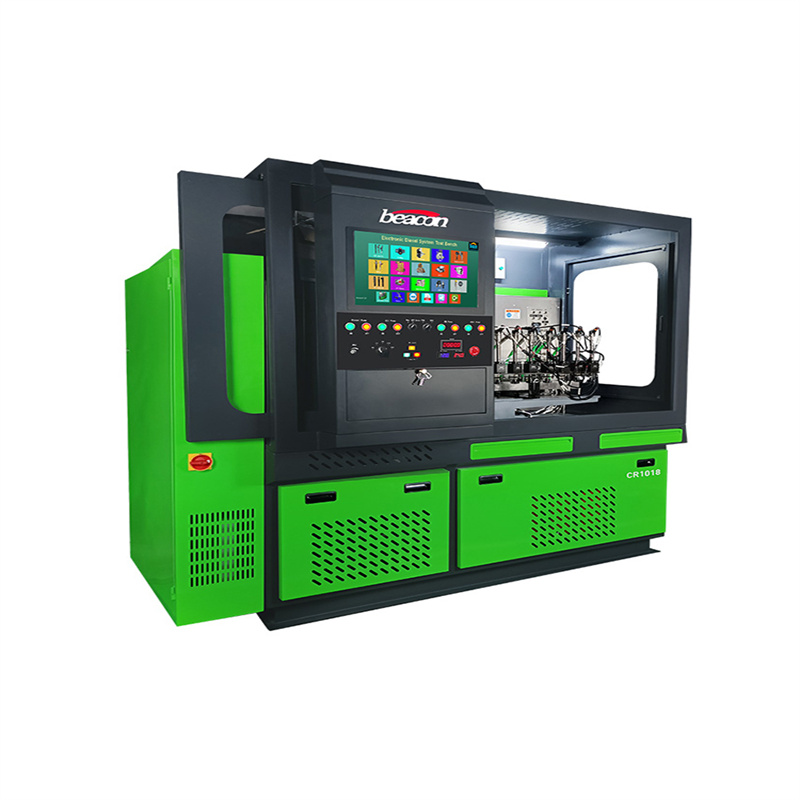

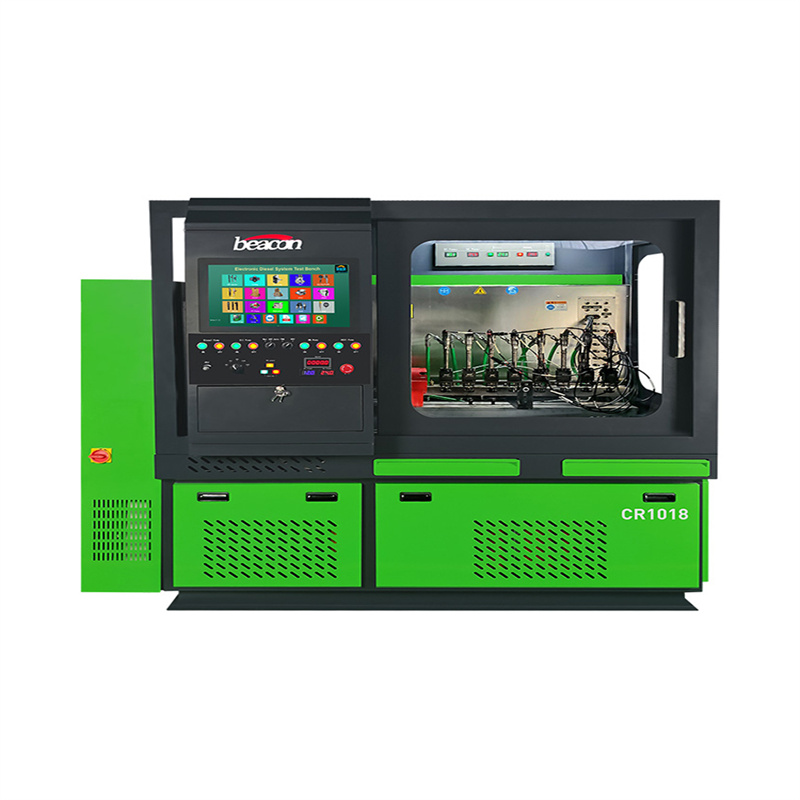

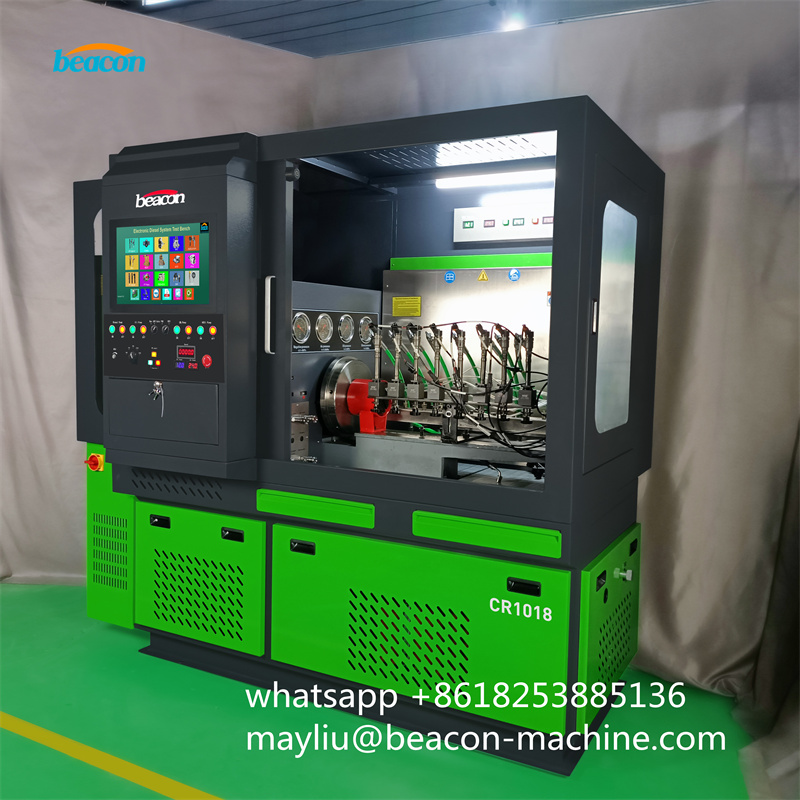

Common rail CR1018 high pressure diesel fuel injector nozzle testing machine crdi pt injector and pump test bench

MAIN CONFIGURATION

1.Test all the manufacturers of common rail injector
2.Test all the manufacturers of piezo injector
3.Test all the manufacturers of common rail pump
4.Test DENSO HP0 pump
5.Test common rail (HEUI) injector
6.Test common rail (HEUI) engine oil pump
7.Test 320D common rail pump (the world's first successful development)
 8.Test EUI/EUP (can adjust the lift but not to change the camshaft)
9.Test RED3 RED4 TICS ZEXEL electronic control pump optional function
10.Drive circuit board(solenold valve electric parameters to enhance the voltage current,time,pull in voltage ,current,time,keep voltage ,current,time,according to the setting of parameters of production factory)
11.Accept the speed sensor ,encode signal,high speed solenoid valve drive signal
.Accept the speed sensor ,encoder signal,output 2 PWM drive signal, 2 way solenoid valve drive signal,1 high speed solenoid valve drive signal. Driving signal waveform can be programed.

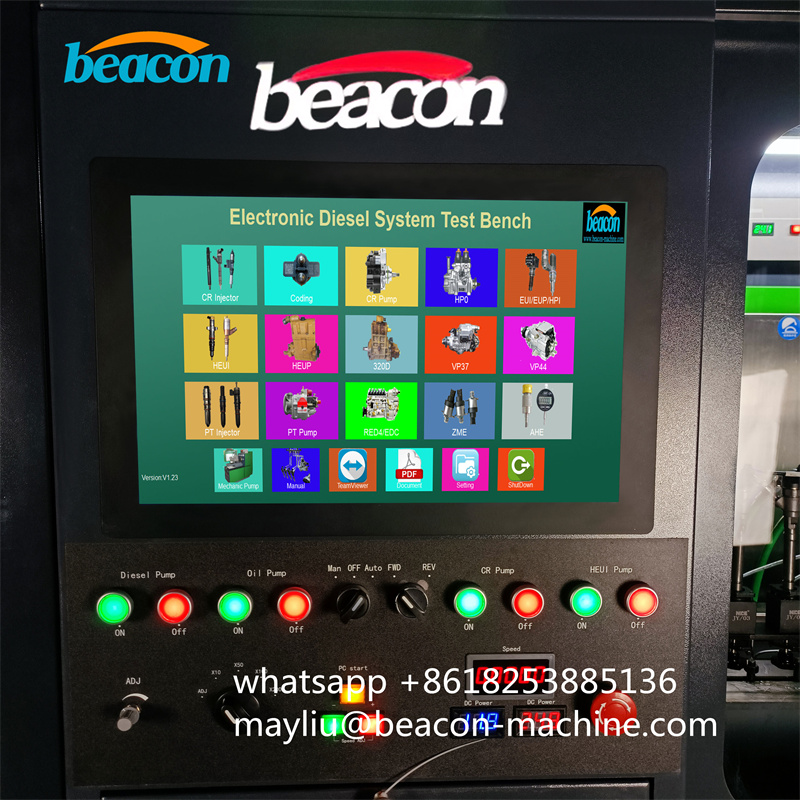

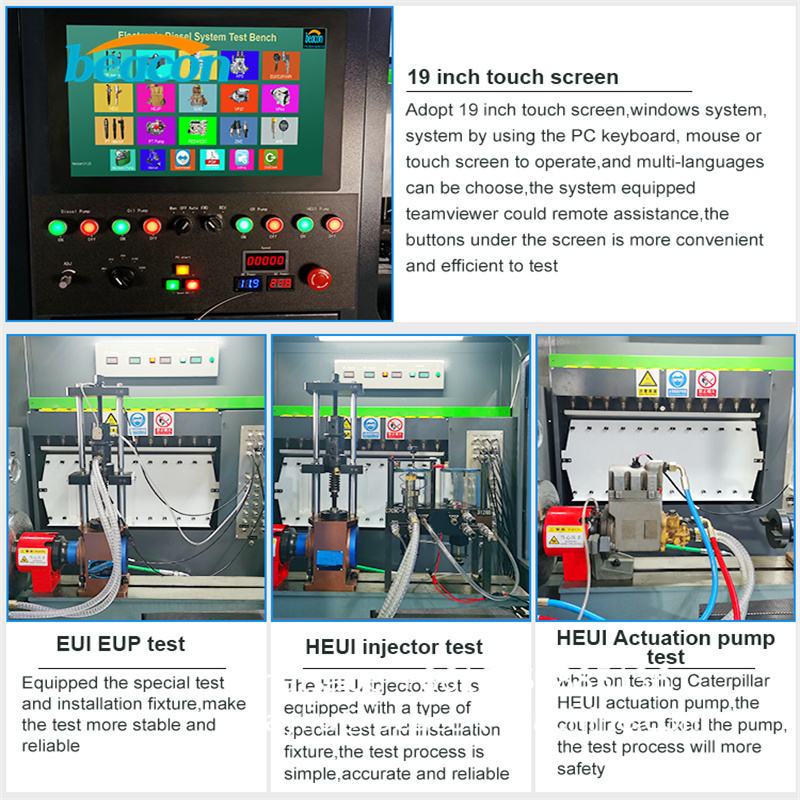

1.Industrial PC with touch screen
2.Compressor cooling
3.Oil tank(including heating,refrigeration,liquid level detection,temperature detection)
4.Diesel tank(including heating,refrigeration,liquid level detection,temperature detection)

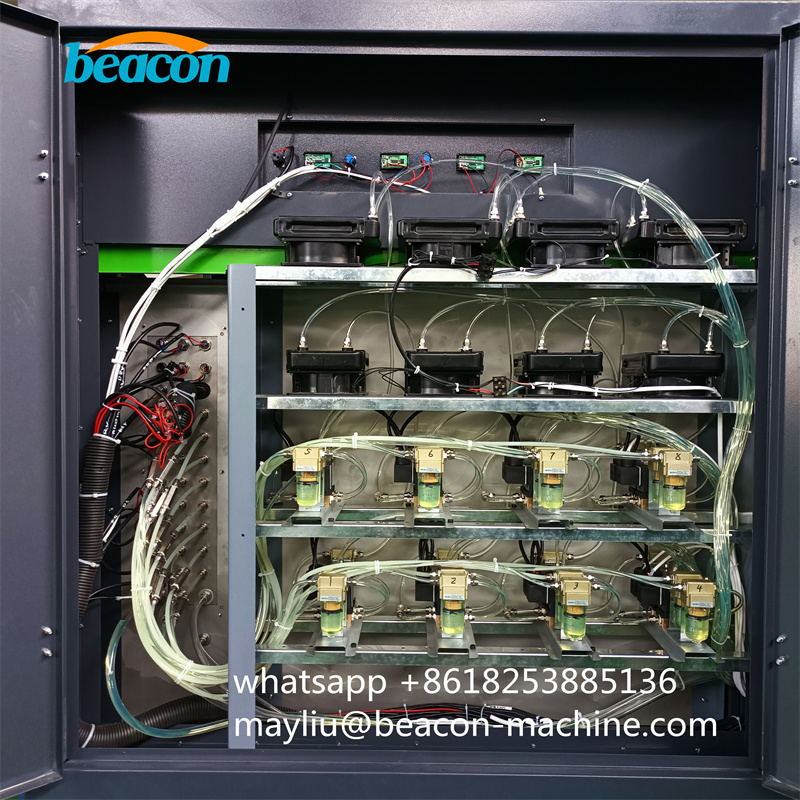

5.Flow meter(German ZDM) detecting the fuel injection flow rate
6.Flow meter(German ZDM) detection of common rail pump
7.Flow meter(German KRACHT) to detect oil flow
8.Flow meter(German KRACHT) detection of diesel oil return flow
9.2sets of BOSCH common rail +DRV
10.Oil tank temperature sensor
11.Diesel fuel tank temperature sensor
12.Diesel supply temperature sensor
13.Diesel return temperature sensor
14.Oil pressure sensor
15.Diesel supply pressure sensor
16.Diesel return pressure sensor
17.Diesel pump internal pressure sensor
18.Oil pressure closed loop control module
19.The device is convenient to move and position the roller
