YYW-5000A rotor universal joint drive horizontal hard bearing dynamic balancing machine for dynamic testing

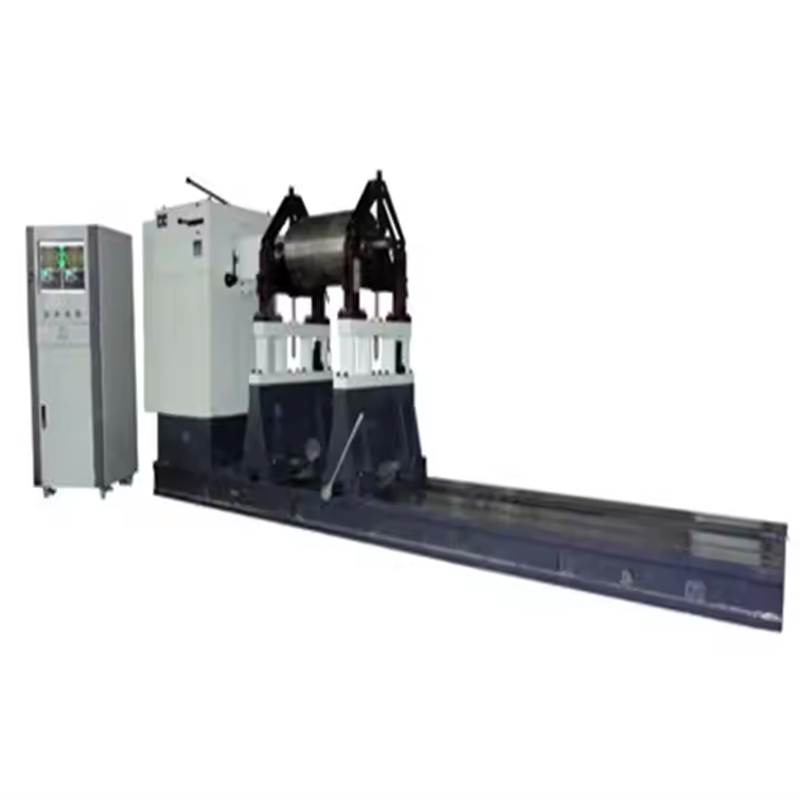

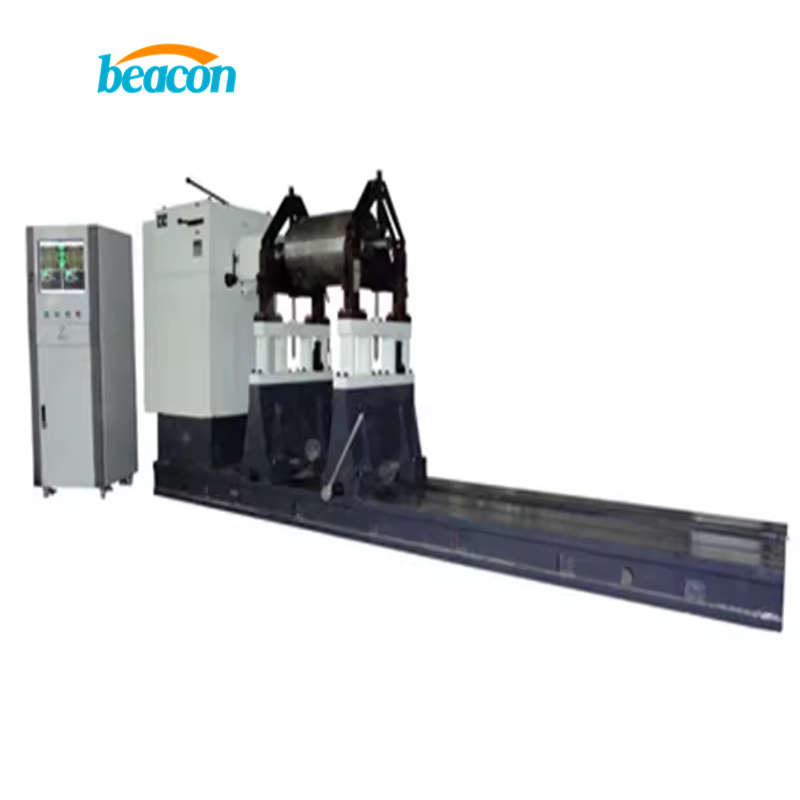

YYW-5000A is a hard support horizontal special dynamic balancing machine specially produced for large-diameter workpieces in the fan and blower industries. It adopts roller support, universal coupling drive, variable frequency motor and frequency converter for speed regulation, and is processed by industrial control computer

0086-18253885135

info@beacon-machine.com


Make an inquiry

Overview

 Industrial control computer 19-inch LCD color screen display
  Widows Chinese and English system double selection
  Equipped with GB-2000 general microcomputer balance measuring system
  Full-automatic program-controlled amplification module
  Any workpiece calibration function, any angle fixture compensation and workpiece information storage
  Qualified quantity display, measurement cycle adjustment function
  Automatic signal amplification and manual amplification adjustment, signal self-inspection, automatic diagnosis
  Vector graphics, waveform and unbalance are displayed at the same time
  The remaining unbalance quantity g and the unbalance force distance g cm, g mm can be selected for display
  Optional functions
1. Balance angle automatic tracking function
2. Parking automatic positioning function
3. Vector angle decomposition function

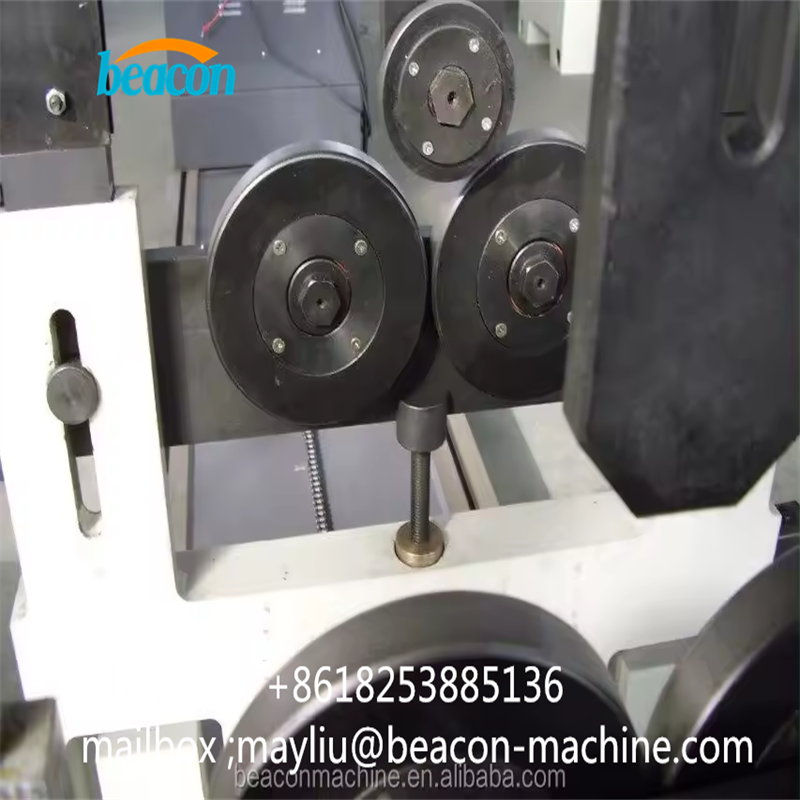

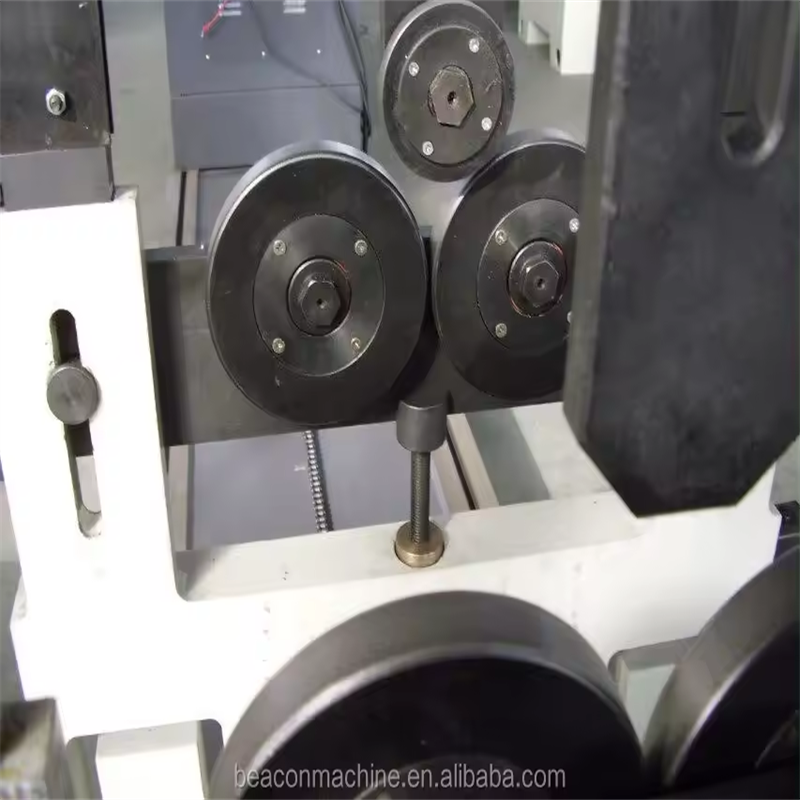

  Features: This series is a hard support horizontal special dynamic balancing machine specially produced for large-diameter workpieces in the fan and blower industries. It adopts roller support, universal coupling drive, variable frequency motor and frequency converter for speed regulation, and is processed by industrial control computer. The color screen displays the unbalance value, phase angle and real-time speed in real time. The bed is integrally cast with good stability. It is widely used in fans, blowers and other industries, and can carry out balance measurement on single, double and multiple calibration faces. It has the characteristics of high efficiency, accurate accuracy, intuitive display, reliable quality and convenient maintenance. The software has two calibration functions of common workpiece and standard rotor, which overcomes the defect that it is difficult for users of other hard-supported balancing machine measurement systems to calibrate the equipment by themselves, and has a variety of measurement methods and functions such as coupling compensation function for selection, which can realize parameter input, preview, experiment, result storage, printing All operations adopt Chinese menu structure, man-machine dialogue and automatic prompt.
