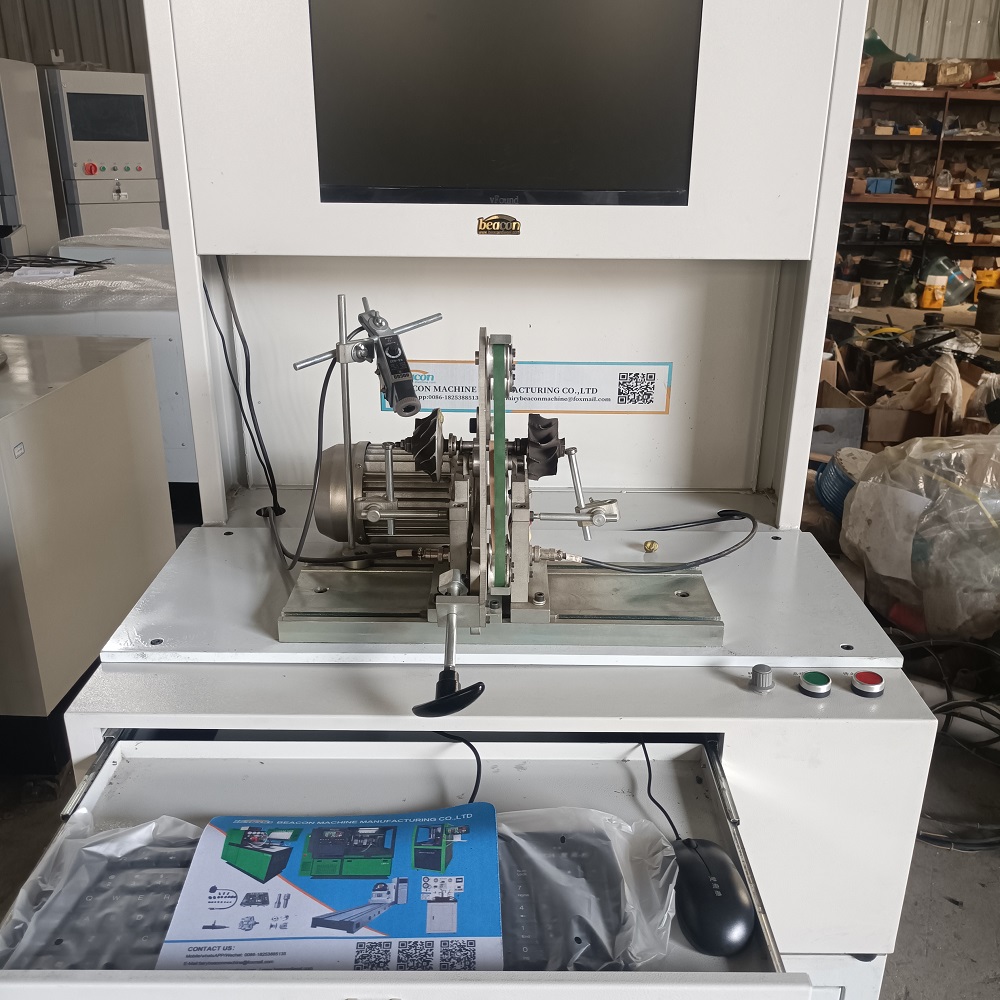

Computer Control RYQ-5A with Desk Table New Design is for rotor/turbo core /flywheel under 5 kgs weight ,with high accurate.
0086-18253885135
Introduction:
High measuring accuracy and efficiency
Safe and simple handling
Infinitely variable DC drive
Large weight range
Ergonomic working height
Horizontal balancing machine, soft-bearing, belt drive,
Balancing mechanical parts (can put on a table) Measurin
system balancing software computer display.
Technical Data:
|
Model |
RYQ-5 |
|
Mass of Workpiece (kg) |
0.1-5 |
|
Max.diameter of workpiece (mm) |
φ400 |
|
Distance between two support bearing(mm) |
50-600 |
|
Range of Journal Diameter(mm) |
φ3-40 |
|
Balancing speed(r/mm) |
400-5000 |
|
Min. Achievable residual Unbalance (g.mm/kg): |
≤0.5 |
|
Unbalance reduction ratio(%): |
≥90 |
|
Drive power (kw) |
0.09 |
