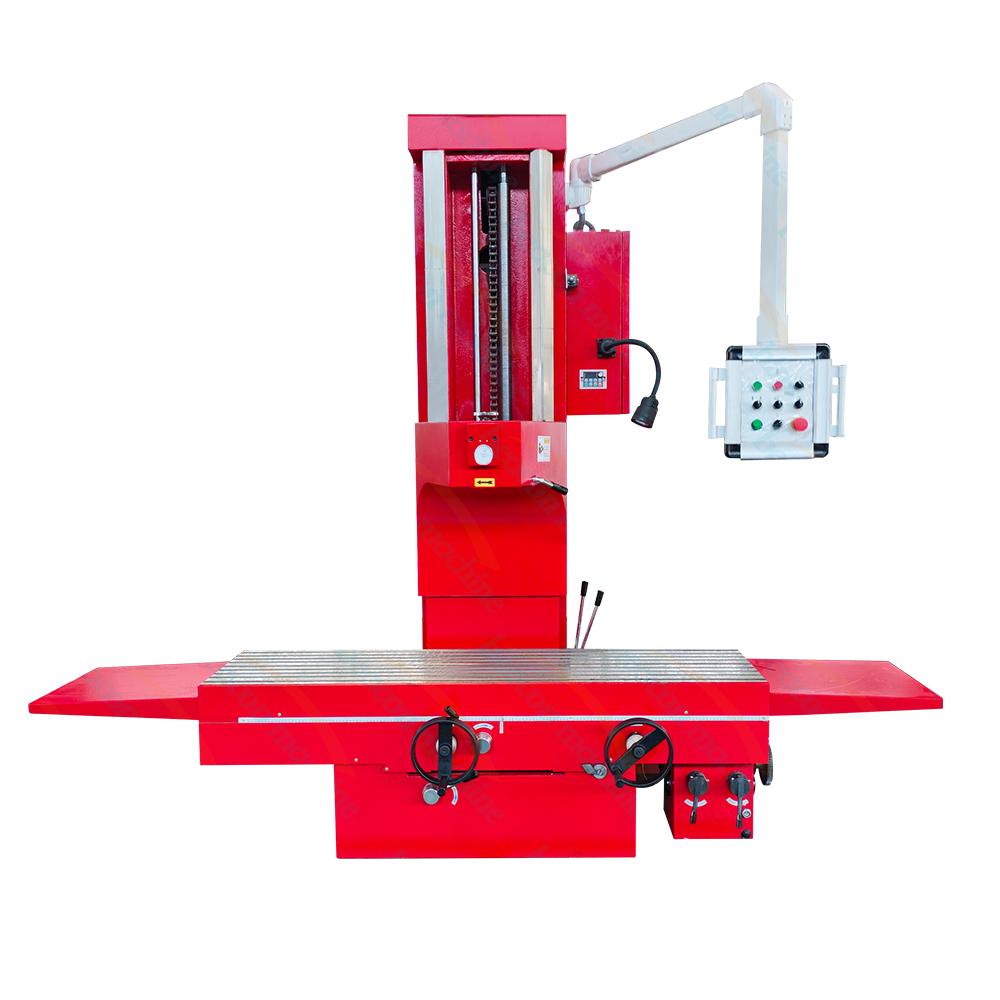

T8018C Automatic Cylinder Boring Machine for Cylinder Holes Processing of Vehicles
T8018C Automatic Cylinder Boring Machine for Cylinder Holes Processing of Vehicles
Make an inquiry

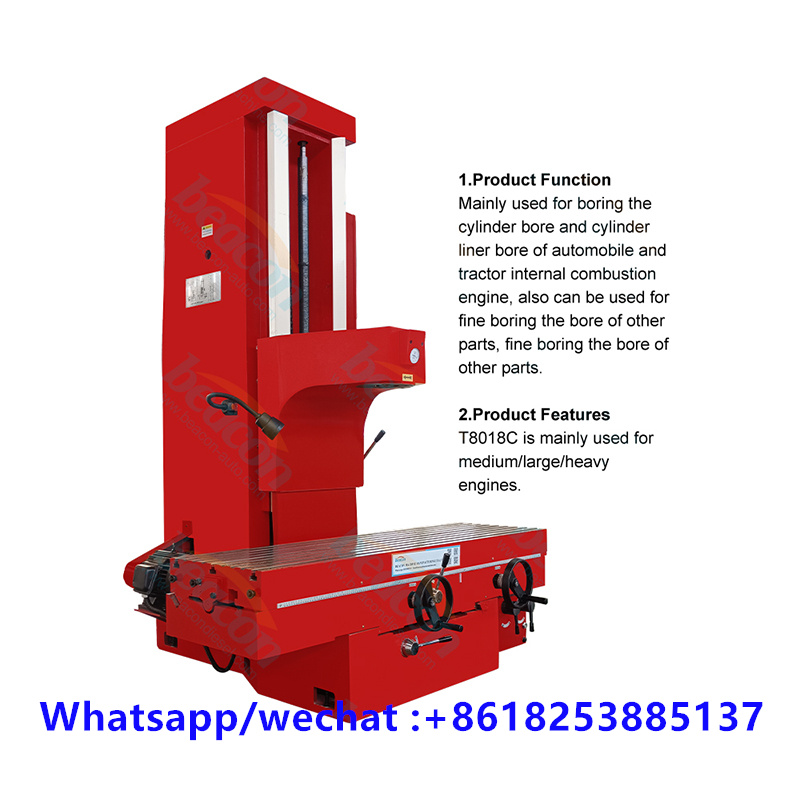

The machine is mainly used for boring the cylinder hole of internal combustion engine and the inner hole of cylinder
sleeve of cars or tractors, and also for other machine element hole.
T8018A is a mechatronic driven and spindle speed frequency changed speed variation.
T8018B is a mechanically-driven.
T8018C: bigger table size 1680x450mm,boring depth 650mm,used for processing special heavy motor cylinders.
|

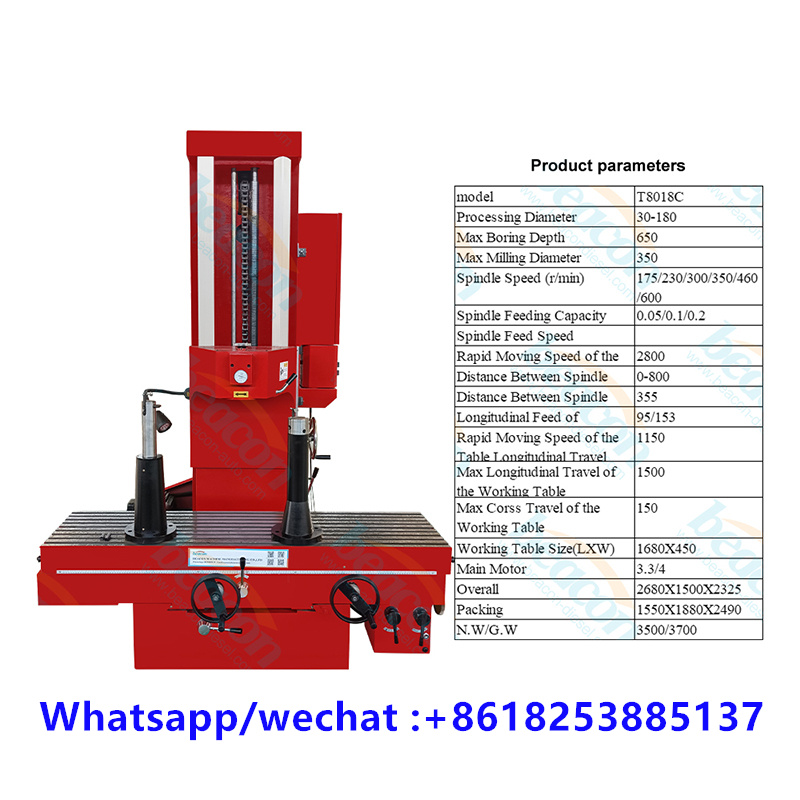

1
|
Name
|
Vertical Cylinder Boring Machine
|
|
2
|
Model
|
T8018C
|
|
3
|
Boring Diameter (mm)
|
Φ 42- Φ 180 mm (with optional accessories)
|
|
4
|
Max Boring Depth(mm)
|
650mm
|
|
5
|
Spindle Speed(R/Min)
|
0.05, 0.10, 0.20
|
|
6
|
Main Motor (kw)
|
3.3 / 4.0
|
|
7
|
Net / Gross weight (kgs)
|
3500 / 3700kgs
|
|
8
|
Machine size (L*W*H)
|
2690*1500*2325mm
|
|
9
|
Package size (L*W*H)
|
1600*1910*2575mm
|
|
10
|
Producting time‘
|
3-20 days
|
|
11
|
Warranty
|
2 years (no man-made reasons)
|
|
12
|
Electrical power
|
380v, 3ph, 50/60hz or 220v,1ph,50/60hz
|
|
13
|

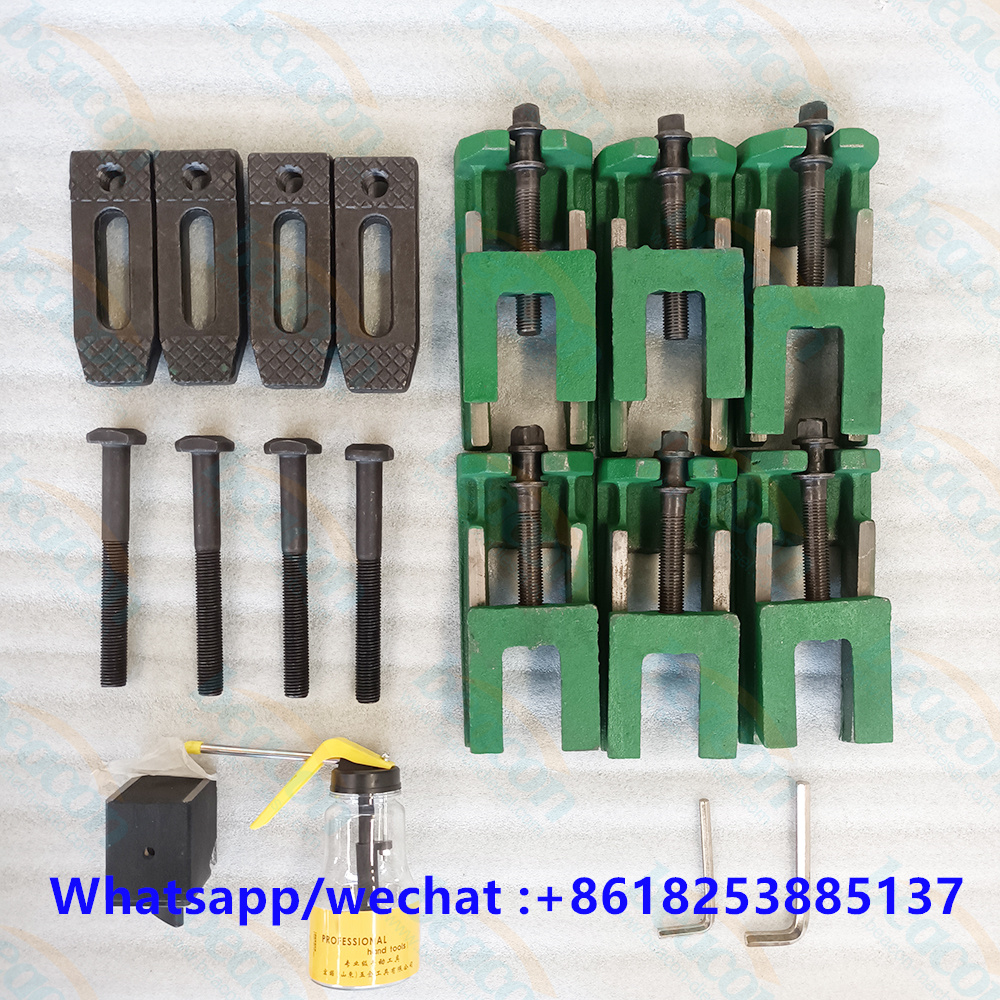

Standard accessories
|
1). 2 boring heads with ø56mm and with ø75mm (or boring heads with ø60mm and with ø90mm);
2). 4 cutters;
3). 6 adjustable foot pads;
4). 2 wrenches and 1 oiler.
|
|
14
|
Optional accessories
|
1). Milling-surface head;
2). 30 °and 45 ° V-type fixture;
3). Parallel bracket;
4). Quick fixture;
5). Tooling gauge;
6). Boring heads with ø30mm;
7). Boring heads with ø40mm;
8). Boring heads with ø120mm.
|
