Product features

1.Can be fully automatic testing Bosch, Denso, Delphi, Carter and other kinds of injectors, injection pumps, by increasing the configuration can be added to the monobloc pumps, pump nozzles, Carter oil actuated pumps and other types of additional packages, to achieve the multi-purpose machine, effective savings in testing costs.

2.Adopt original imported flow sensor, accurate testing. Test data by professional and technical personnel strict testing, summary and Bosch original data is highly close.

3.Bosch IQA code generation, Cummins XPI QR code generation. Denso QR code generation, Delphi QR code generation, Siemens QR code generation.

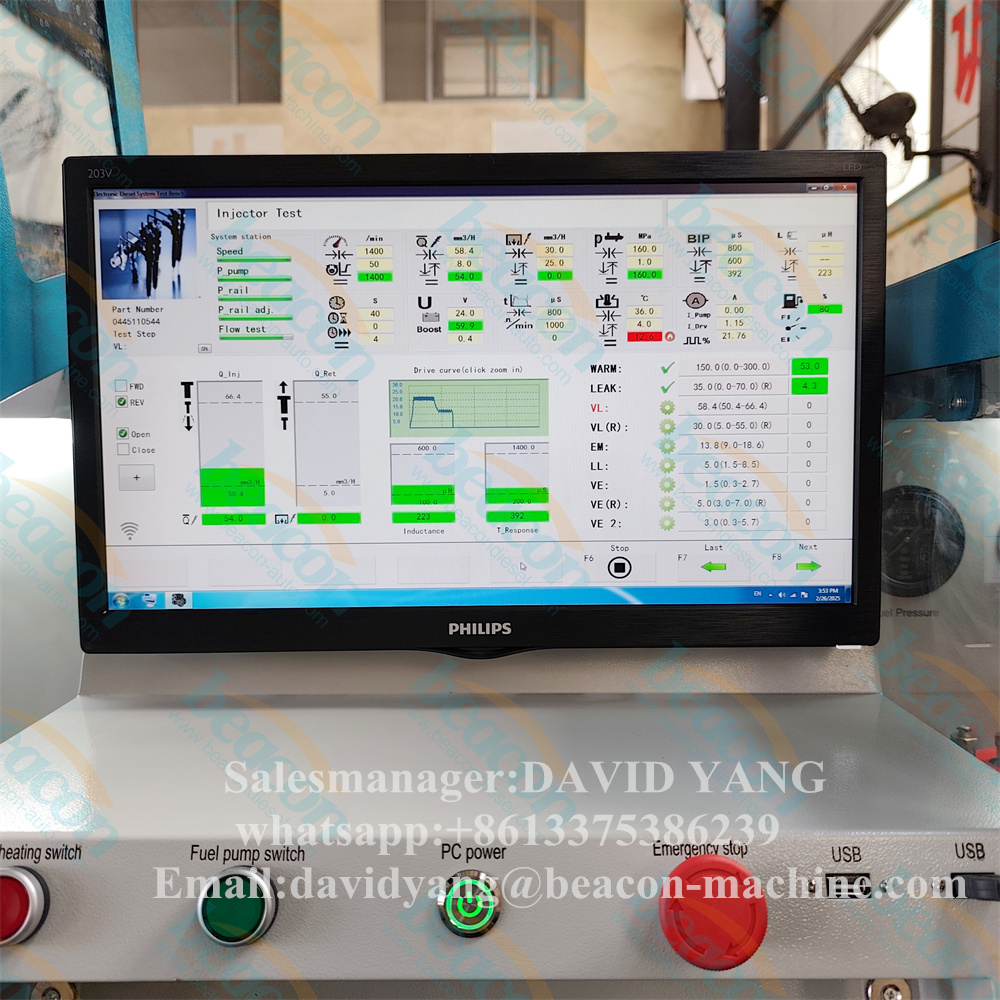

4.Injector response time test

5.Server online real-time update system data.

Brief introduction

1.Basic model 7.5kw 380v three-phase

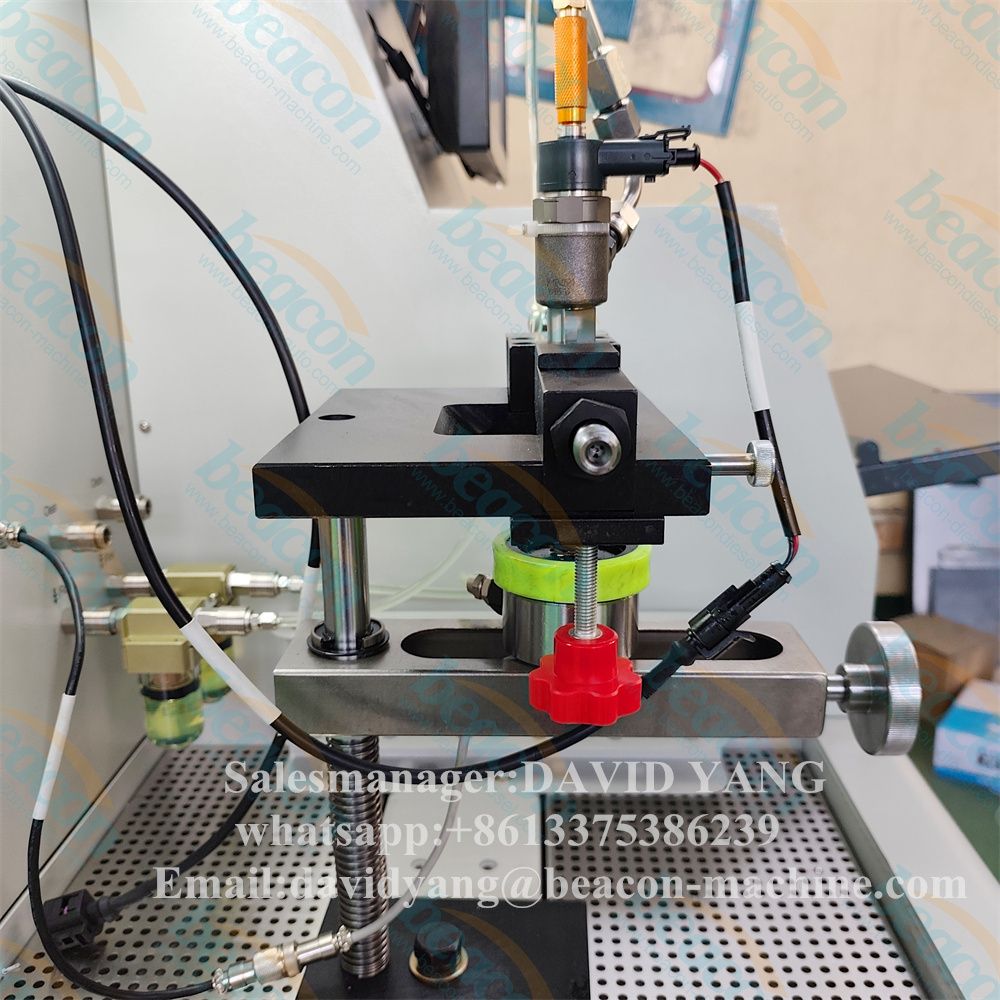

2.Test common rail injector / piezoelectric injector (2-needle and 4-needle)

3.CR injector parts test: solenoid valve test, opening pressure test, opening pulse width test

4.CR injector resistance and inductance test

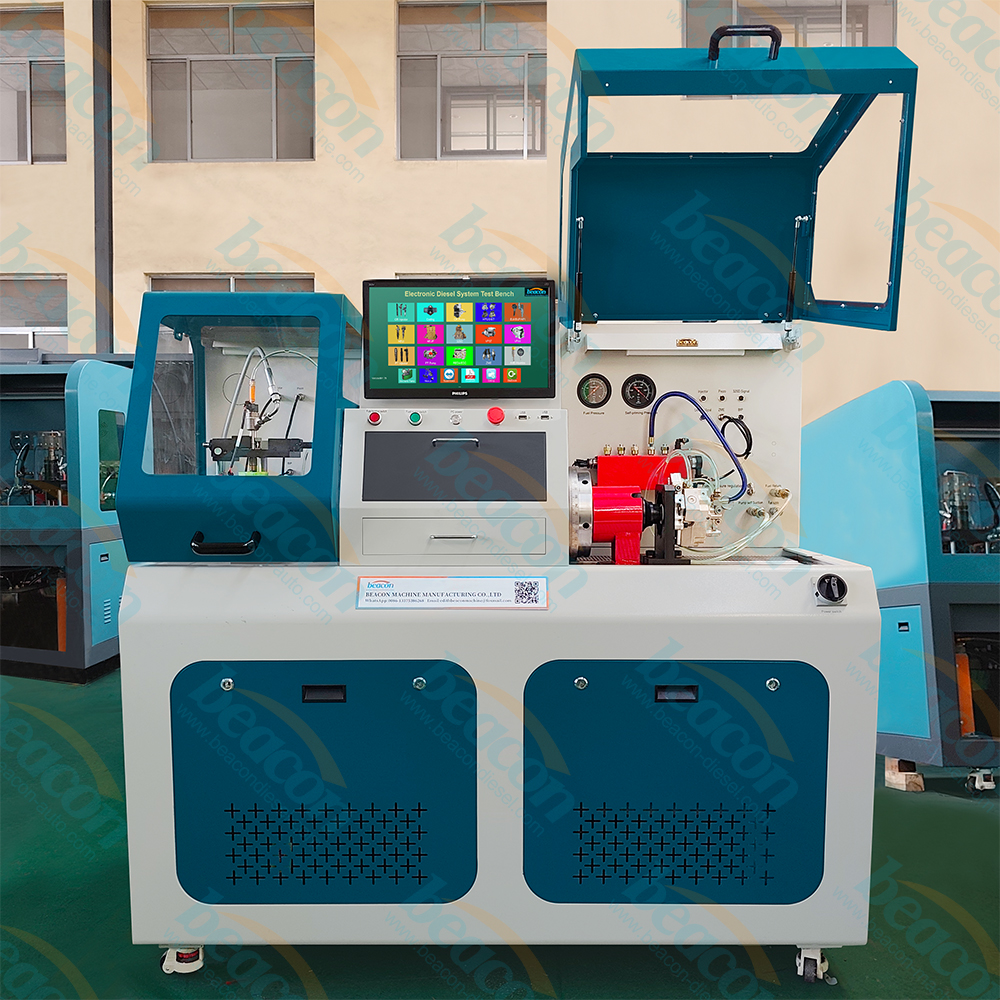

5.test common rail pump

6. Denso HP0 pump function

7.Delphi Bosch Denso Siemens injector code

8.BoschCRIN4 (4-pin) injector test

9.CR pump test (double ZME)

10.CR pump camshaft sensor resistance and inductance test

11.CR pump metering unit affirmation and inductance test

12.CR pump PCV, IMV resistance and inductance test

13.CR pump component test:ZME,DRV

14.BIP
