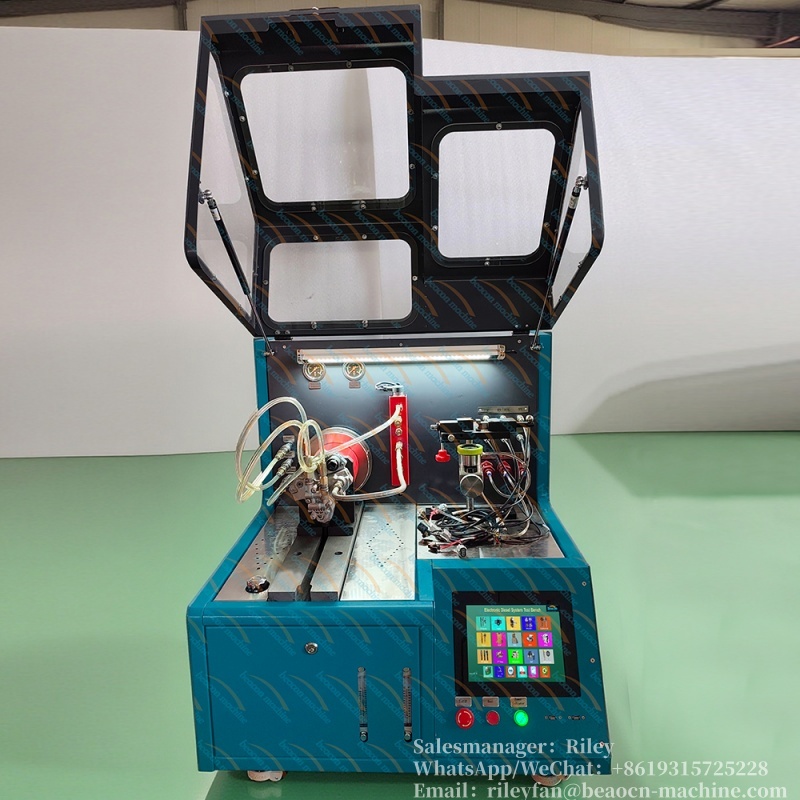

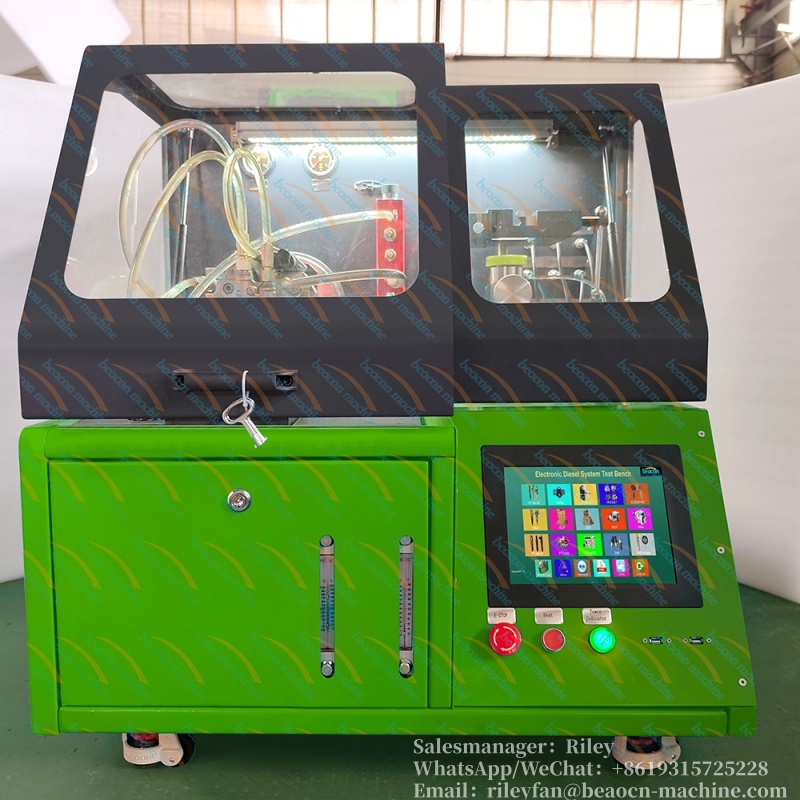

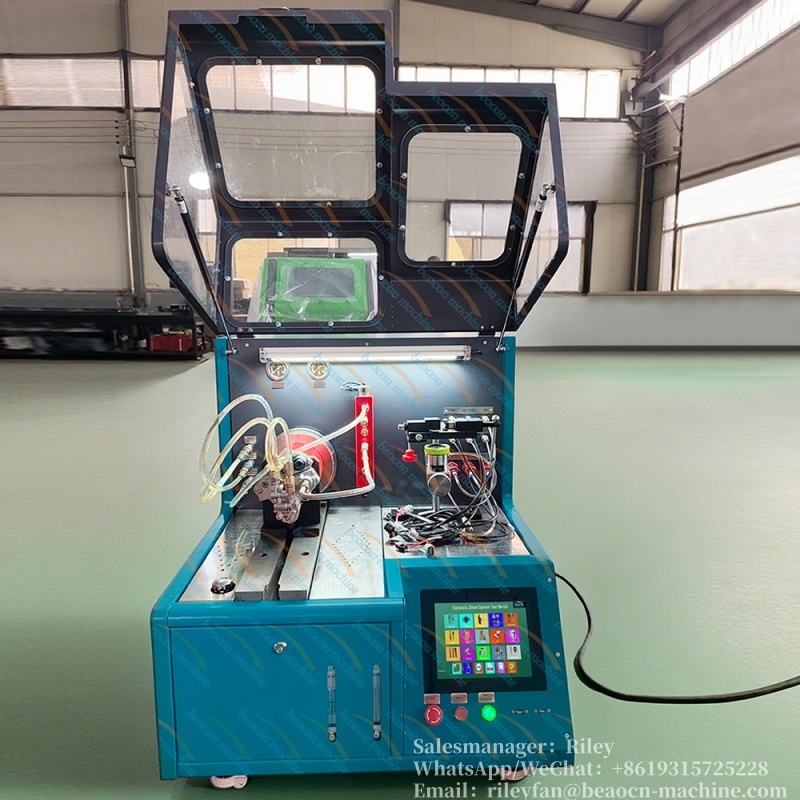

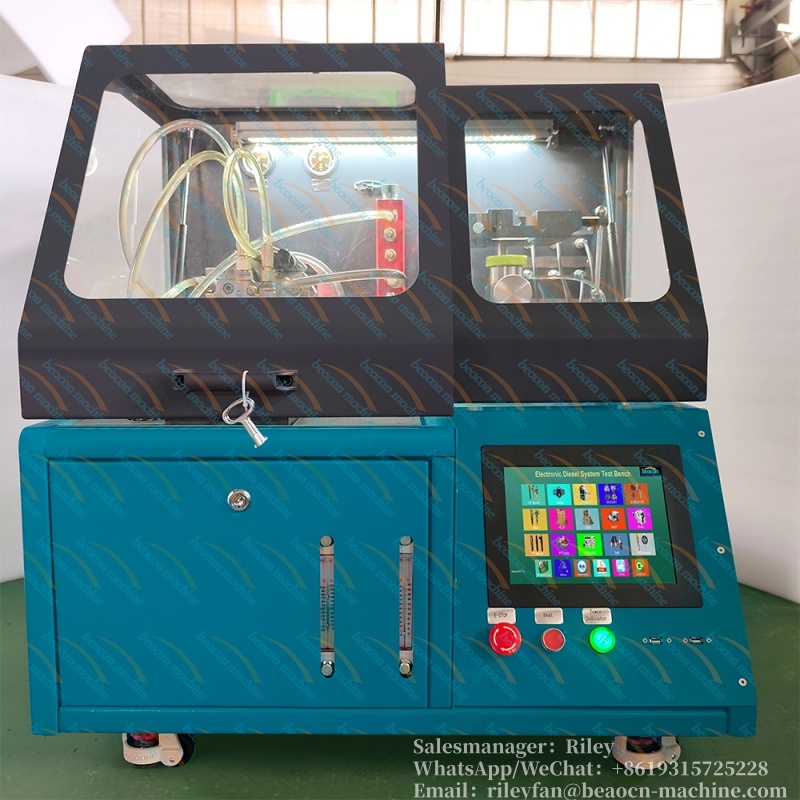

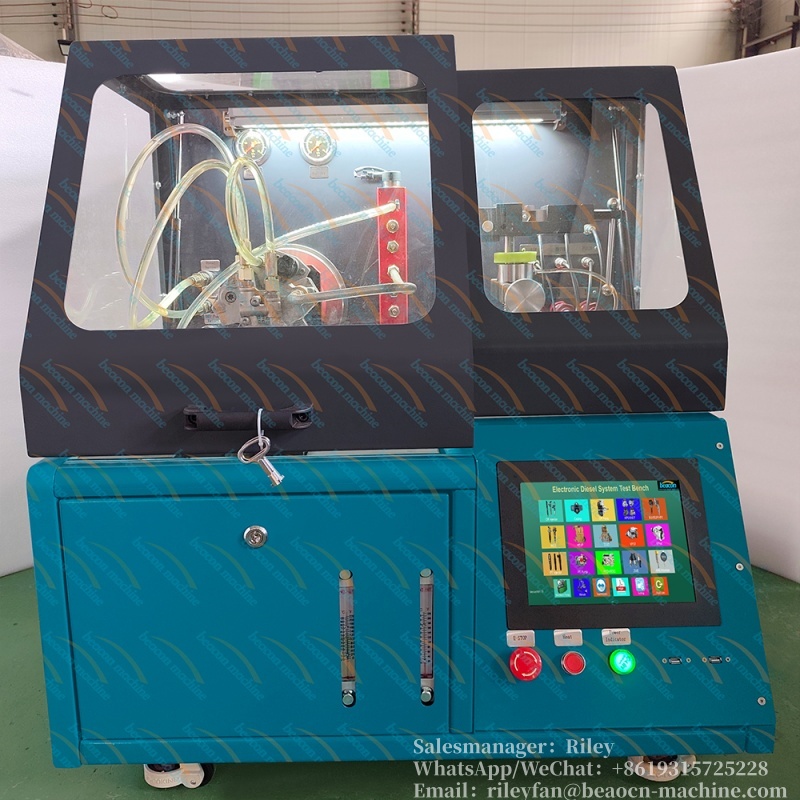

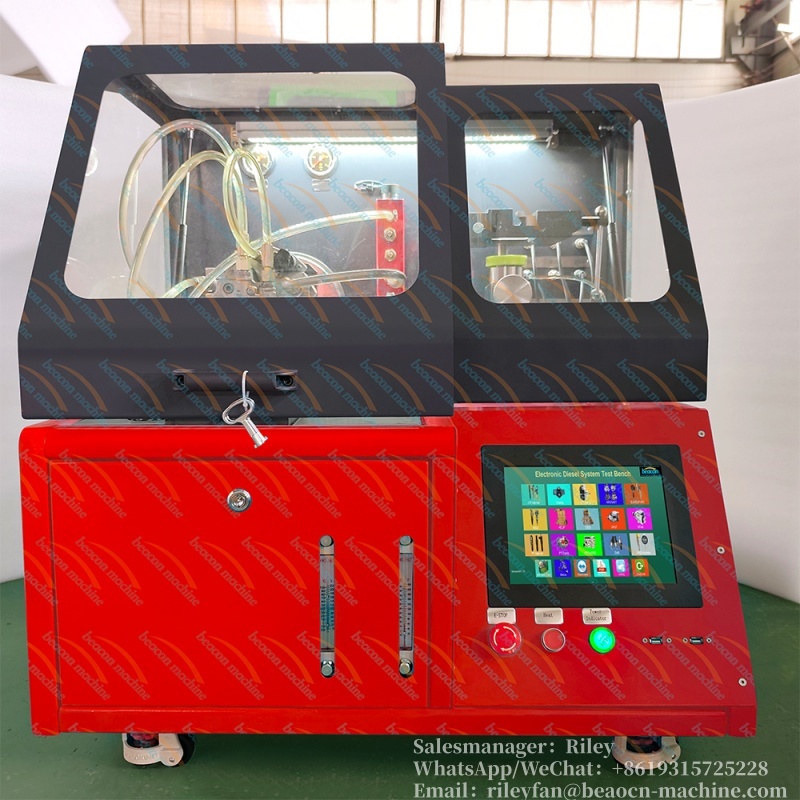

CR216 Common Rail Injector Pump test bench

CR216 Common rail diesel injector pump test bench

0086-18253885135

info@beacon-machine.com


Make an inquiry

The function of the CR216 common rail injector test bench is to imitate the working conditions of the diesel engine ECU (Engine Control Unit), while providing control signals for common rail systems such as Bosch, Denso, Delphi, and piezoelectric ceramics to drive high pressure common rail fuel pumps and high pressure common rail systems. Rail injectors work; users of drive signal parameters can be set according to their actual conditions and saved, which is convenient for maintenance personnel to judge and maintain the working status of the high pressure common rail system.






BASIC FUNCTION
1.Basic model 5.5KW 380V 3phase
2.Common Rail Injector
3.Piezo Injector
4.BIP
5.Common Rail Pump
6.Denso HP0 Pump Function
7.Delphi Bosch Denso Siemens Injector coding


OPTIONAL FUNCTION
1.CAT 320D pump
2.Testing 2 units simultaneously (without additional flow sensors)
3.Testing 2 units simultaneously (with additional flow sensors)
4.ZME test for metering unit
5.AHE injector dynamic stroke (equipped with Bosch 110,120 stroke 6.measuring tool and dial gauge)
7.CP4 pump function test
8.Bosch four pin injector
9.Denso HP5/HP6/HP7
10.Rail pressure sensor test
11.DRV/HPV test
12.Solenoid valve test


Standard configuration 5.5 KW 380V 3phase
OPTION VOLTAGE: 380V 3phase,220V 1phase,220v 3phase


Net weight: 318kg
Packing weight: 360kg


Net demension: 95*94*98cm
Packing demension: 100*100*110
