Common rail injector fuel injection pump test bench with EUI EUP HEUI function CR708T injector tester diesel common rail

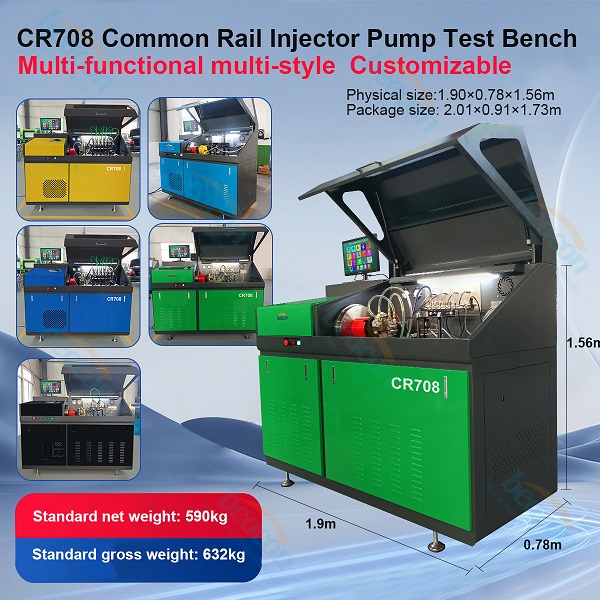

BC-CR708T common rail test bench is mainly test for common rail pump and Injector. Also it is continuous fuel delivery analysis computerised measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of reproductivity of the measured value.

Main features

1、 Basic model 11kw 380v 3-phase

2、 Test common rail and piezoelectric injectors

3、 Test the common rail pump

4、 Denso HP0 pump function

5、 Delphi Bosch Denso Siemens injector code

Optional function：

1、 EUI EUP (10 adapters)

2 、EUI EUP (19 adapters)

3、 EUI EUP with gear scale cam box

4、 HEUI (single oil circuit, split holder)

5、 HEUI (oil + diesel dual oil circuit, conjoined gripper)

6 、HEUI 3412 ISUZU function

7、 FORD6.0 Injector Carter 3408

8、 Measure six at the same time (without additional flow sensor)

9 、Measure four at the same time (without additional flow sensor)

10 、Measure two at the same time (without additional flow sensor)

11 、Simultaneous measurement of six (additional flow sensor)

12 、Simultaneous measurement of four (additional flow sensor)

13、 Simultaneous measurement of two (additional flow sensor)

14 、Delphi, Denso, Bosch, Siemens coding

Technical parameters

Main motor speed	0-4000 r / min can be adjustable.
Motor power	7.5KW, 11KW, 15KW, 18.5KW optional.
Fuel Injector open voltage	Control range:12V, 80V, 150V Control accuracy: phase adjustment
Injector opening	frequency Control:0-1000HZ Control accuracy: 1HZ
Fuel Injector Hold Time Control	0-65535us
Delivery Oil	Count Control:0-1000 times Control accuracy: 1 times
Fuel pressure	Control:0-2000bar Control accuracy: 1bar
Electronic power	3 PHASE 380V or 3 PHASE 220V optional
