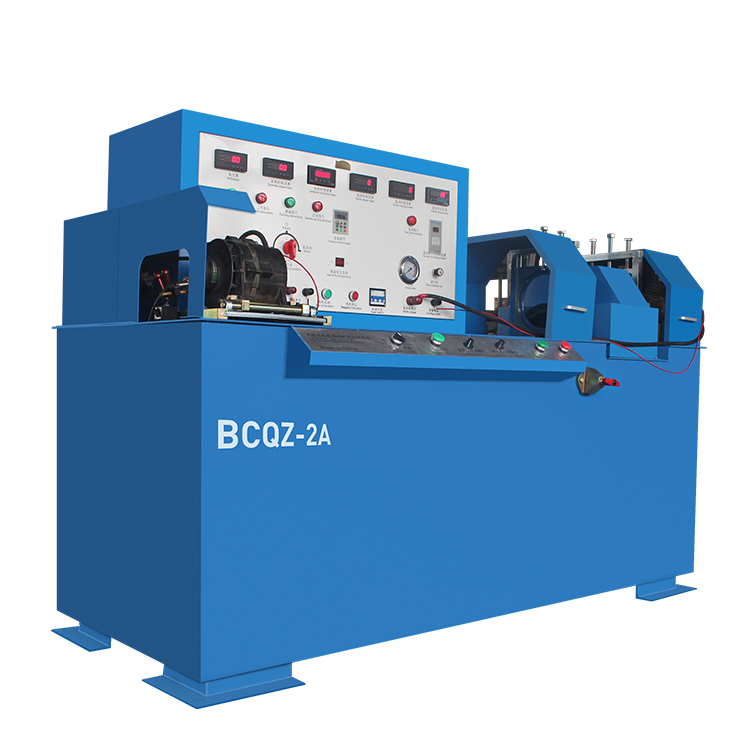

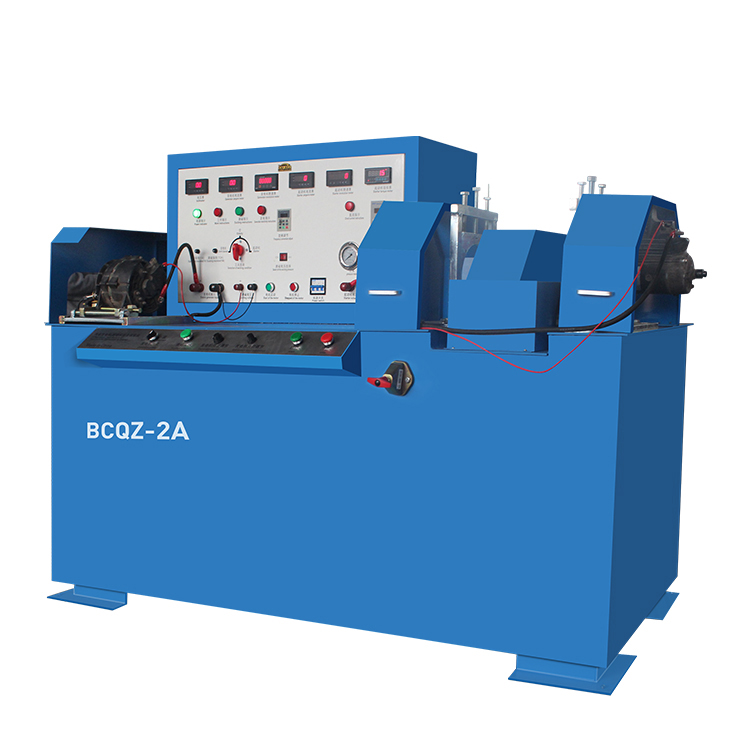

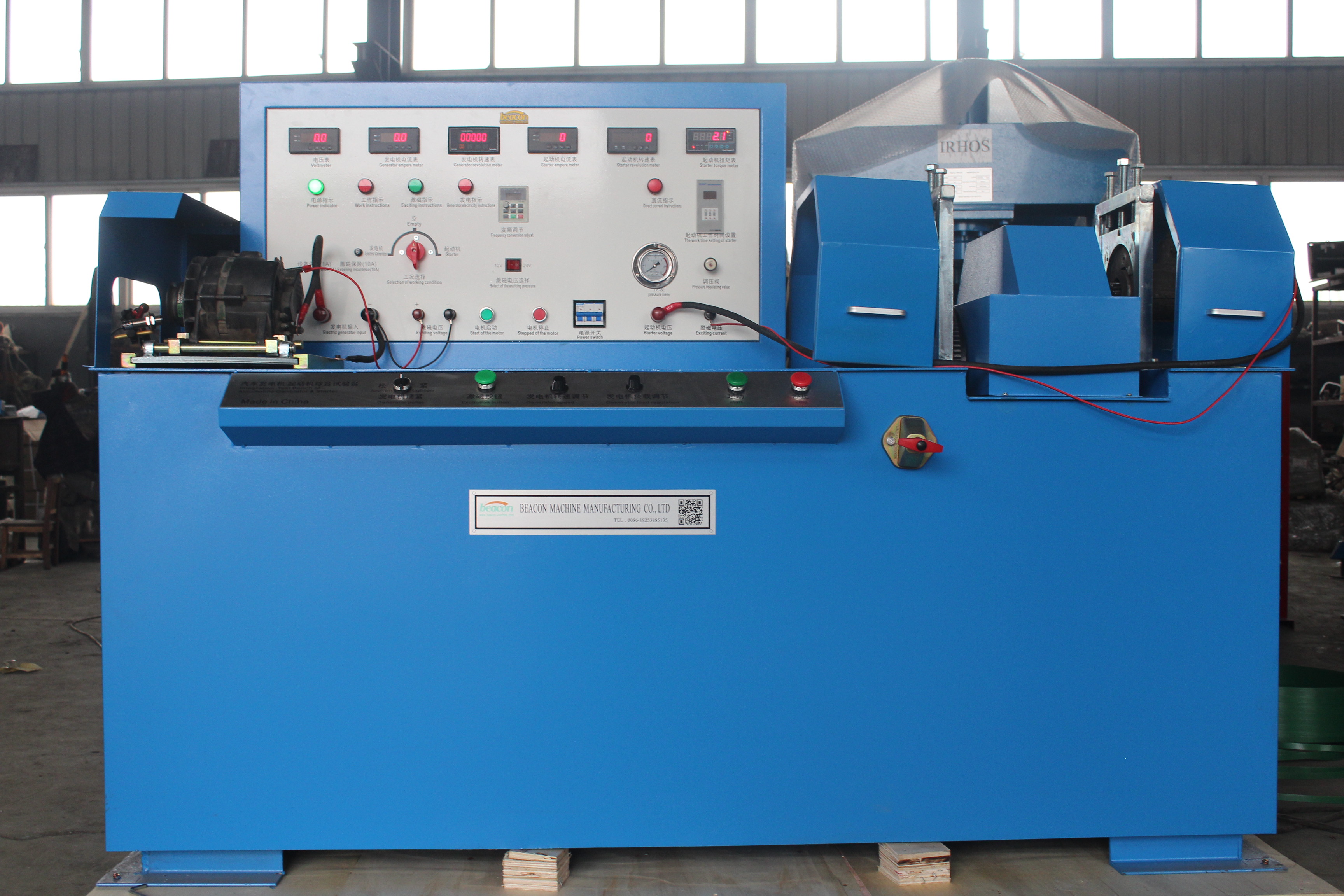

BCQZ-2A  Alternator and Starter Test Bench
●Function Introduction
●Technical Parameter
●Applicable Scope

1.Function Introduction

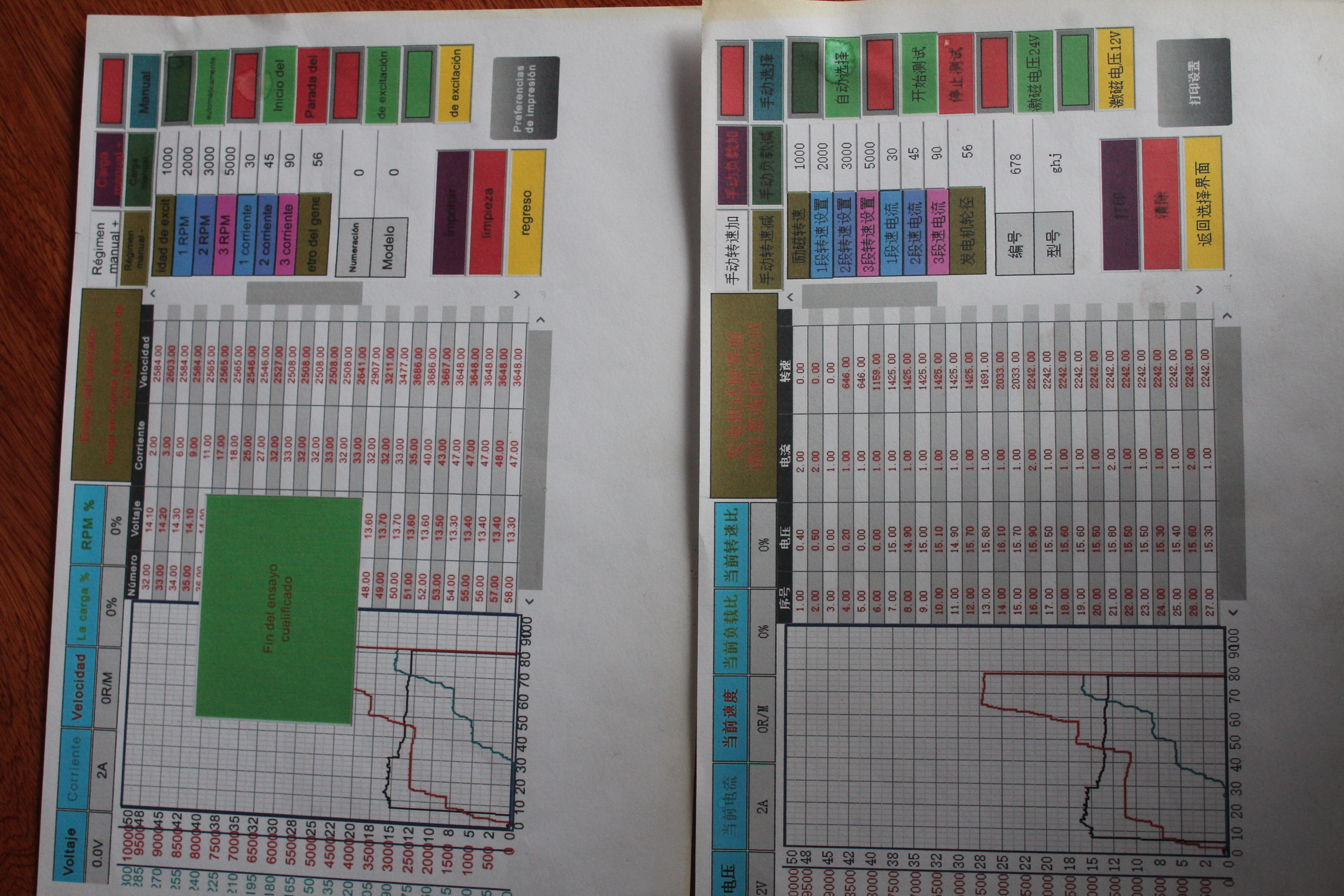

    This test bench using variable frequency speed regulation and digital display is special electrical equipment used for testing large power automobile generator and starter and possesses high control sensitivity and strong controllability. Display instrument uses digital display mode, reads data directly and is electronic load module type, domestic first. This test bench is especially applicable for testing large vehicles generator and starter used for Bus Company and oil field etc. It is also matched with computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of various models generators and starters.

2.Technical Parameter

 Input working voltage 380V AC 50HZ（ three-phase four-wire）DC12V、24V or 48V

· Motor power：7.5KW   Frequency converter power：7.5KW（three-phase AC）

· Speed adjustable range of generator： no load 0-8000r/min  load 0-6000r/min

· Load mode ： Electronic module type  DA  (0～200A)

· Working current of starter：0-2000A

· Torque of starter：0～200 N.M

· Air pressure setting ：0～1MPa (random adjustment)

· Test generator upto 600 kw

       Size: 2600*850*1450

3.Applicable Scope

·  Generator and starter of various large load carrying vehicles, passenger car and bus;

·  Maximum test power of generator :5.5KW

       Maximum test power of starter: 15KW
