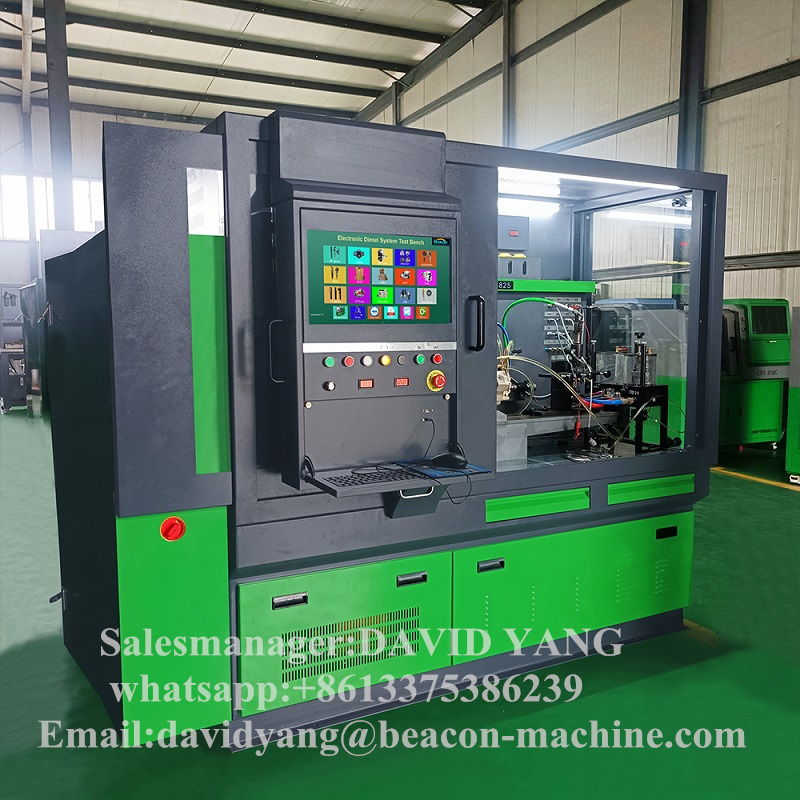

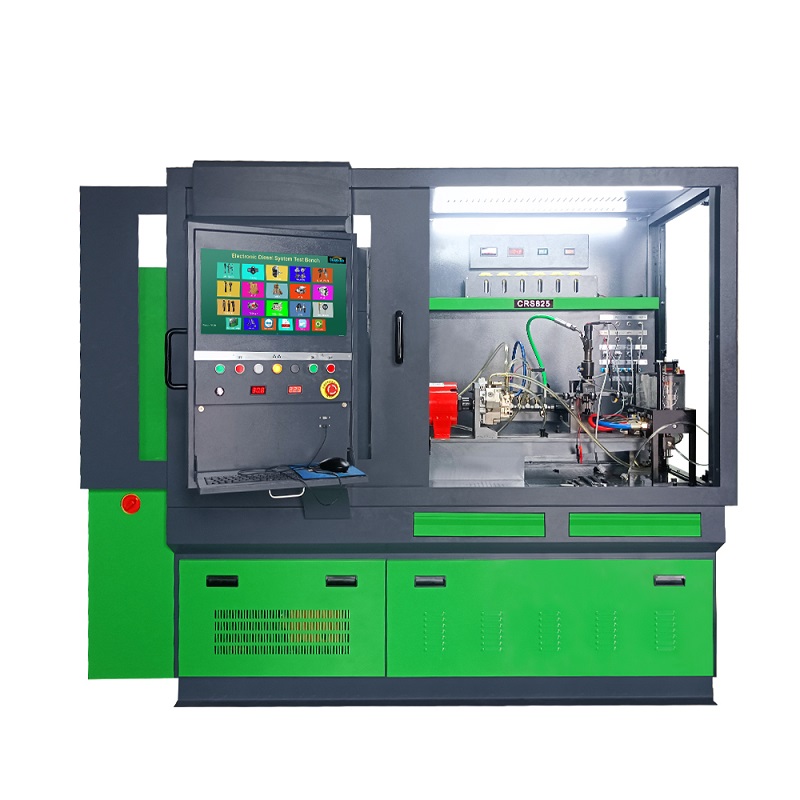

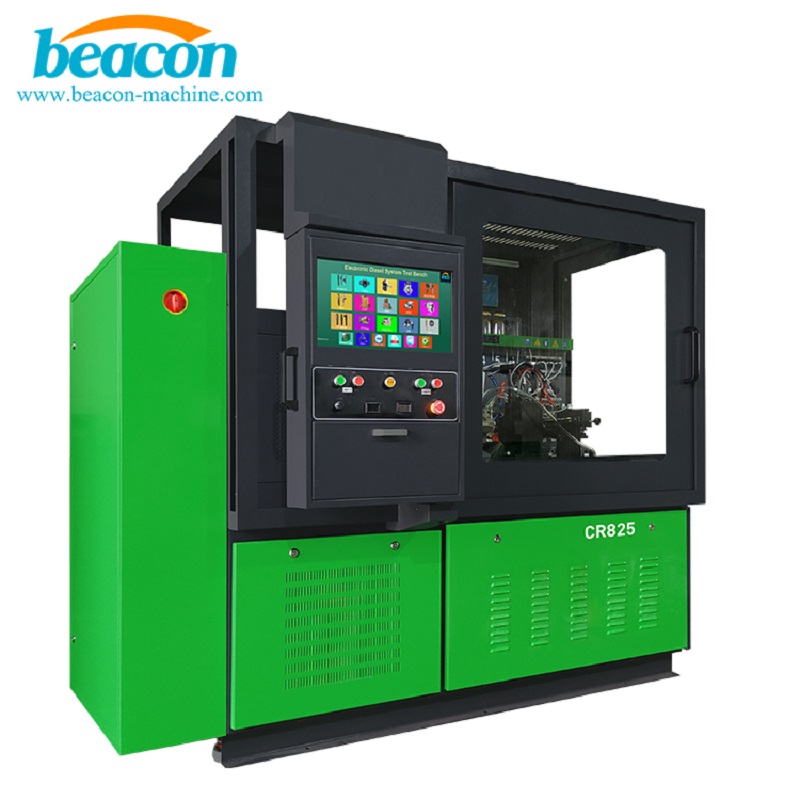

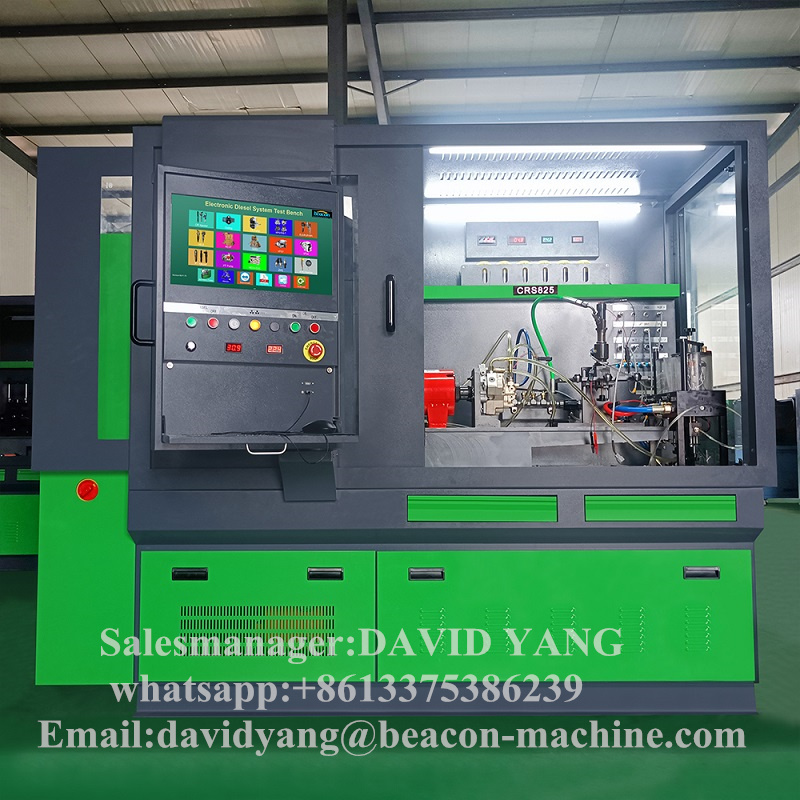

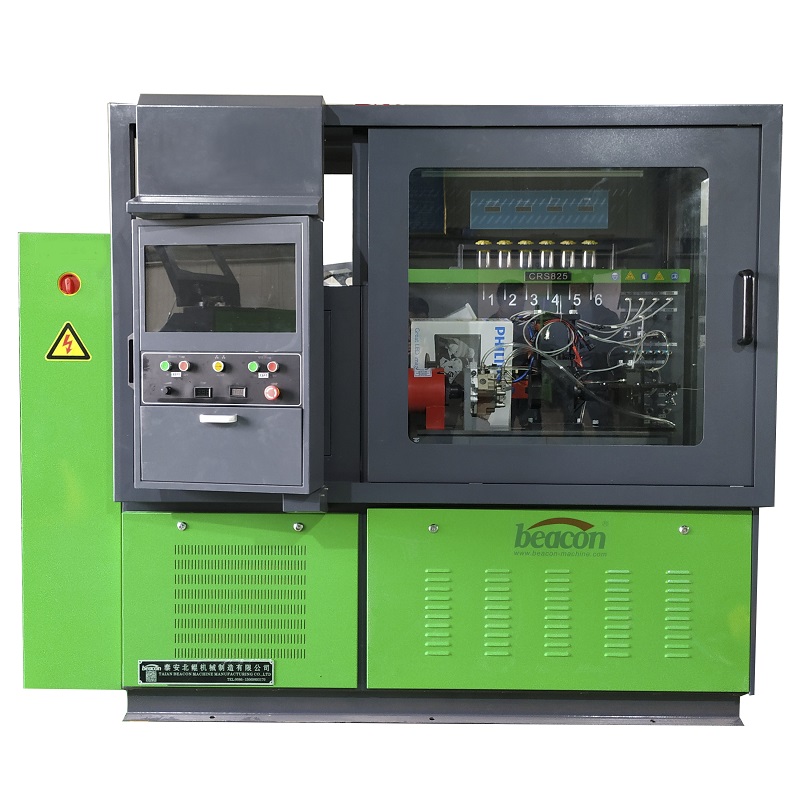

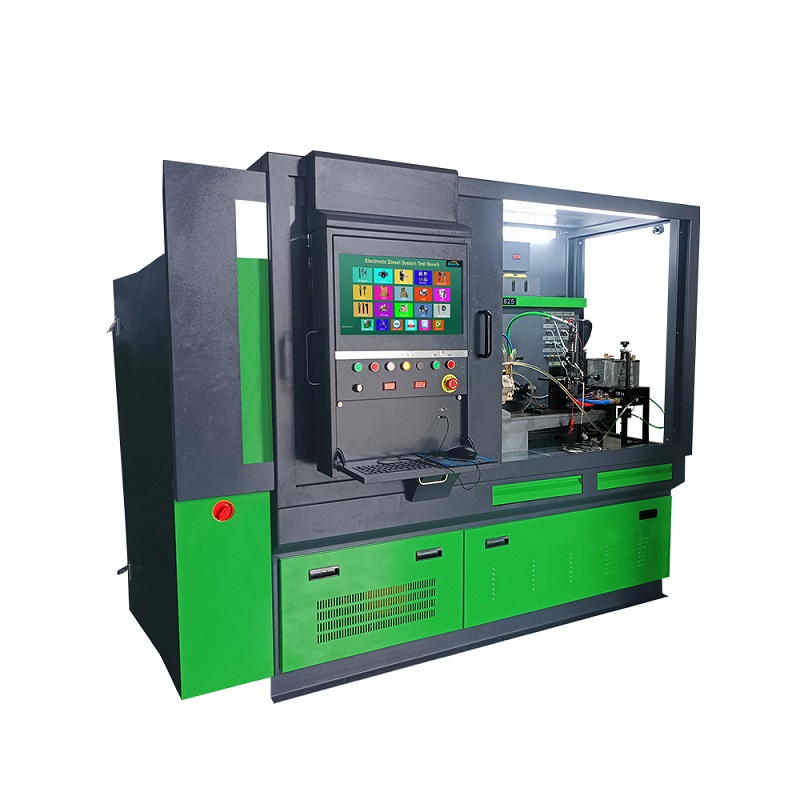

BEACON-CR825 Common Rail Injector Pump EUI EUP HEUI All In One Test Bench

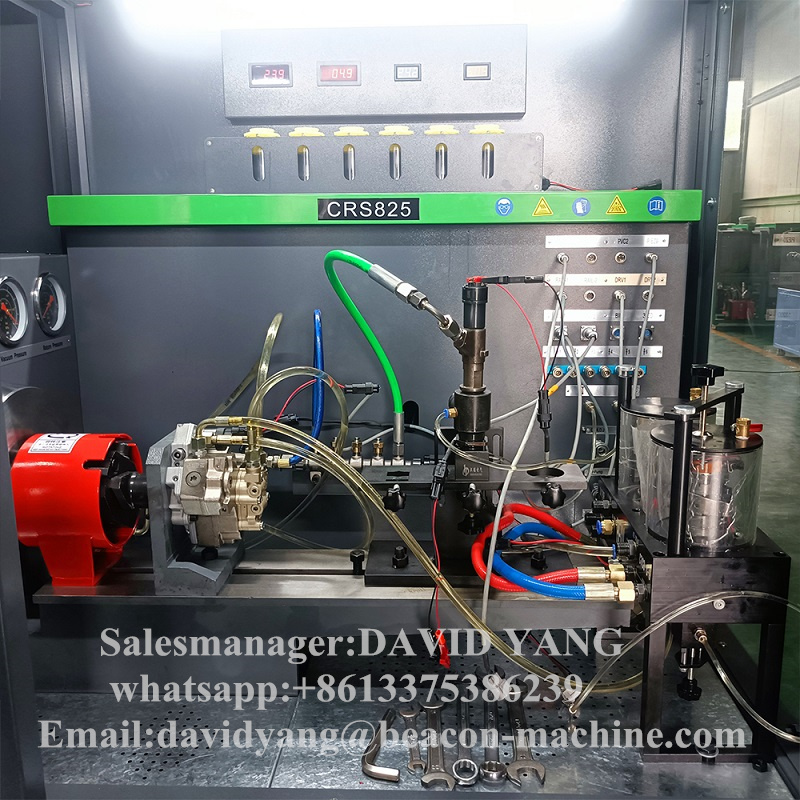

BC-CR825 COMMON RAIL INJECTOR TEST BENCH is mainly test for common rail pump and Injector,Also can Test heui,eui eup with cambox cat 320D pump,heup,PT cummins injector pump,RED4 pump ,denso hpo pump and coding function.

0086-18253885135

info@beacon-machine.com

Make an inquiry

Product Description

CR825 COMMON RAIL INJECTOR TEST BENCH is mainly test for common rail pump and Injector. Also can Test heui ,eui eup cambox and all common rail injector pump,cat 320D pump function,denso hpo pump function.

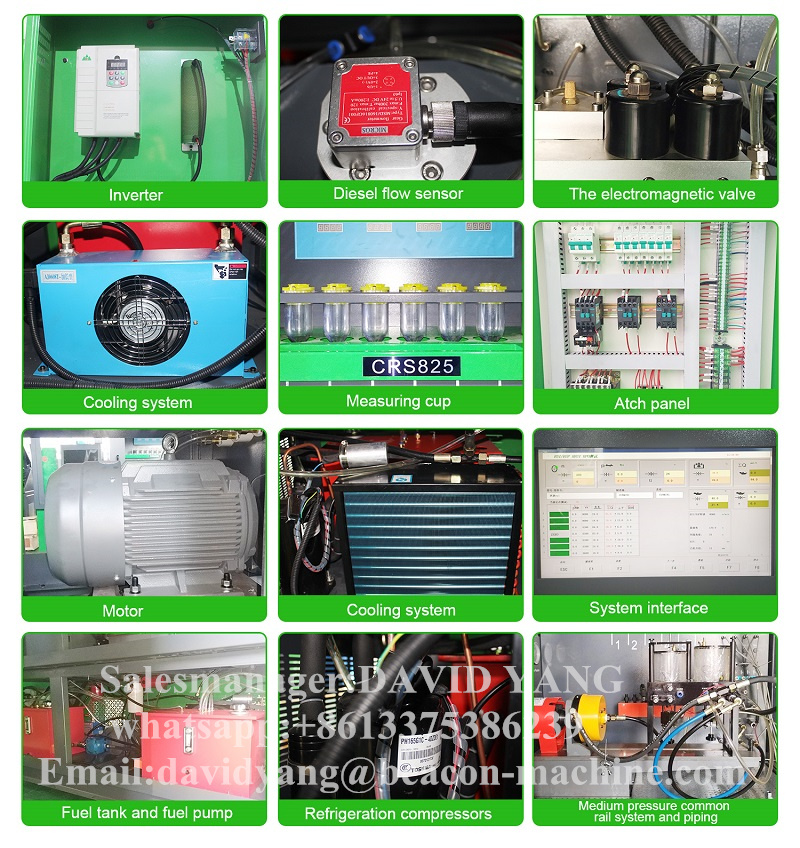

MAIN CONFIGURATION
1.Motor power:15KW

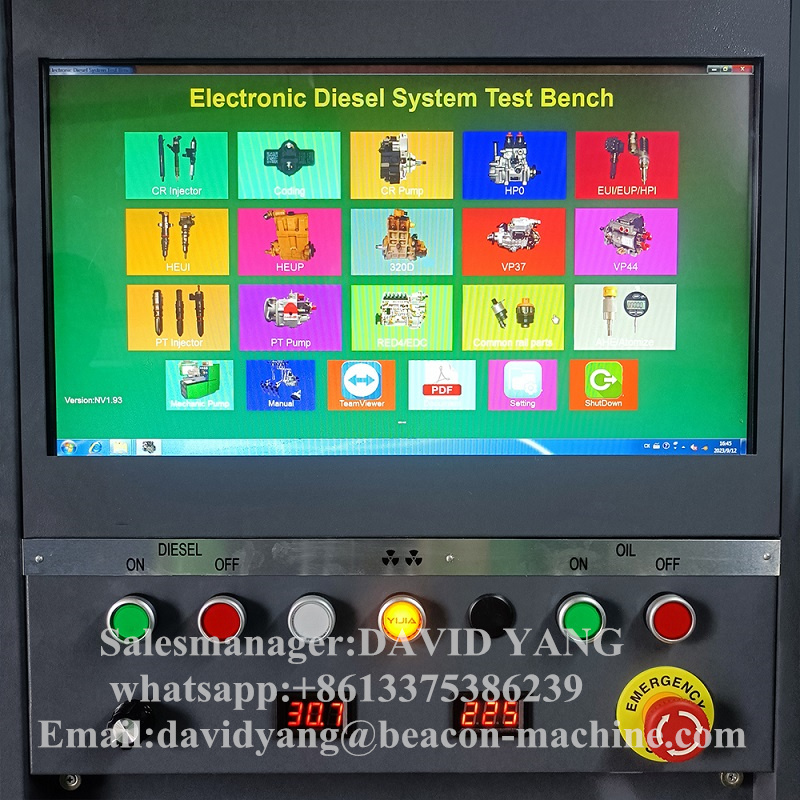

2.Industrial PC with touch screen
3.Compressor cooling
4.Oil tank(including heating,refrigeration,liquid level detection,temperature detection)
5.Diesel tank(including heating,refrigeration,liquid level detection,temperature detection)
6.Flow meter(German ZDM) detecting the fuel injection flow rate
7.Flow meter(German ZDM) detection of common rail pump
8.Flow meter(German KRACHT) to detect oil flow
9.Flow meter(German KRACHT) detection of diesel oil return flow

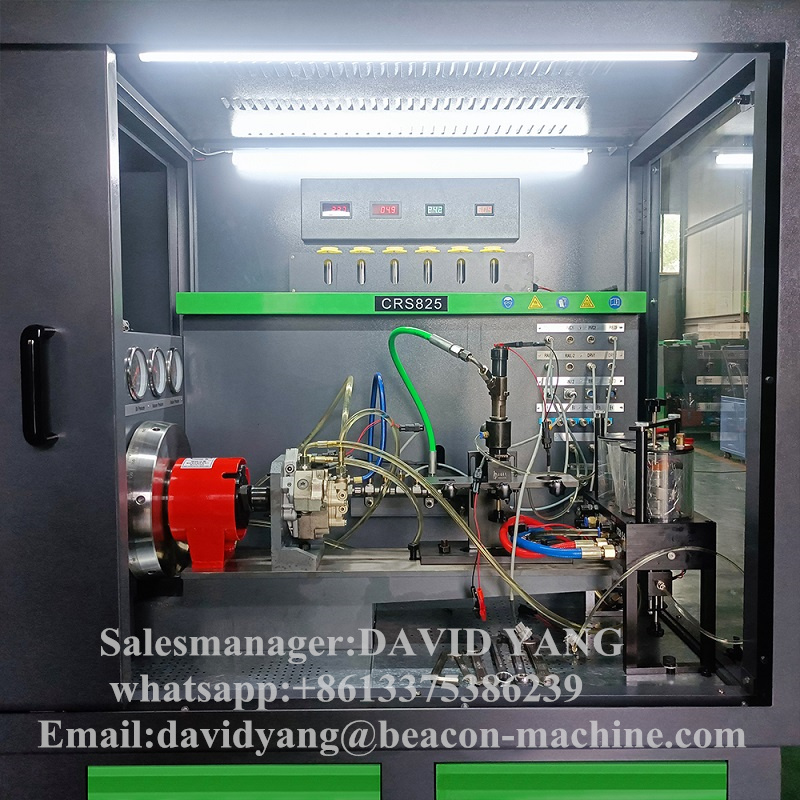

10.2sets of BOSCH common rail +DRV
11.Oil tank temperature sensor
12.Diesel fuel tank temperature sensor
13.Diesel supply temperature sensor
14.Diesel return temperature sensor
15.Oil pressure sensor
16.Diesel supply pressure sensor
17.Diesel return pressure sensor
18.Diesel pump internal pressure sensor
19.Oil pressure closed loop control module

20.The device is convenient to move and position the roller

FUNCTION CHARACTERISTIC
1.Test all the manufacturers of common rail injector
2.Test all the manufacturers of piezo injector
3.Test all the manufacturers of common rail pump
4.Test DENSO HP0 pump
5.Test CAT common rail (HEUI) injector
6.Test CAT common rail (HEUI) engine oil pump
7.Test CAT 320D common rail pump (the world 's first successful development)
8.Test EUI/EUP (can adjust the lift but not to change the camshaft)
The option function :
9.Test VP44 VE VP37 pump
10.Test RED3 RED4 TICS ZEXEL electronic control pump
11.Drive circuit board(solenold valve electric parameters to enhance the voltage current,time,pull in voltage current,time,keep voltage ,current,time,according to the setting of first successful development)
12.Accept the speed sensor ,encode signal,high speed solenoid valve drive signal.Accept the speed sensor ,encoder signal,output 2 PWM drive signal, 2 way solenoid valve drive signal,1 high speed solenoid valve drive signal.
Driving signal waveform can be programed.
13 The machine is with EURO2 EURO3 EURO4 EURO5 testing function
