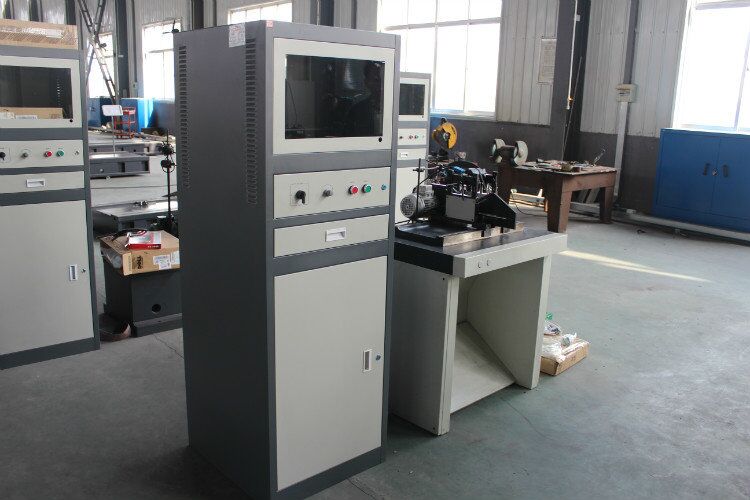

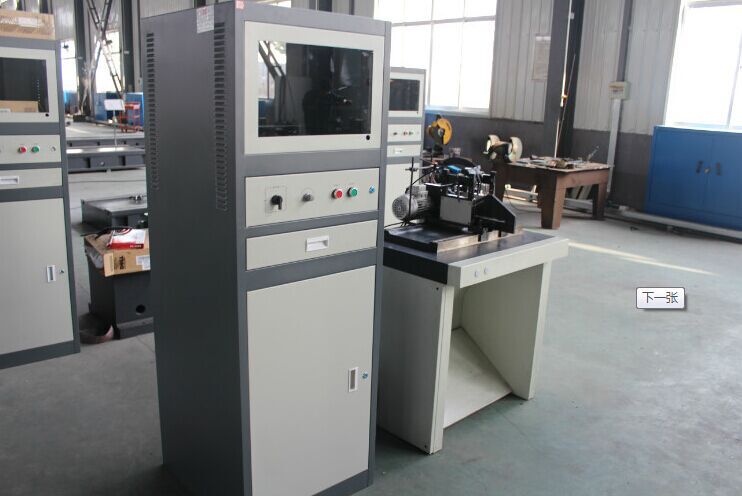

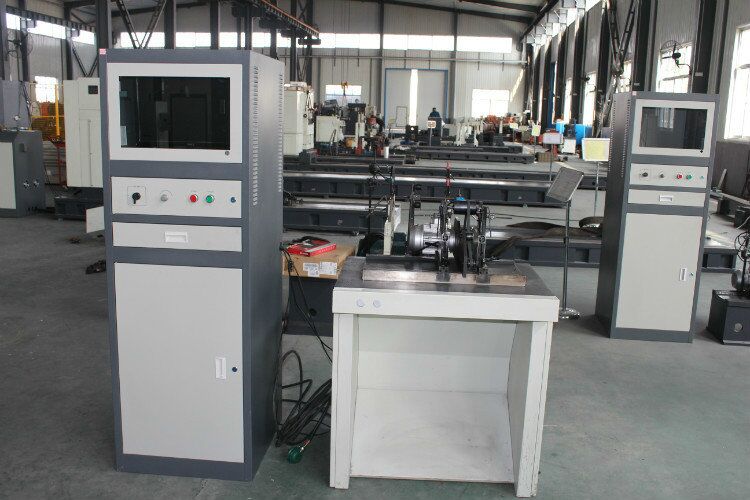

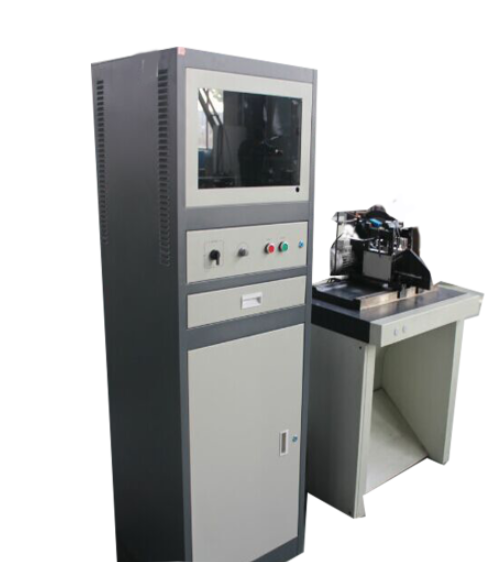

High speed turbocharger machine RYQ-16 turbo balancing machine

the machine main balance turbo


Make an inquiry

Introduce:


Industrial control computer 19 "LCD color screens

     WidowsChinese and English system double choice

     With AM-2000 general microcomputer balance measuring system

     Automatic program-controlled amplifier module

     Any workpiece scaling function, arbitrary Angle clamp compensating and workpiece information storage

     Qualified quantity showed that adjustment function measurement cycle

     Signal amplifier amplification and manual adjustment, signal self-check, automatic diagnosis

     Vector graphics, waveform and out of balance, shows at the same time

     Surplus balabcing g and unbalanced torque, the g cm, g mm can choose to display

Optional function

1.  Angle tracking function

2. automatic stopping after complete measurement

3.  the model RYQ-16 and below this model,Automatic positioning function after parking

4.vector angle decomposition function

MODEL
Mass of

workpiece

(kg)
Max.diameter of workpiece

(mm)
Distance between two

support bearing

(mm)
Range of Journal

Diameter(mm)
Drag diamete100mm,400-2500 stepless speed regulation
Min. achievable

residual

Unbalance

(g.mm/kg):
Unbalance reduction ratio(%):
Drive power (kw)
RYQ-16
0.1-16
φ500
50-550
φ5-36
Drag diamete100mm,400-2500 stepless speed regulation
≤0.5
≥90
0.18
