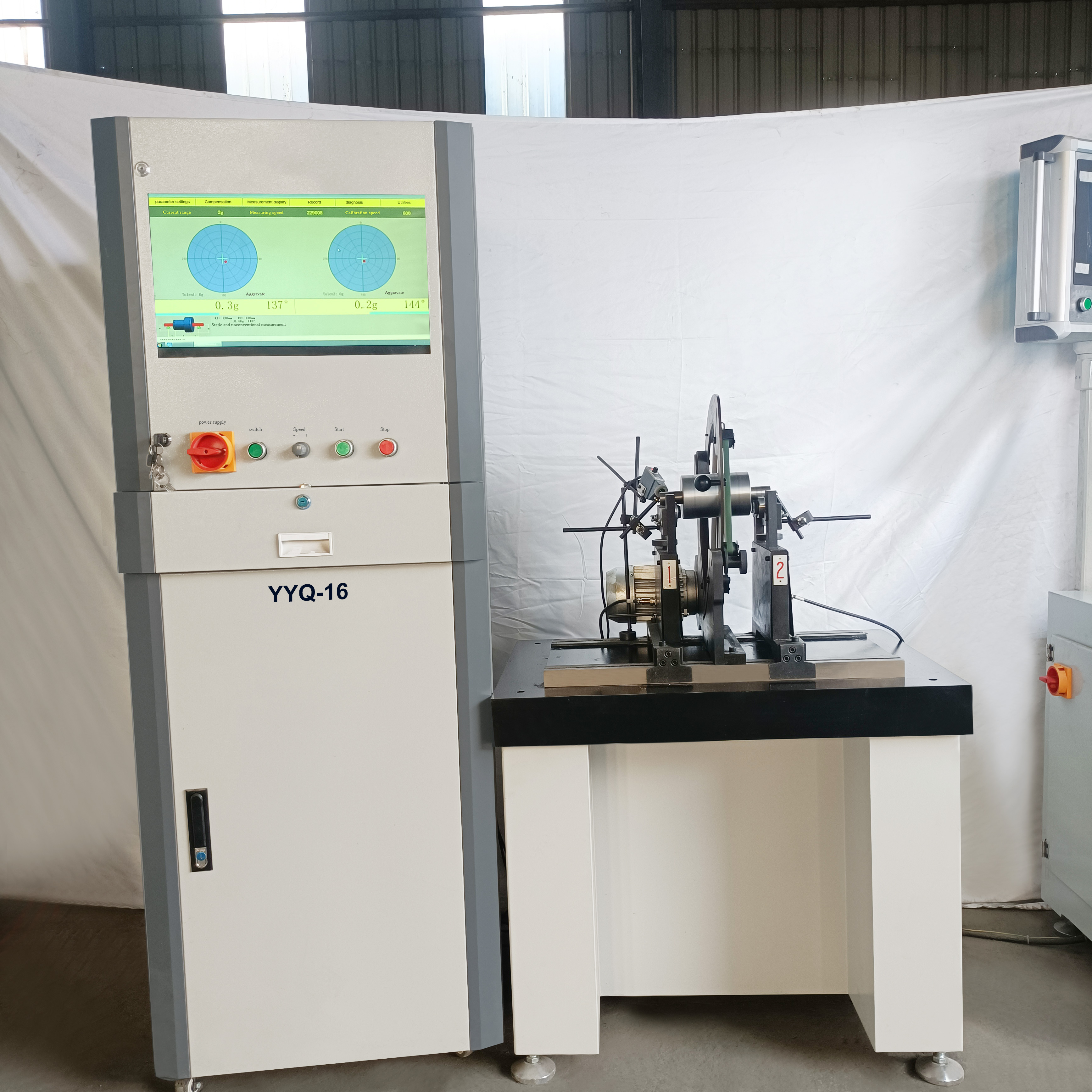

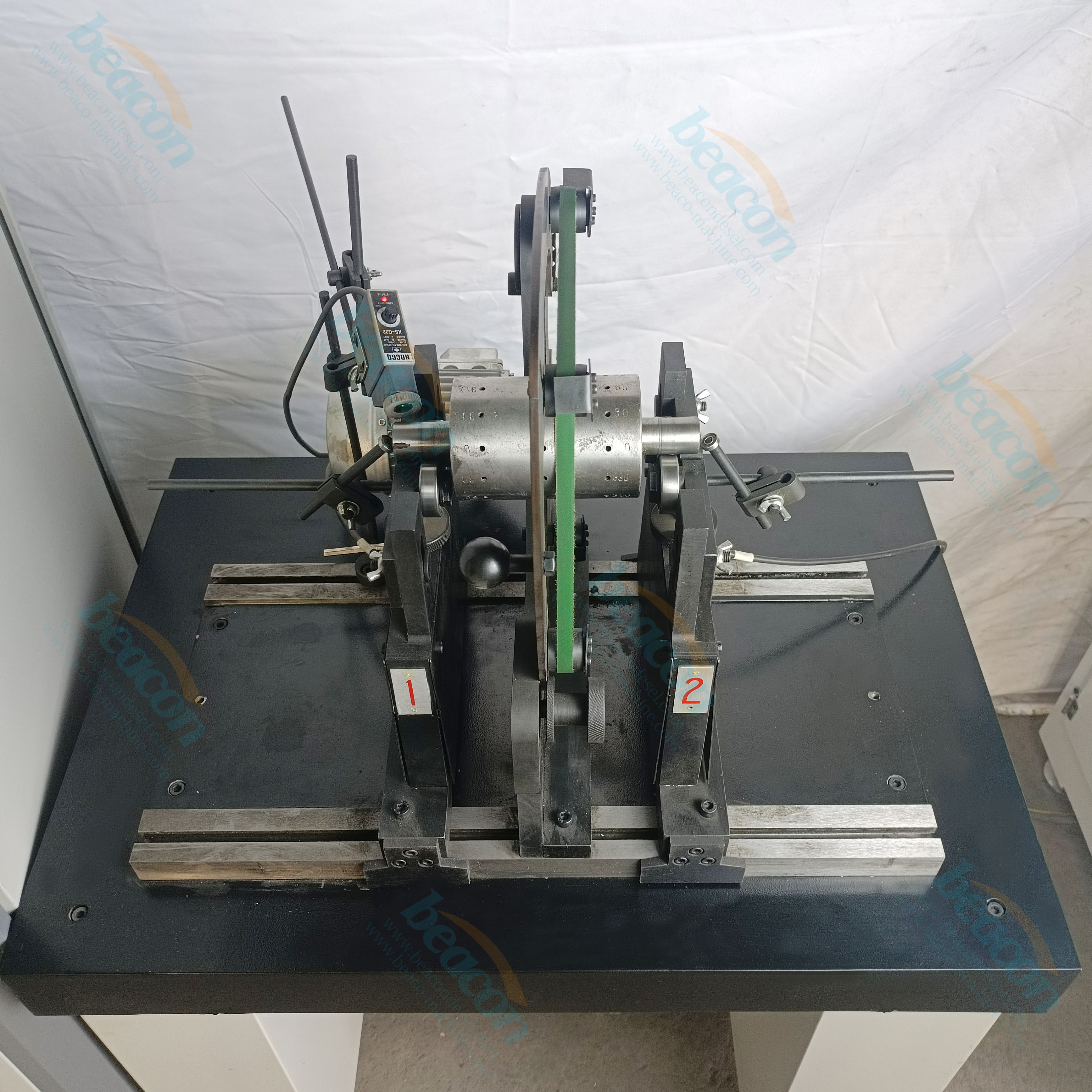

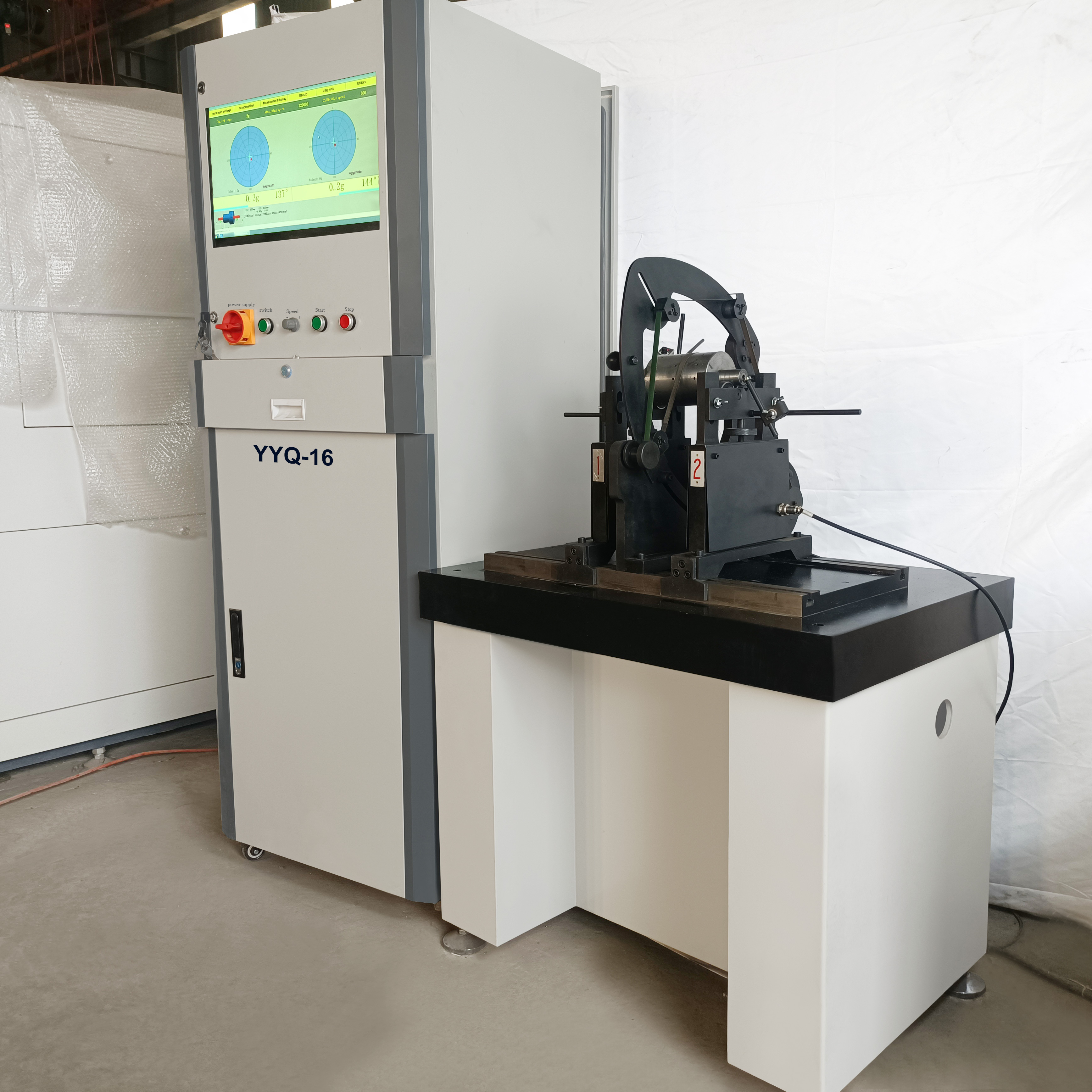

RYQ-16 turbo rotor balancing machine

the machine main balance turbo

0086-18253885135

info@beacon-machine.com


Make an inquiry

Feature:

the series is hard bearing horizontal dynamic balancing machine, using the wheel backing, rings with drag ,the popular style is two-speed electric - driven, "A" is variable-frequency electromotor plus inverter speed, industrial control computer data processing, color screen real-time shows the value of the amount of unbalance ,phase and real-time rotational speed, bases have adopted the overall foundry, stability is good. It is widely applied in engine, wind motor, blower, diesel engine and auto parts and other range, It can balance and measure on single side, double side and many test sides, fit for axial, plate and gravity out-stretching roller. turbo balancing machine   has characterstics of high efficency, correct precision, direct display, good quality, convenient maintenance and so on, the soft has both common work piece and standard roller special functions, avoid demarcate equipment non-automatically for customers who use other hard support balancing machine measure system, and you can choose many measure method and function, it can realize to input parameter, preview, test, save results, type, use chinese menu to operate, man-machine conversation, auto prompting.

MODEL
Mass of

workpiece

(kg)
Max.diameter of workpiece

(mm)
Distance between two

support bearing

(mm)
Range of Journal

Diameter(mm)
Drag diamete100mm,400-2500 stepless speed regulation
Min. achievable

residual

Unbalance

(g.mm/kg):
Unbalance reduction ratio(%):
Drive power (kw)
RYQ-16
0.1-16
φ500
50-550
φ5-36
Drag diamete100mm,400-2500 stepless speed regulation
≤0.5
≥90
0.18
