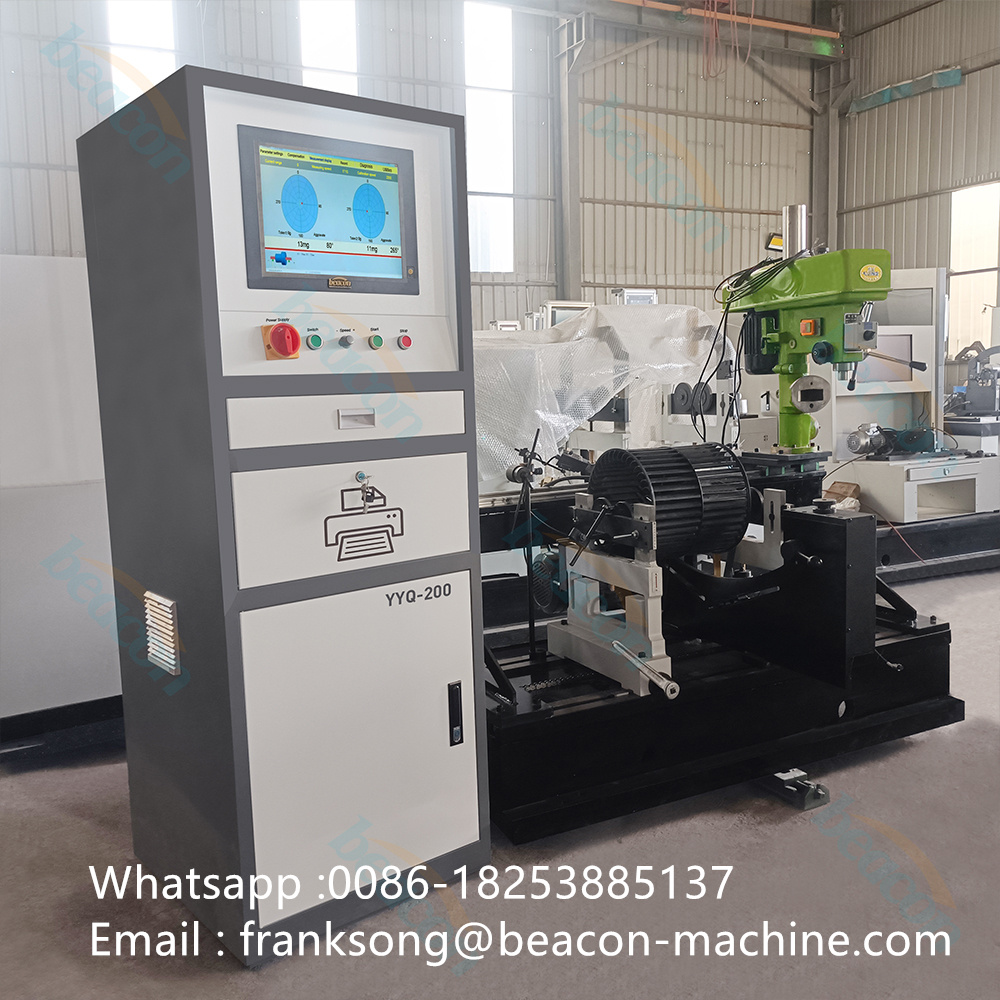

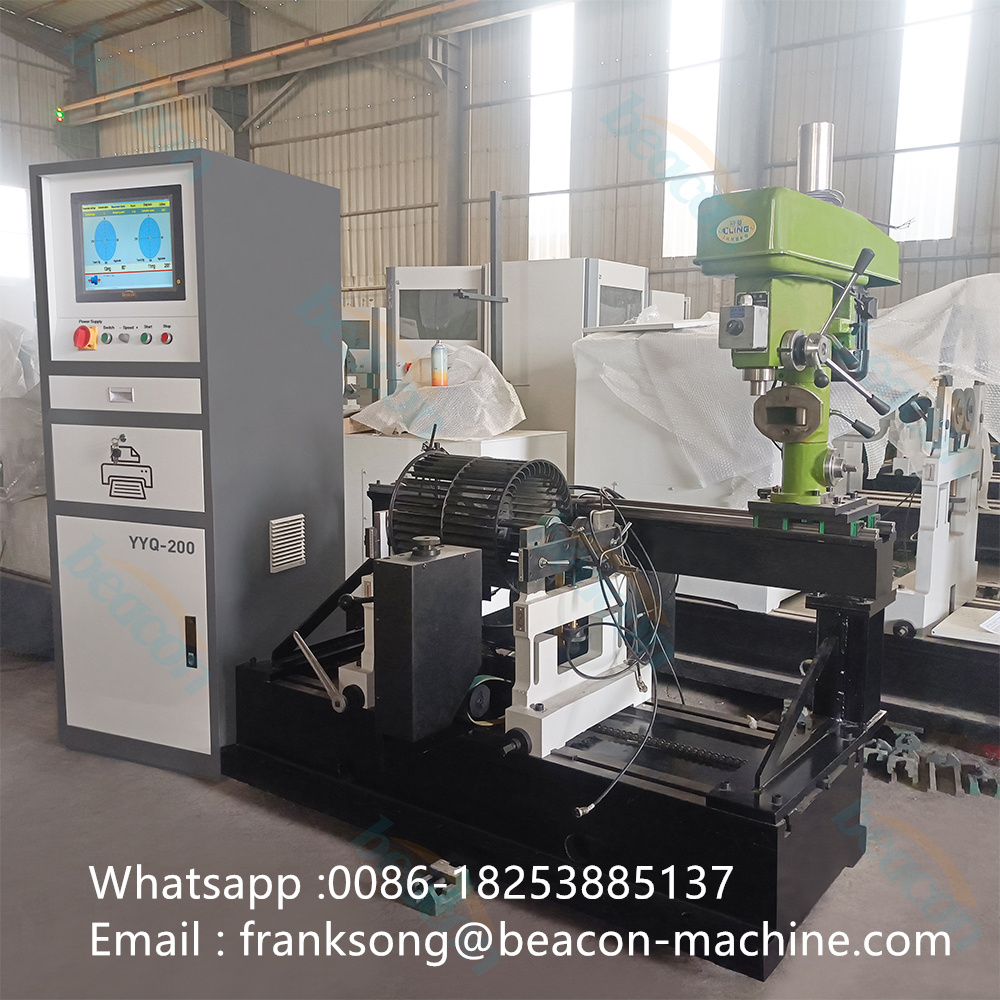

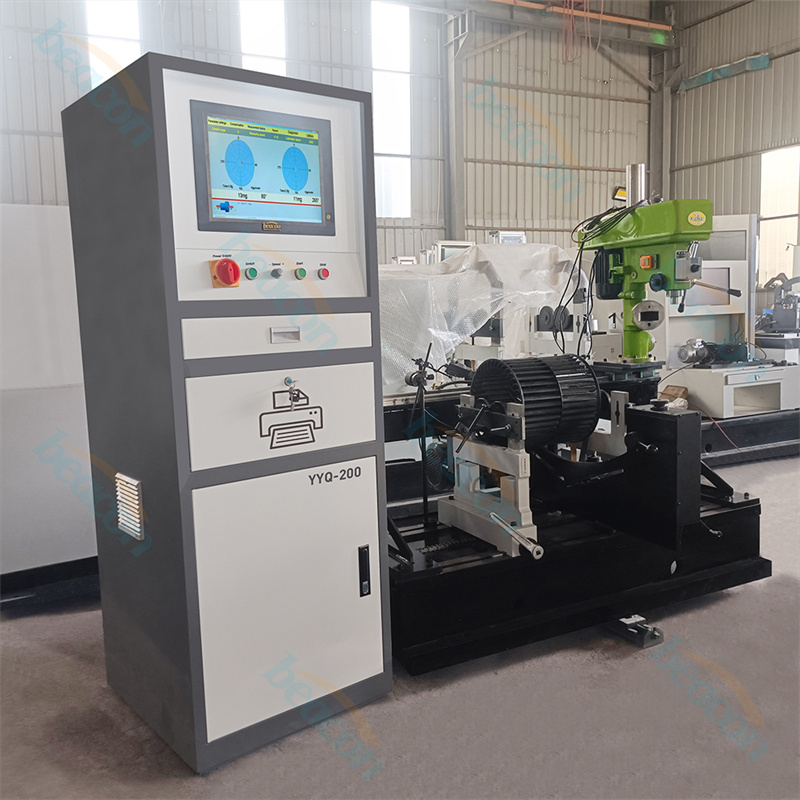

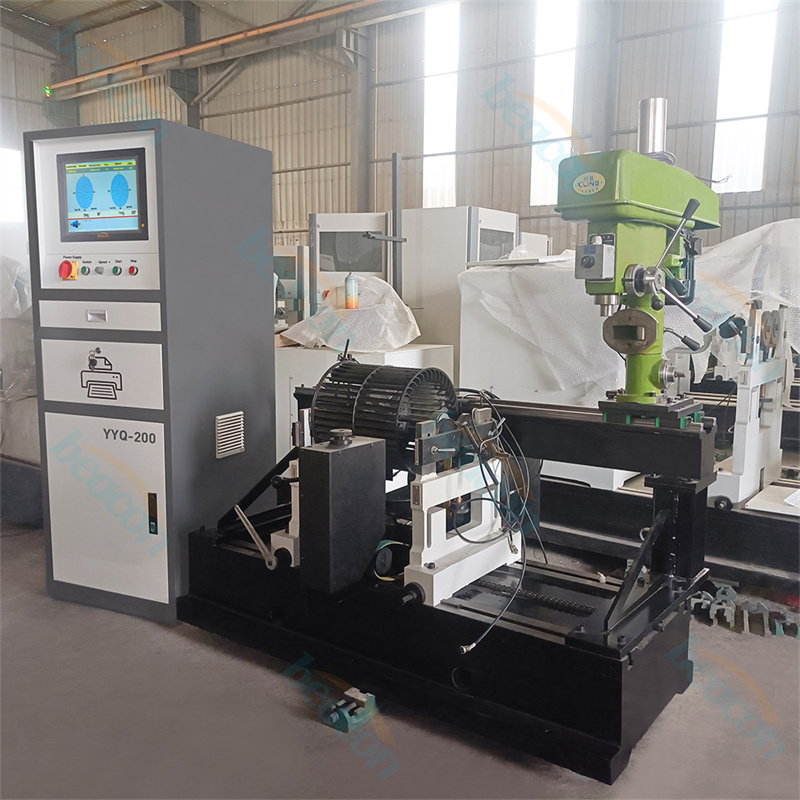

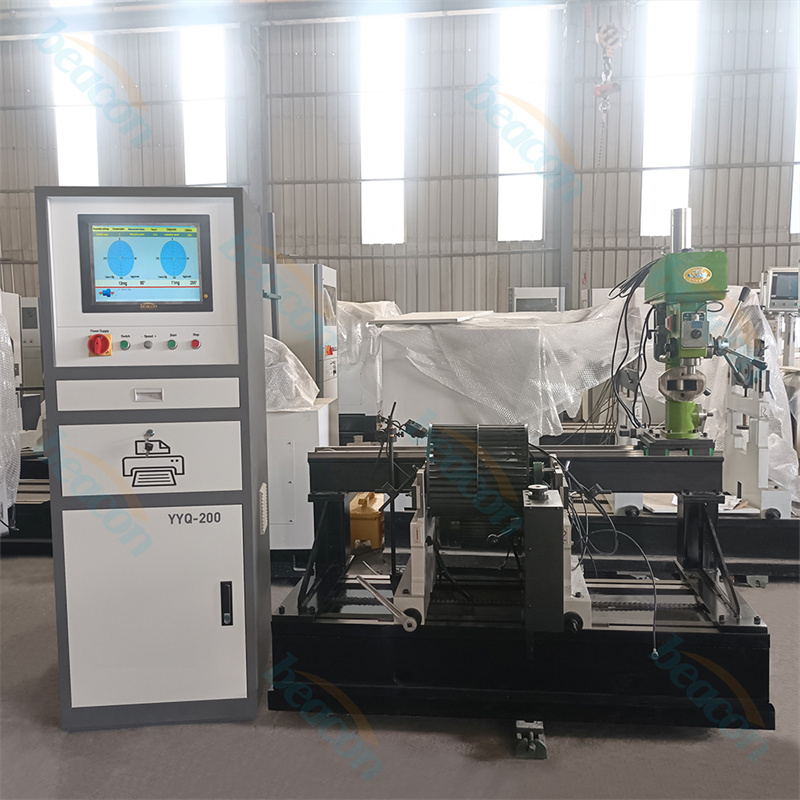

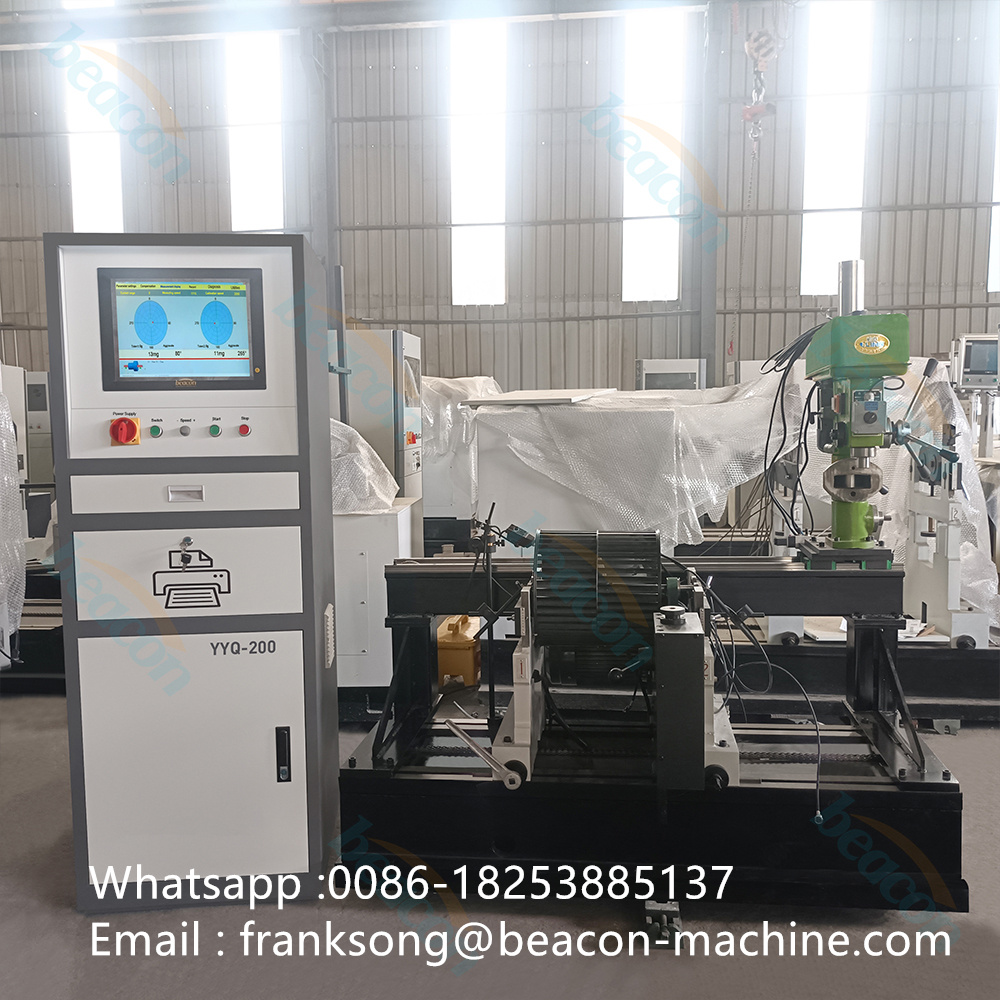

General hard bearing dynamic balancing machine strictly according to GB/T 4201-2006 to produce, using semi hard bearing, belt driven, screen display structure, industrial control computer processing the data. 19 inches LCD screen display unbalance amount, phase angle and real-time rotating speed. It is widely used in paper making machine, textile machine, agriculture machine, electric motor, blower fan, etc, can measuring balance on single interface, suited for plate work-piece, center of gravity overhung rotor.
0086-18253885135
Main technical index:
Way of driving: belt driven and 1.5 kw motor Measuring system: independent developed dynamic balancing machine special measuring software.
Device configuration:
1) lathe bed dimension: 1200mm lathe bed, material is HT250 cast iron, there are two T type grooves on lathe bed for move and fasten swing frame. 2)There are two sets standard bearing frame on lathe bed The swing frame made by QT450 cast iron, integral structure, roller bearing by cantilever, with lockable and adjustable clamp safety frame, there is piezoelectric sensor assembly behind elastic beam, used to measuring the shake of swing frame. 3)driven part: One set 1.5kw motor Two pieces piezoelectric sensor One set reference signal sensor One set belt driven frame
4)strong current system include: Operation control panel ahead control cabinet installed power switch, start stop knob, inside vertical industry cabinet installed strong current controlling circuit board, air switch, IVNT frequency converter, converter dedicated filtering device, all above low-voltage components adopt domestic famous brands. 5)measuring system include: One set 32 bits industrial control computer; One set 19 inches flat panel LCD monitor; One piece LENOVO anti-interference keyboard, one piece mouse; One set high-end electronic control cabinet; A set of foundation bolt, wedge iron for leveling, and tools with the machine; A set of balancing machine software and technical manual.
