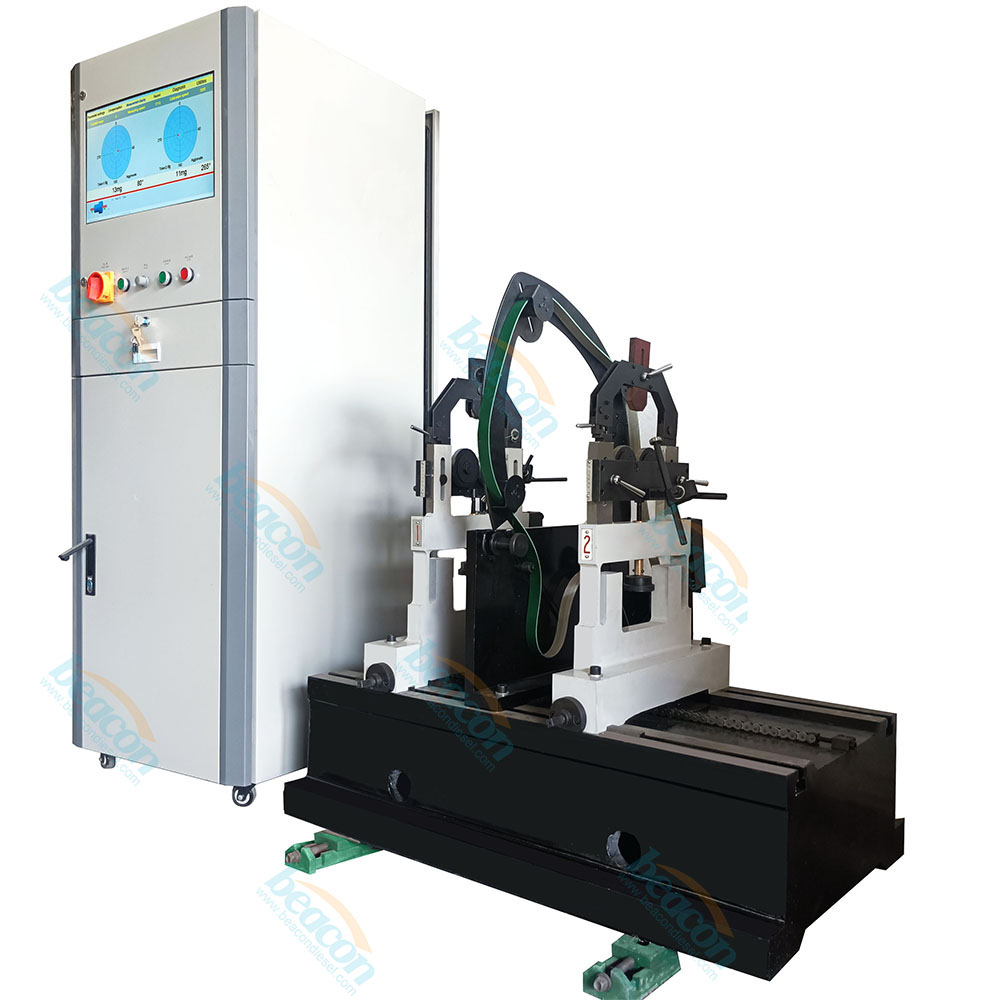

This series of equipment is hard support horizontal dynamic balance machine, with roller bearing, Universal joint coupling drive, dual speed motor drive, "A" type for variable frequency speed regulation system, an industrial control computer data processing LCD monitor real-time display imbalance, value, phase Angle and real-time speed, and lathe bed are integrally cast. Widely used in motor, blower, diesel engine, agricultural machinery, textile machinery and other industries, can be in the single side, double side and multiple correction plane balance measurement.Suitable for shaft plate and center of gravity suspended rotors. It has the characteristics of high efficiency, accurate accuracy, intuitive, reliable quality, and convenient maintenance.

GB - 2000 universal microcomputer balance measurement system is Windows XP operating system under the latest general microcomputer balance measurement system, the system of running environment should be at least Windows95 operating system above. System hardware by multiple single chip microprocessor (CPU) composition, adopt double road high speed A/D converter, have program-controlled tracking amplification, program-controlled tracking filter, rotational speed real-time measurement, data real-time transmission and simulation benchmark signals, simulated vibration signal etc. Function. It make full use of the advantages of the Windows, the measurement system function extremely powerful. From the interface, data processing, print, data graphic display, documents graphics printout, without exception, reflects the Windows attractive. Concentrate on the design of balance measurement system to adapt in soft supporting.centre hard supporting and static balance and dynamic balance, and many other class balance equipment. And a measurement system that can simultaneously measure multiple balancing devices. Realized full dynamic and uninterrupted measurement of balanced size, phase, and speed, greatly improving measurement accuracy.

USE ENVIRONMENT

1) ℃ room-temperature: 0-50

2.) relative humidity < 85%

3.) Industrial PC power supply voltage fluctuations of 190-240V (if necessary, the user provides a constant voltage device), power supply voltage fluctuations of -9 400V.

4) machine should be installed in a stable basis, installation is spent in.2/1000 within.

5.) preventing electromagnetic interference, far from the interference.

6.) to prevent oil, salt, acid and corrosive gas enter.

7.) to prevent water, steam, dust, cotton, metal powder invading.

8.) banned in inflammable and explosive gas, flammable, liquid or solid, dangerous environment.
