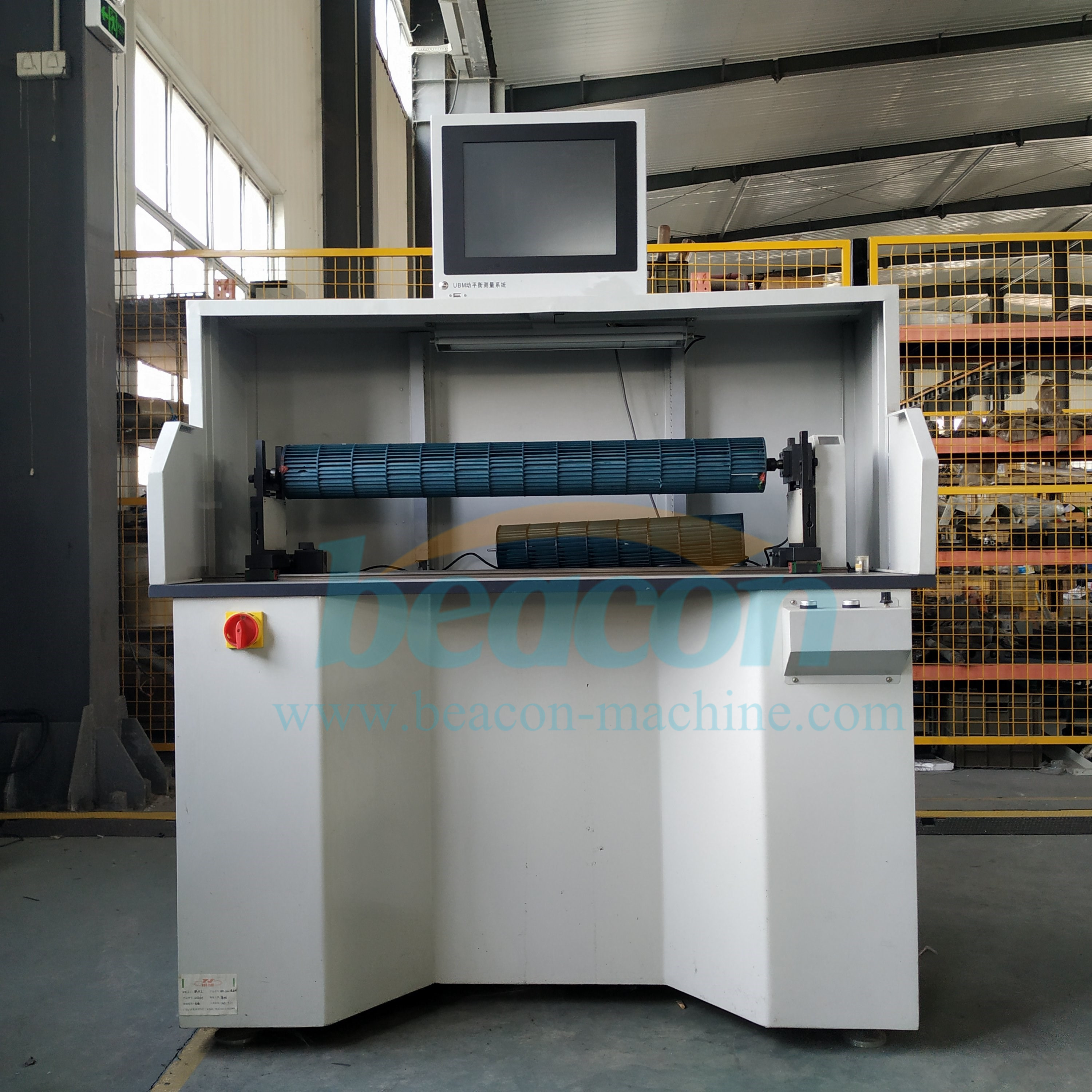

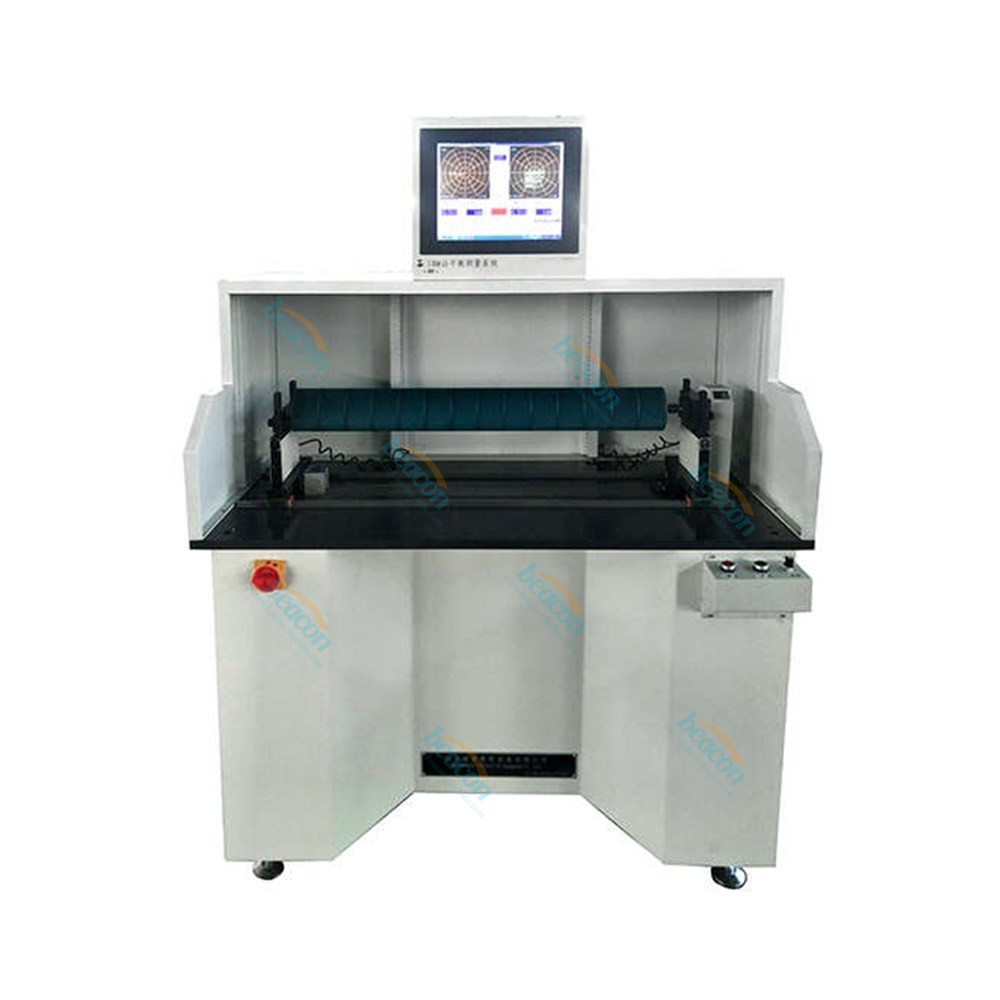

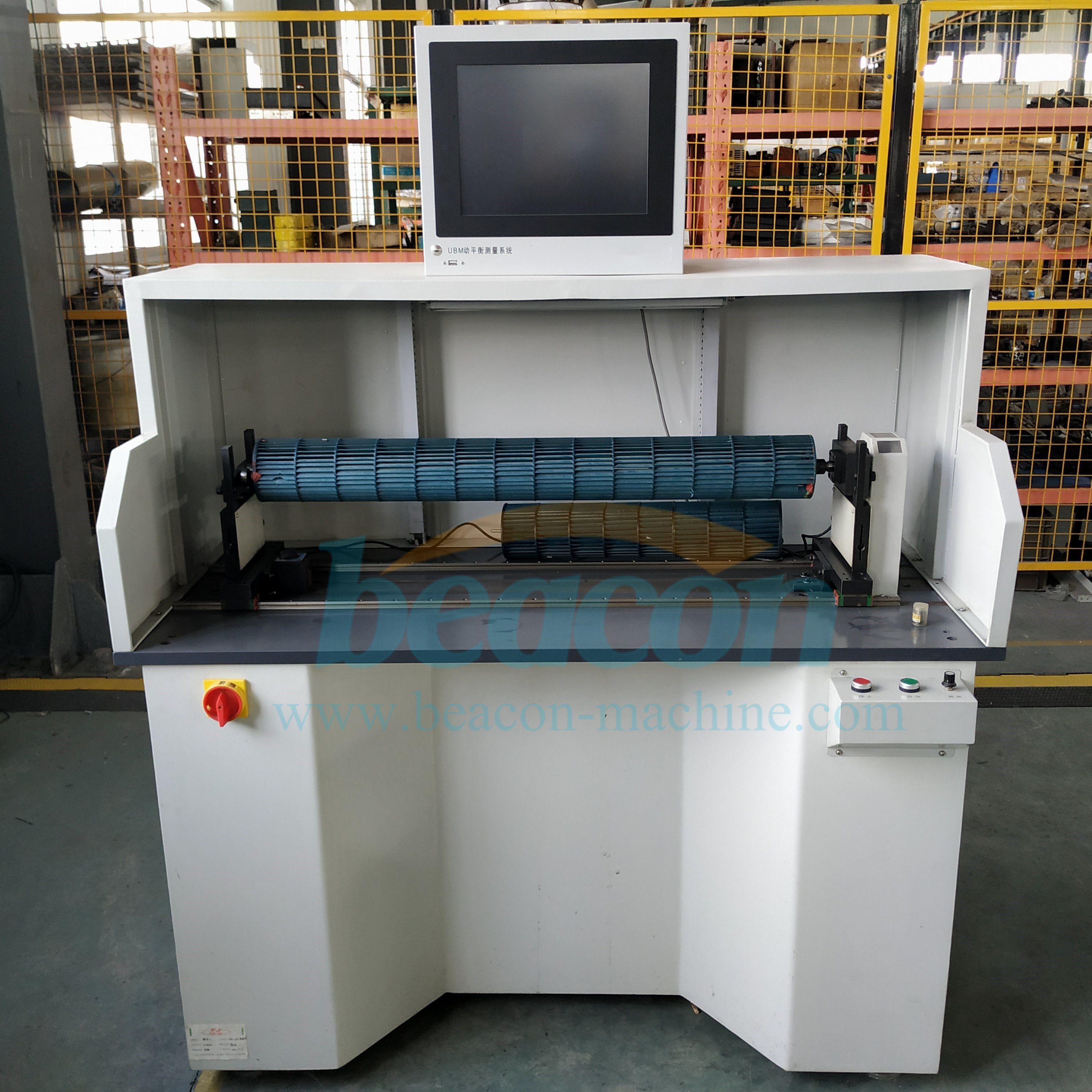

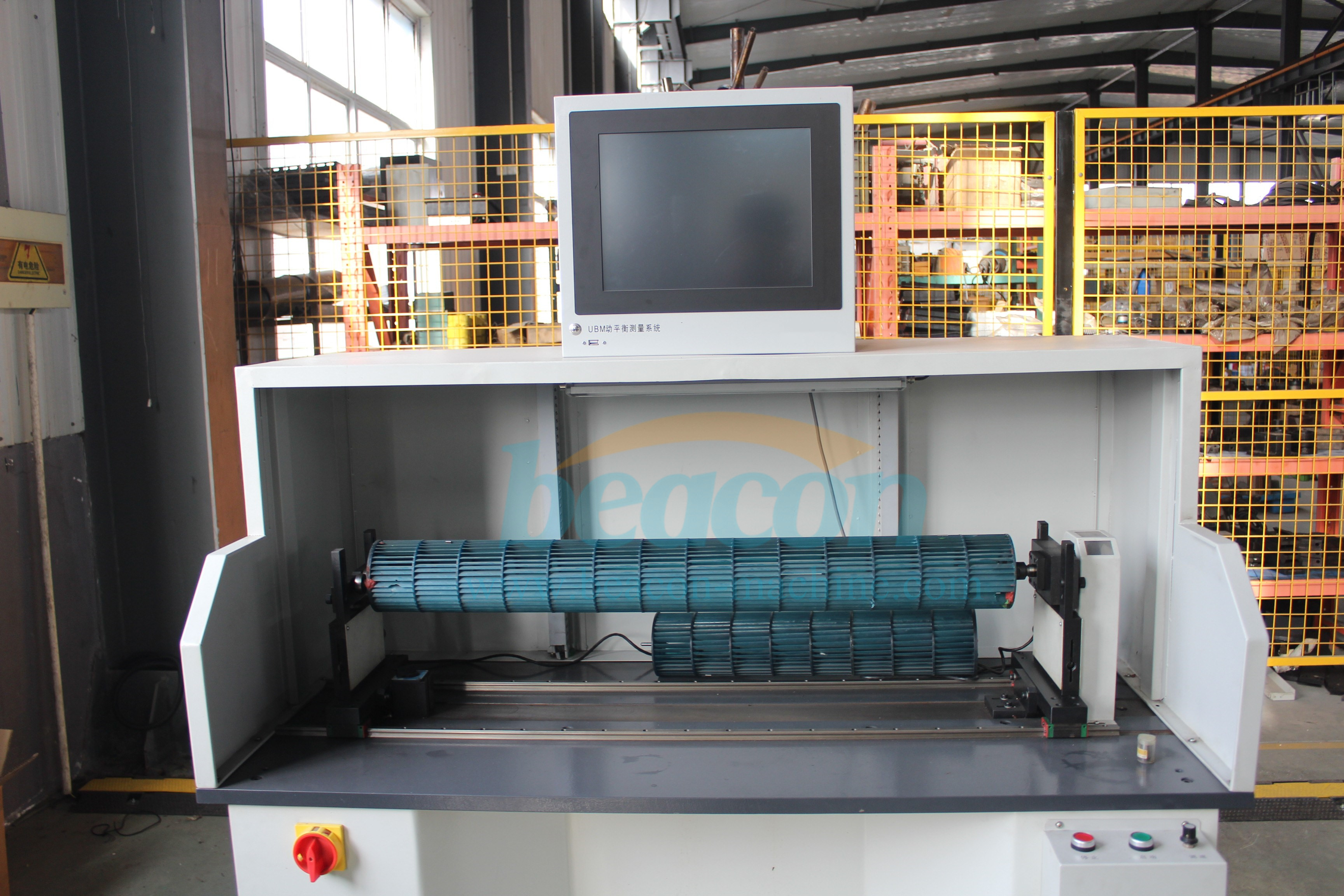

YYQ-10GLS Soft Bearing Fan Gross Flow Turbo Rotor Balancing Machine
Fan Gross Flow Turbo Rotor Balancing Machine
Make an inquiry
Technical indicators of dynamic balancing machine:
|
1)weight of work-piece (kg):
|
1-20
|
|
2)Maximum rotating diameter of workpiece（mm）
|
φ400
|
|
3)The maximum diameter of the dragging part of the ring belt
|
φ150
|
|
4)The maximum distance between the centers of the two swing frames (mm):
|
1000
|
|
5)Length of lathe bed(mm):
|
1200
|
|
6)Bearing diameter (mm):
|
φ4-φ40 (standard supporting roller stand)
|
|
7)The smallest achievable residual unbalance (gmm/kg)
|
≤0.5
|
|
8)Unbalance reduction ratio(%):
|
≥90
|
|
9)Rotating speed(r/min):
|
200-1500
|
|
10)Motor power(kw):
|
0.18
|
|
11)Drive mode:
|
ring belt drag
|
|
12)Work environment:
|
temperature: -5---45℃; humidity: 0-85%
|
