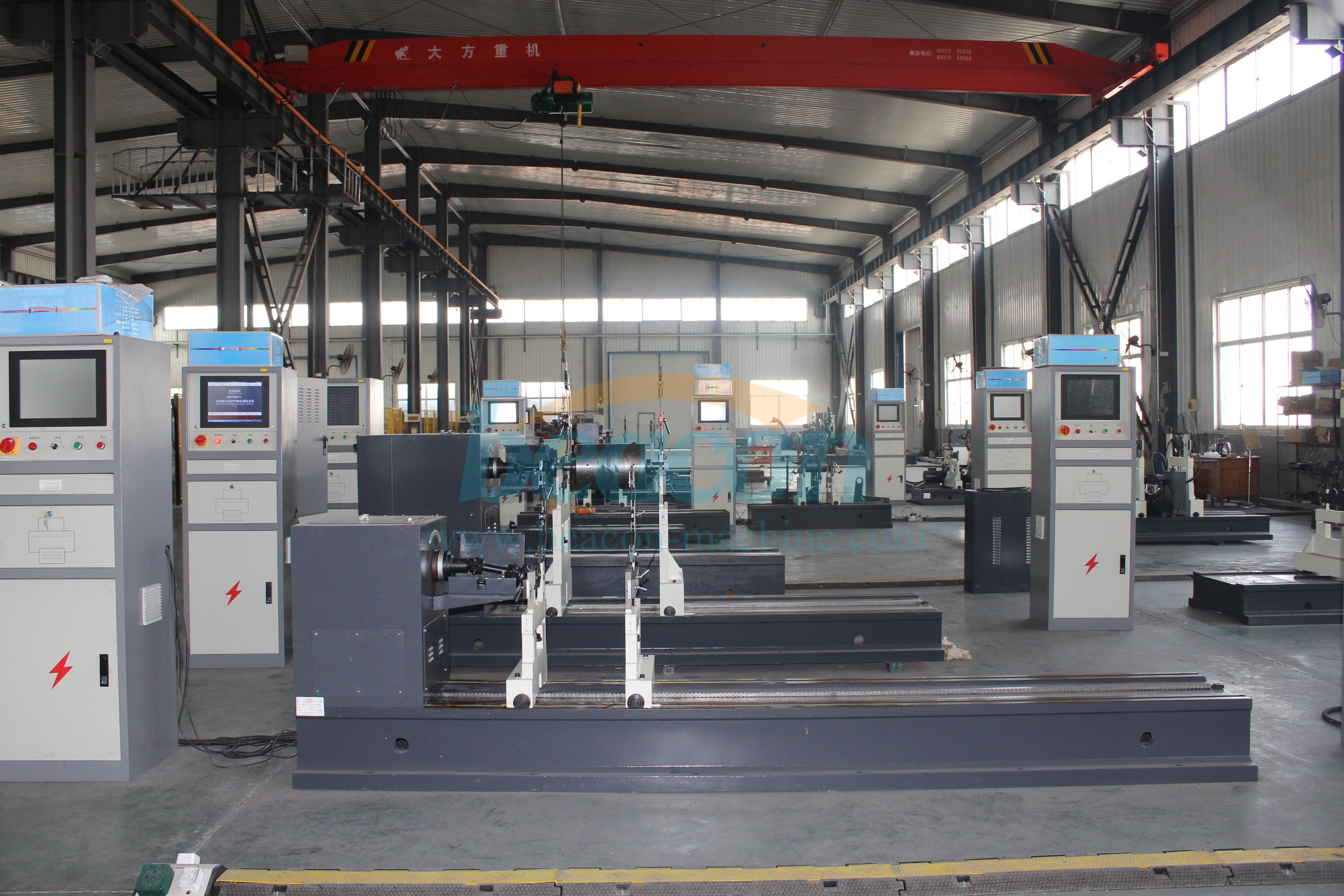

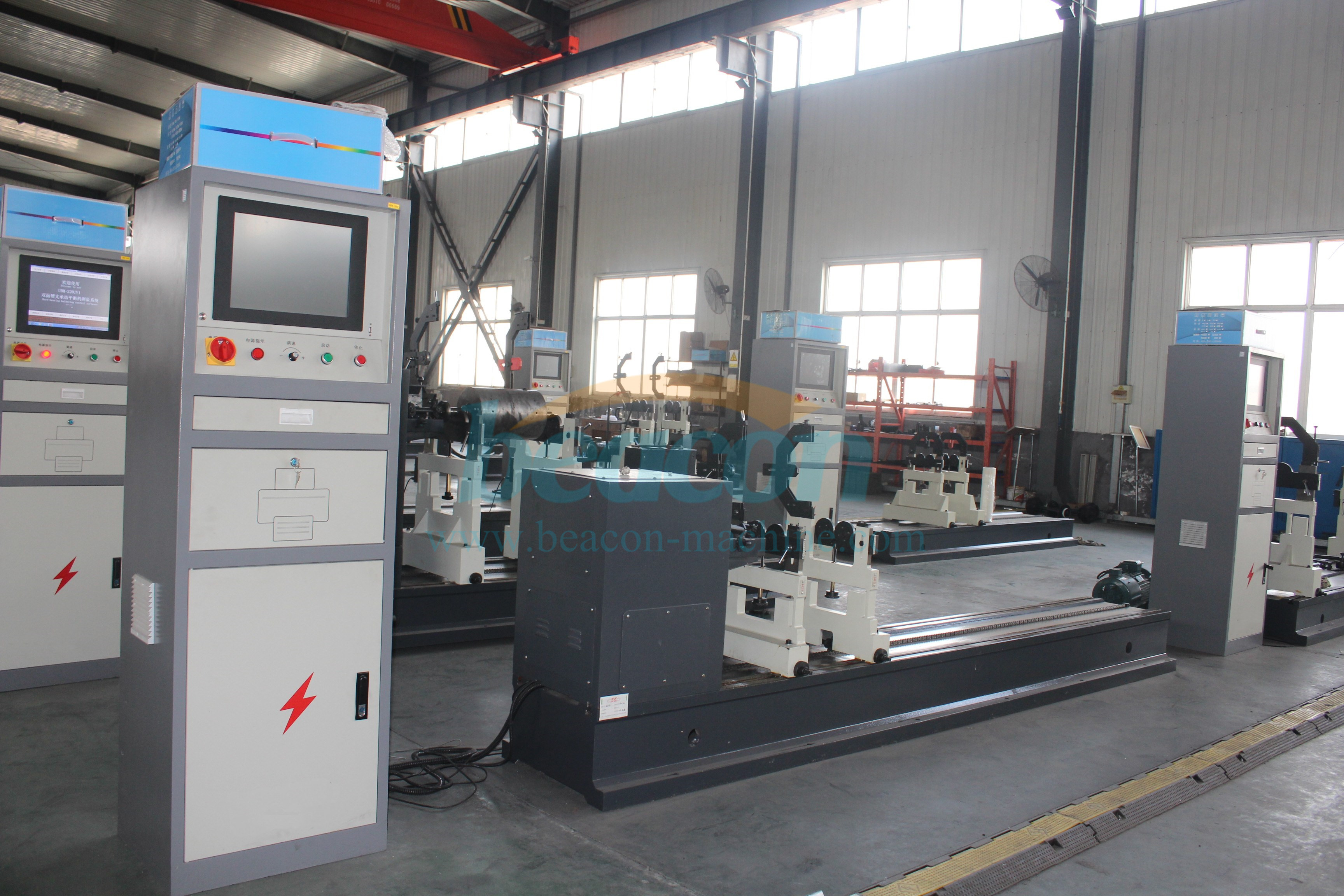

Beacon YYW-200S Dynamic Balancing Equipment Joint Drive Marine Propeller Rotor Balancing Calibration Dynamic Balance Machine


Main technical index

Way of driving: belt driven and 2.2 kw motor Measuring system: independent developed dynamic balancing machine special measuring software.


Device configuration

1) lathe bed dimension: 2000mm lathe bed, there are two T type grooves on lathe bed for move and fasten swing frame. 2)There are two sets standard bearing frame on lathe bed The swing frame made by QT450 cast iron, integral structure, roller bearing by cantilever, with lockable and adjustable clamp safety frame, there is piezoelectric sensor assembly behind elastic beam, used to measuring the shake of swing frame. 3)universal joint driven part: One head stock One set 2.2kw motor One set universal spindle coupling with graduated disc One set 60Nm special universal joint, with safety cover One set reference signal sensor 4) strong current system include: Operation control panel ahead control cabinet installed power switch, start stop knob, inside vertical industry cabinet installed strong current controlling circuit board, air switch, all above low-voltage components adopt domestic famous brands. Use Shenzhen IVNT frequency converter to realized step less speed regulation . 5) measuring system include: One set 32 bits industrial control computer; One set 15 inches flat panel LCD monitor; One piece LENOVO anti-interference keyboard, one piece mouse; One set high-end electronic control cabinet; A set of foundation bolt, wedge iron for leveling, and tools with the machine; A set of balancing machine software and technical manual.


YYW-200S Dynamic Balancing Machine Technical Index:
Weight of work-piece (kg):
5-200
Max diameter of work-piece (mm):
φ1000
Max distance between two swing frame center(mm):
1100
Length of lathe bed(mm):
1800
Journal diameter scope of work-piece(mm):
φ10-90
Min achievable residual unbalance amount(gmm/kg):
≤1
Unbalance reduction ratio(%):
≥90
Rotating speed(r/min):
200-1500
Motor power(kw):
2.2
Drive mode:
universal joint driven
Work environment:
Temperature: -5---45℃;     Humidity: 0-85%
