Fully automatic balancing machine with auto drilling for Brake drum XK-BT50

Fully automatic balancing machine with auto drilling for Brake drum XK-BT50

0086-18253885135

info@beacon-machine.com


Make an inquiry

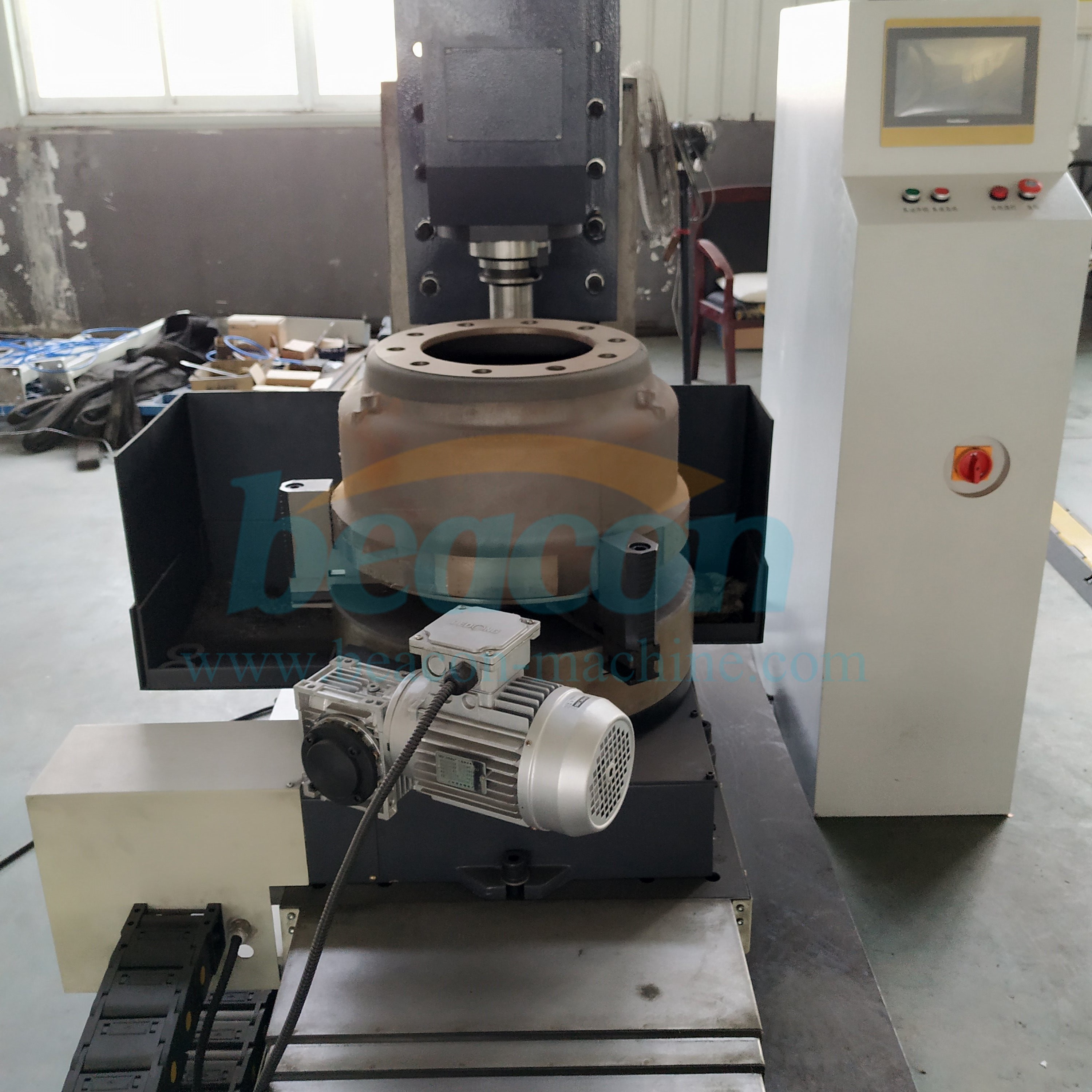

2. Equipment name: automatic milling machine 3. Number of equipment: 1 4. Workpiece name: brake drum; 5. Workpiece size: subject to the drawings provided by the customer; 6. Type of blank: casting 7. Workpiece hardness: HB197-241 8. The maximum weight of the workpiece: 120 kg

Machine tool configuration:

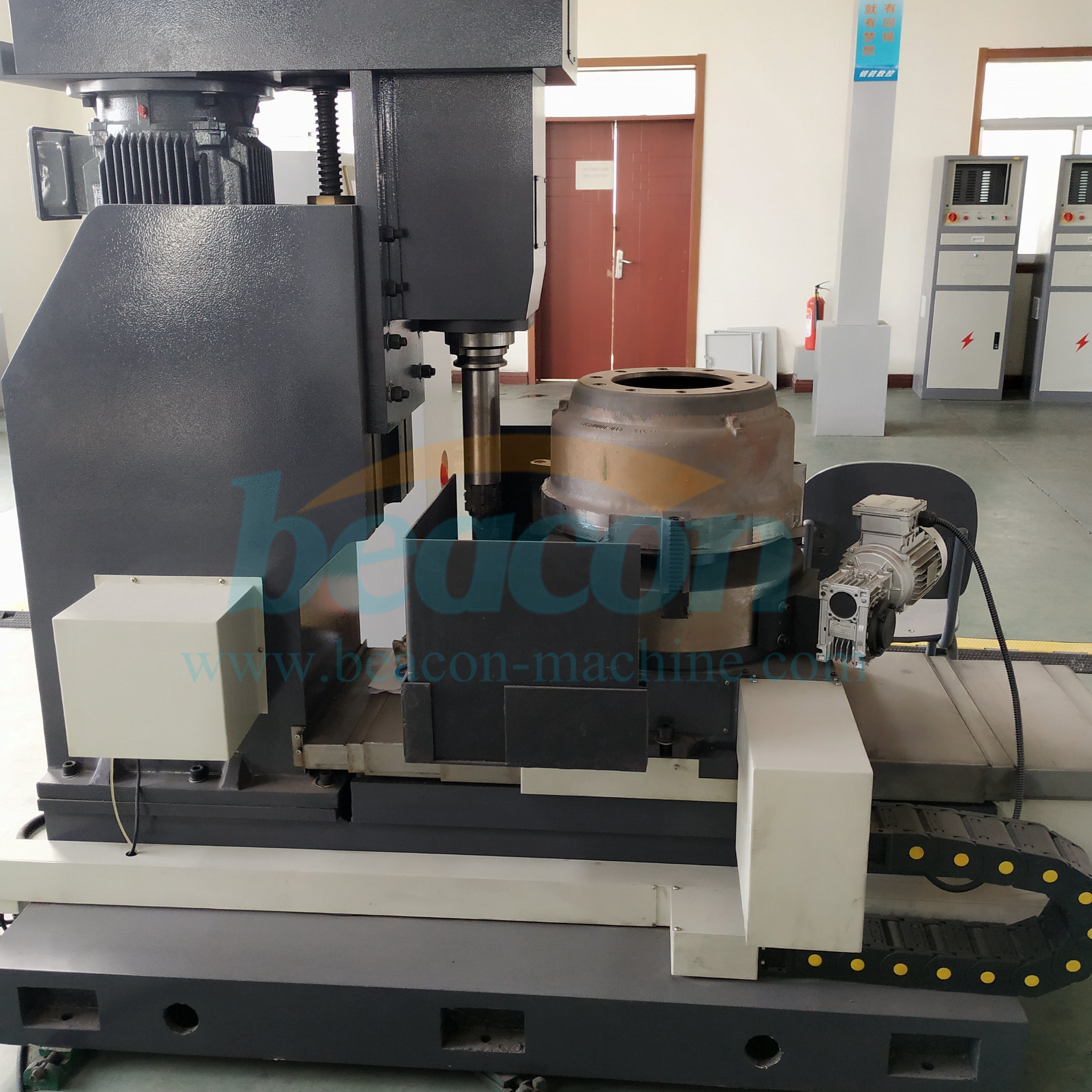

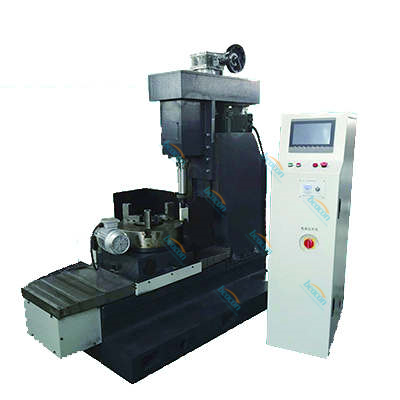

1. Milling machine host 1 set Component function: Realize quick start, constant speed control and precise and fast position control of the spindle system. ◆ High-precision guide screw, NSK imported precision bearings; ◆ The high-strength casting support base is rigid enough to ensure the accuracy of the machine tool for a long time; 2. 1 set of CNC rotary table Component function: high-strength fast milling rotation, precise position control ◆ High-strength rotary platform; ◆ Precision worm gear mechanism; ◆ The workbench is equipped with high-power AC servo system, which can move accurately and quickly; 3. 1 set of milling deweighting machine Component functions: high-power high-speed milling, horizontal position control of milling sliding table, vertical position adjustment of milling power head; ◆ Milling sliding table, Taiwan HIWIN ball screw and linear guide; ◆ High-power milling power head, high-speed milling with carbide tools; ◆ Vertical adjustment mechanism for milling power head; ◆ Using imported high-power AC servo system, the movement is accurate and fast; ◆ Automatic lubrication of milling sliding table, new milling power head; ◆ The milling power head manually controls the lifting;

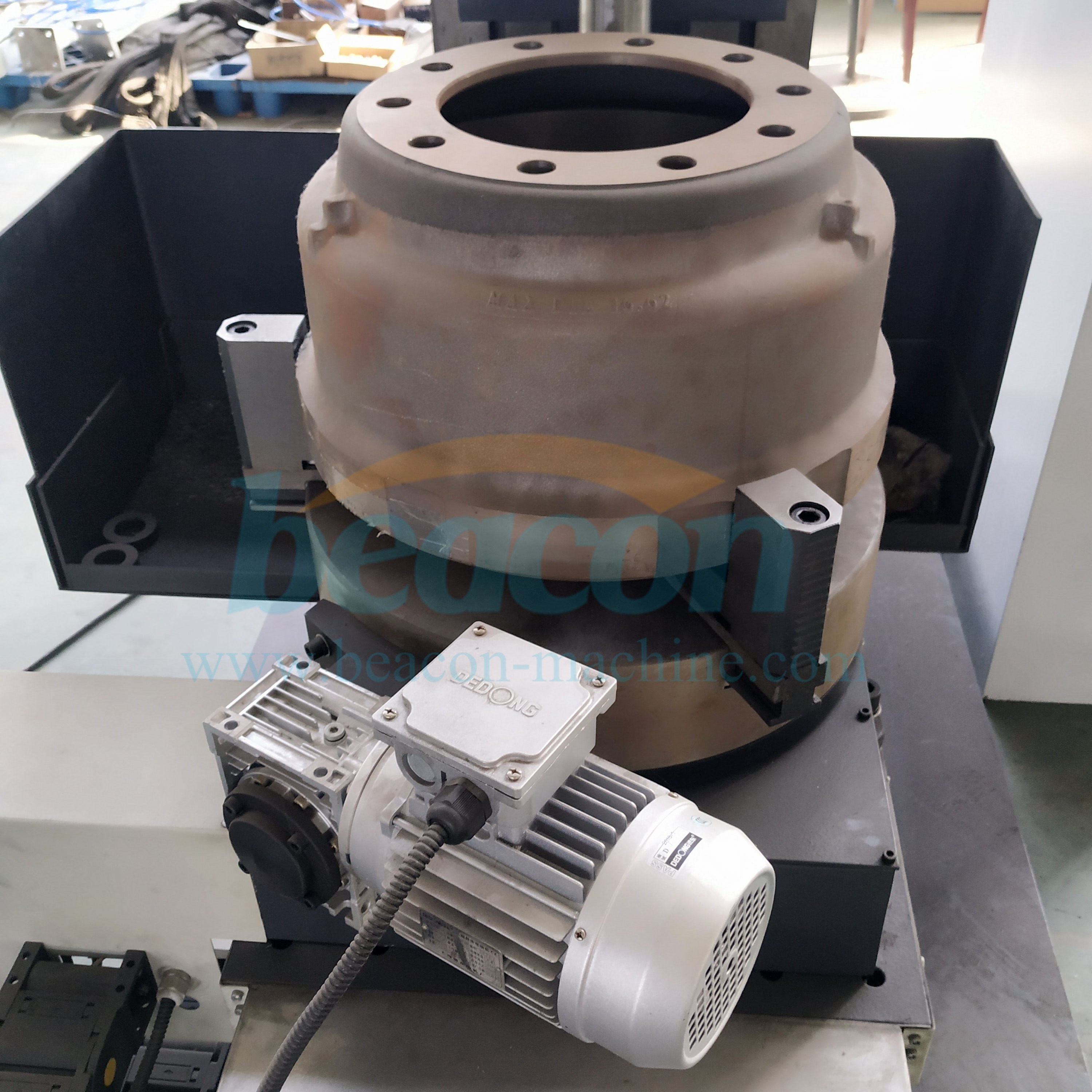

Component function: the workpiece is firmly clamped by milling. ◆ K11-500 electric chuck clamping mechanism to ensure milling rigidity; ◆ The chuck uses three points to clamp the workpiece; (to ensure that the workpiece is not deformed) 5. 1 set of PLC control system Component function: the realization, communication, protection and other functions of each actuator ◆ FATEK PLC controller; ◆ Two-axis precision servo CNC system; ◆ Schneider air switch, contactor, button, indicator light; ◆ Omron proximity switch, travel switch; ◆ Integrated structure of control system and host, small space occupation, no installation on site; 6. Optional industrial vacuum cleaner for milling 1 set Component function: Milling scrap collection ◆ High-power powerful fan, power 3kw; ◆ Multi-layer filtration of metal mesh layer and cloth layer; ◆ Replaceable dust suction head;

◆ High-strength suction tube;

Tooling configuration ◆ Each equipment is equipped with a set of K11-500 chuck, which has the function of clamping multiple types of workpieces. ◆ Cutter (the random bed is equipped with a set of carbide disc milling cutters)

Main components ◆Milling host 4 sets of P4 spindle bearing Servo motor 1.5kW 2 sets Delta Servo driver 1.5kW 2 sets Delta Milling main motor 5.5KW 1 set Main motor inverter 5.5KW 1 INVT ◆Workpiece self-clamping mechanism K11-500 three-jaw chuck 1 set ◆PLC control system PLC controller 1 set FATEK Air switch, contactor 1 set Schneider 1 set of buttons and indicators Schneider
