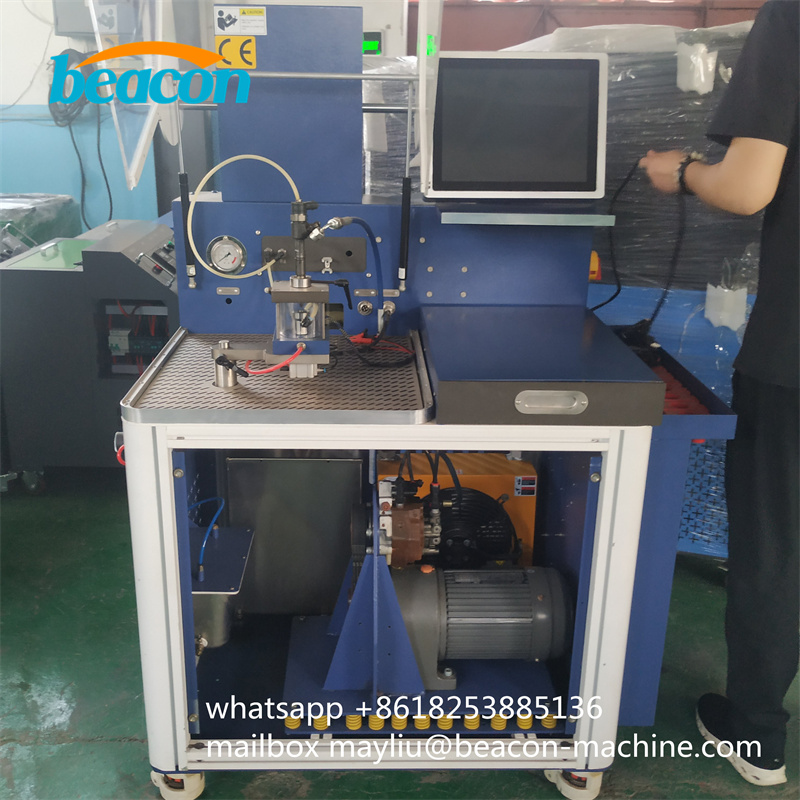

The whole equipment adopts alloy aluminum profile, reinforced fastener connection, light weight, corrosion resistance, easy maintenance, independent circuit system design. Equipped with high-grade Fuma wheels, easy to move, easy to fix, and the load capacity is 2T. It has ultra-low noise, is equipped with a geared motor, and designed a set of shock absorbers. Keep noise to a minimum in a sealed working space. Use CP3 high pressure oil pump and HPV valve to adjust the pressure, install high pressure sensor, rail pressure can reach 230Mpa pressure. Using the latest detection software, the reliability is stable, and it can detect Bosch, Denso, Delphi, Cummins, Siemens and other series of injectors. The database can be updated online in real time.
0086-18253885135

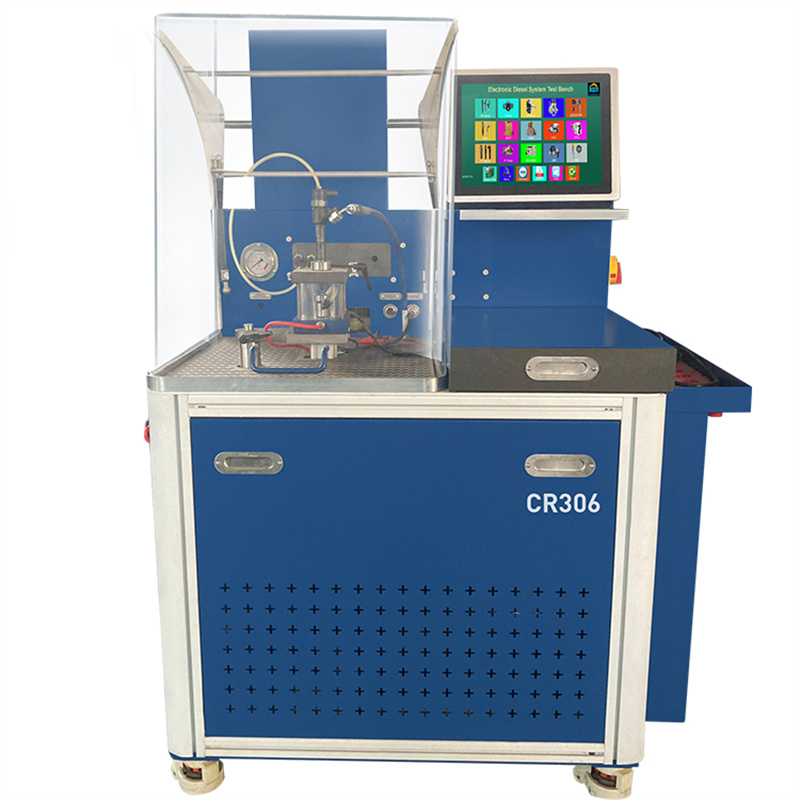

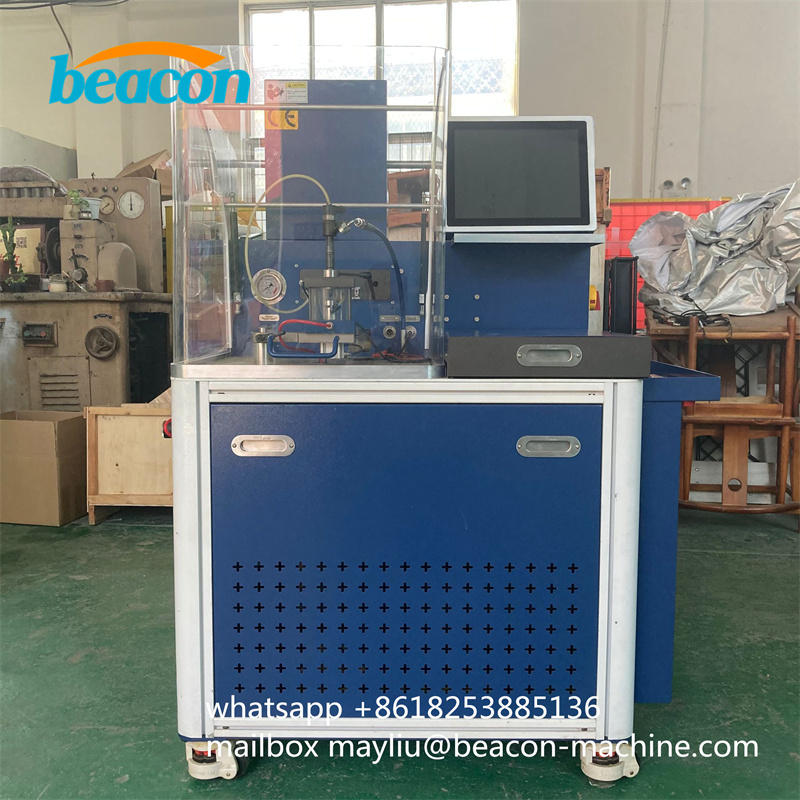

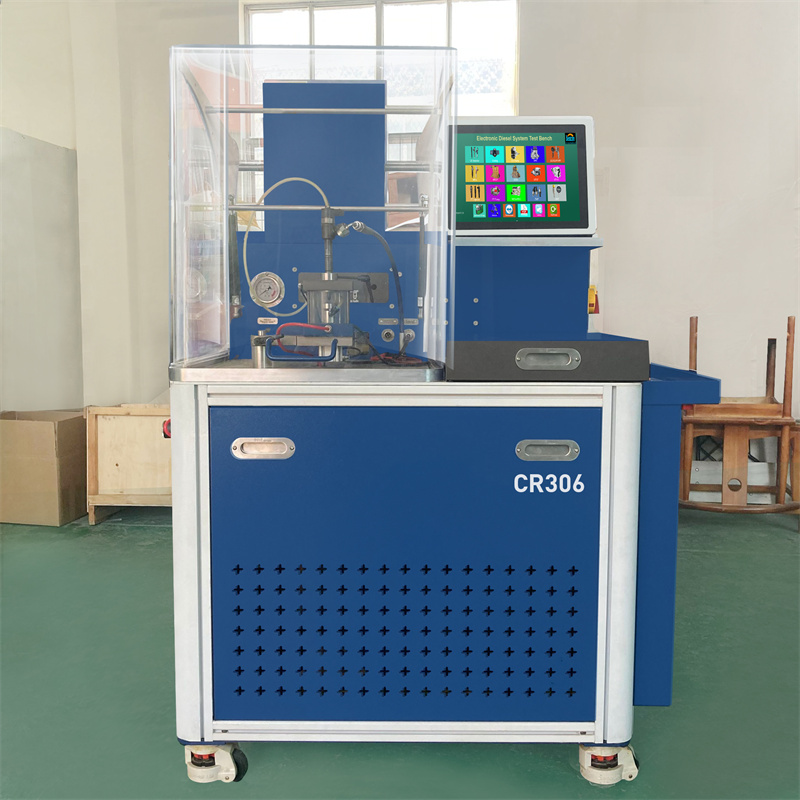

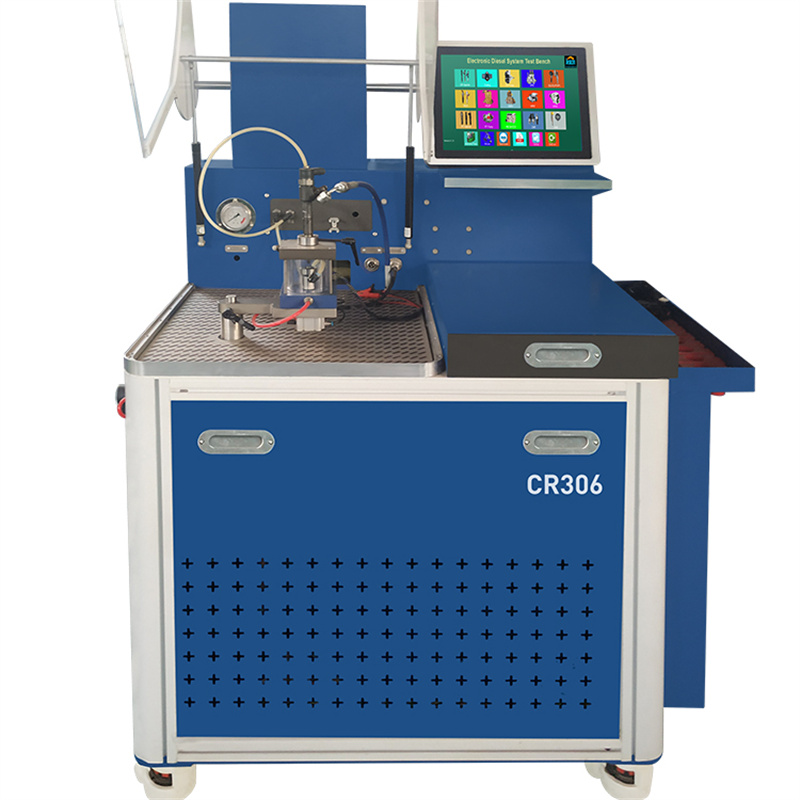

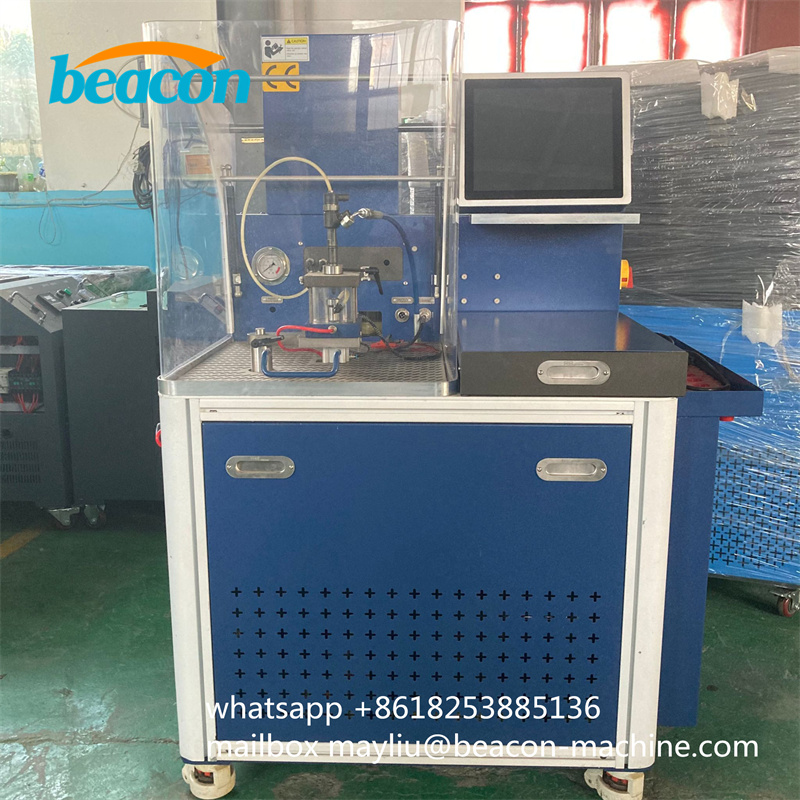

CR306 High pressure common rail diesel fuel injector test bench
Special points:
1. Real-time control of industrial computer, windows operating system
2. Oil measurement, rail pressure, pulse width, speed, temperature, etc. are all displayed on the touch screen
3. Use Bosch high pressure common rail fuel injection pump to generate 0～2200bar pressure
4. The user can customize parameters such as rail pressure, pulse width, oil measuring time, etc.
5. Intelligent PID algorithm, closed-loop control rail pressure control is more accurate, and has ultra-high pressure protection function
6. Automatic conversion of pulse power
7. Built-in more than 3000 kinds of injector data can be queried
8. The equipment has network functions, and can be upgraded and operated remotely by one key after the network is connected.
9. Short circuit protection function of test bench
10. Automatic control of test oil temperature
11. Equipped with special fixtures for detecting injectors
12. Multi-language interface switching
13. Safety protection design, safe and easy to operate
Function :
1. Detection range: BOSCH, DENSO, DELPHI, SIEMENS and other brand injectors
2. Detect 1 common rail injector
3. Test the tightness of the high-pressure common rail injector and observe its atomization effect
4. Measure the high-speed fuel quantity of the high-pressure common rail injector
5. Measure the medium-speed fuel quantity of the high-pressure common rail injector
6. Measure the idling fuel quantity of the high-pressure common rail injector
7. Measure the pre-injection amount of the high-pressure common rail injector
8. Measure the oil return of the high-pressure common rail injector
9. High-pressure flushing of high-pressure common rail injectors can be carried out
10. The injection status and fuel quantity measurement of the high-pressure common rail injector can be set
Technical parameter :
|
Model |
CR306 |
|
Motor |
1.5KW geared motor |
|
Host power |
220V/50HZ |
|
Test bench speed |
300 rpm |
|
Number of consecutive injections |
0～1000 times |
|
Rail pressure |
0～2300 bar |
|
Pulse Width |
100～3000μs |
|
Oil temperature control |
38±2℃ |
|
Test oil filtration accuracy |
＜5μ |
|
Fuel tank capacity |
35L |
|
Test bench size |
1100x800x1500（mm） |
|
Test bench weight |
300kg |
