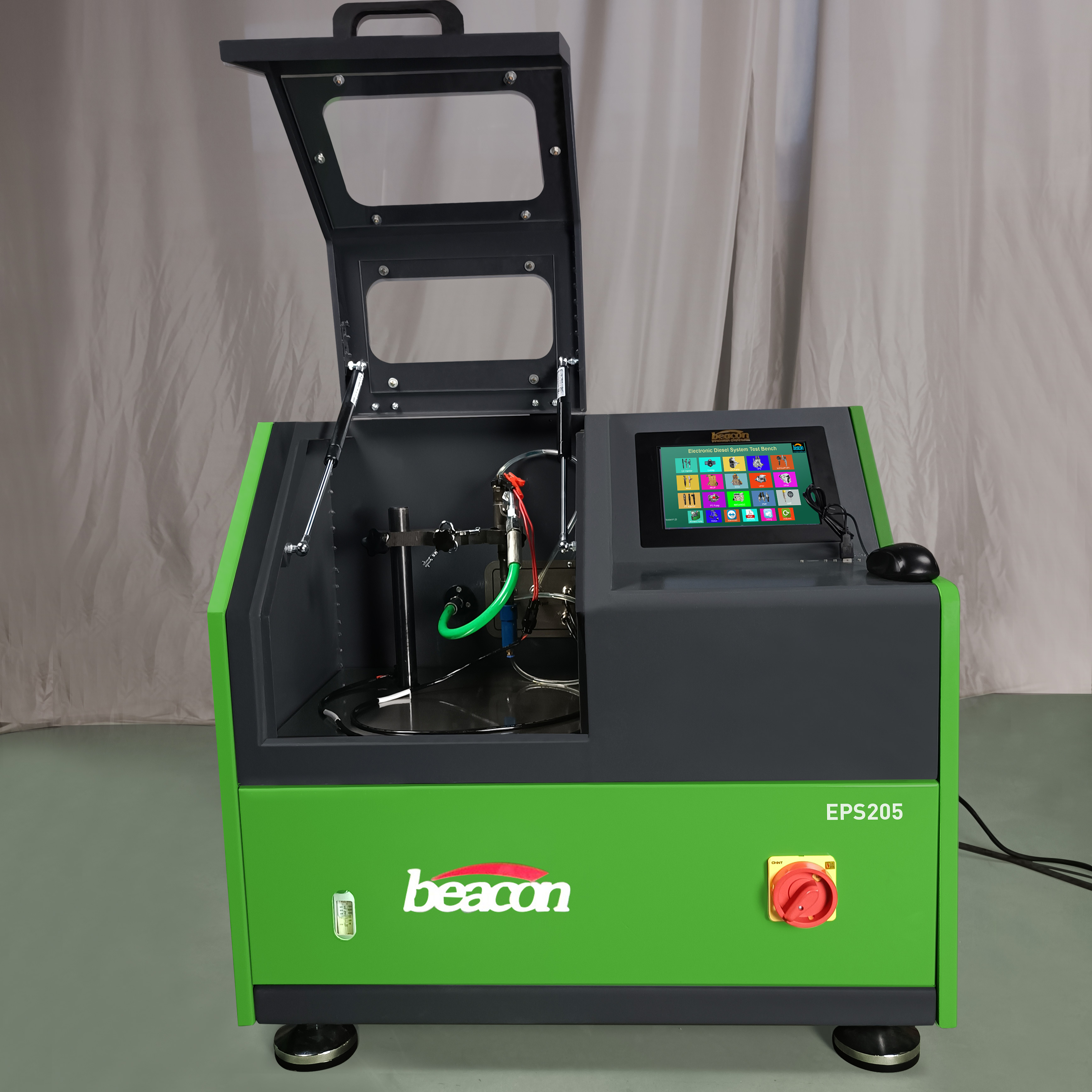

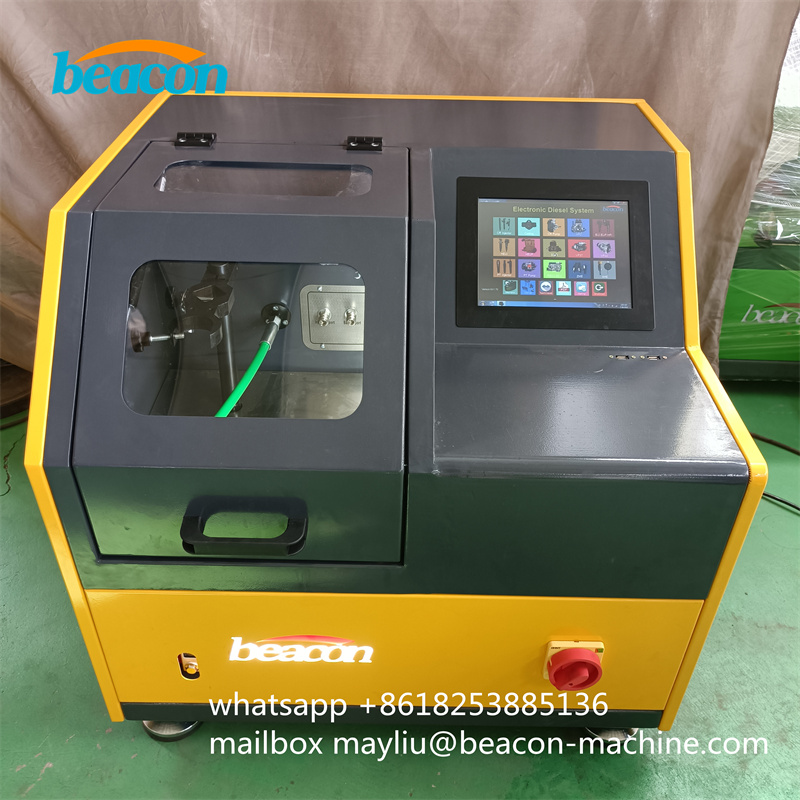

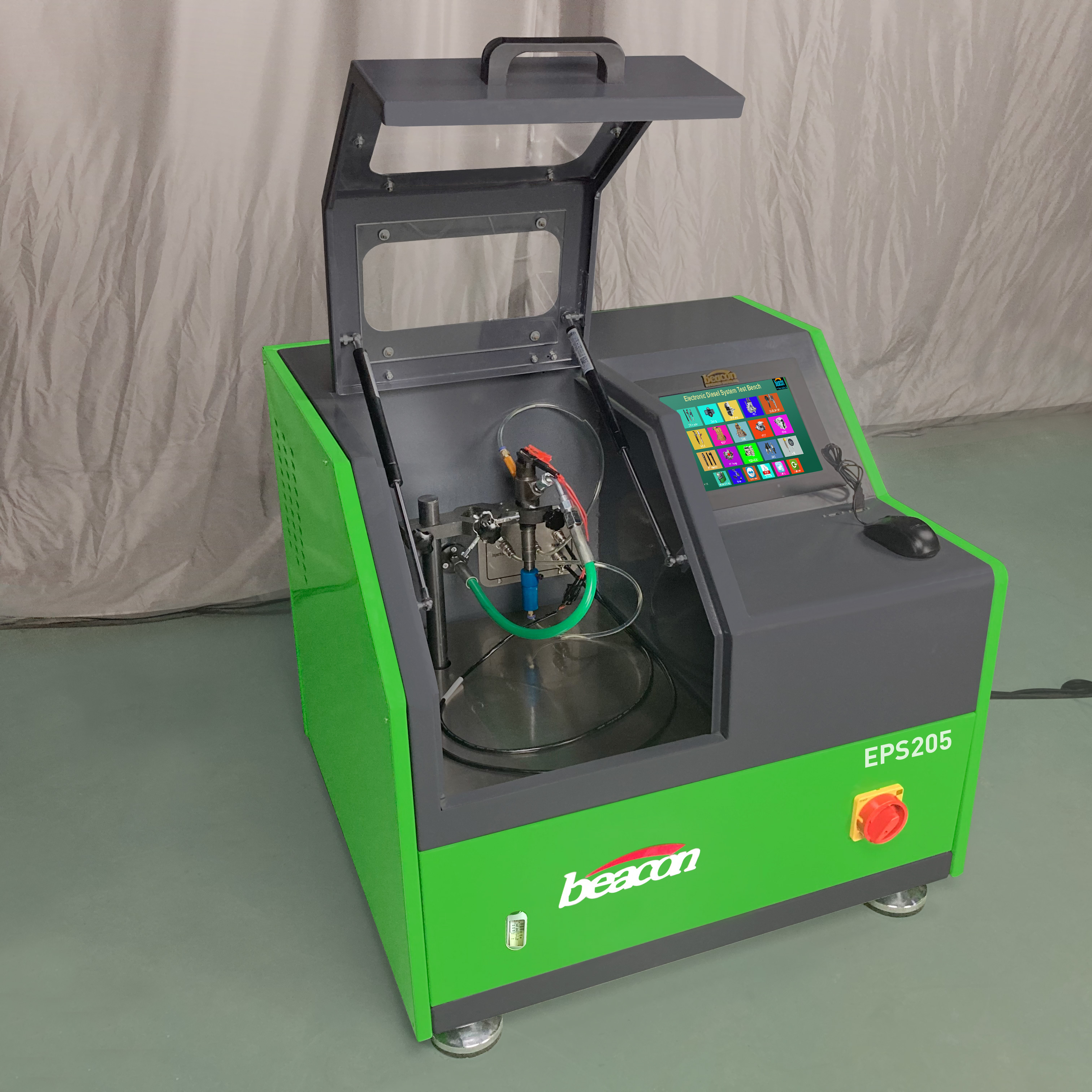

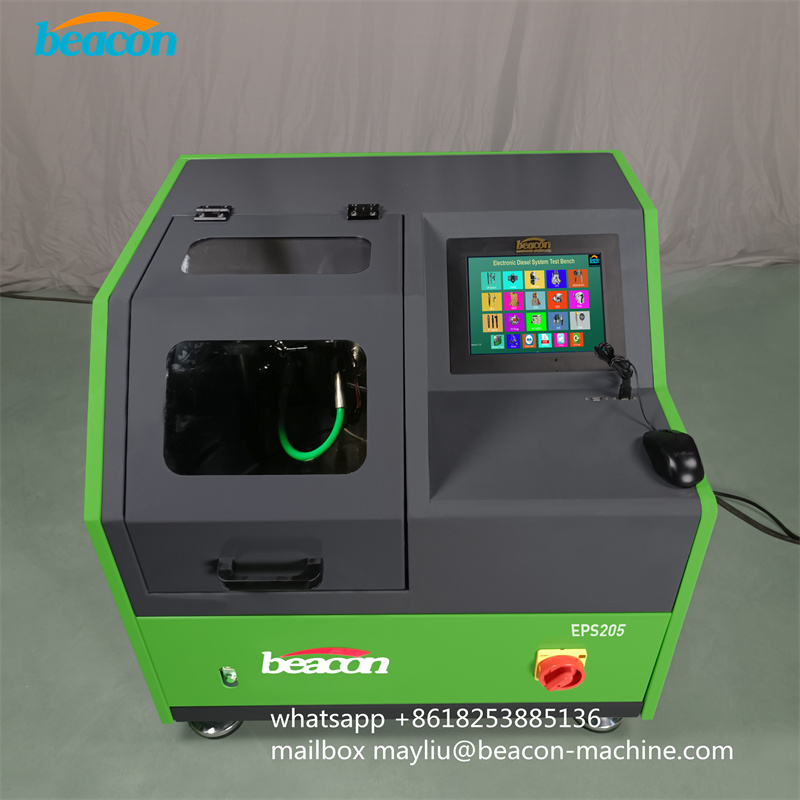

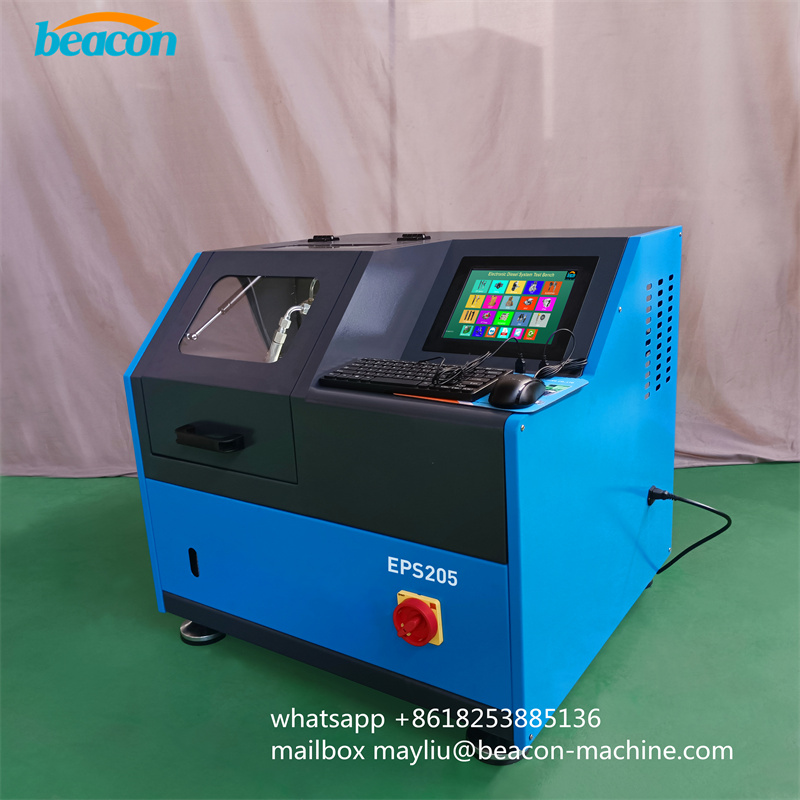

EPS205EPS205 BCS205 NTS205 high pressure diesel common rail injector test bench ,calibrate machine. common rail injector test bank

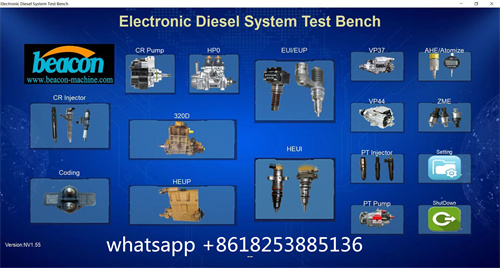

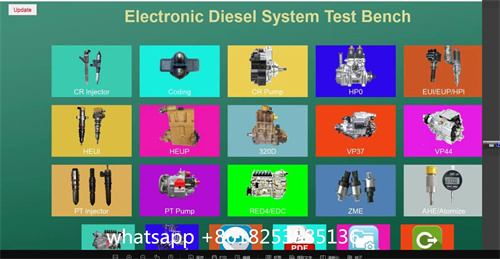

it is  with computer is our latest independent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved. It adopts BOSCH original common rail pump to provide 0~2000 bar for rail pressure. The rail pressure can be adjusted automatically, and it also provide pressure overload protect. It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO. Advanced technology, steady performance, precise measurement and so on.

>>>CHARACTERISTIC

 1. Controlled by industrial computer in real time, Windows operating system.
 2. Oil quantity is measured by sensor and displayed on 10.4 tactile  LCD screen;
 3. More than 700 kinds of injector data can be searched and used.
 4. t is installed BOSCH common rail pump to provide 0~2000 bar
 5. Rail pressure can be tested in real time,
 6. Provide pressure overload protect
 7. Pulse and frequency of the injector can be adjusted.
 8. Injection time can be set.
 9.  Protection function of short-circuit.
 10. Precise measurement, easy operation, low noise.
 11.Frequency converter inside to keep the RPM.

  >>>FUNCTION
 1.Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.

  Piezo injector testing
 2. Test 1 piece of injector.

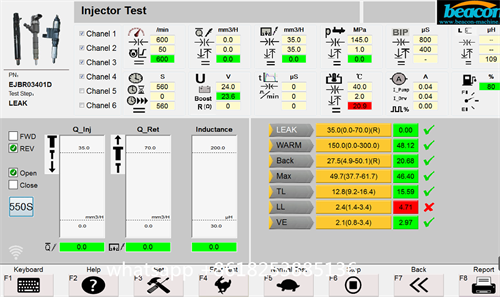

 3. Test the Leakage performance of common rail injector.

 4. injection oil quantity and back oil quantity(pre-injection, Idling, emissions, full load)

 5.Electronic fuel delivery measuring,  automatic testing and detection.
 6. Data can be searched and saved.

)Delphi Denso Siemens Bosch Denso Injector code can be generated;
