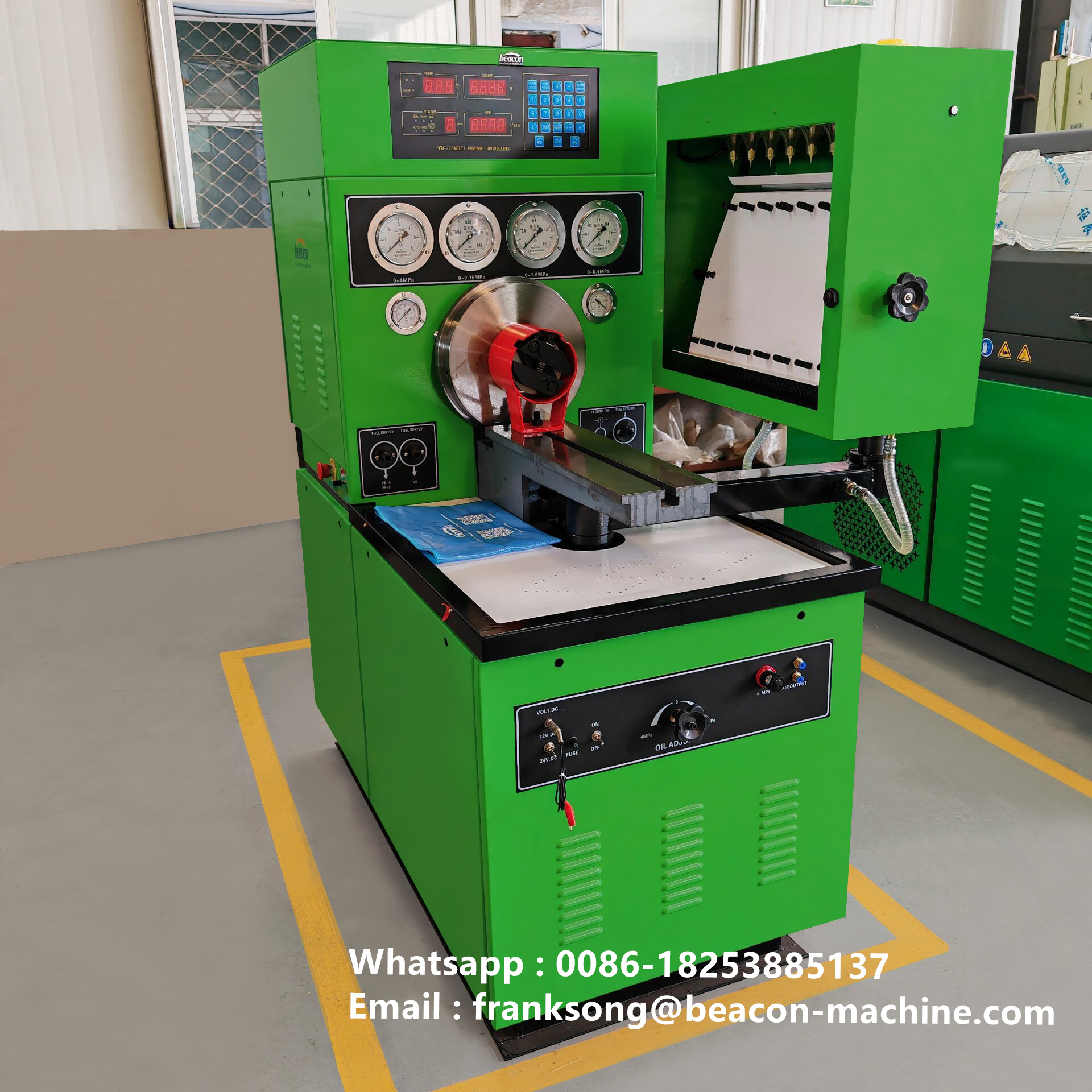

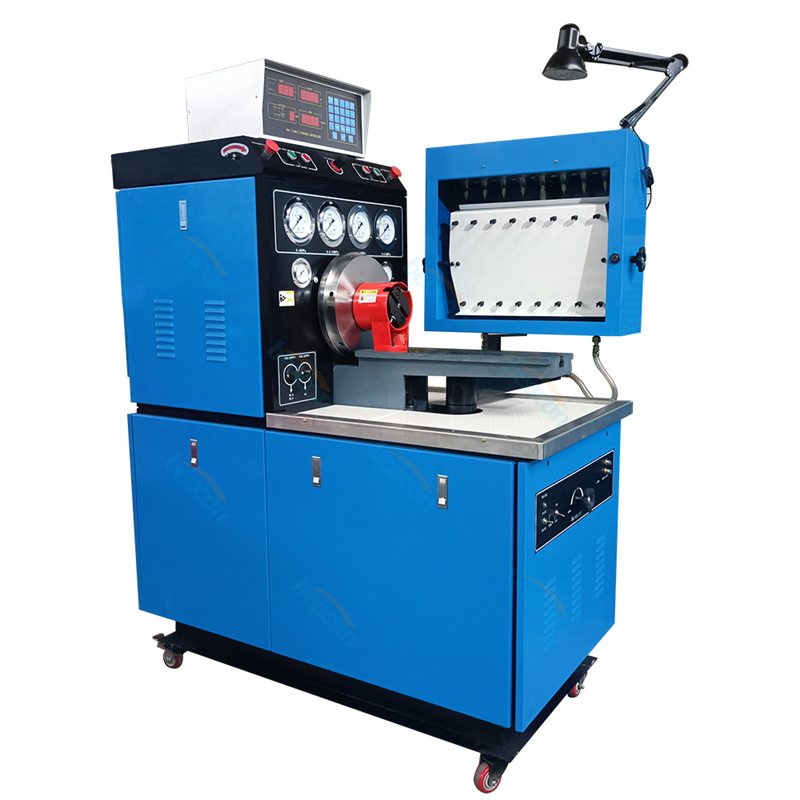

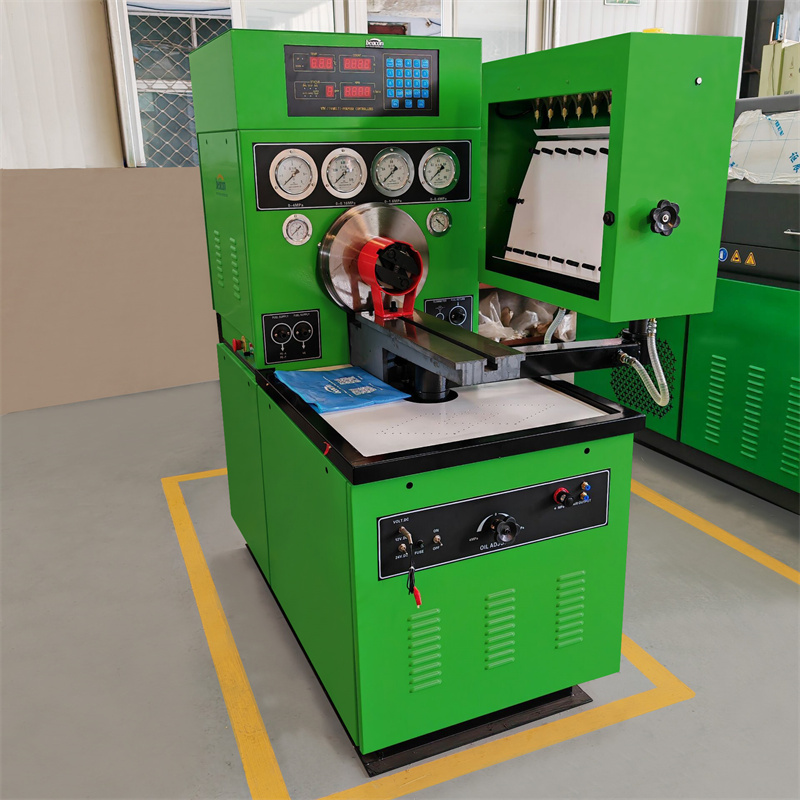

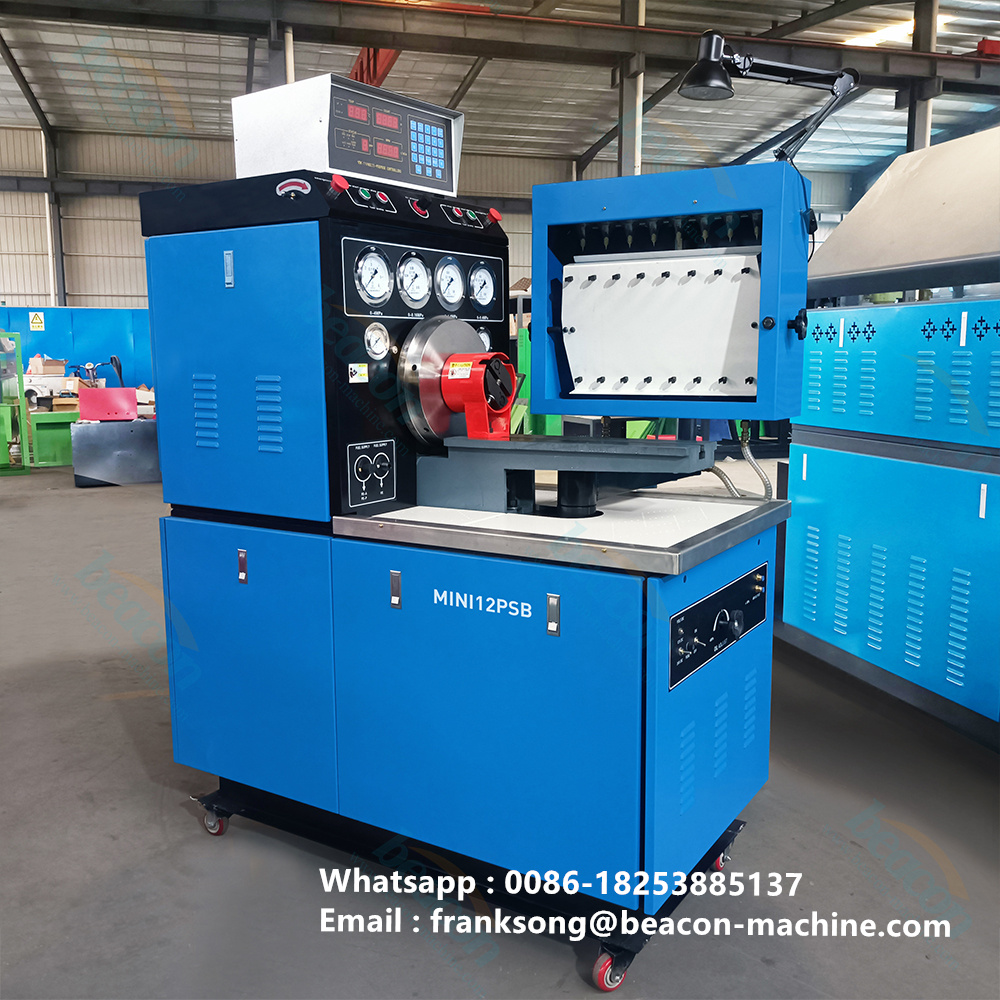

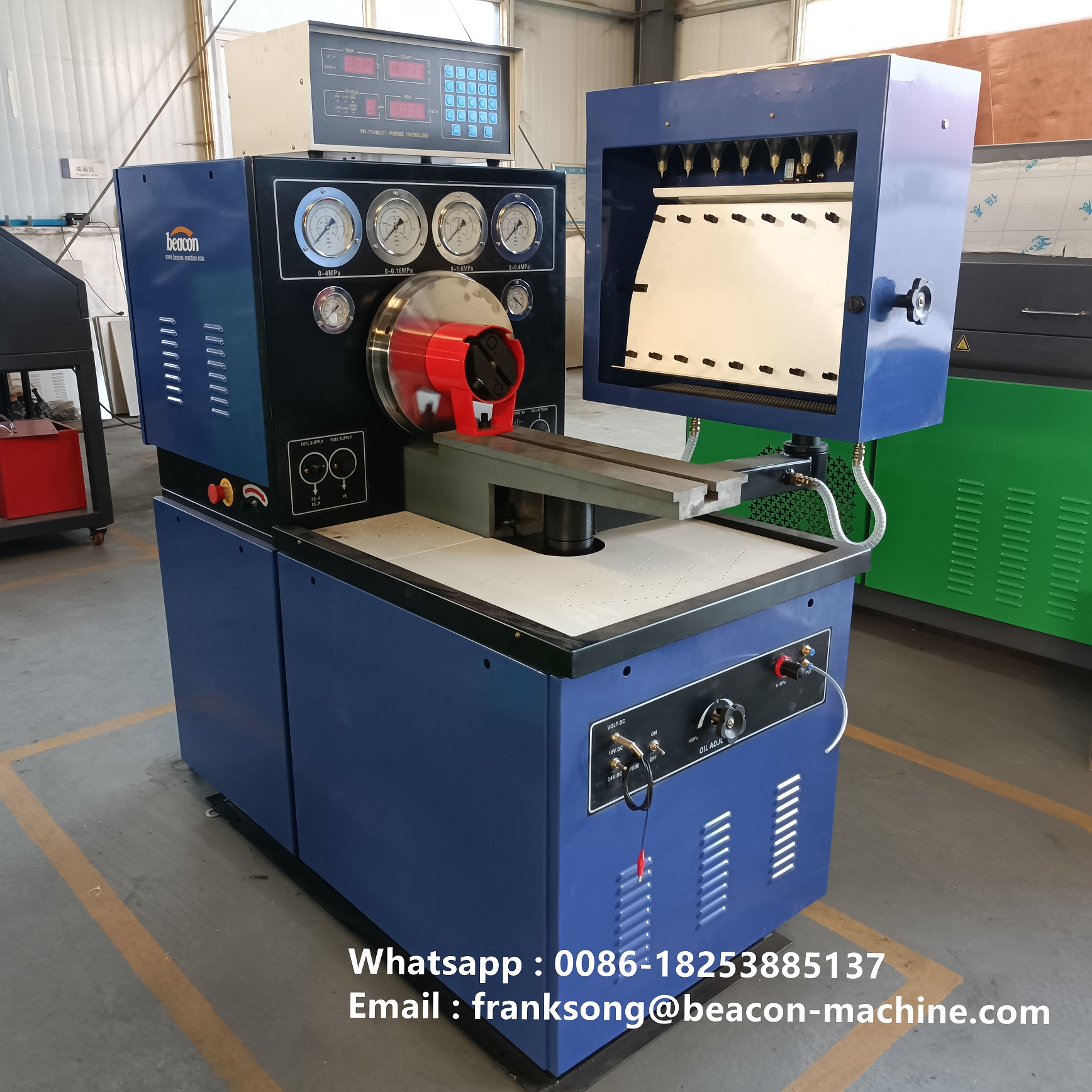

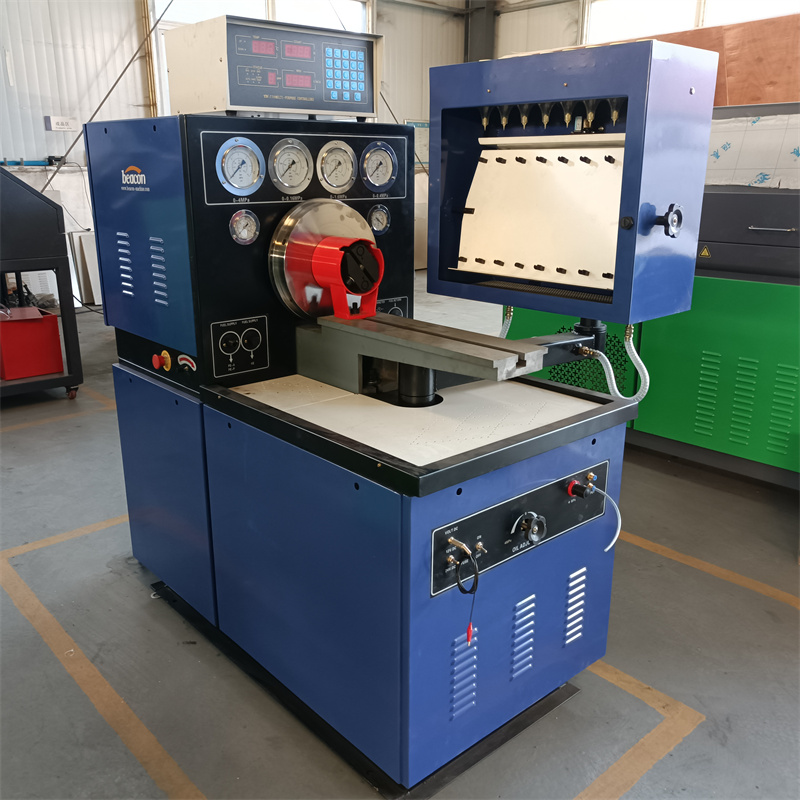

Mini12PSB Mechanical Diesel Fuel Injection Pump Test Bench with 8 Cylinder Inline Pump Testing Equipment from Beacon Machine

mini 12psb can start and test both in-line androtaryfuelinjection pumps, for example, Ⅰ, Ⅱ, Ⅲ, A, B, P, Z, VE pumps andsoon, byemploying the suitable accessories.

0086-18253885135

info@beacon-machine.com


Make an inquiry

mini12psb test bench

mini12psb 12PSB test bench The MINI12PSB-A fuel injection pump test bench is the latest generation of fuel injection pump test bench, which is improved on the basis of the introduction of foreign advanced technology, and is designed and developed by itself. The main drive of this product adopts the most advanced frequency conversion speed regulation technology today, and the stepless speed regulation range can reach 0-4000 rpm, with stable speed, large output torque and ultra-low noise. The test bench speed, fuel injection count, and fuel temperature are all digitally displayed, and the air pressure is displayed by a mechanical meter. The display is clear, the work is reliable, and the control accuracy is high. The most prominent feature of the test bench is: ten groups of spindle speed settings are stored, the number keys can directly switch the speed, and the speed deviation automatic correction function is provided, the preset speed is fast, and the accuracy is high, which can greatly improve the work efficiency.


According to the oil pump to be debugged, the appropriate accessories can be selected, and the following items can be tested:

(1) Test the fuel supply amount and fuel supply uniformity of each cylinder of the fuel injection pump at different speeds;
(2) Test the fuel supply starting point and fuel supply interval angle of the fuel injection pump;
(3) Inspection and adjustment of the working performance of the governor;
(4) Test and inspection of the performance of the pressure compensator;
(5) Testing and adjustment of the working performance of the distribution pump;
(6) Inspection of the performance of the solenoid valve of the distribution pump;
(7) Measuring the oil return volume of the distribution pump at various speeds;
(8) The internal pressure measurement of the distribution pump at various speeds;
(9) Sealing performance test of distribution pump;
(10) The oil pump can be inspected by installing the self-priming oil supply pipe.
