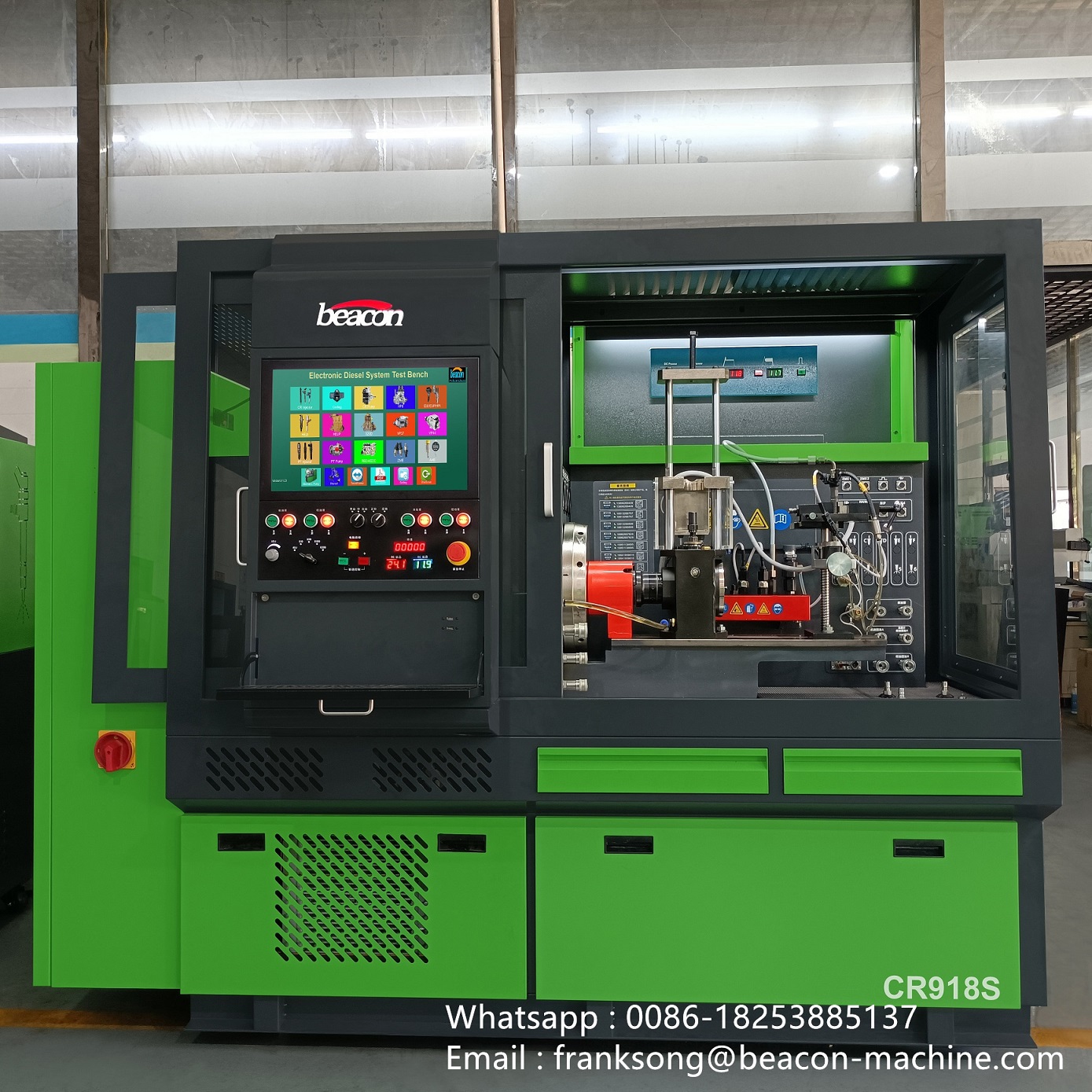

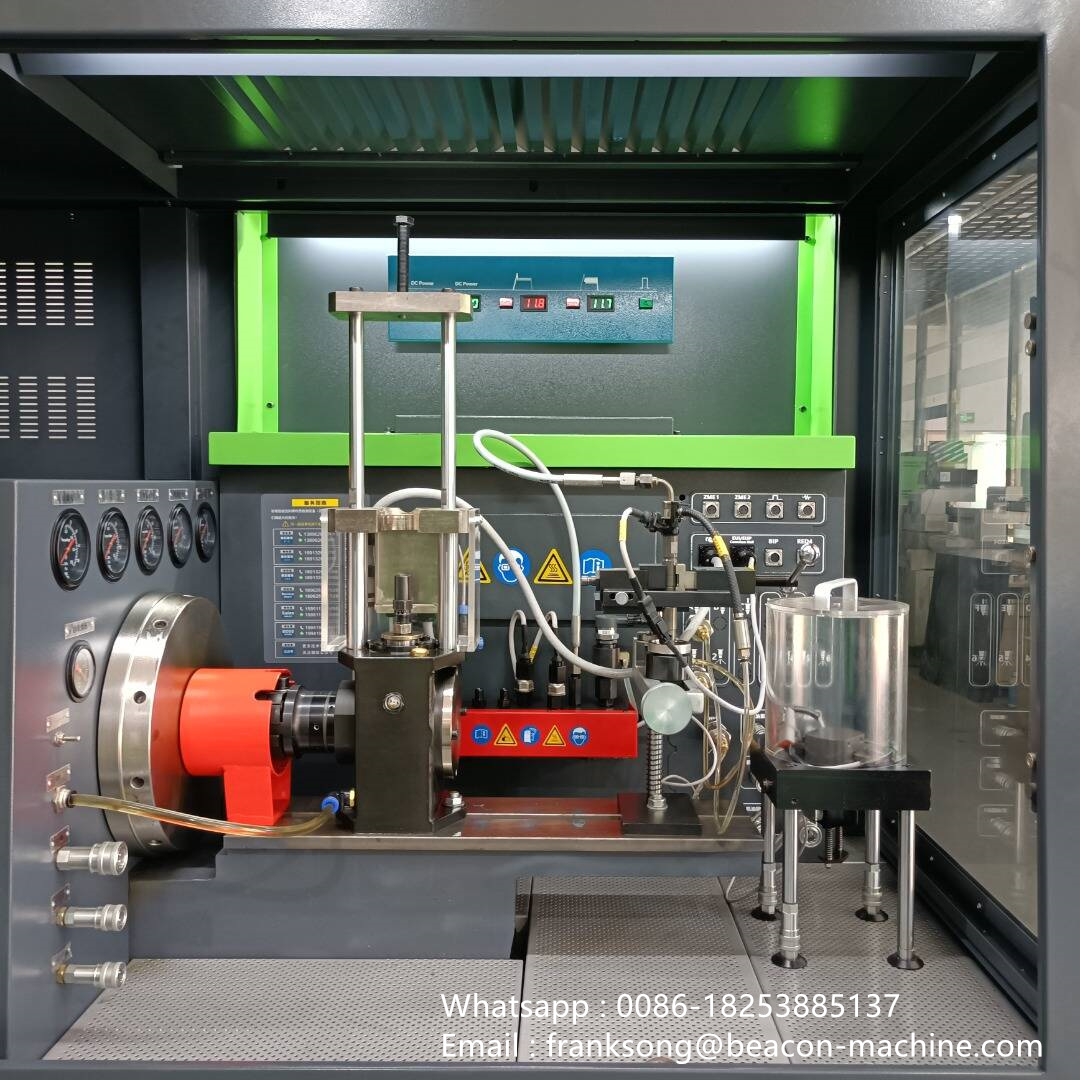

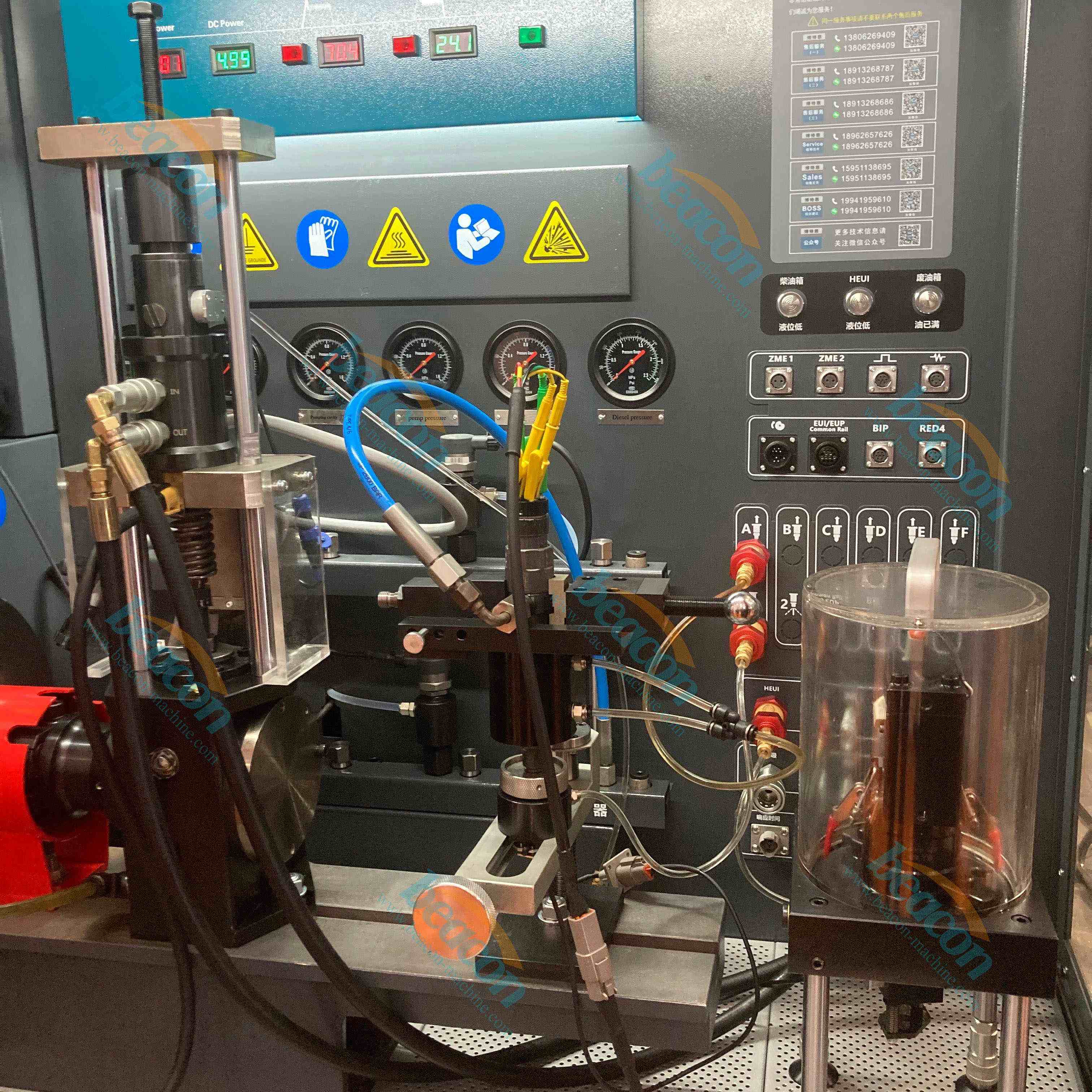

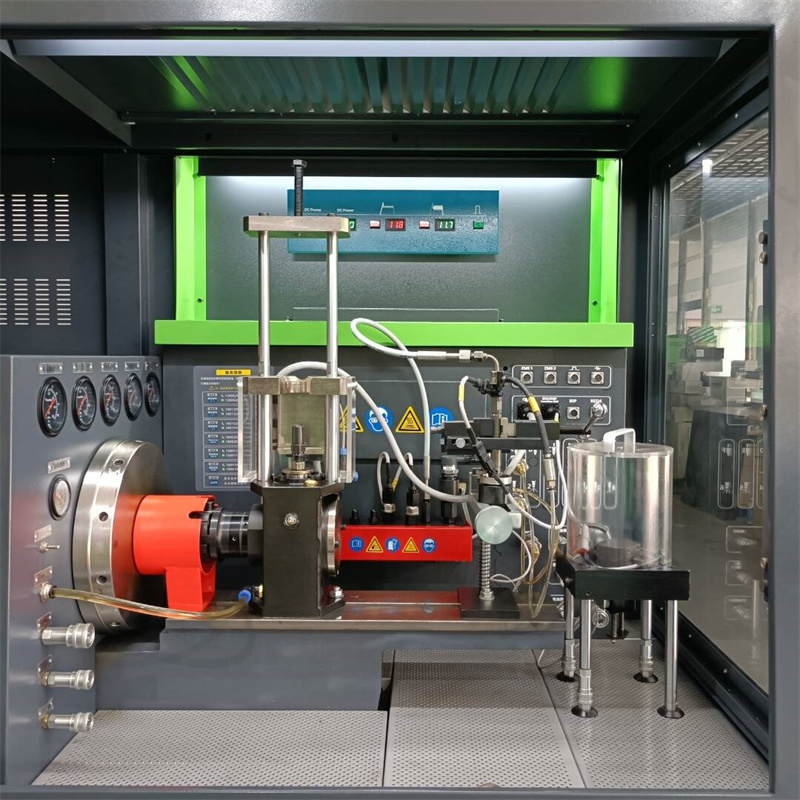

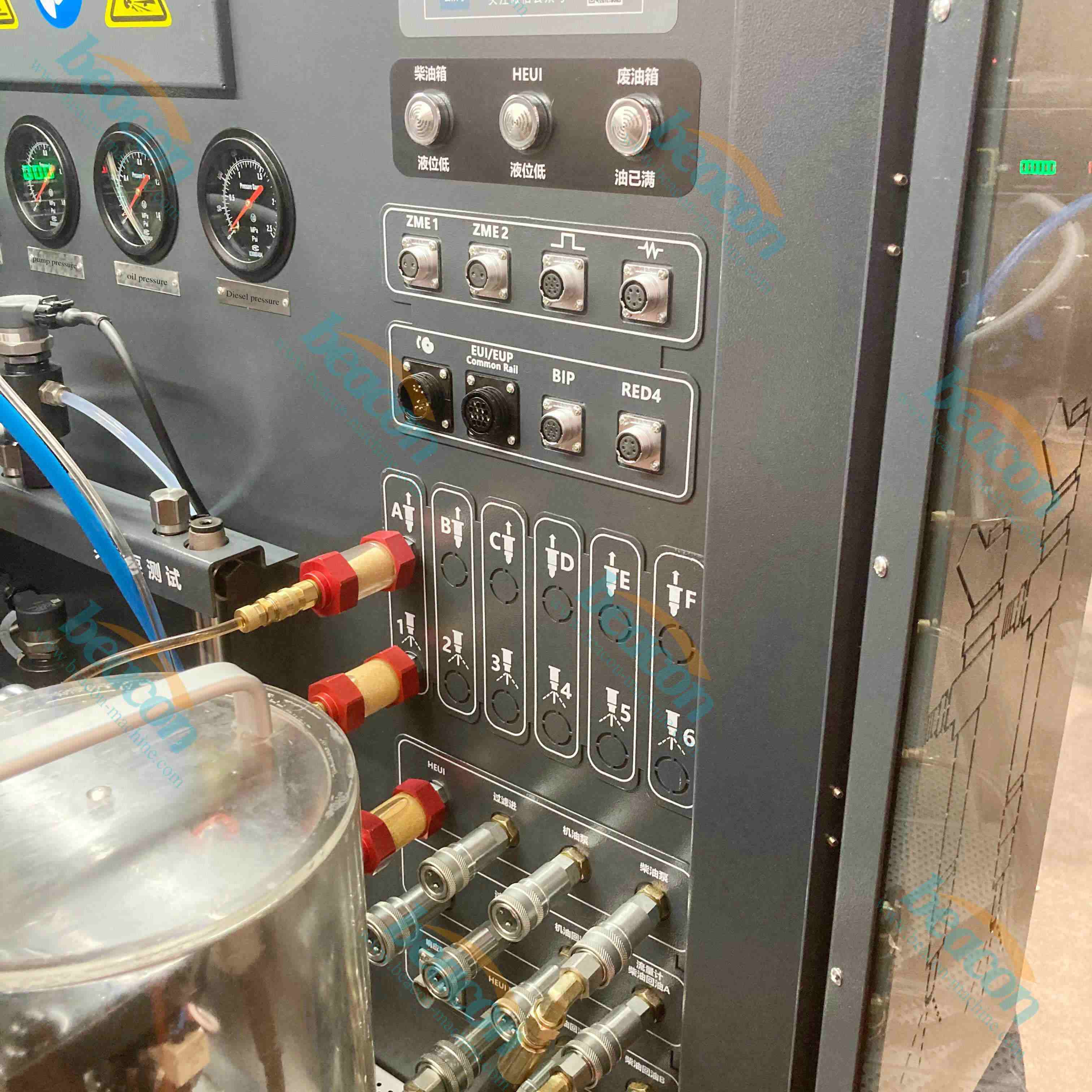

Vehicle diagnostic calibration machine CR918-S Implement all coding functions HEUI CR diesel fuel injector pump test bench CR918S

Vehicle diagnostic calibration machine CR918-S Implement all coding functions HEUI CR diesel fuel injector pump test bench CR918S


Make an inquiry

[Features]

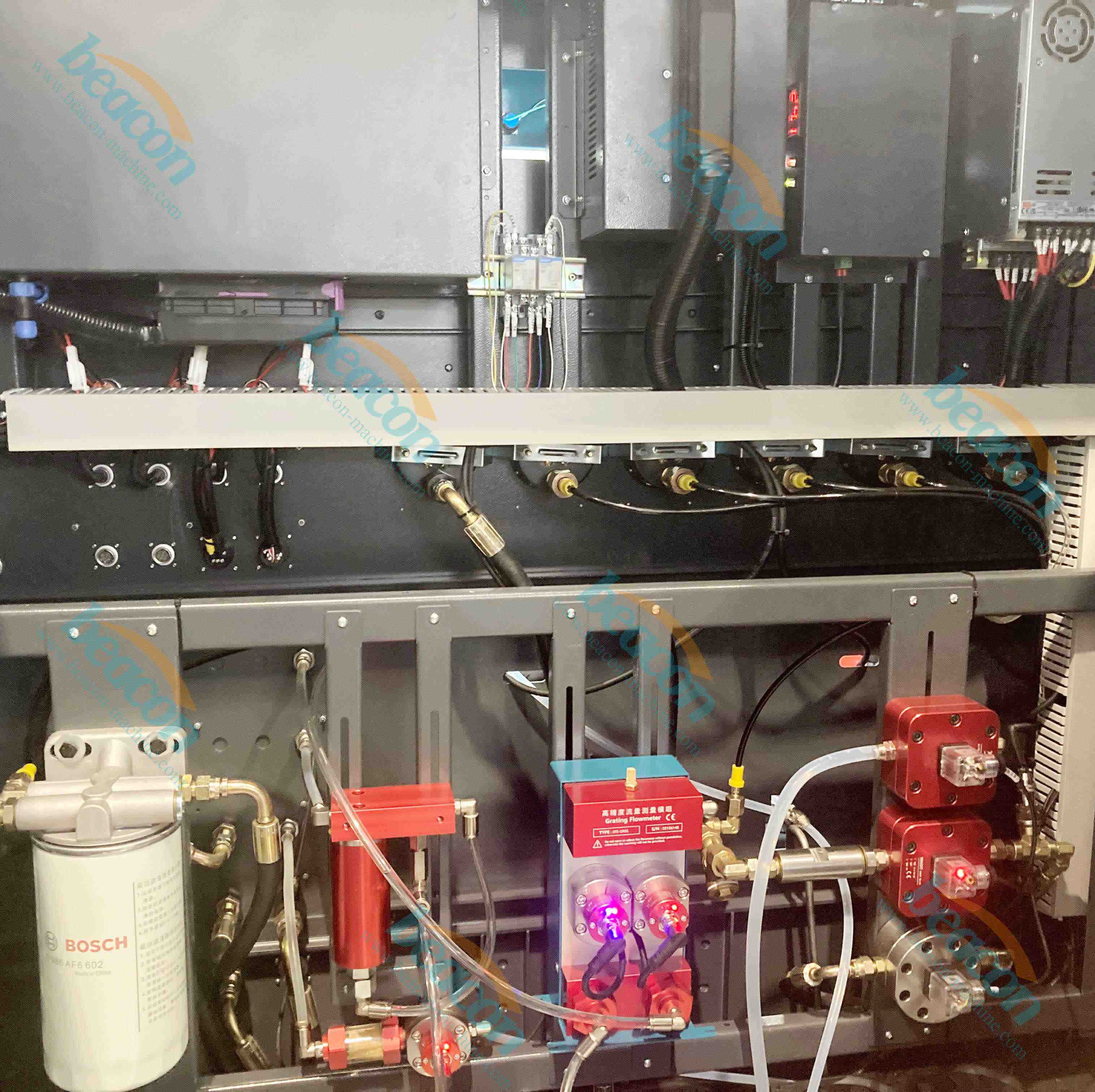

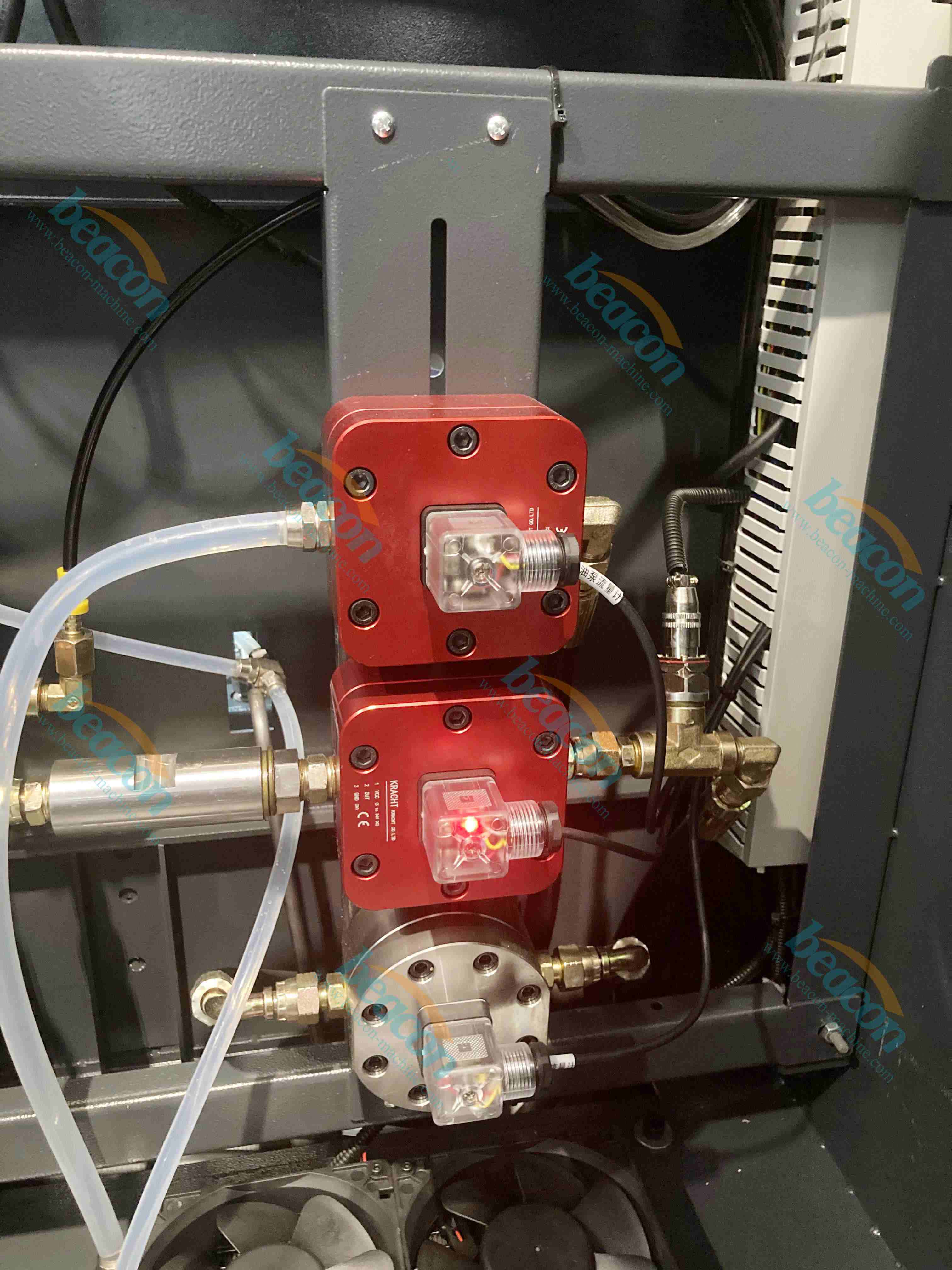

1.Combined flowmeter measurement method

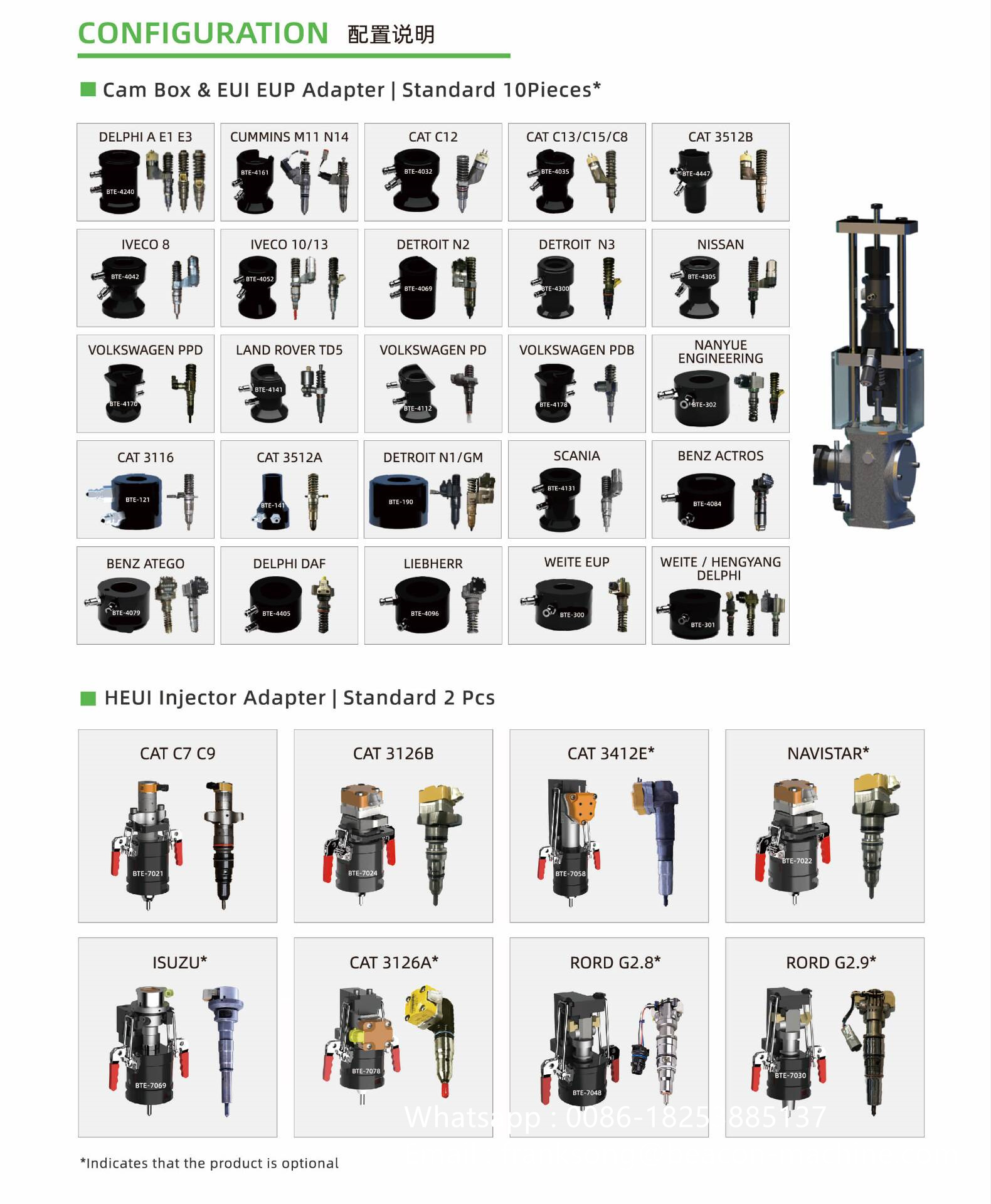

2.C7 C9 injector quick tooling
3.CHEUI Injector Concealed Pipe Design
4.Cam Box Load Sensor Function
5.The response time of fuel injection and fuel return is measured at the same time, and the fuel return is tested at each step
6.Common rail injector, unit pump/pump nozzle, Carter medium pressure Three sets of independent drive systems
7.Inverter motor 22Kw
8.Equipped with a pump nozzle load sensor to detect the injection pressure of the pump nozzle.
9.Maximum speed 3500 rpm

10.Laser positioning pump nozzle clamping is consistent


[Standard features]
1. Bosch, Denso, Delphi, Siemens, Cummins, Carter high pressure common rail injectors,High pressure common rail Bosch oil pump, Denso oil pump,
2. Cat medium pressure injector and actuating pump, Cummins common rail pump

[Optional function]
1. Cummins PT injector, Cummins PT fuel pump

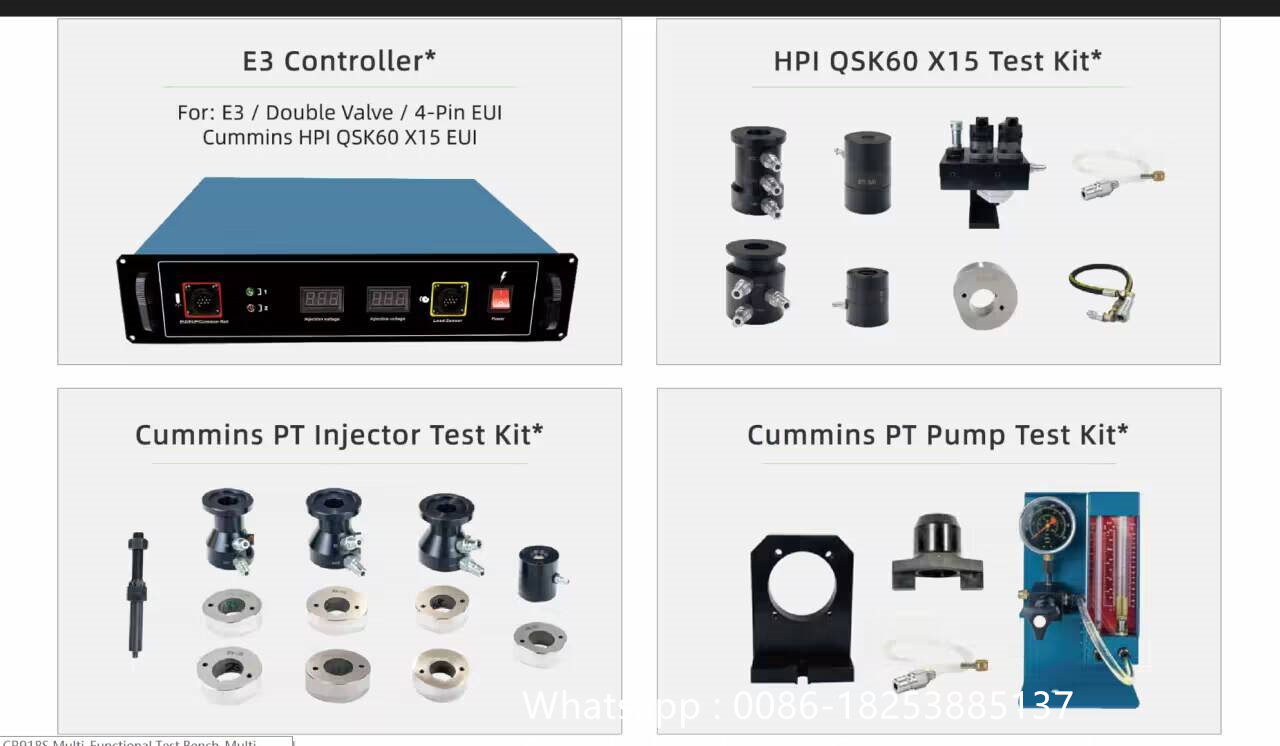

2. E3 control box, Cummins Q60X15 injector, Cummins Q60 X15 injector

[Detailed Features]
1. Maximum rail pressure 2700 bar
2. Testing Common Rail Injectors
3. Test the common rail pump
4. Test unit pump/pump nozzle
5. Testing HEUI injectors
6. Testing the HEUI Actuated Pump
7. Common Rail Pipe with Filtration
8. High pressure filter clogging reminder function
9. Waste oil tank overflow warning
10. Simultaneous measurement of fuel injection, fuel return and response time, and fuel return at each step

11. The oil-actuated pump and the high-pressure common rail pump are integrated inside, reducing the operating space of the operating room and avoiding frequent switching
