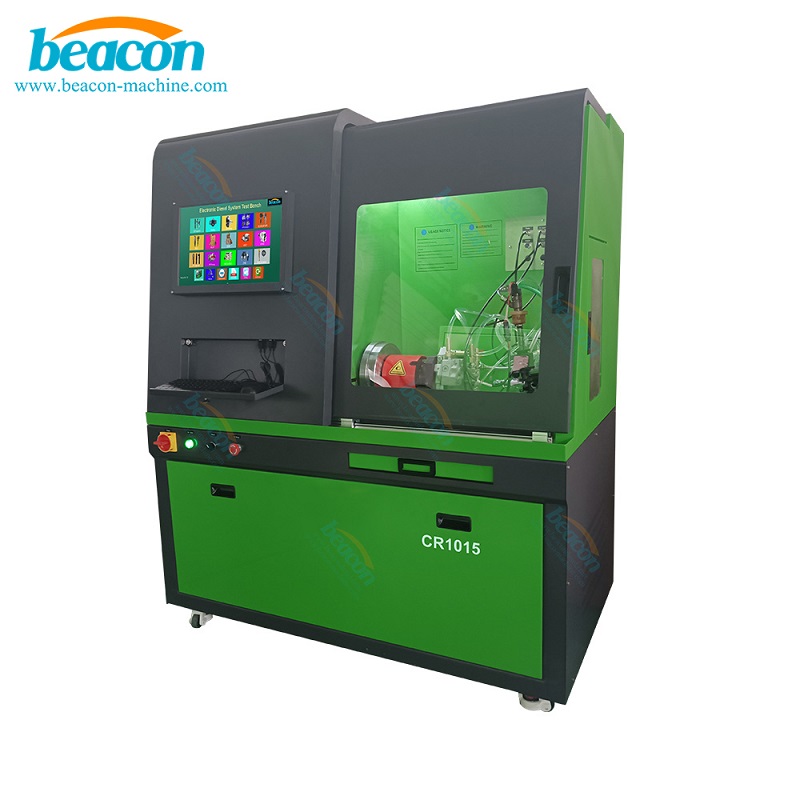

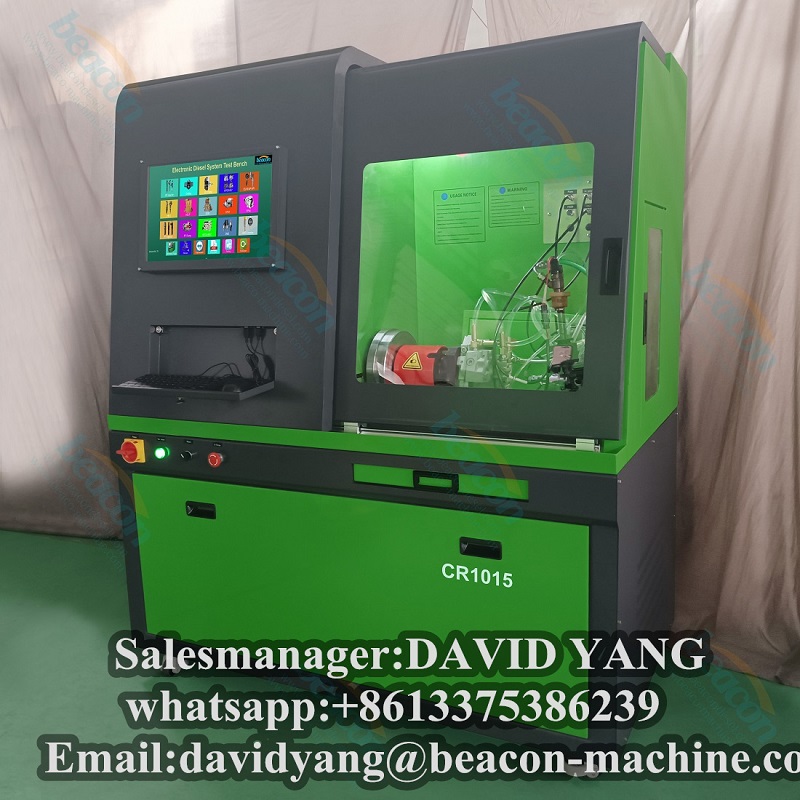

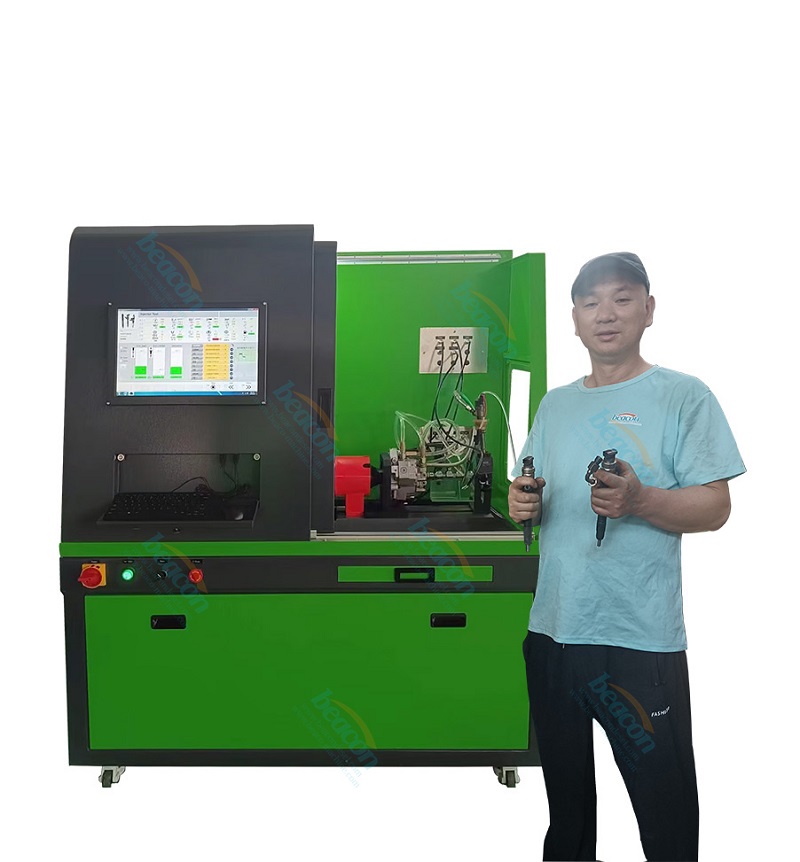

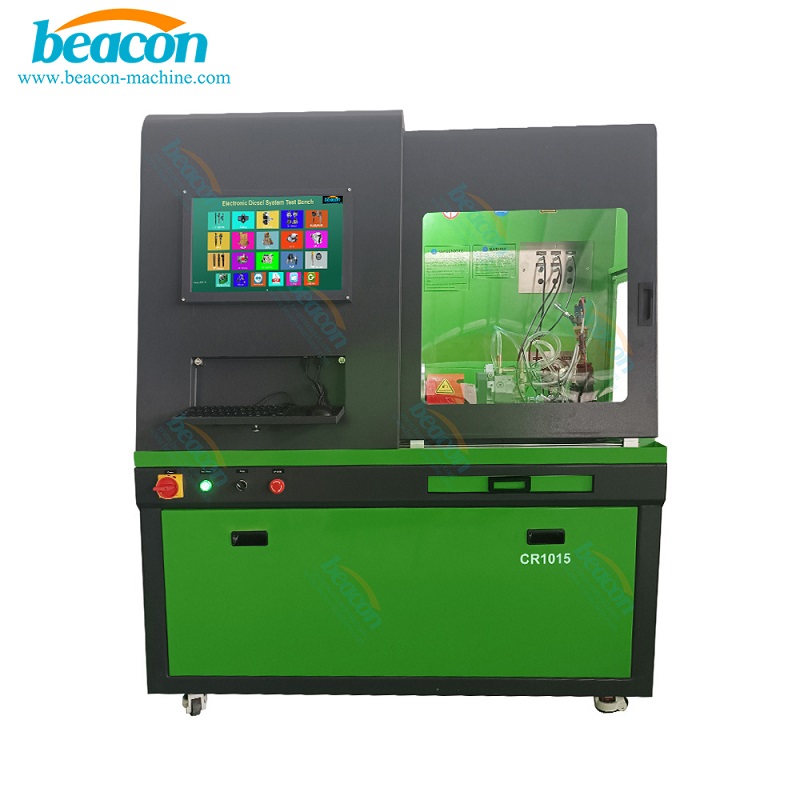

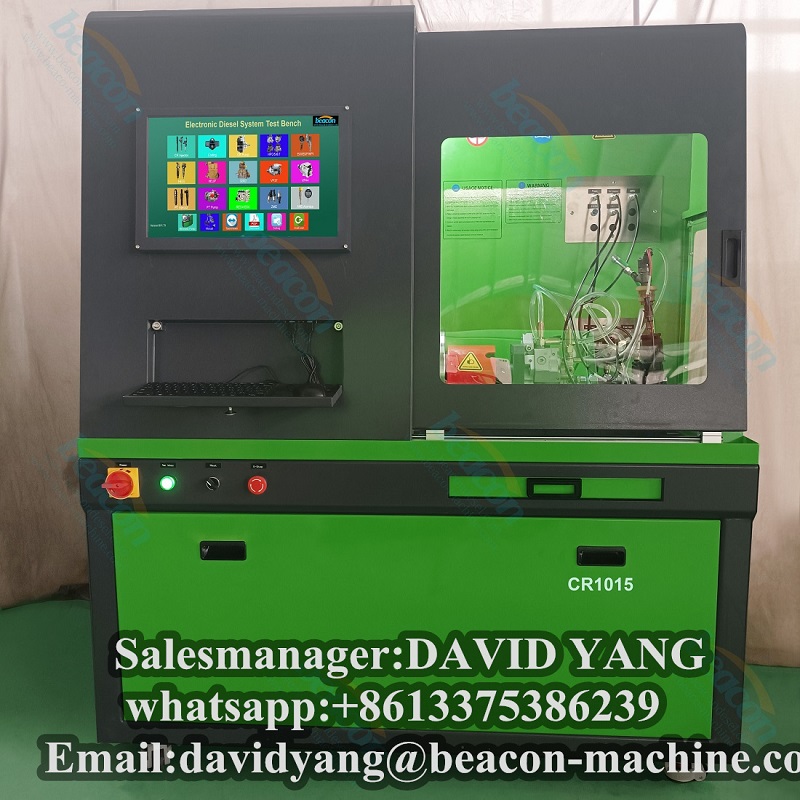

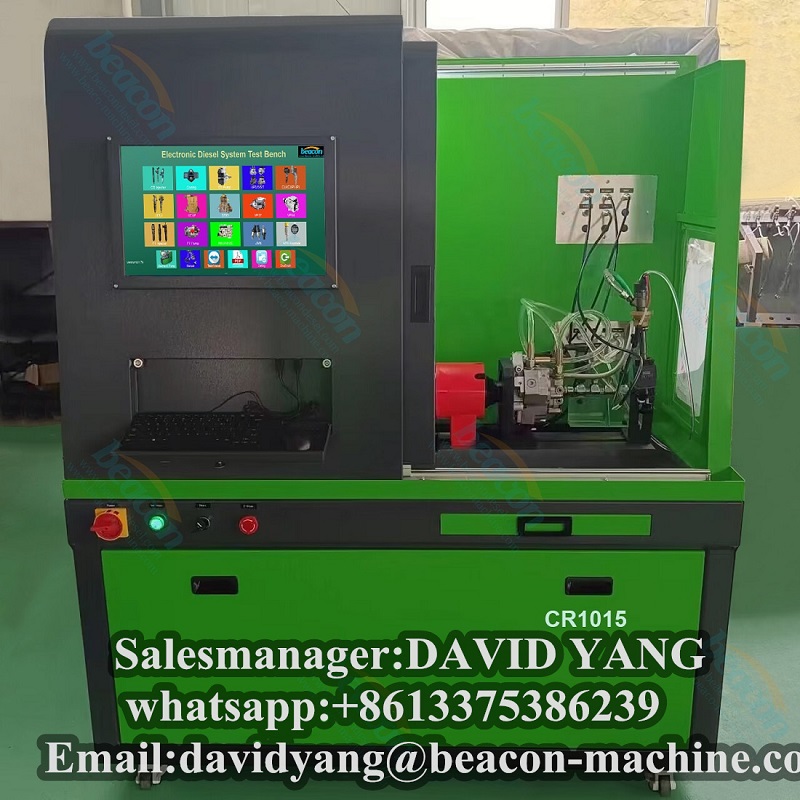

Diagnostic tools Common rail diesel fuel injection injector pump test bench CR919 with coding HEUI EUI EUP CR1015

0086-18253885135

MAIN CONFIGURATION

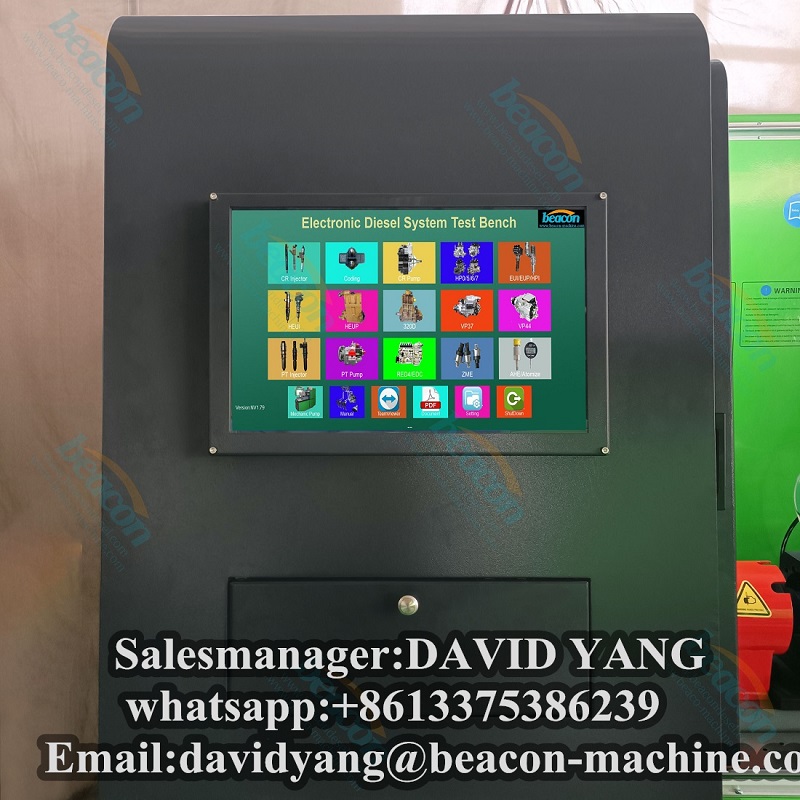

Industrial computer Windows operating system
With the database, you can search, store, modify test data, and generate new data.
Automatic measurement and generate QR code
Closed-loop control, which can automatically adjust the control rail pressure, the rail pressure is stable, and the fluctuation value is ± 1 Mpa.
The display rail working pressure is 200Mpa, the maximum pressure is 250Mpa
Common rail injection quantity, injection time, number of injections can be freely changed
With ultra high pressure protection, the rail pressure is more than 250Mpa will automatically shut down
Automatic control of oil temperature ± 40 ℃

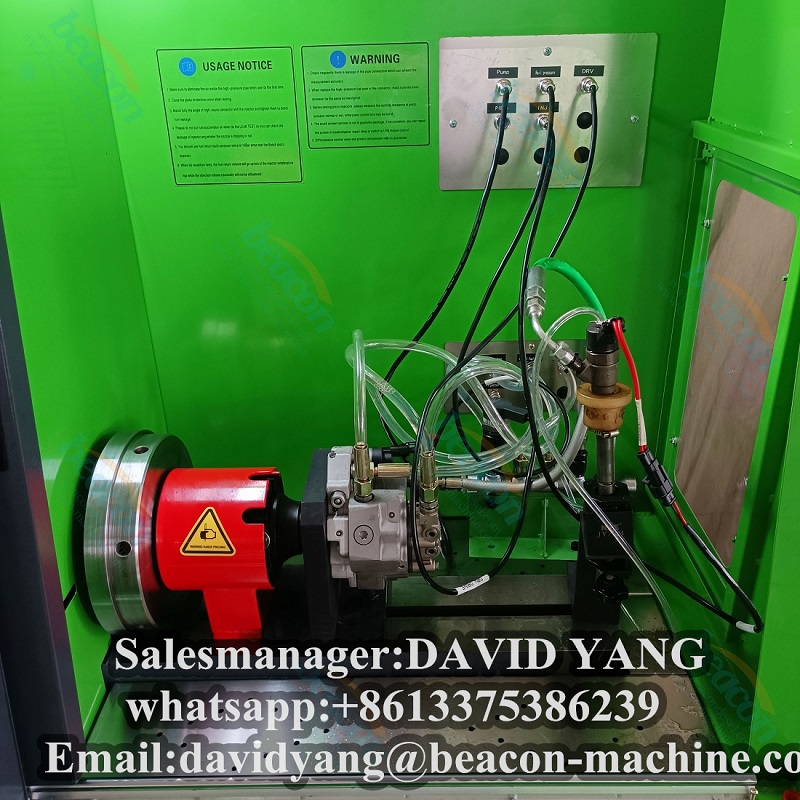

With protective glass door, safe operation and easy observation.
Can detect HEUI engine oil circuit
Oil temperature control by compressor cooling (optional)
Internet connection support for remote update
With injector response time detection (optional)

MAIN FUNCTION CHARACTERISTIC

1- Built-in automatic operation, including test bench speed, rail pressure, flow measurement, temperature control, etc. measurement report analysis, one-button operation.

2- It can test Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, heavy oil and other manufacturers of solenoid valve or piezoelectric crystal injector and high pressure common rail pump.

3- You can test Bosch, Cummins and other EUP / EUI oil pumps.4- You can test HEUI medium pressure common rail injector.

5- You can test common rail medium pressure HEUI pump (optional). 6- You can test the nozzle injector of the dual solenoid valve (optional). 7- You can test Cat 320D high pressure pump (optional). 8- Automatic Q code generation

9- You can test the injector response time.

Optional function
1.HEUI: 3412/3408 ISUZU
2.Mechanical pump test
3.VP37 pump test
4.VP44 pump test
5.RED4 pump test
6.DENSO V3,V4,V5 pump test
7.BIP function
8.HPI CUMMINS( X15 QSK60)
9.PT CUMMINS test
10.Bosch IQA code, Bosch piezo IMA,ISA code Denso QR code, Delphi C2i C3i code, siemens VDO-IIC code
