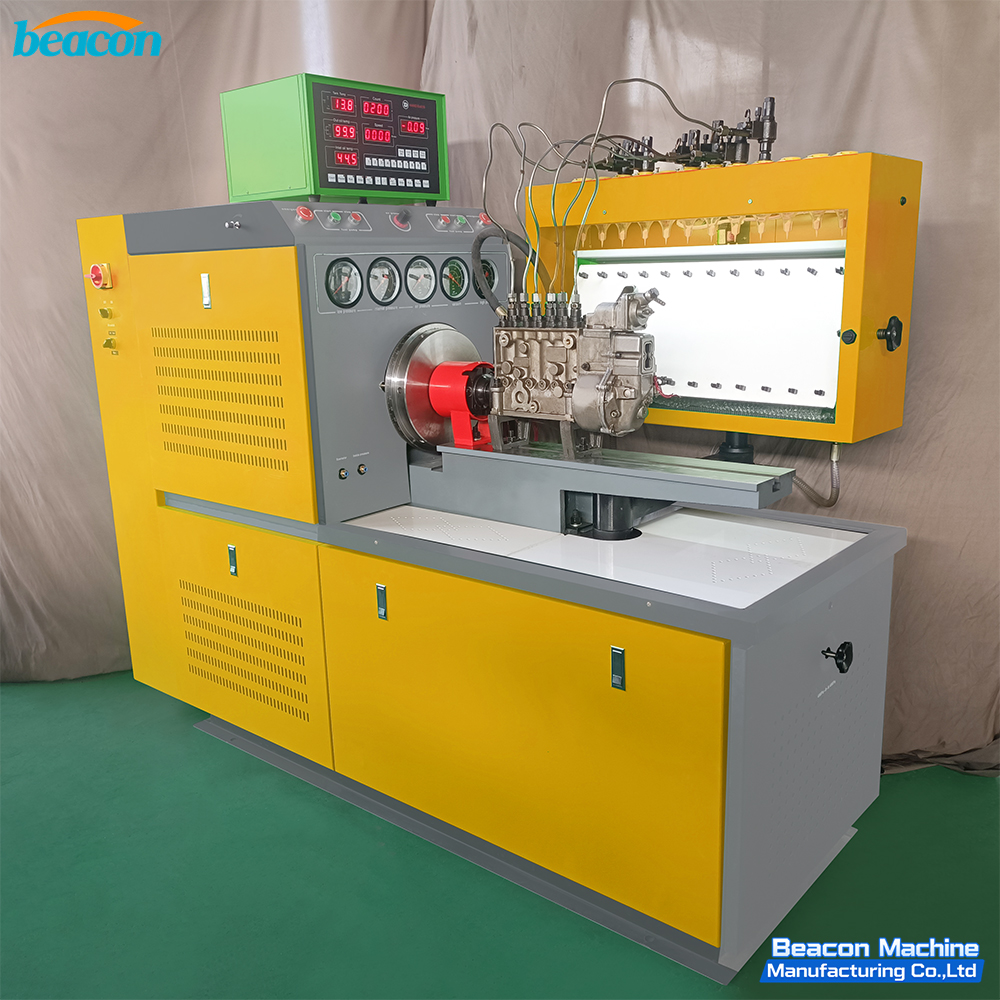

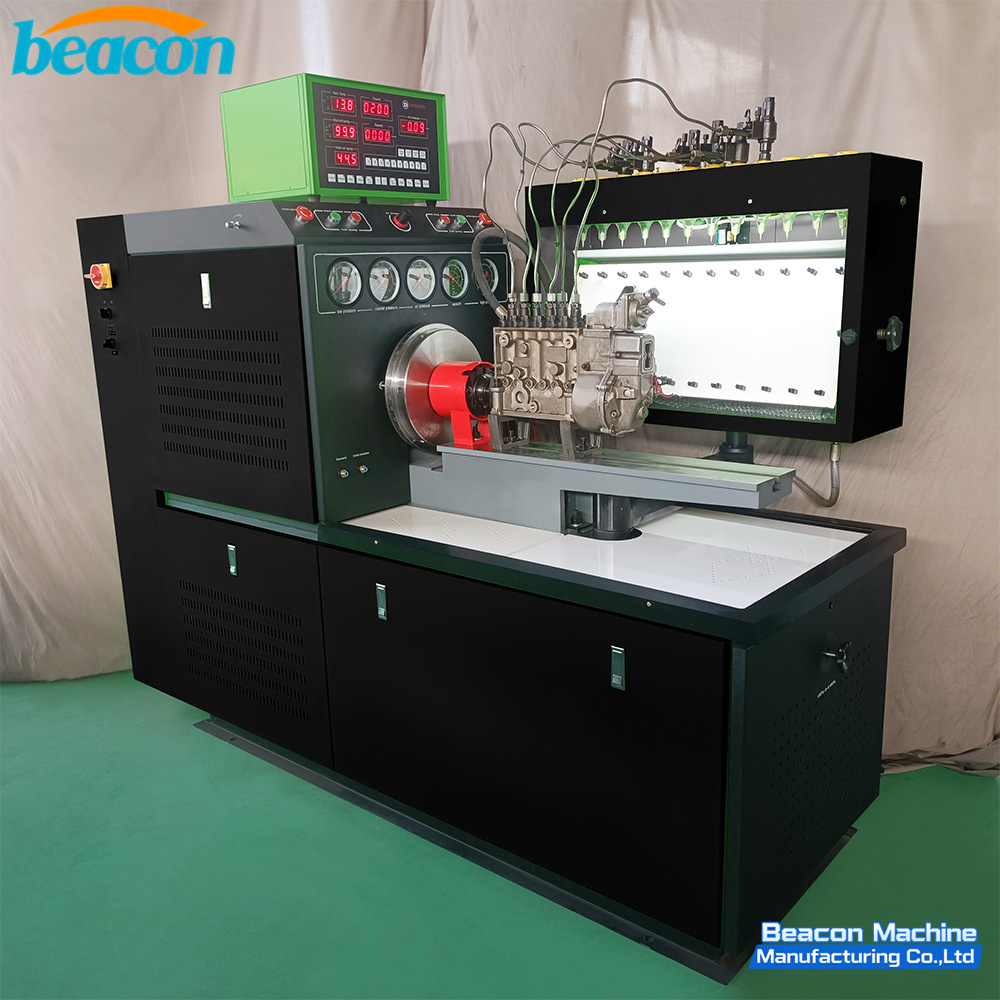

Beacon Auto Repair Diesel Service Machine Mechanical Traditional Diesel Fuel Injection Pump Test Bench ES619 with 12 Cylinders Can Test VE pumps

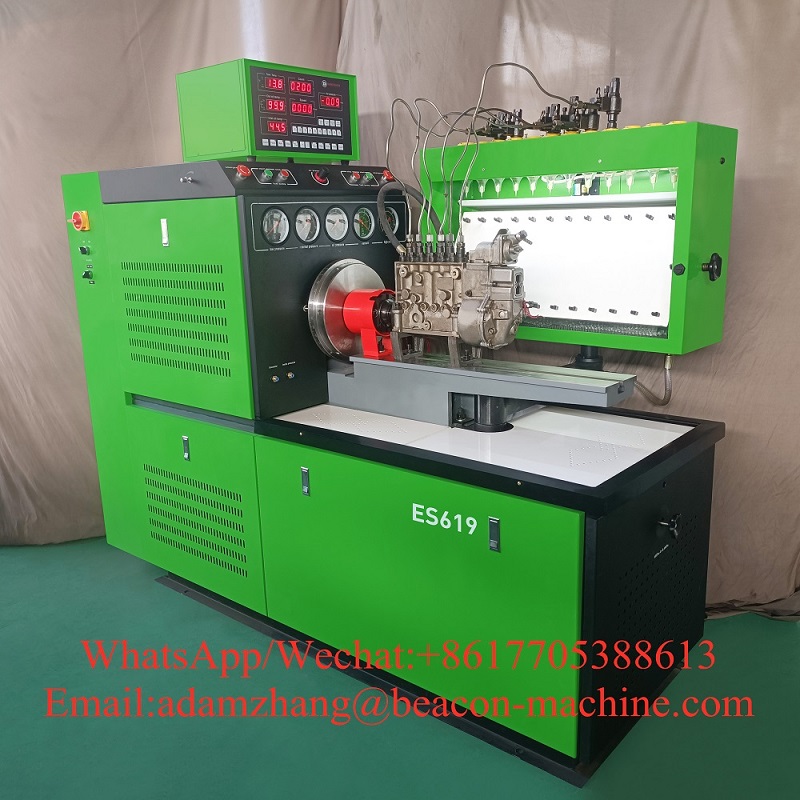

Our test bench ES619 is used to test EURO II mechanical conventional diesel fuel injection pump,it is with 12 cylinders.

0086-18253885135

info@beacon-machine.com

Make an inquiry

Product Description

ES619 diesel fuel injection pump test bench is a kind of fuel injection pump test bench adopt industrial pc with color CRT, It's the newly researched production for the direction of high power and safety to the environment. It has human-machine interface, digital controlling of rpm, temperature, pressure, diesel fuel pump technical parameter and so on, and in pace with print. It easy and quick operates ,it's really human-machine dialog. This series test bench adopt high quality frequency conversing device and cast iron base supper size bed, and its distinguishing features are hi-stable character, hi-reliability, ultra-low-noise, perfect auto-protecting function and so on, It is advanced products.

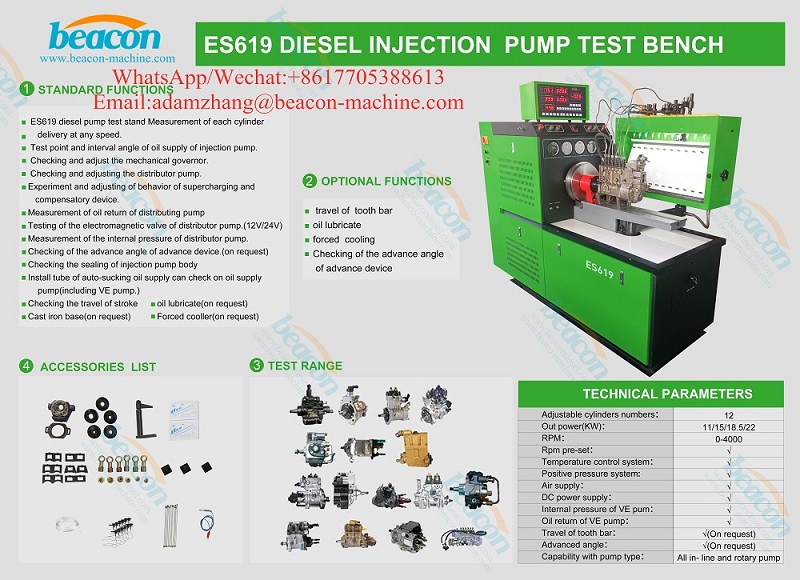

Main function:

1. ES619 diesel pump test stand Measurement of each cylinder delivery at any speed.

2. Test point and interval angle of oil supply of injection pump.

3. Checking and adjust the mechanical governor.

4. Checking and adjusting the distributor pump.

5. .Experiment and adjusting of behavior of supercharging and compensatory device.

6. Measurement of oil return of distributing pump

7. Testing of the electromagnetic valve of distributor pump.(12V/24V)

8. Measurement of the internal pressure of distributor pump.

9. Checking of the advance angle of advance device.(on request)

10. Checking the sealing of injection pump body
11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.)

12. Checking the travel of stroke

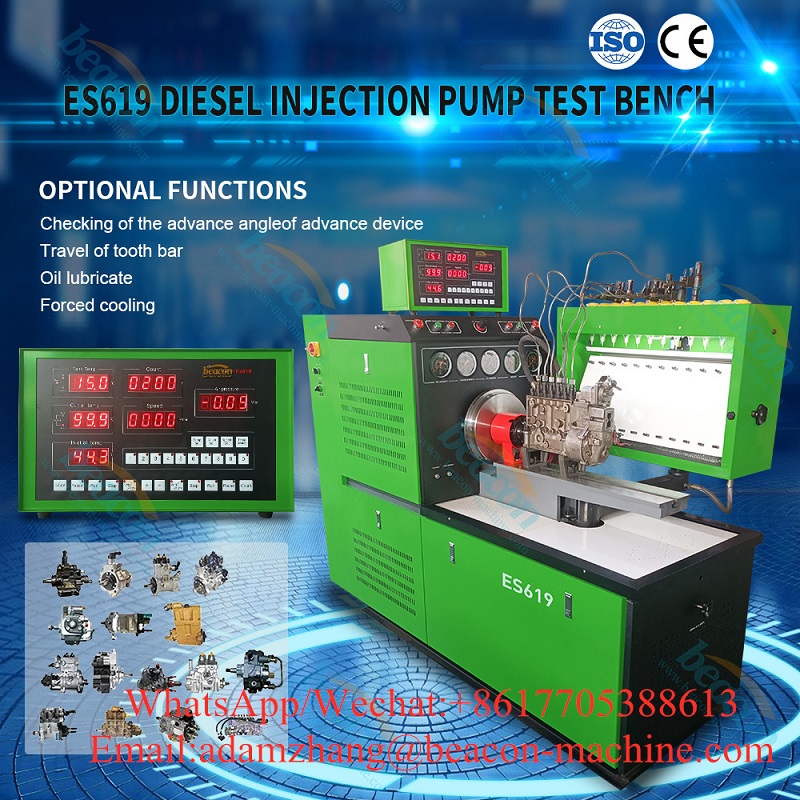

Also WE HAVE TEST BENCH OPTIONAL FUNCTION BELOW:

1.TRAVEL OF TOOTH BAR		2.OIL LUBRICATE
3.FORCED COLLING		4.Checking of the advance angle of advance device

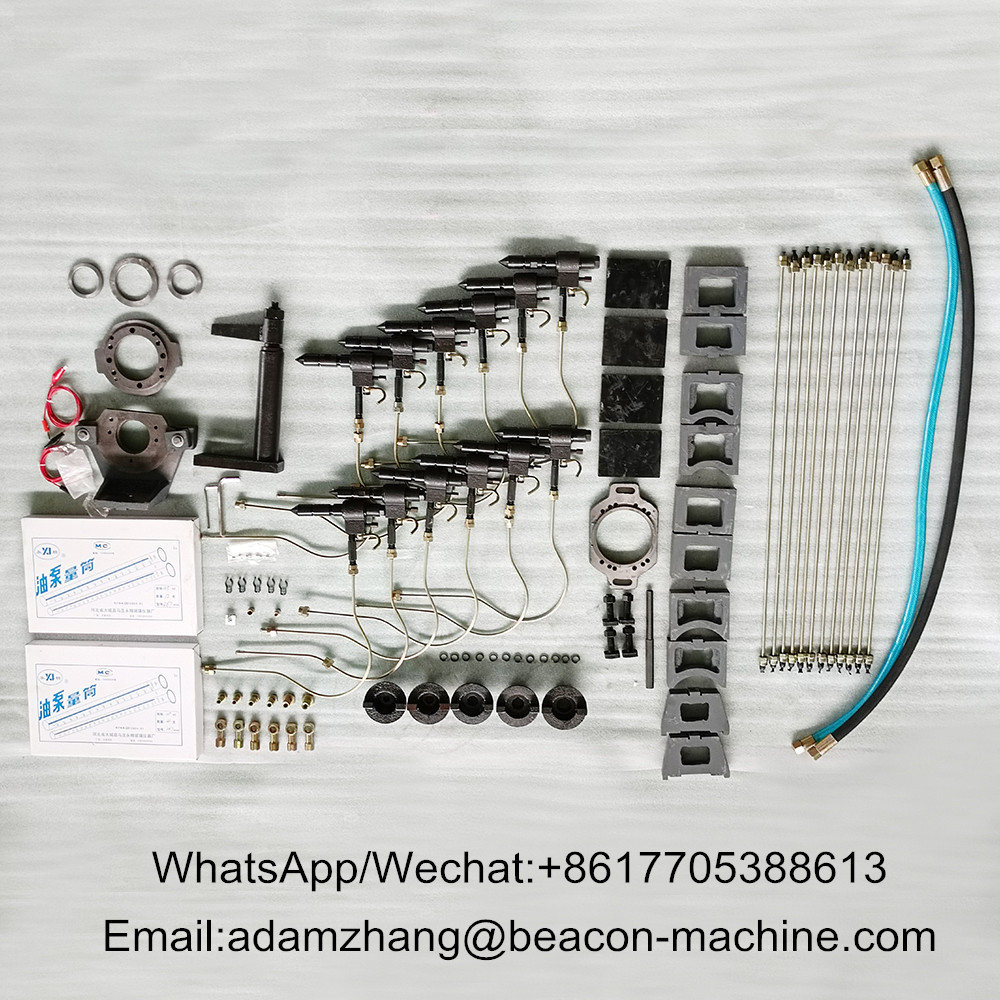

Accessories:
