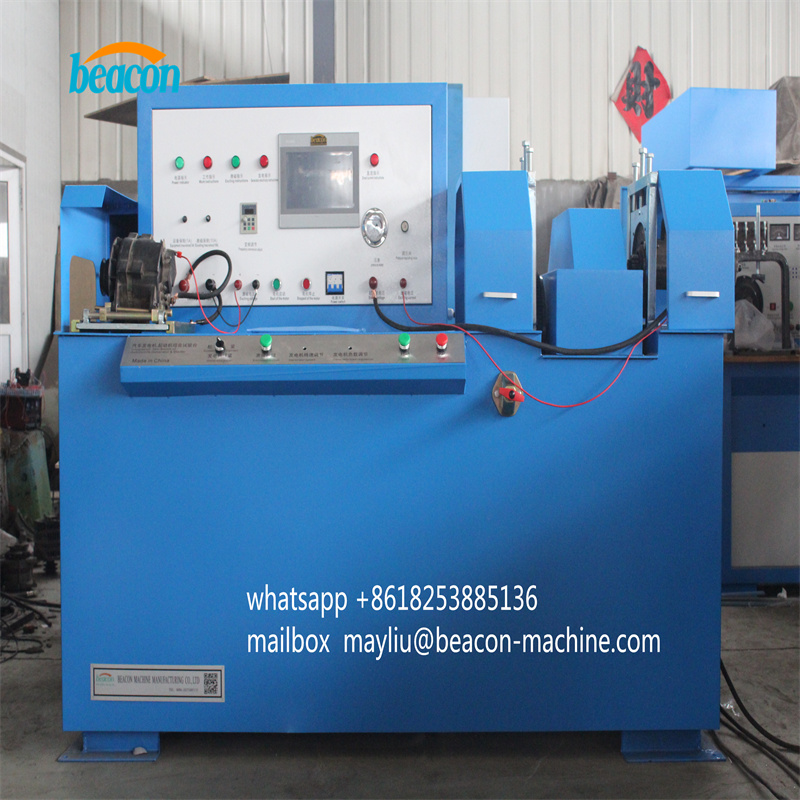

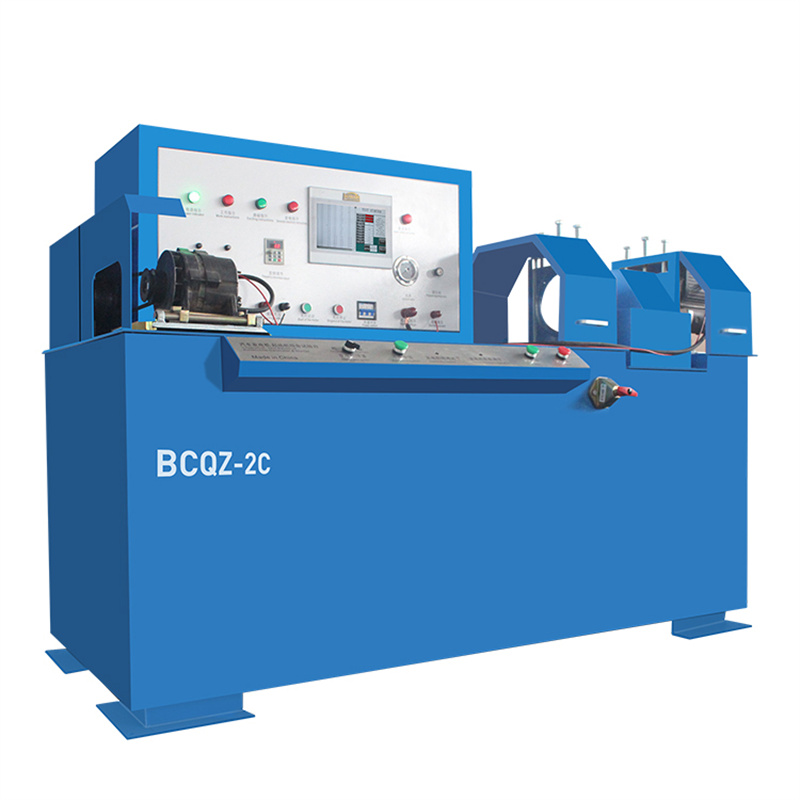

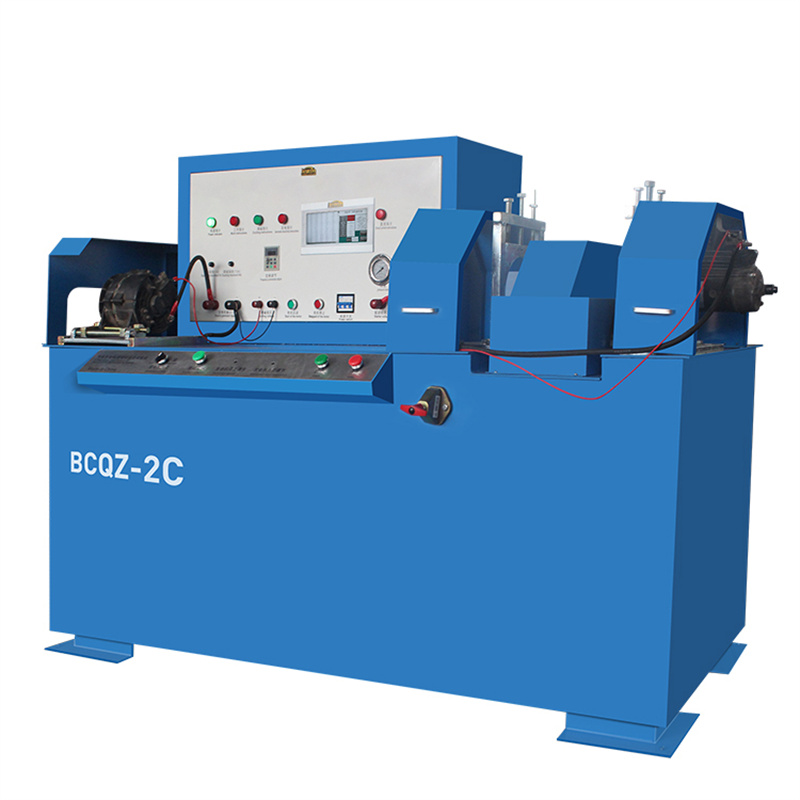

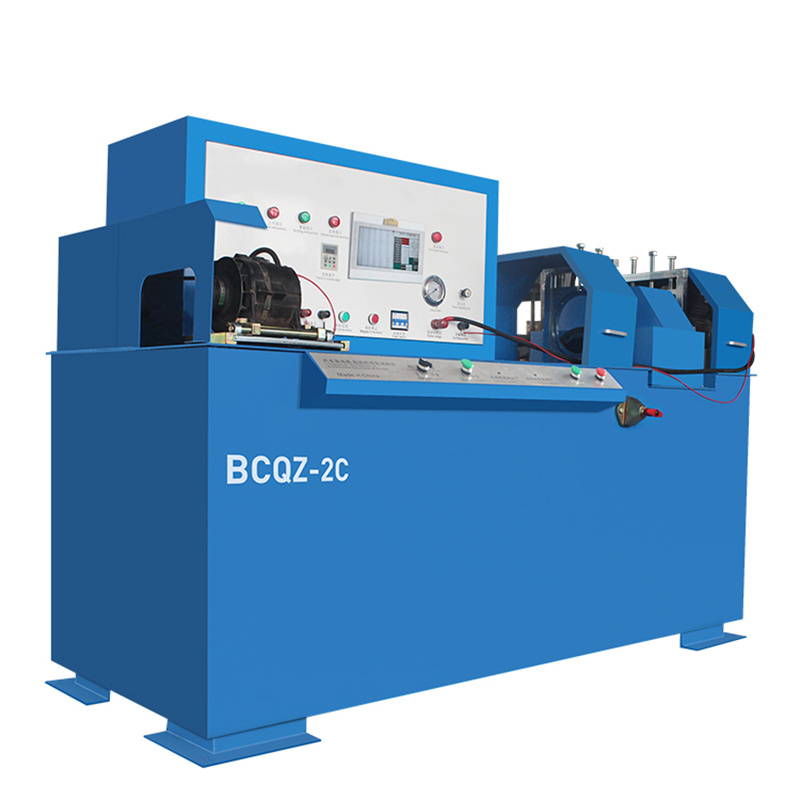

BCQZ-2C Touch Screen Generator Starter Test Bench Test Macchine

This test bench using variable frequency speed regulation and digital display is special electrical equipment used for testing large power automobile generator and starter and possesses high control sensitivity and strong controllability.

0086-18253885135

info@beacon-machine.com


Make an inquiry

BCQZ-2C Touch Screen Generator Starter Test Bench Test  Macchine

1.Function Introduction

BCQZ-2C

   This test bench using variable frequency speed regulation and digital display is special electrical equipment used for testing large power automobile generator and starter and possesses high control sensitivity and strong controllability. Display instrument uses digital display mode, reads data directly and is electronic load module type, domestic first. This test bench is especially applicable for testing large vehicles generator and starter used for Bus Company and oil field etc. It is also matched with computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of various models generators and starters.


2.Technical Parameter


Input working voltage

380V AC 50HZ(three-phase four-wire)DC12V24V or 48V

Motor power

7.5KW

Frequency converter power

7.5KWthree-phase AC

Speed adjustable range of generator

no load 0-8000r/min  load 0-6000r/min

Load mode

Electronic module type  DA  (0200A)

Working current of starter

0-2000A

Torque of starter

0200 N.M

Air pressure setting

01MPa (random adjustment)


3.Applicable Scope

 Generator and starter of various large load carrying vehicles, passenger car and bus;

 Maximum test power of generator :5.5KW

Maximum test power of starter: 15KW
