  • BCKS-2A Automobile Gas-way or Air Circuit System Test Bench

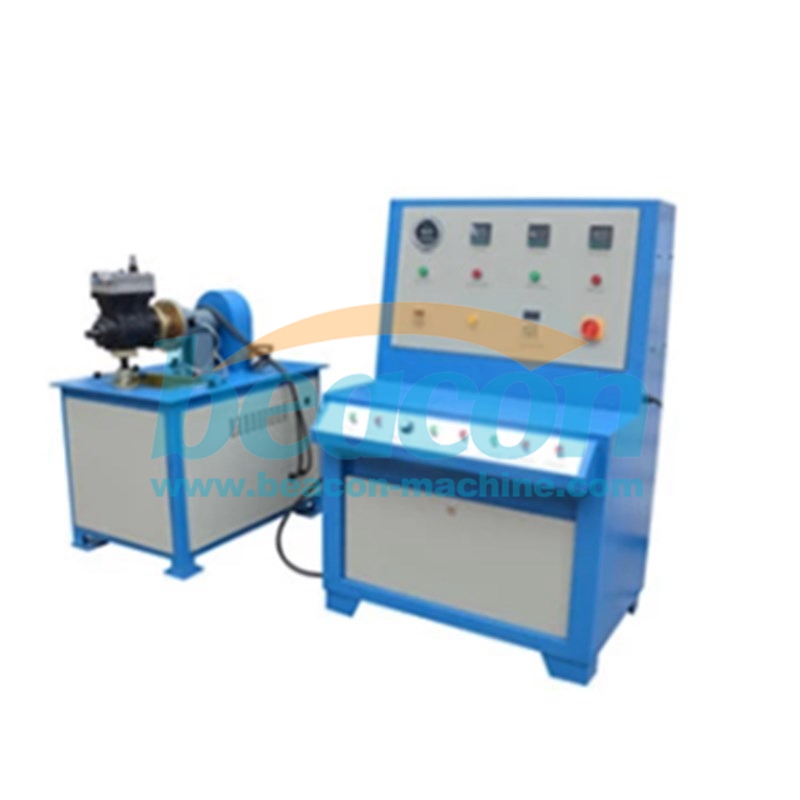

BCKS-2A Automobile Gas-way or Air Circuit System Test Bench

This test bench is used for performance test of air compressor in braking system of various vehicles, it is a ideal test equipment in air compresser maintenance. It is specially suitable for public bus repairing and detection.

0086-18253885135

info@beacon-machine.com


Make an inquiry

Function & Parameter


1.General Introduction


This test bench is used for performance test of air compressor in braking system of various vehicles, it is a ideal test equipment in air compresser maintenance.


It is specially suitable for public bus repairing and detection.




2.Test item


It is to test, under rated rotate speed, the time the air compressor needs to reach the specified air pressure.


It can test the oil temperature,air temperature and recycled water temperature of air compressor.




3. Technical parameter:


Working power supply: AC 380V 50HZ 3 phase


Motor power:11KW


Frequency converter power: 11KW


Frequency speed adjustable range: no load 0-5000rpm


                  Load 0-2000rpm(continuously adjustable)


Air pump subsidiary tank: 15L


Oil pump rated pressure:0-1.0Mpa


Lubrication oil temperature test range:0-100 degrees


Air temperature test range:0-100 degrees


Water temperature test range:0-100 degrees


Packing :


Export Plywood case


1170*950*1640mm=1.82CBM 1040*840*1300mm=1.14CBM


Total:2.96CBM


N.W:270kgs


G.W:340kgs




make to measure


I need your samples of compressors to make clamps accordingly
