The equipment is equipped with self inspection function, which is divided into industrial computer system self inspection and sensor and cable detection;Through the waveform diagram during the self inspection of the industrial computer system, we can judge whether there is a fault in the industrial computer system. The detection of sensors and cables can judge whether there is a fault in the equipment according to the waveform diagram during the operation of the equipment. This function can help customers find out the fault as soon as possible when there is a fault in the equipment, and help our company solve the problem in time when the customer can't distinguish it.

11The software has the function of angle decomposition of unbalance measurement results and the auxiliary function of weight removal drilling, which is convenient for customers to use

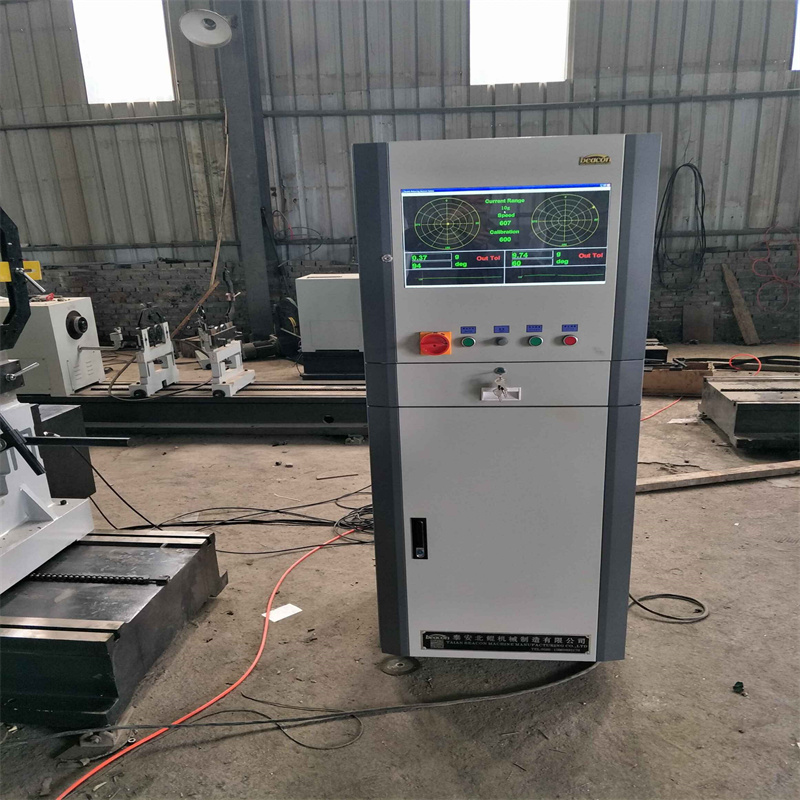

12The screen adopts vector graphics and digital dual display. In the digital display, the unbalance, phase angle, real-time speed, weight addition and weight removal status are directly displayed. There is a progress bar in the measurement process. After the measurement, the judgment of whether the current result is qualified is given according to the preset qualified value,When the progress bar is green, the measurement result is less than the set value. If it is qualified, it is red. If the measurement result is greater than the set value, it needs to continue to be balanced.

13After the measurement, the software displays the measured dynamic imbalance, static imbalance and even imbalance at the same time, which is suitable for the balance of various workpieces. For example, the balance correction of high-pressure fan can be carried out according to the static imbalance and even imbalance.

14The software is equipped with an ISO national standard allowable unbalance calculator. The grams of the allowable residual unbalance of the rotor can be obtained by inputting the relevant parameters and accuracy grade of the rotor.

15When the measurement results are displayed in mass, G (g), kg (kg), Mg (hawk) or unbalanced torque g.cm (g * cm), g.mm (g * mm) can be selected by the customer.

16Completely independent development, design and intellectual property rights to ensure that they will not be prosecuted by a third party in the process of use.
