YYW-1000A Universal Joint Drive Dynamic Balancing Machines For Rotor Wheel Balance Machine Crankshaft

SUMMARY

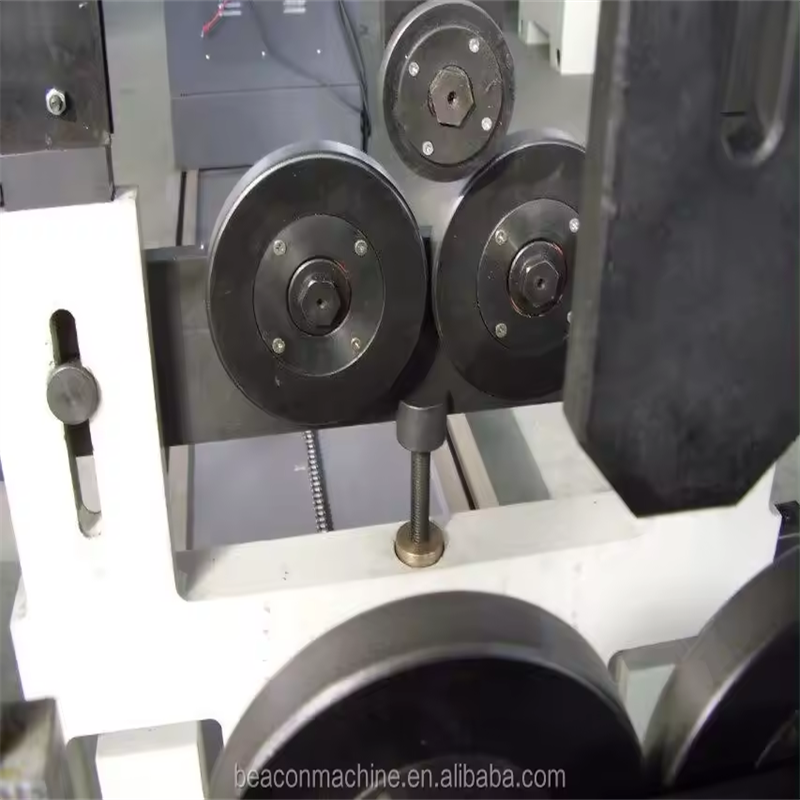

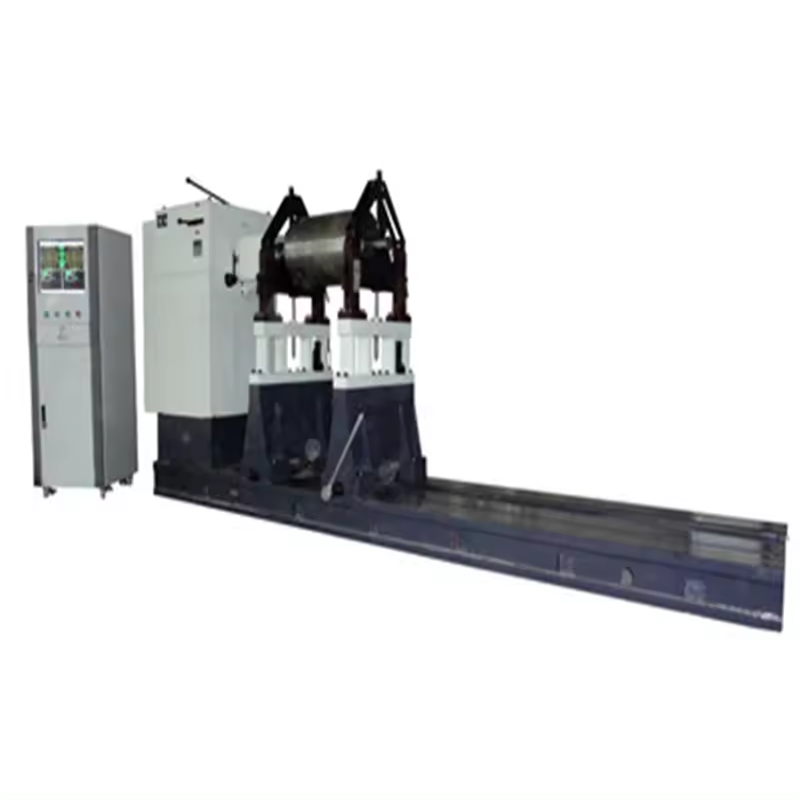

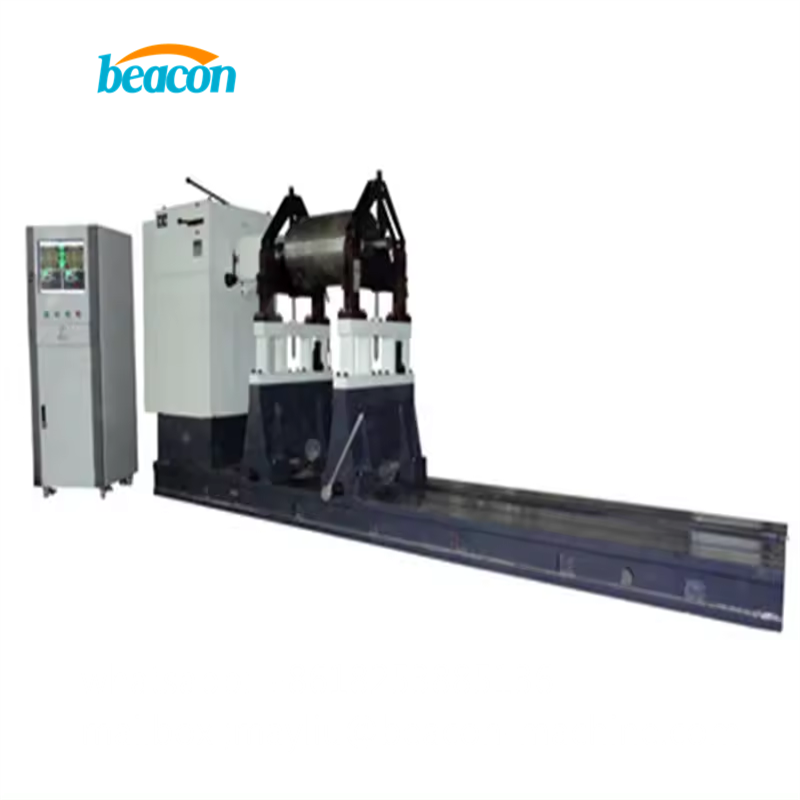

This series of equipment is hard support horizontal dynamic balance machine, with roller bearing, gimbal couplings drive, routine for double-speed motor drive, "A" type for variable frequency speed regulation system, an industrial control computer data processing LCD monitor real-time display imbalance, value, phase Angle and real-time speed, and lathe bed are integrally cast. Widely used in motor, blower, diesel engine, agricultural machinery, textile machinery and other industries, can be in the single side, double side and multiple correction plane balance measurement. Suitable for axle plate type and the barycenter overhanging rotor. With high efficiency and precision accurate, show intuitional, reliable quality, convenient maintenance characteristic.

GB - 2000 universal microcomputer balance measurement system is Windows XP operating system under the latest general microcomputer balance measurement system, the system of running environment should be at least Windows95 operating system above. System hardware by multiple single chip microprocessor (CPU) composition, adopt double road high speed A/D converter, have program-controlled tracking amplification, program-controlled tracking filter, rotational speed real-time measurement, data real-time transmission and simulation benchmark signals, simulated vibration signal etc. Function. It make full use of the advantages of the Windows, the measurement system function extremely powerful. From the interface, data processing, print, data graphic display, documents graphics printout, without exception, reflects the Windows attractive. Concentrate on the design of balance measurement system to adapt in soft supporting.centre hard supporting and static balance and dynamic balance, and many other class balance equipment. And can realize a measurement system simultaneous measurement of multiple balance equipment. Realized balabcing size, phase, rotational speed of fully dynamic uninterruptedness measurement, measurement accuracy is greatly increased.

USE ENVIRONMENT

1) ℃ room-temperature: 0-50

2.) relative humidity < 85%

3.) industrial PC power supply voltage fluctuation 190-240V (when necessary user self-provided manostat), the power supply voltage fluctuation -9 400V.

4) machine should be installed in a stable basis, installation is spent in.2/1000 within.

5.) preventing electromagnetic interference, far from the interference.

6.) to prevent oil, salt, acid and corrosive gas enter.

7.) to prevent water, steam, dust, cotton, metal powder invading.

8.) banned in inflammable and explosive gas, flammable, liquid or solid, dangerous environment.

The first chapter

MAIN TECHNICAL PARAMETERS

Industrial PC parameters
