Cylinder head leak detector is a high efficiency detection equipment. It integrates pneumatic,electrical and hydraulic equipment. It can simulate the engine temperature of the vehicle in the driving state Equipped with an infinite flip bracket to accurately find defects in the cylinder head and cylinder block.
0086-18253885135
Cylinder head leak detector is a high efficiency detection equipment.
It integrates pneumatic,electrical and hydraulic equipment.
It can simulate the engine temperature of the vehicle in the driving state Equipped with an infinite flip bracket to accurately find defects in the cylinder head and cylinder block.
|

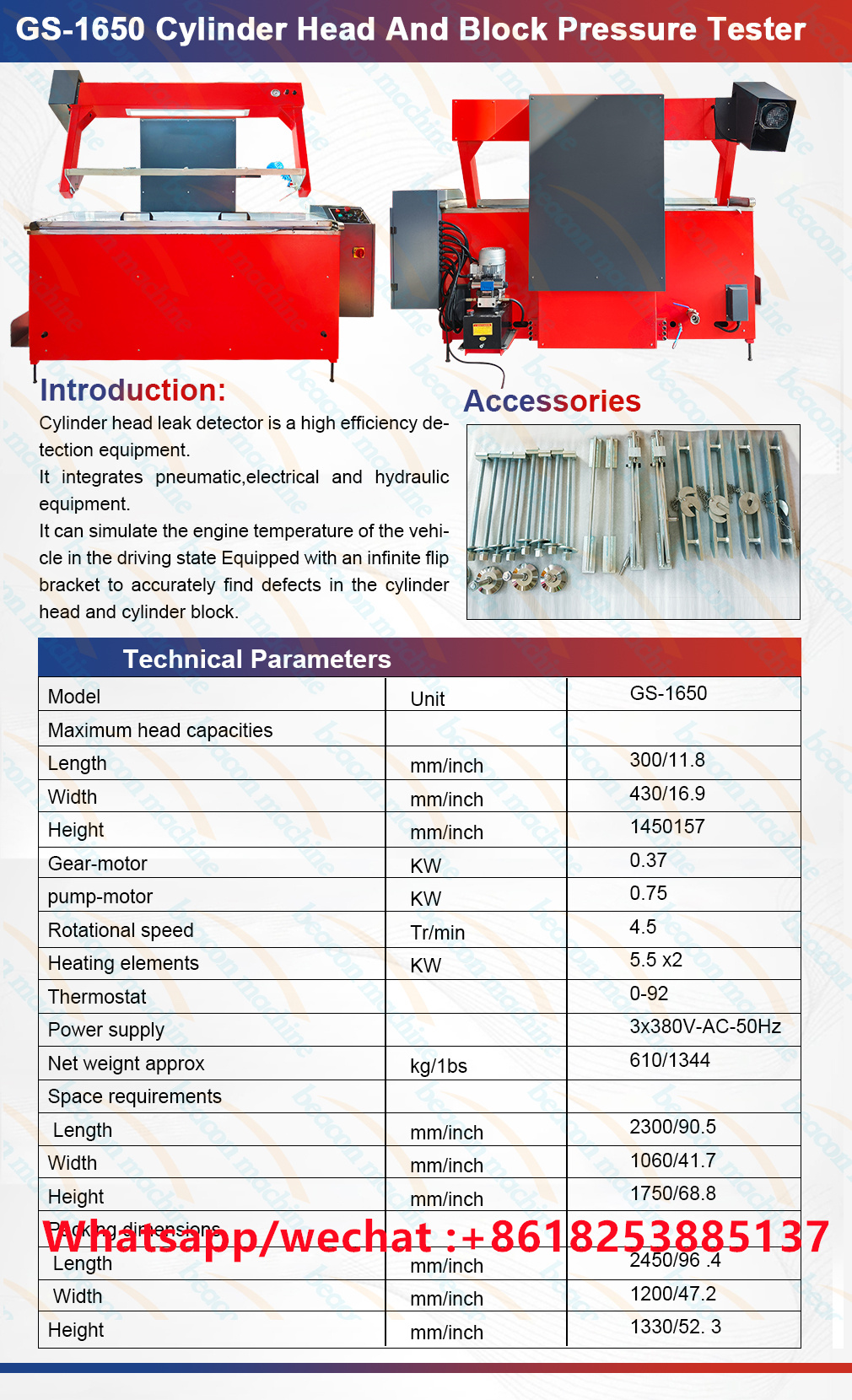

Parameters |
||
|
Model |
Unit |
GS-1650 |
|
Maximum head capacities |
|
|
|
Length |
mm/inch |
300/11.8 |
|
Width |
mm/inch |
430/16.9 |
|
Height |
mm/inch |
1450157 |
|
Gear-motor |
KW |
0.37 |
|
pump-motor |
KW |
0.75 |
|
Rotational speed |
Tr/min |
4.5 |
|
Heating elements |
KW |
5.5 x2 |
|
Thermostat |
|
0-92 |
|
Power supply |
|
3x380V-AC-50Hz |
|
Net weignt approx |
kg/1bs |
610/1344 |
|
Space requirements |
|
|
|
Length |
mm/inch |
2300/90.5 |
|
Width |
mm/inch |
1060/41.7 |
|
Height |
mm/inch |
1750/68.8 |
|
Packing dimensions |
|
|
|
Length |
mm/inch |
2450/96 .4 |
|
Width |
mm/inch |
1200/47.2 |
|
Height |
mm/inch |
1330/52. 3 |
